Professional 3-axis High-precise FOC Program

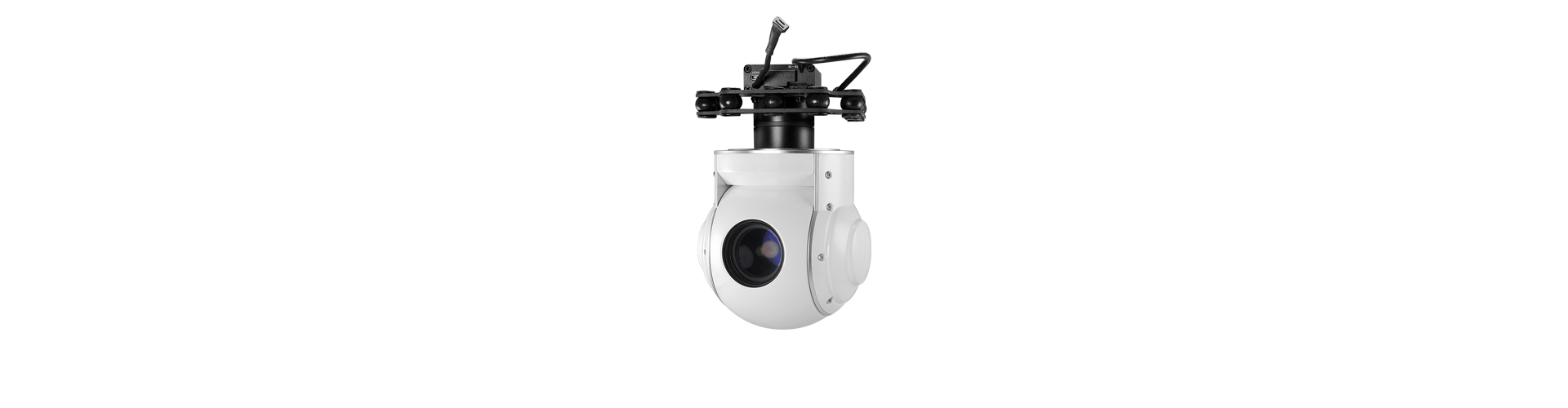

Stabilizing the U30T is a highly optimized 2-axis camera gimbal with pinpoint-precise motor rotation with a control accuracy of ±0.02° powered by a dedicated processor. U30T uses a unique mechanically limited design and concealed wires to ensure more stable data transmission and greater durability. Vibration is eliminated using four damping balls and a lightweight damping board, creating seamlessly smooth video. ±300° rotation remains possible through gimbal pan. 2axis stabilized gimbal with aerodynamic dome design ensures stable, smooth footage image  even in high speed flight with VTOL or fixed wing.









SONY 30x Zoom Starlight Camera

Powered by SONY 1/2.8 Exmor R CMOS module, with 0.01lux@F1.6 starlight level min illumination, U30T can still clearly display image features in utter poor light environment. 2.13 mega effective pixel and 1080p HD image quality, combined with 30x advanced optical zoom technology, the observation range is up to 500 meters, which can meet the application requirements of various domains.







Built-in Object Tracking Function


Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 32pixel/frame,object size range is from 16*16 pixel to 160*160 pixel, with the minimal signal-to-noise ratio (SNR) 4dB, the mean square root values of pulse noise in the object position < 0.5 pixel, which greatly improve the accuracy and tracking effect.







Multi Output Methods Optional



Q10T support both HDMI output, Ethernet/IP output and SDI output. HDMI and output are 1080p, Ethernet output defualt as 720p and record is 1080p. IP output and SDI output versions will support 360degree enless pan.



Multi Control Methods



Defualt PWM and Serial port TTL control, SBUS is optional, IP output version also support TCP control via ethernet cable. With Viewpro software Viewlink you can fulfill IP output, TTL control and TCP contorl.



Control box signal interfaces:




Compatible with Viewport

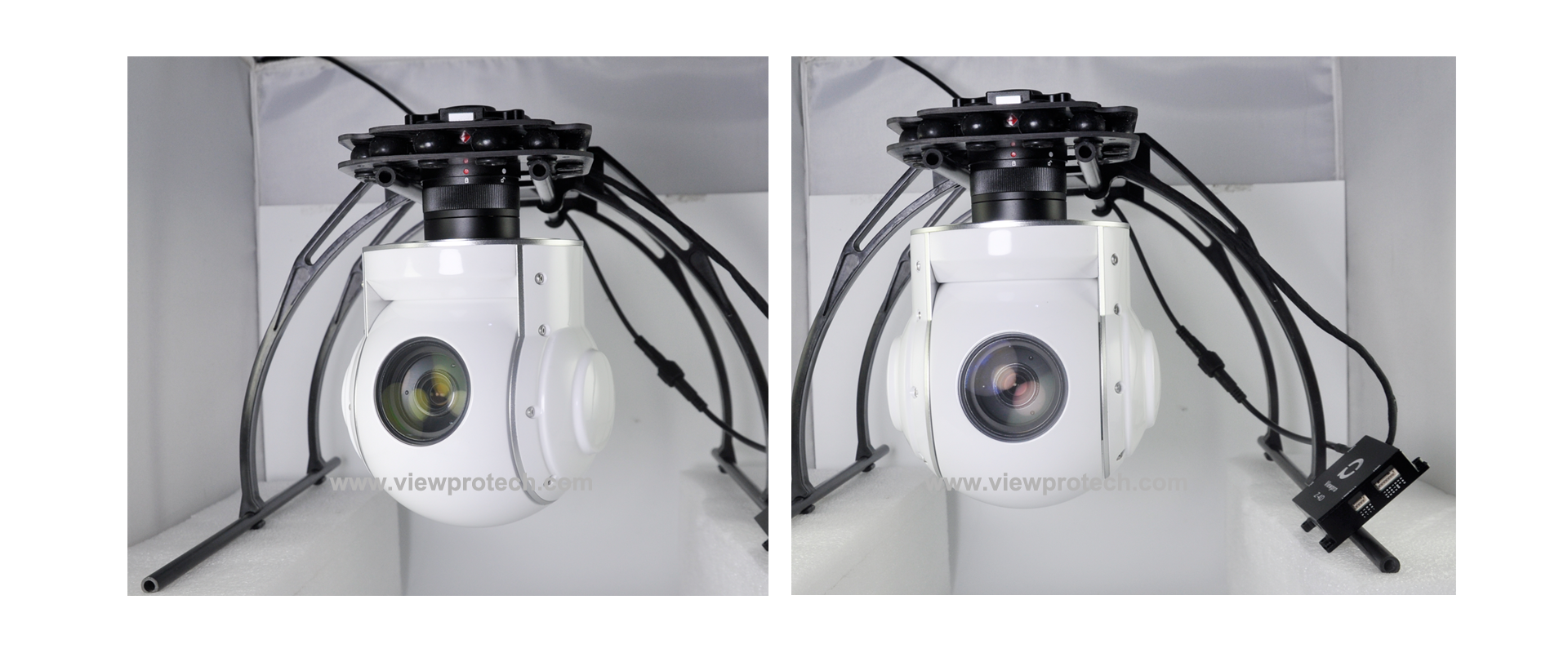

U30T is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play.


Signal interfaces of Viewport control box:

For more information about Viewport, please check below video instruction:





Applications


Mainly supply in law enforcement, fire-fighting, power tower and pipeline inspection, search and rescue etc. A wide range of monitoring and searching is required in an emergency to quickly transfer the situation, improve response efficiency and reduce casualties.



Dimensions



Specifications





Hardware Parameter
Working voltage 12V
Input voltage 4S ~ 6S
Output voltage 5V (connect with PWM)
Dynamic current 500mA @ 12V
Idle current 400mA @ 12V
Power consumption ≤ 6W
Working environment temp. -20 ~ +60
Output  micro HDMI(HD output 1080P 60fps) / IP
Local-storage SD card (Up to 128G, class 10, FAT32 or ex FAT format)
Control method PWM  / TTL / S.BUS / TCP (IP output version)
Gimbal Spec
Pitch/Tilt -45~+90°
Roll Not support
Yaw/Pan ±300°/±360°*N (IP output only version)
Vibration angle Pitch/Roll: ±0.02°, Yaw±0.03°
One-key to center
Camera spec
Imager Sensor SONY 1/2.8" "Exmor R" CMOS
Picture quality Full HD 1080 (1920*1080)
Effective pixel 2.13MP
Lens optical zoom 30x, F=4.3~129mm
Digital zoom 12x (360x with optical zoom)
Min object distance 10mm(wide end) to 1200mm(tele end). Default 300mm
Horizontal viewing angle 1080p mode: 63.7°(wide end) ~ 2.3°(tele end)
720p mode: 63.7°(wide end) ~ 2.3°(tele end)
SD: 47.8°(wide end) ~ 1.7°(tele end)
Sync system Internal
S/N ratio more than 50dB
Min illumination Color 0.01lux@F1.6
Exposure control Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE
Gain Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps)
Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps)
White balance Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), One-push, Manual
Shutter speed 1/1s to 1/10,000s, 22 steps
Backlight compensation Yes
Aperture control 16 steps
Defog Yes
OSD Yes
Camera Object Tracking
Update rate of deviation pixel 50Hz
Output delay of deviation pixel <10ms
Minimum object contrast 5%
SNR 4
Minimum object size 32*32 pixel
Maximum object size 128*128 pixel
Tracking speed ±48 ~ ±192 pixel/frame
Object memory time 100 frames (4s)
The mean square root values of pulse noise in the object position < 0.5 pixel
Packing Information
N.W. 732g
Product meas. 115.8*103.5*151mm/175.4mm(Viewport vision)
Accessories 1pc gimbal camera device, screws,  copper cylinders, damping balls, damping boards / Hight quality plastic box with foam cushion
G.W. 2914g
Package meas. 360*300*250mm
