Professional 3-axis High-precise FOC Program

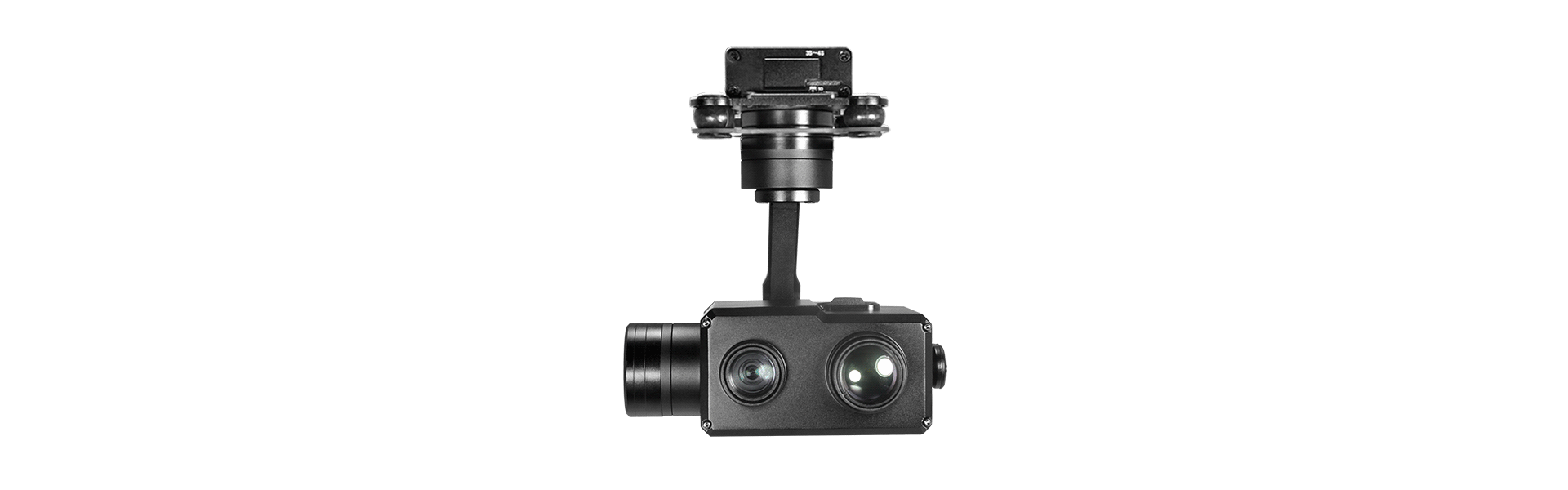

MINI-Z10TIR is the lightest 3-axis dual-sensor gimbal camera. The powerful 3-axis stabilization system controls the precise operation of the motor through a high-speed processor, compensates for the subtle movement of the camera during flight, and smoothly adjusts the camera's shooting angle. The gimbal features a conductive slip ring structure and concealed conductor design for superior data transmission stability and greater durability, while easily achieve 360° rotation. With the new four-point suspension damping structure and lightweight damping plate, the stability of the MINI-Z10TIR is further improved. The control accuracy of the gimbal is up to ±0.01°, the camera can obtain a stable and clear picture even at high speed flight.





10x Optical Zoom EO Camera


Powered by 1/3" CMOS module,the camera has 4.08 Mega valid pixels, supports 10 times optical focus FHD 1080P video. There are two video streams in the camera, One is 1080P 30FPS, local H.264 compression, stored in the device SD card. Another video output 1080p 60FPS HDMI HD signal for the wireless transmission. Designed according to the characteristics of aerial photography application. Fast auto-focus, multi functional, small size, and support PWM, S.BUS and TTL serial control.






Professional Thermal Imager


Integrated French ULIS high-precision uncooled long wave (8μm ~14μm ) thermal image sensor, MINI-Z10TIR can record and transmit thermal image and visible images at the same time. See the unseen. ULIS thermal sensors reveal details invisible to the naked eye by making subtle differences in temperature visible. This new view on the world can reveal potential grid fault, building cracks, the location of lost people in thick smock or corn field day and night ...




Visible Light and Thermal Imager Dual Sensors Object Tracking





Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 32pixel/frame,object size range is from 16*16 pixel to 160*160 pixel, with the minimal signal-to-noise ratio (SNR) 4dB, the mean square root values of pulse noise in the object position < 0.5 pixel, which greatly improve the accuracy and tracking effect.






Application



Mainly supply in fire-fighting, power tower and pipeline inspection, search and rescue etc. A wide range of monitoring and searching is required in an emergency to quickly transfer the situation, improve response efficiency and reduce casualties.






                                                                          Specification

Hardware Parameter
Working voltage 12V ~ 16V
Input voltage 3S ~ 4S
Output voltage 5V (connect with PWM)
Dynamic current 550mA @ 12V
Idle current 450mA @ 12V
Power consumption ≤ 6.6W
Working environment temp. -20 ~ +50
Output  micro HDMI(HD output 1080P 60fps) / IP / Skyport (subject to actual product)
Local-storage SD card (Up to 128G, class 10, FAT32 or ex FAT format)
Control method PWM  / TTL / S.BUS / DJI Pilot
Gimbal Spec
Pitch/Tilt ±90°
Roll ±85°
Yaw/Pan ±170° / ±360°*N (IP/Skyport output)
Vibration angle Pitch/Roll: ±0.01°, Yaw±0.01°
One-key to center
Camera Spec
Imager Sensor SONY sensor 1/3" CMOS
Picture quality Full HD 1080 (1920*1080)
Effective pixel 4.08MP
Lens optical zoom 10x, F=3.2~33.6mm
Digital zoom None
Min object distance 10mm(wide end) to 800mm(tele end)
Horizontal viewing angle 59.2°(wide end) ~ 6.7°(tele end)
Sync system Internal
S/N ratio more than 52dB
Min illumination 0.5 lx (1/30s, F1.8, 50%)
Gain Auto / Manual
White balance ATW1 (Narrow), ATW2 (Wide), single touch, manual (B, R)
Shutter speed 1/1s to 1/10,000s
Backlight compensation Yes
Aperture control 16 steps
OSD Yes
Fotoformate JPEG
Videoformate MP4
Camera Object Tracking
Update rate of deviation pixel 50Hz
Output delay of deviation pixel <10ms
Minimum object contrast 5%
SNR 4
Minimum object size 16*16 pixel
Maximum object size 160*160 pixel
Tracking speed ±32 pixel/frame
Object memory time 100 frames (4s)
The mean square root values of pulse noise in the object position < 0.5 pixel
Thermal imager spec
Lens size 19mm
Horizontal FOV 32°
Vertical FOV 24°
Diagonal FOV 39.4°
Detective Distance (Man: 1.8x0.5m) 559 meters
Recognize Distance (Man: 1.8x0.5m) 140 meters
Verified Distance (Man: 1.8x0.5m) 70 meters
Detective Distance (Car: 4.2x1.8m) 1714 meters
Recognize Distance (Car: 4.2x1.8m) 428 meters
Verified Distance (Car: 4.2x1.8m) 214 meters
Working mode Uncooled long wave (8μm~14μm) thermal imager
Detector pixel 640*480
Pixel size 17μm
Focusing method Athermal prime lens
Emissivity correction 0.01~1
NETD ≤50mK (@25)
MRTD ≤650mK (@characteristic frequency)
Image enhancement Auto adjust image brightness and contrast ratio
Color palette White, iron red, pseudo color
Auto Non-uniform correction Yes (no shutter)
Digital zoom 1x, 3x
Sync correct time Yes
Thermometry type Temperature bar (psudo color display) max temp, min temp, FOV center temp (Optional)
Temperature warning 0~100
Thermal Object Tracking
Update rate of deviation pixel 25Hz
Output delay of deviation pixel <3ms
Minimum object size 16*16 pixel
Maximum object size 128*128 pixel
Tracking speed ±32 pixel/frame
Object memory time 100 frames (4s)
Packing Information
N.W. 490g
Product meas. 118*109*120mm
Accessories 1pc gimbal camera device, 16pcs screws,  4pcs copper cylinders, 12pcs damping balls, 4pcs damping boards / Hight quality plastic box with foam cushion
