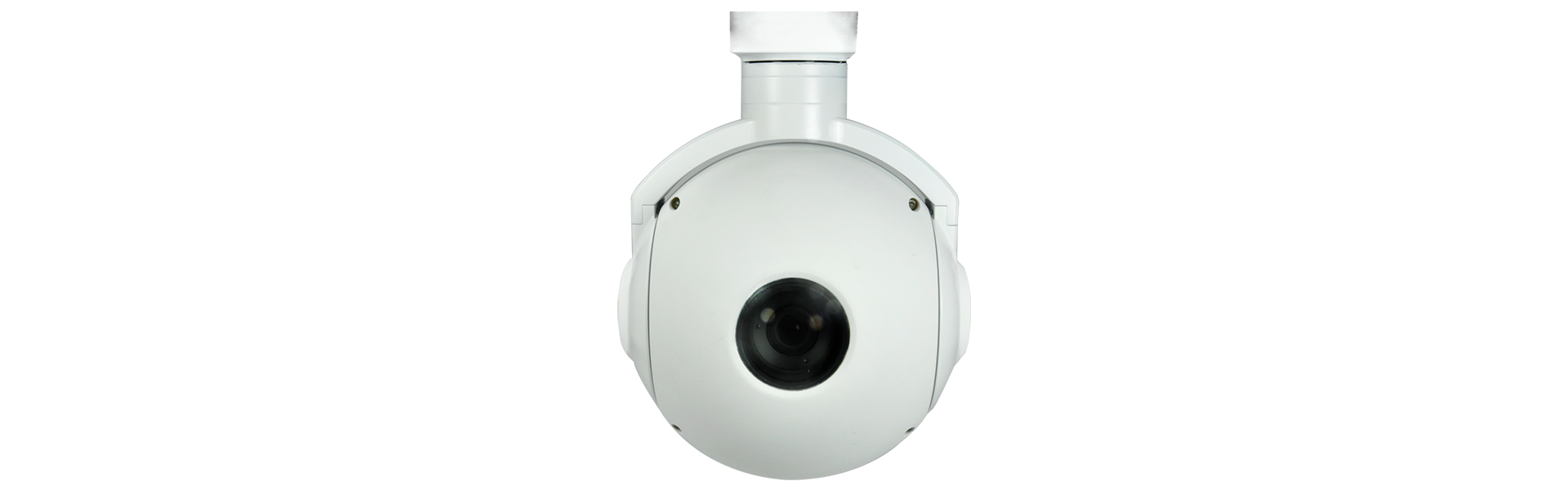

U30T pro is a 2-axis design but 3-axis function gimbal camera with 30x optical zoom. It’s powered by SONY 1/2.8″ “Exmor R” CMOS module, 2.13 million effective pixels, fast auto-focus speed, 1080p HD image quality. U30T pro can achieve target tracking. It easy to control pitch, yaw, zoom, tracking function through PWM, S.BUS or TTL.

                                                                       Specifications

Hardware Parameter
Working voltage 12V ~ 16V
Input voltage 4S
Output voltage 5V (connect with PWM)
Dynamic current 500mA @ 12V
Idle current 400mA @ 12V
Power consumption ≤ 6W
Working environment temp. -20 ~ +60
Output   SDI / IP / micro HDMI(FHD output 1080P 60fps)
Local-storage SD card (Up to 128G, class 10, FAT32 or ex FAT format)
Control method PWM  / TTL / S.BUS
Gimbal Spec
Pitch/Tilt +60° ~ -120°
Roll ±90°
Yaw/Pan ±360°*N
Vibration angle Pitch/Roll: ±0.02°, Yaw±0.03°
One-key to center
Camera Spec
Imager Sensor SONY 1/2.8" "Exmor R" CMOS
Picture quality Full HD 1080 (1920*1080)
Effective pixel 2.13MP
Lens optical zoom 30x, F=4.3~129mm
Digital zoom 12x (360x with optical zoom)
Min object distance 10mm(wide end) to 1200mm(tele end). Default 300mm
Horizontal viewing angle 1080p mode: 63.7°(wide end) ~ 2.3°(tele end)
720p mode: 63.7°(wide end) ~ 2.3°(tele end)
SD: 47.8°(wide end) ~ 1.7°(tele end)
Sync system Internal
S/N ratio more than 50dB
Min illumination Color 0.01lux@F1.6
Exposure control Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE
Gain Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps)
Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps)
White balance Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), One-push, Manual
Shutter speed 1/1s to 1/10,000s, 22 steps
Backlight compensation Yes
Aperture control 16 steps
Defog Yes
OSD Yes
Camera Object Tracking
Update rate of deviation pixel 50Hz
Output delay of deviation pixel <10ms
Minimum object contrast 5%
SNR 4
Minimum object size 16*16 pixel
Maximum object size 160*160 pixel
Tracking speed ±32 pixel/frame
Object memory time 100 frames (4s)
The mean square root values of pulse noise in the object position < 0.5 pixel
Packing Information
N.W. 1110g

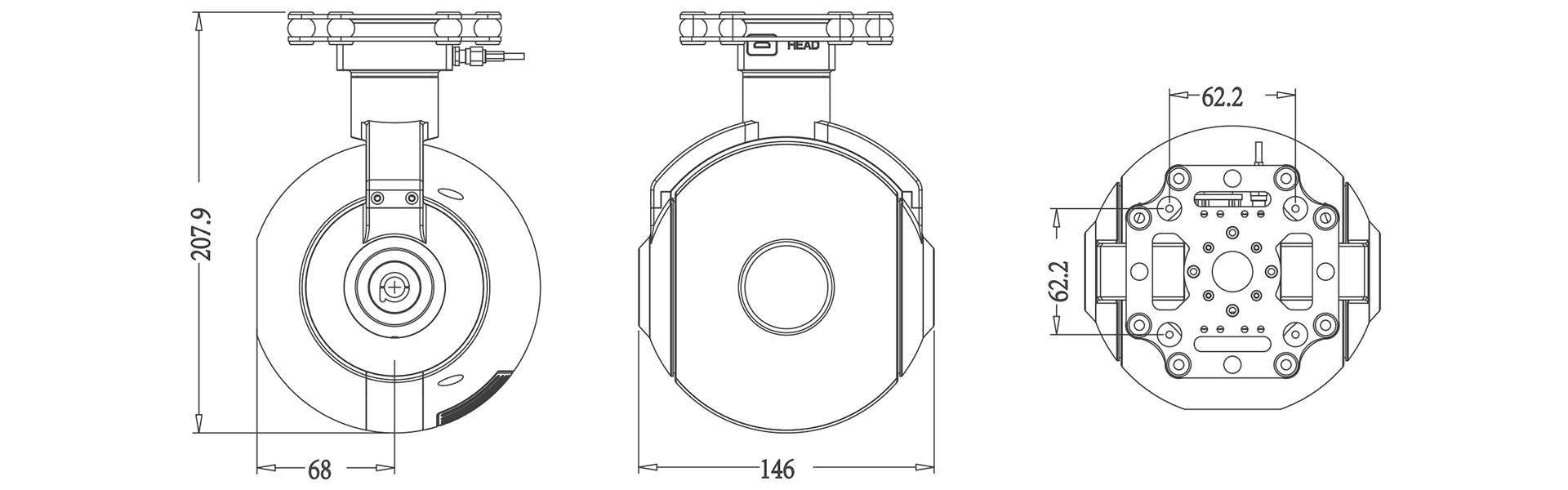

Product meas. 146*140*207.9mm
