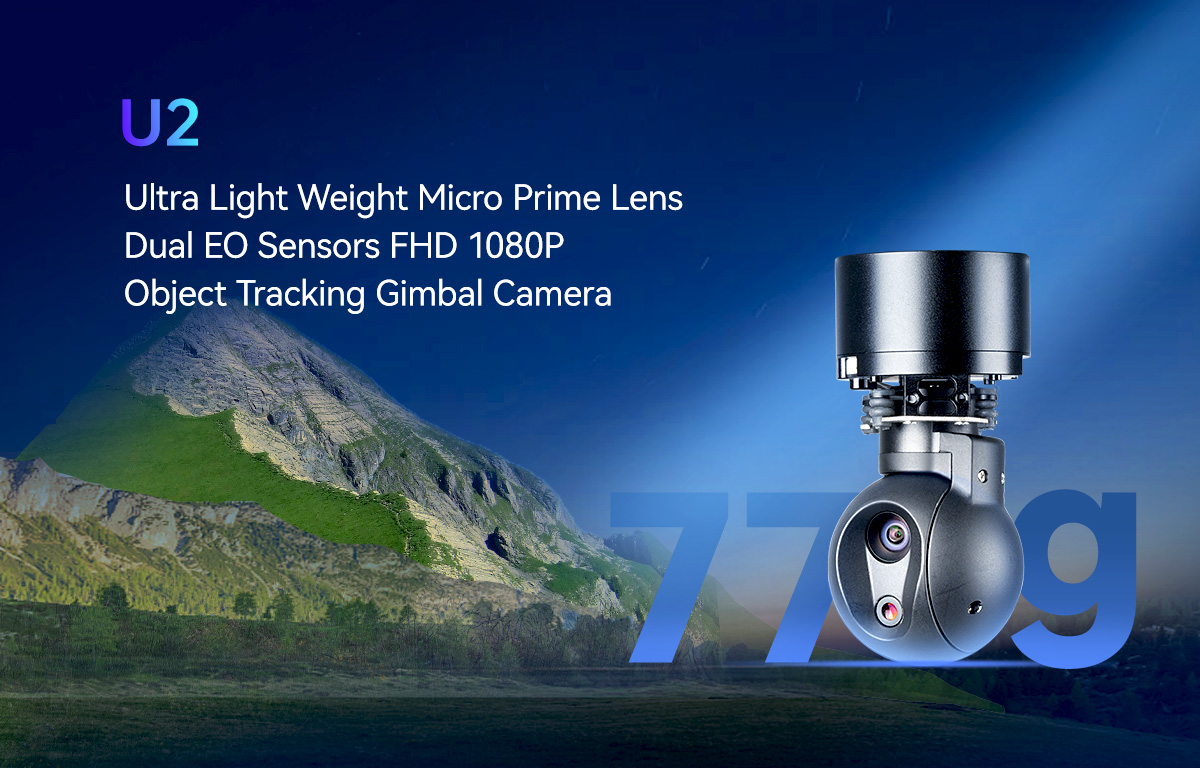

U2

Hardware Parameter
Working voltage 12~16V
Dynamic current 200~700mA @ 12V
Power consumption Average 2.4W, Max 8.4W
Working environment temp. -20~+50
Output IP (RTSP 1080p 30fps H264)
Control method TTL /  TCP
Gimbal Spec
Controllable Range Pitch/Tilt: -30°115°,   Yaw/Pan: ±145°
Stability precision 0.2mrad
Maximum angular velocity ≥30°/S
One-key to center

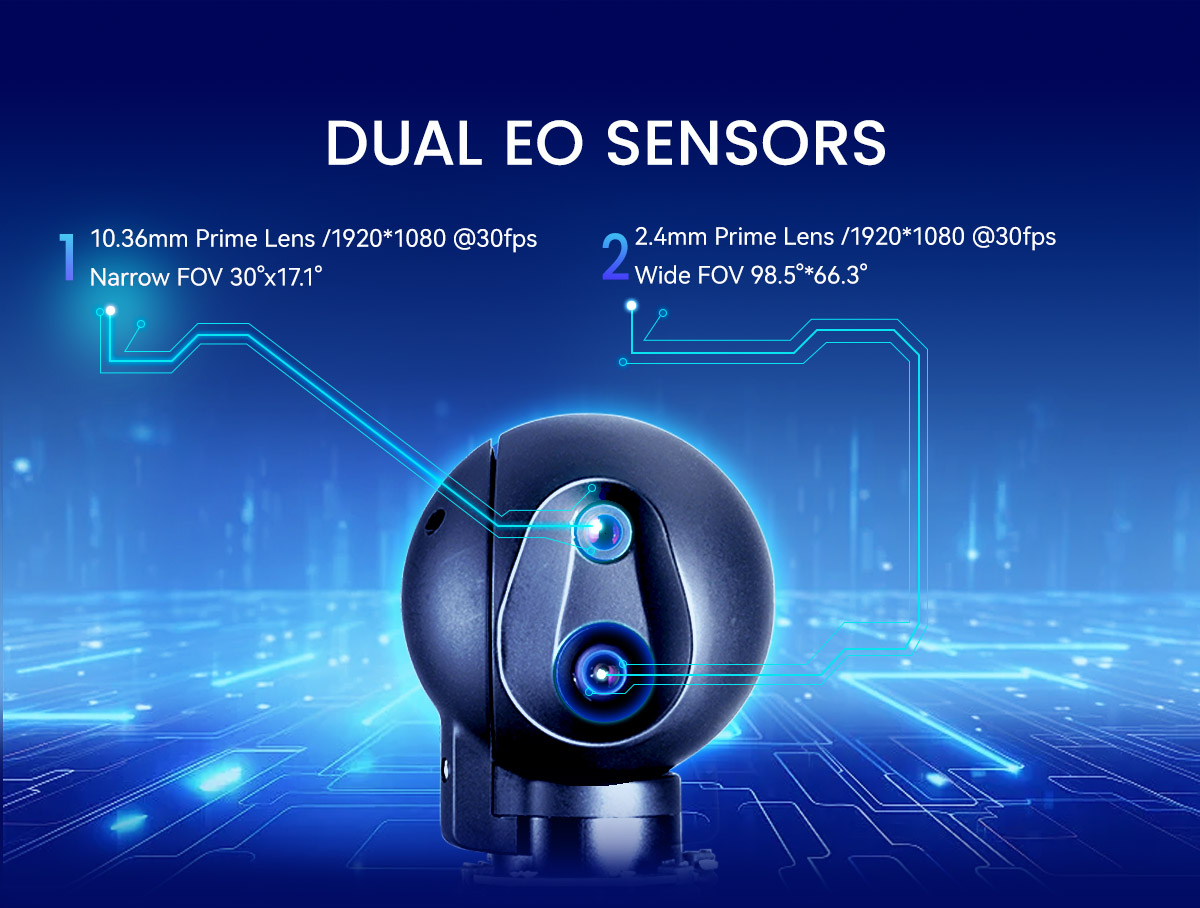

EO Camera Spec 1

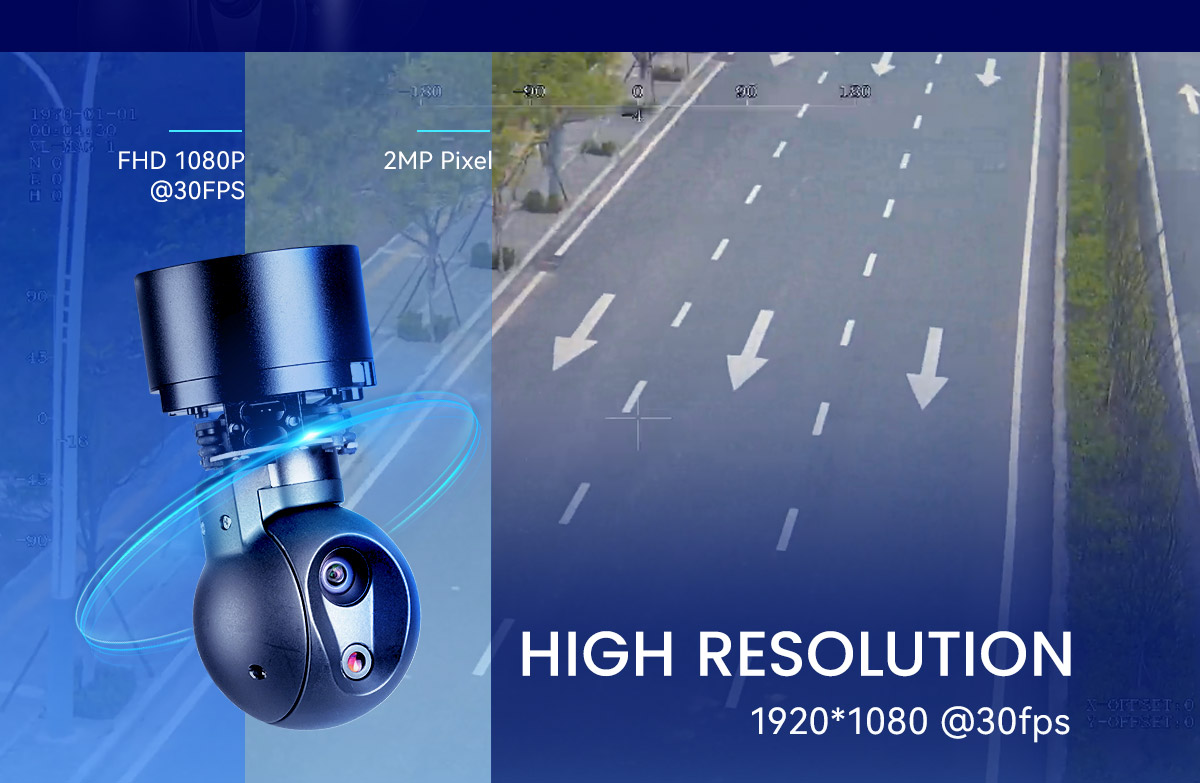

Resolution 1920*1080 @30fps
Focus Length 2.4mm
Angle of View 98.5°*66.3°
EO Camera Spec 2
Resolution 1920*1080 @30fps
Focus Length 10.36mm
Angle of View 30°*17.1°
Hybrid Zoom 12.5x (Optical zoom 4.2x, digital zoom 3x )

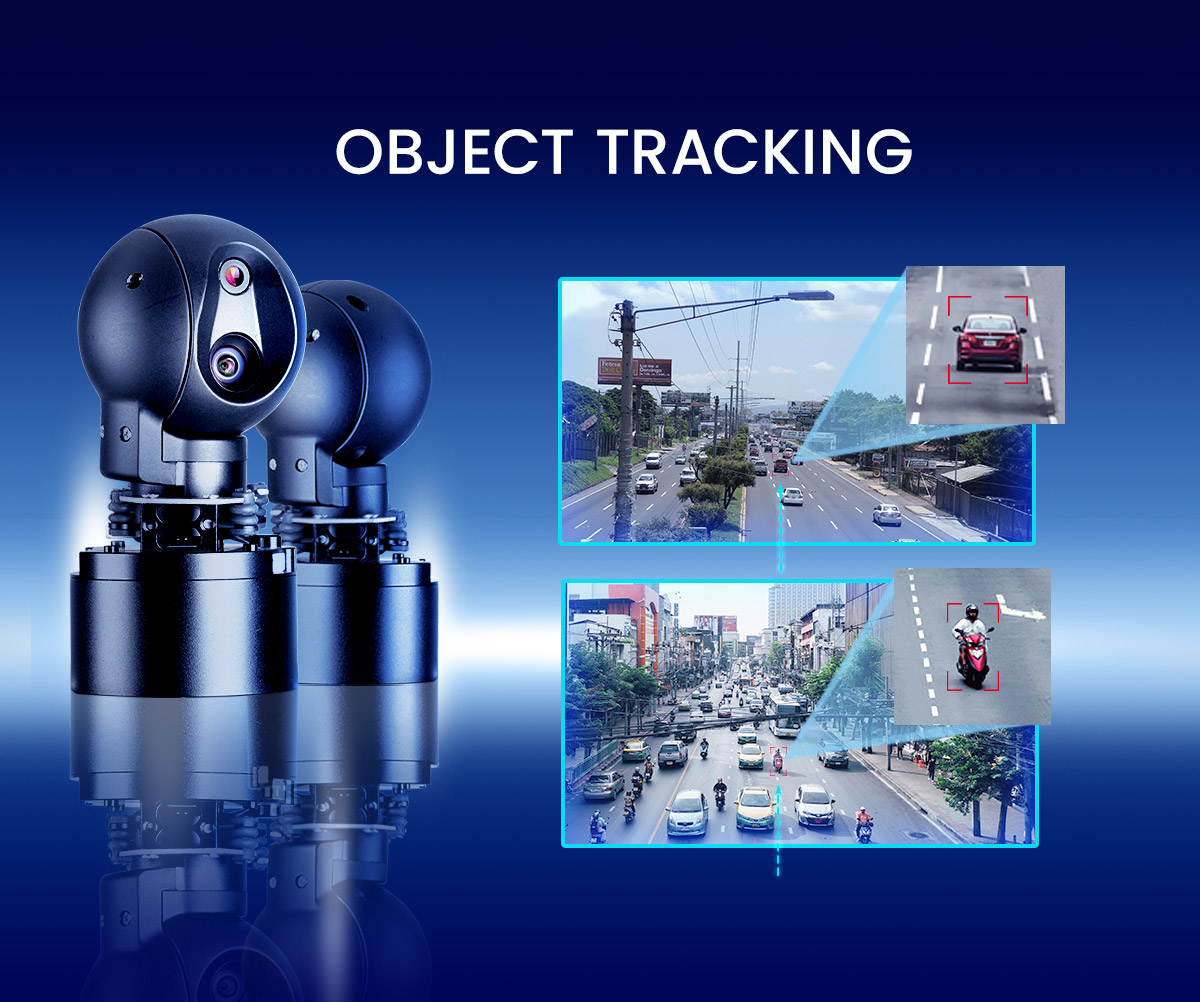

EO  Camera Object Tracking
Minimum object contrast 5%
Minimum object size 16*16 pixel
Maximum object size 128*128 pixel
Tracking speedMan ±32 pixel/frame
Tracking speed (Car) ±48 pixel/frame
Object memory time 100 frames
Packing Information

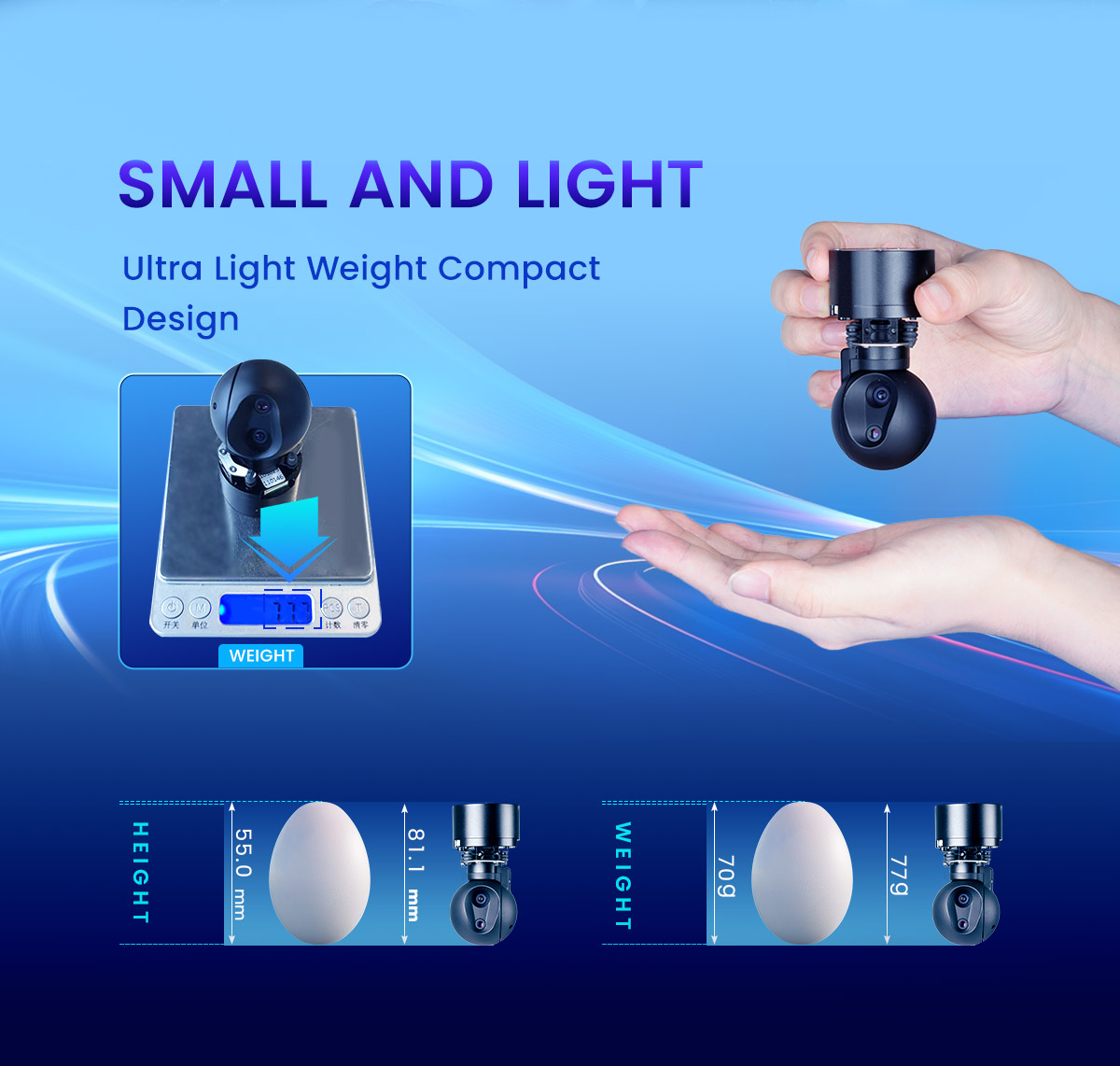

N.W. ≤80g

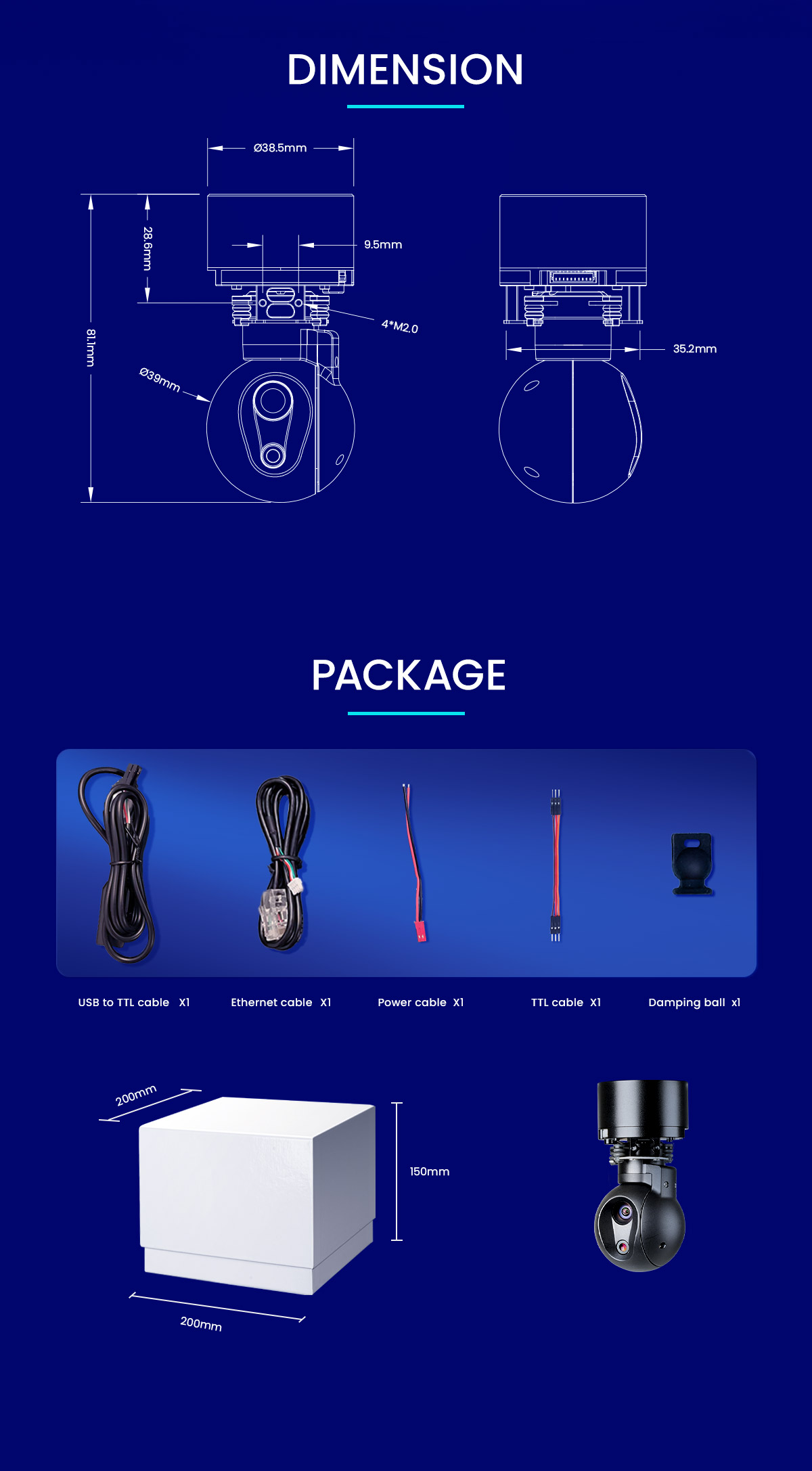

Product meas. 39*39*81.1mm
Accessories  UART and power connector, Ethernet cable, USB to TTL cable  / Hight quality box with foam cushion
