Q2R Sepecification
| Overall Specifications | |
| Working voltage | 12~25.2V |
| Dynamic current | 250~600mA @ 16V |
| Power consumption | Average 4W, Max 9.6W |
| Video Output | Ethernet：IP (RTSP 1080p 25fps H264/H265) |
| Control method | TTL or S.BUS (choose one of them, and TTL by default), and TCP |
| IP Rating | IP4X |
| Working environment temp. | -20℃~+50℃ |
| Product Weight | about 190g |

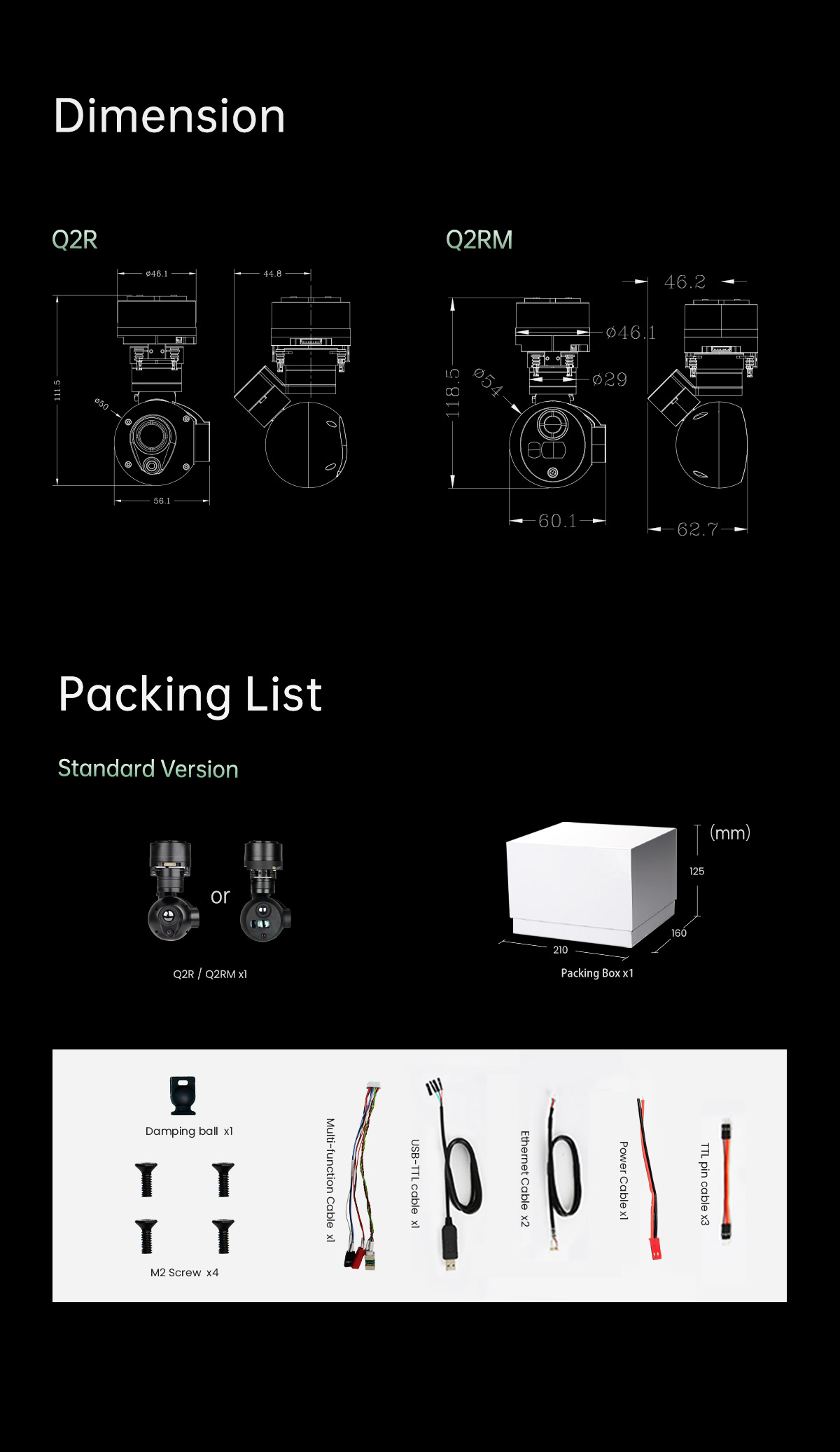

| Product Dimensions | 56.1*50*111.5mm |
| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: -65°(Up)～135°(Down), Yaw/Pan: ±150° |
| Controllable Range | Pitch/Tilt: -45°～125°, Yaw/Pan: ±145° |
| Vibration angle | Pitch/Yaw: ±0.02° |
| One-key to center | √ |
| EO Camera Spec | |
| Imager Sensor | 1/3" CMOS Sensor |
| Pixel size | 2.9um |
| Resolution | 1920*1080 @30fps |
| Focus Length | 10.36mm |
| Angle of View | 30°*17.1° |
| Digital zoom | 1~3x |
| IR Thermal Imager Spec | |
| Focus Length | 13mm |
| Aperture | F1.1 |
| Horizontal FOV | 33.9° |
| Vertical FOV | 27.1° |
| Detective Distance (Man: 1.8x0.5m) | 542 meters |
| Recognize Distance (Man: 1.8x0.5m) | 135 meters |
| Verified Distance (Man: 1.8x0.5m) | 68 meters |
| Detective Distance (Car: 4.2x1.8m) | 1661 meters |
| Recognize Distance (Car: 4.2x1.8m) | 415 meters |
| Verified Distance (Car: 4.2x1.8m) | 208 meters |
| Working mode | Uncooled VOx long wave (8μm~14μm) thermal imager |
| Detector pixel | 640*512 |
| Pixel size | 12μm |
| Focusing method | Athermal prime lens |
| NETD | ≤40mK@F1.0/25℃ |
| Color palette | White hot |
| Camera Object Tracking | |
| Update rate of deviation pixel | 25Hz |
| Minimum object contrast | 5% |
| Minimum object size | 16*16 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed（Man） | ±32 pixel/frame |
| Tracking speed (Car) | ±48 pixel/frame |
| Object memory time | 100 frames |
| Features | |
| OSD | Display the gimbal’s yaw and pitch angle, magnification, aircraft GPS and altitude, date and time |
| ArduPilot / PX4 | Support(Mavlink protocol ) Optional: Support Ardupilot Follow me feature |
| Video switching | EO+IR /IR+EO /EO /IR |
Q2RM Specification
| Overall Specifications | |
| Working voltage | 12~25.2V |
| Dynamic current | 400~900mA @ 12V |
| Power consumption | Average 4.8W, Max 10.8W |
| Video Output | Ethernet：IP (RTSP 1080p 25fps H264/H265) |
| Control method | TTL or S.BUS (choose one of them, and TTL by default), and TCP |
| IP Rating | IP4X |
| Working environment temp. | -20℃~+50℃ |
| Product Weight | about 202g |
| Product Dimensions | 62.7*60.1*118.5mm |
| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: -65°(Up)～130°(Down), Roll: ±30°, Yaw/Pan: ±150° |
| Controllable Range | Pitch/Tilt: -45°～125°, Yaw/Pan: ±130° |
| Vibration angle | Pitch/Roll/Yaw: ±0.02° |
| One-key to center | √ |
| EO Camera Spec | |
| Imager Sensor | 1/3" CMOS Sensor |
| Pixel size | 2.9um |
| Resolution | 1920*1080 @30fps |
| Focus Length | 10.36mm |
| Angle of View | 30°*17.1° |
| Digital zoom | 1~3x |
| IR Thermal Imager Spec | |
| Focus Length | 9.1mm |
| Aperture | F1.0 |
| Horizontal FOV | 48.3° |
| Vertical FOV | 38.6° |
| Diagonal FOV | 62.4° |
| Detective Distance (Man: 1.8x0.5m) | 379 meters |
| Recognize Distance (Man: 1.8x0.5m) | 95 meters |
| Verified Distance (Man: 1.8x0.5m) | 47 meters |
| Detective Distance (Car: 4.2x1.8m) | 1163 meters |
| Recognize Distance (Car: 4.2x1.8m) | 291 meters |
| Verified Distance (Car: 4.2x1.8m) | 145 meters |
| Working mode | Uncooled VOx long wave (8μm~14μm) thermal imager |
| Detector pixel | 640*512 |
| Pixel size | 12μm |
| Focusing method | Athermal prime lens |
| NETD | ≤40mK@F1.0/25℃ |
| Color palette | White hot |
| Camera Object Tracking | |
| Update rate of deviation pixel | 25Hz |
| Minimum object contrast | 5% |
| Minimum object size | 16*16 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed（Man） | ±32 pixel/frame |
| Tracking speed (Car) | ±48 pixel/frame |
| Object memory time | 100 frames |
| Laser Rangefinder | |
| Range | 5~1200 meters |
| Accuracy | 1m |
| Light Beam | 905nm pulse laser |
| Divergent Angle | ~6 mrad |
| Laser pulse frequency | 1~4Hz |
| Location Resolving | Latitude and longitude of target |
| Rangefinder | Measure the distance between the object at the center of screen and the laser rangefinder |
| Features | |
| OSD | Display the gimbal’s yaw and pitch angle, magnification, aircraft GPS and altitude or target ranging point GPS and altitude (choose one of them, and target ranging point GPS and ranging value), date and time |
| ArduPilot / PX4 | Support(Mavlink protocol ) Optional: Support Ardupilot Follow me feature |
| Video switching | EO+IR /IR+EO /EO /IR |
