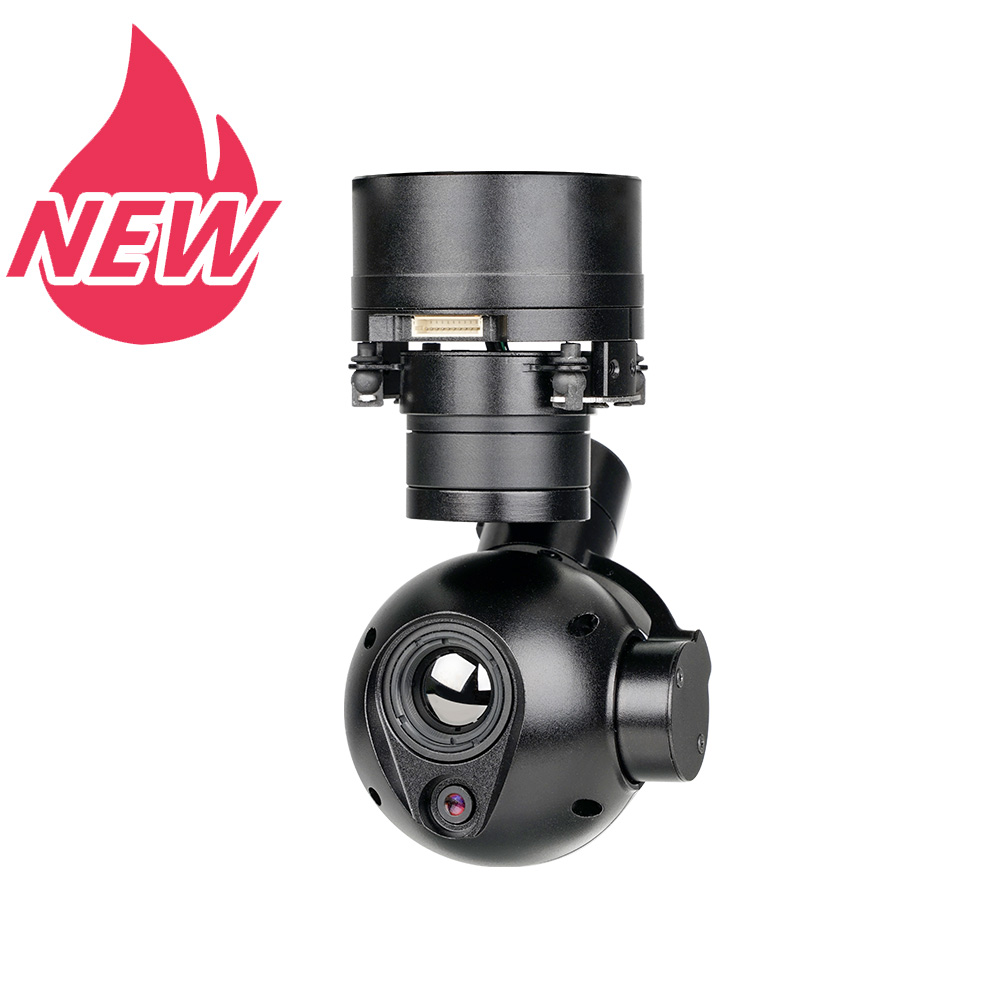

Q2R
| Hardware Parameter | |
| Working voltage | 12~16V |
| Dynamic current | 400~700mA @ 12V |
| Power consumption | Average 4.8W, Max 8.4W |
| Working environment temp. | -20℃~+50℃ |
| Output | IP (RTSP 1080p 30fps) |
| Control method | TTL / TCP |
| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: -45°(Up)～135°(Down), Yaw/Pan: ±150° |
| Controllable Range | Pitch/Tilt: -40°～125°, Yaw/Pan: ±145° |
| Vibration angle | Pitch/Roll/Yaw: ±0.02° |
| One-key to center | √ |
| EO Camera Spec | |
| Resolution | 1920*1080 @30fps |
| Focus Length | 10.36mm |
| Angle of View | 30°*17.1° |
| Digital zoom | 4x |
| IR Thermal Imager Spec | |
| Focus Length | 13mm |
| Aperture | F1.1 |
| Horizontal FOV | 32.9° |
| Vertical FOV | 26.6° |
| Detective Distance (Man: 1.8x0.5m) | 542 meters |
| Recognize Distance (Man: 1.8x0.5m) | 135 meters |
| Verified Distance (Man: 1.8x0.5m) | 68 meters |
| Detective Distance (Car: 4.2x1.8m) | 1661 meters |
| Recognize Distance (Car: 4.2x1.8m) | 415 meters |
| Verified Distance (Car: 4.2x1.8m) | 208 meters |
| Working mode | Uncooled VOx long wave (8μm~14μm) thermal imager |
| Detector pixel | 640*512 |
| Pixel size | 12μm |
| Focusing method | Athermal prime lens |
| NETD | ≤40mK@F1.0/25℃ |
| Color palette | White,black,Iron red |
| Digital zoom | 1x~8x |
| Radiometric function(Optional) | Optional range（-20℃~+150℃, 0℃~+550℃） |
| ±2℃ or +2%(take larger value)@23℃±3℃, Thermometry range 5m | |
| EO Camera Object Tracking | |
| Minimum object contrast | 5% |
| Minimum object size | 16*16 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed（Man） | ±32 pixel/frame |
| Tracking speed (Car) | ±48 pixel/frame |
| Object memory time | 100 frames |
| Packing Information | |
| N.W. | 190±10g |
| Product meas. | 56.1*50*111.5mm |
| Accessories | UART and power connector, Ethernet cable, USB to TTL cable / Hight quality box with foam cushion |
