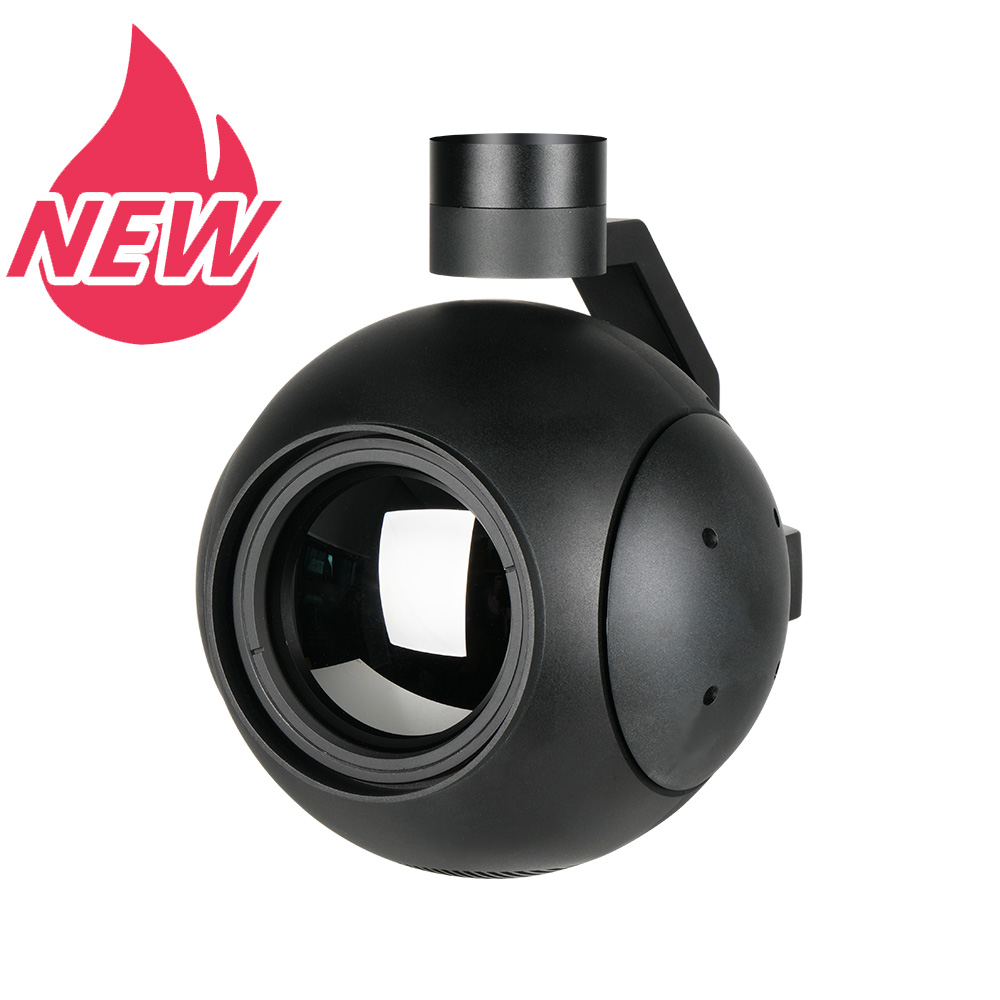

QIR1575T
| Specification | |
| Working voltage | 16V |
| Input voltage | 4S ~ 6S (14.8V ~ 25.2V) |
| Output voltage | 5V (PWM control connection) |
| Dynamic current | 480 ~ 1000mA @ 16V |
| Power consumption | Average7.68W, Max16W |
| Working environment temp. | -20℃ ~ +50℃ |
| Output | Micro HDMI (1080P 60fps) / IP (RTSP/UDP 720p/1080p 25fps/30fps H264/H265) |
| Local-storage | TF card (storage capacity within 512G, read and write speed class 10 or above, format the TF card to FAT32) |
| Image storage format in TF card | JPG (1920*1080) |
| Video storage format in TF card | MP4 (1080P 30fps) |
| Control mode | PWM / S.BUS / TTL / TCP / UDP |
