Overview

Viewpro 1280 IR thermal gimbals integrate advanced uncooled long-wave infrared sensors (1280×1024, 12μm) and multi-axis stabilization, supporting object tracking, image fusion, and long-range target identification. These gimbals offer sharp thermal imagery and robust performance in harsh or invisible environments — including night, smoke, fog, or fire scenes.

Applications

• Search & Rescue
• Powerline & Infrastructure Inspection
• Firefighting & Forest Monitoring
• Law Enforcement & Border Patrol

Series Product Details

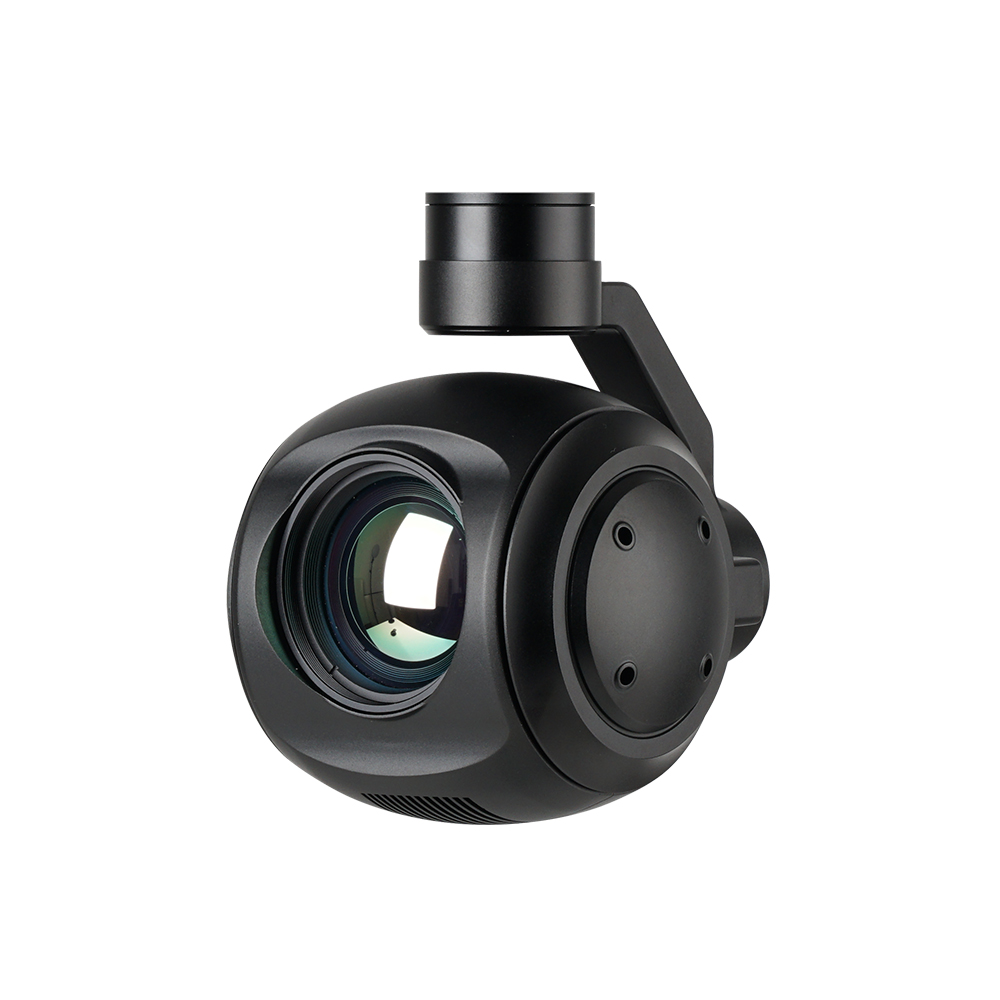

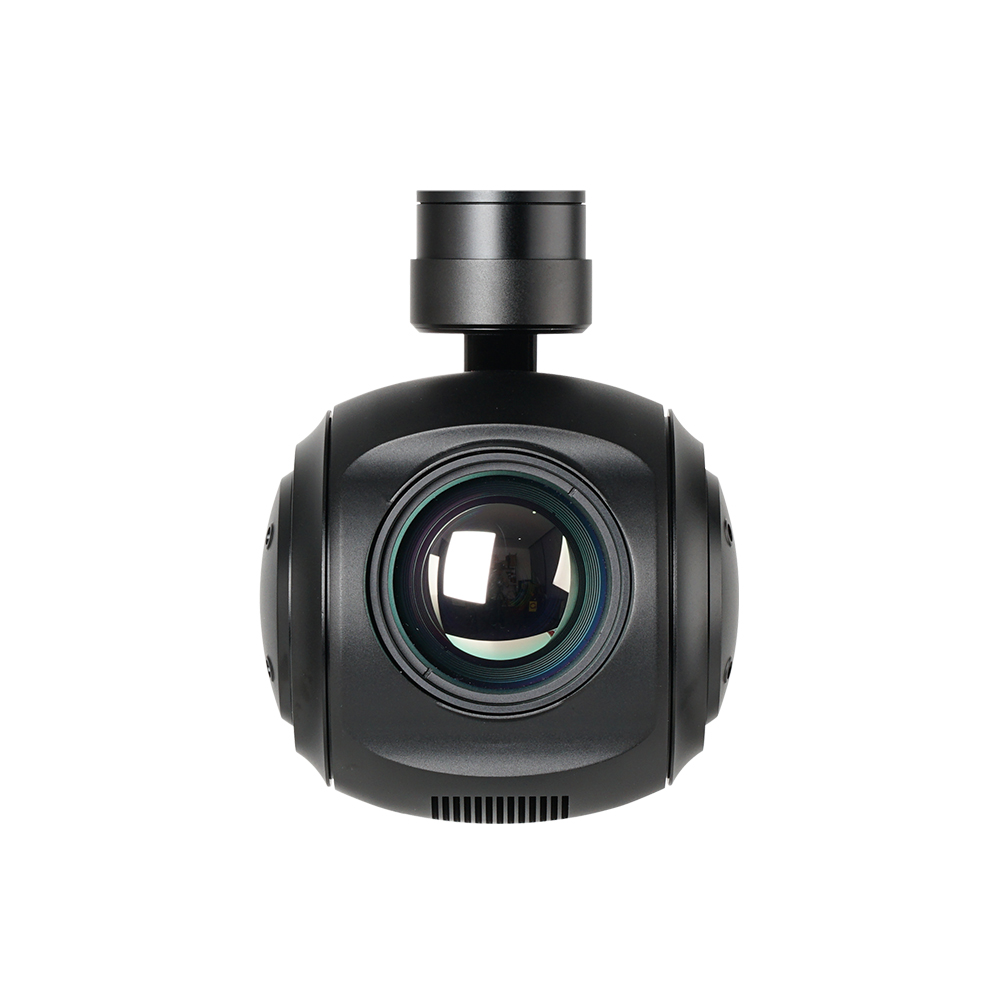

1. QIR50T Pro

50mm High-Definition IR Thermal Object Tracking Gimbal Camera (1280×1024)

A lightweight and high-performance gimbal equipped with a 50mm IR lens, ideal for long-range thermal detection.

• IR Thermal: 50mm, 1280×1024, 12μm
• Object Tracking: √
• Output: 1080p HDMI / IP / SDI
• Control: UART / PWM / PPM / S.BUS / TCP / UDP
• Storage: SD card up to 512G
• Weight: 943g
• Size: 112×136×181.3mm

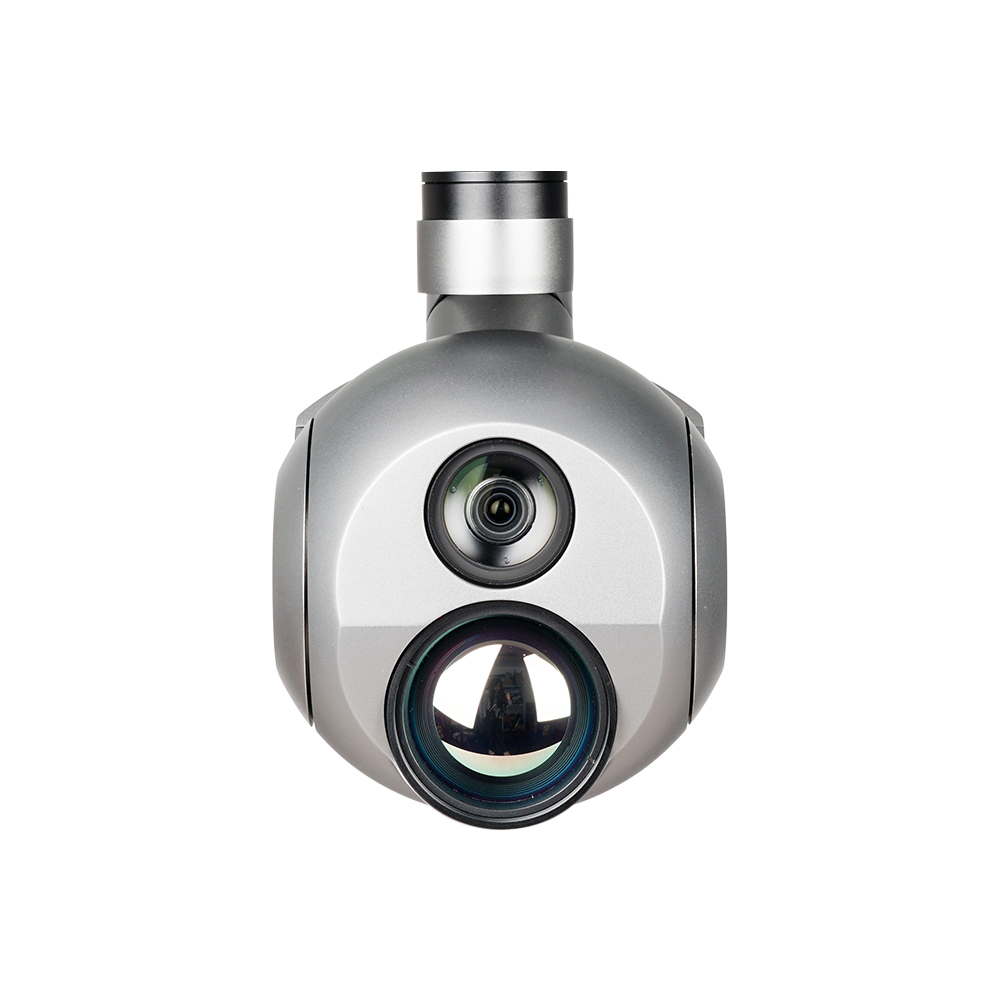

2. Q30TIR Pro

30x EO/IR Dual-Sensor HD Thermal Tracking Gimbal

Dual-sensor system combining a 30x optical zoom visible camera and a 1280×1024 thermal camera for flexible detection.

• EO: 1/2.8" SONY CMOS, 30x Zoom
• IR: 1280×1024, 50mm, 12μm, 25Hz
• Object Tracking: √
• Output: IP / SDI
• Control: PWM / PPM / UART / S.BUS / TCP
• Weight: 1282g
• Size: 120×140.9×212.2mm

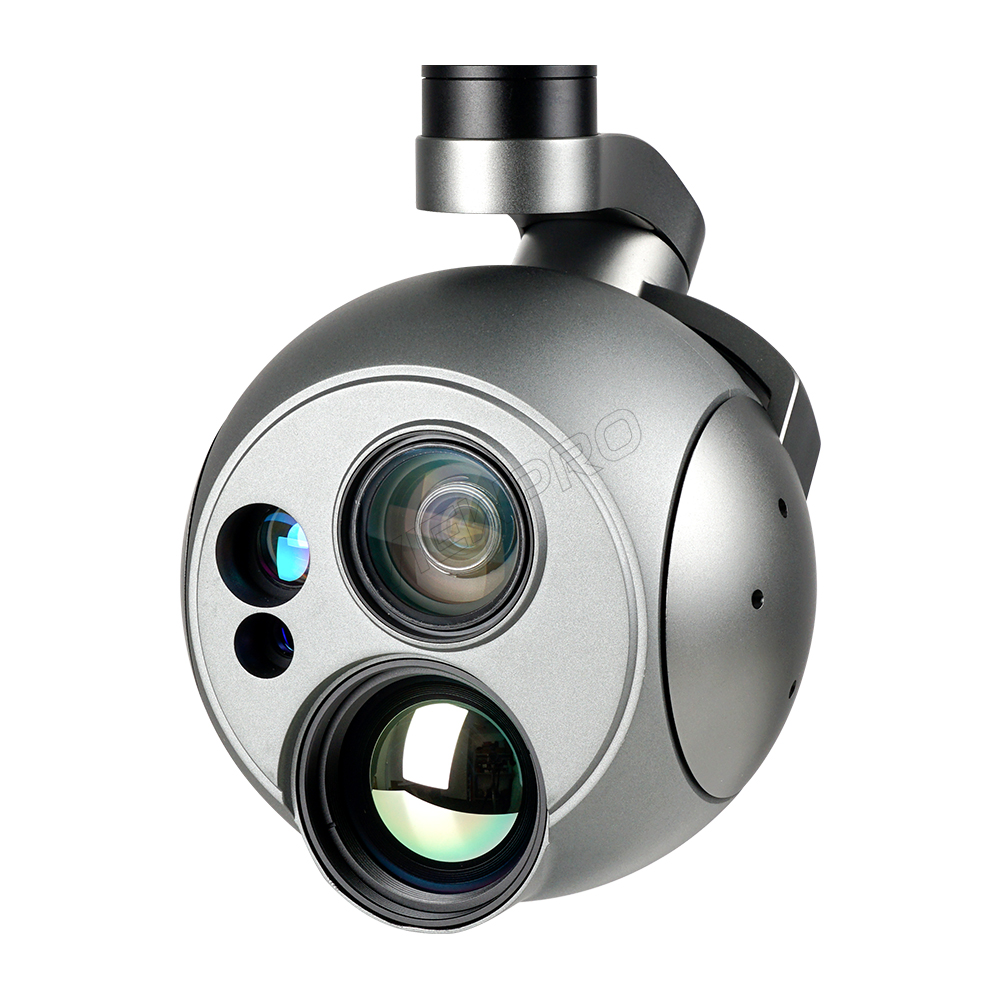

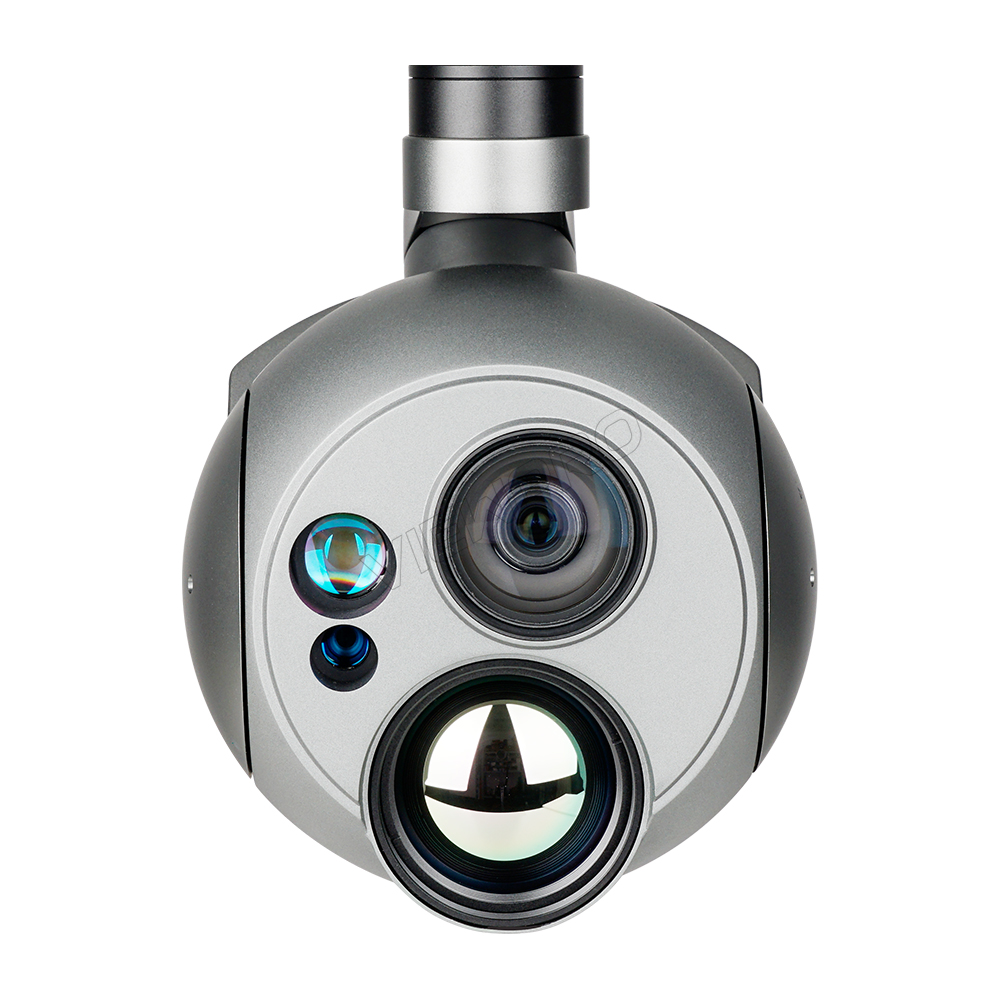

3. U30TIRM-HD

30x EO Triple-Sensor IR Gimbal with 5KM Laser Rangefinder

Featuring EO, IR, and LRF, this model supports long-range observation with thermal fusion and precise laser positioning.

• EO: 1/2.8" SONY CMOS, 30x Zoom
• IR: 1280×1024, 50mm, 12μm, 50Hz
• LRF: 50~5000m
• Object Tracking: √
• Output: IP / SDI
• Weight: 1475g
• Size: 155×143.5×228.2mm

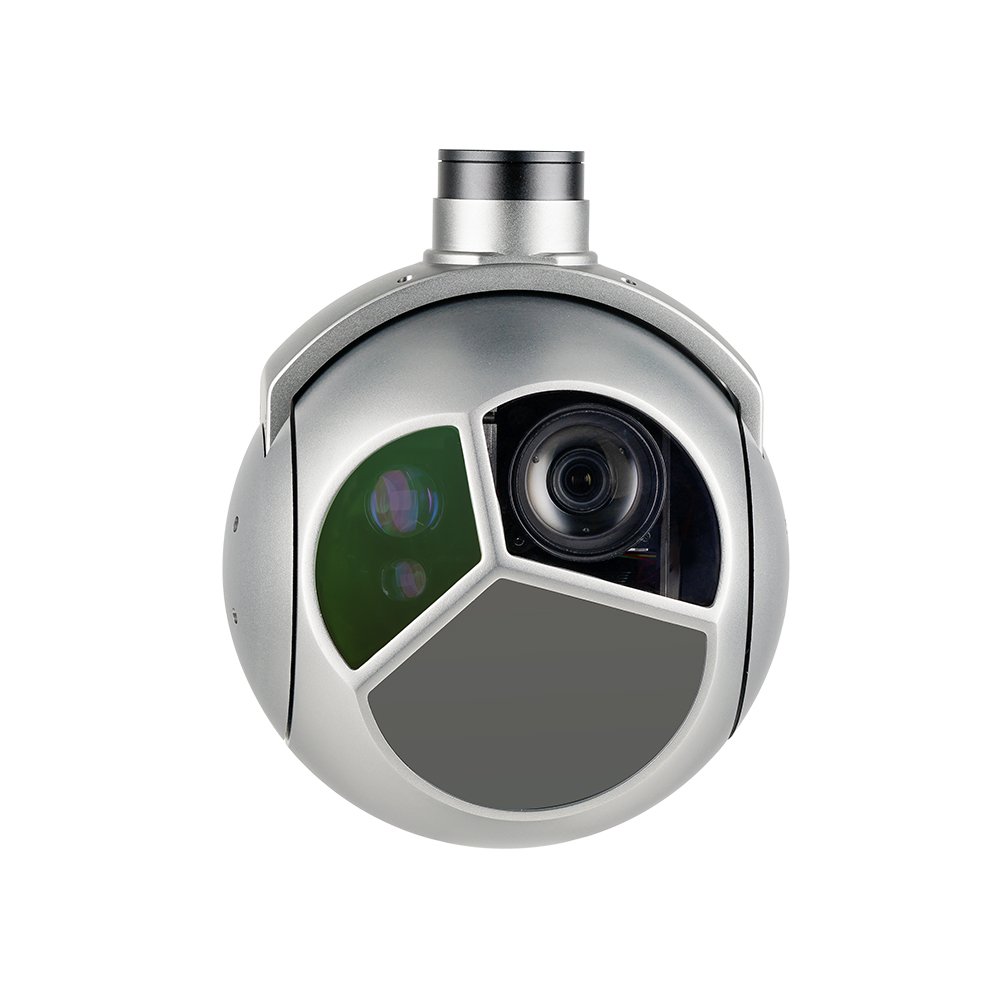

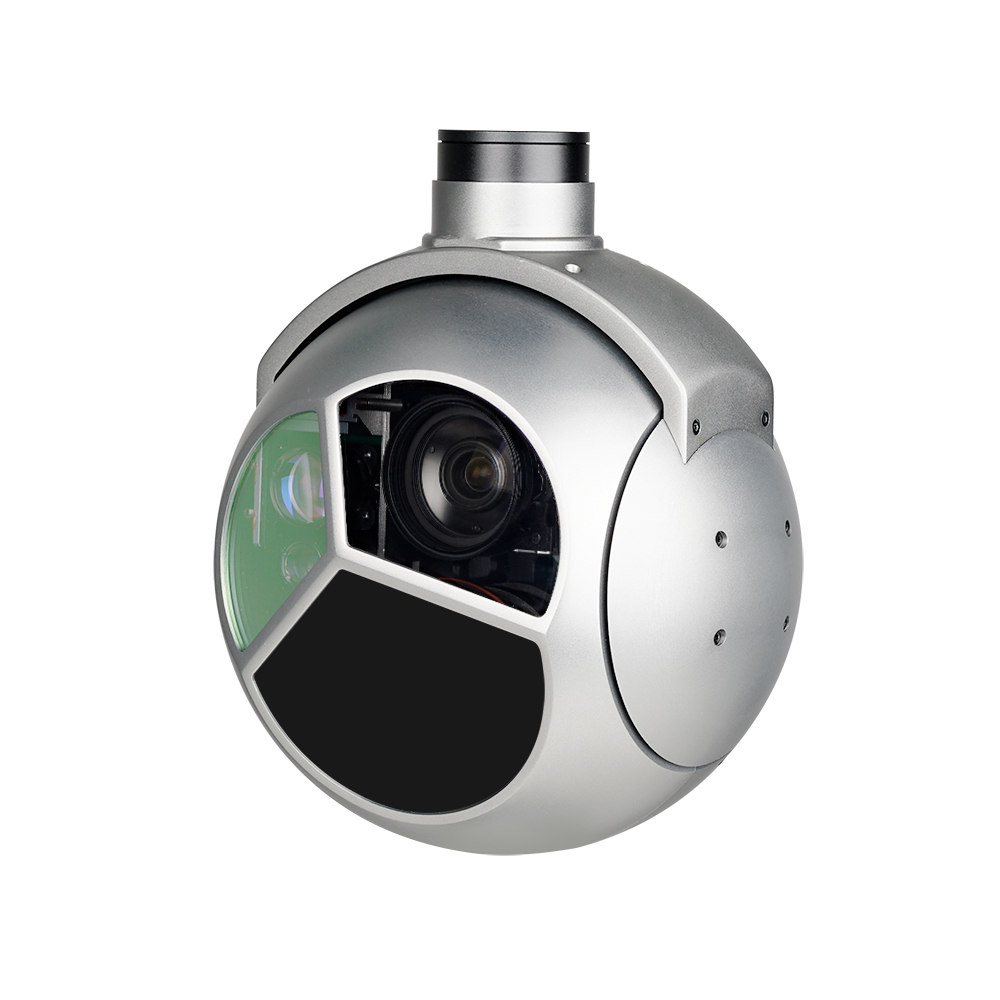

4. Q40TIRM-HD

40x EO Triple-Sensor 1280 HD IR Gimbal (5KM LRF)

Upgraded with 40x zoom and enhanced range detection — ideal for tactical UAV operations.

• EO: 1/2.8" SONY CMOS, 40x Zoom
• IR: 1280×1024, 50mm, 12μm, 50Hz
• LRF: 50~5000m
• Object Tracking: √
• Output: IP / SDI
• Weight: 1512g
• Size: 145×146.9×228.2mm

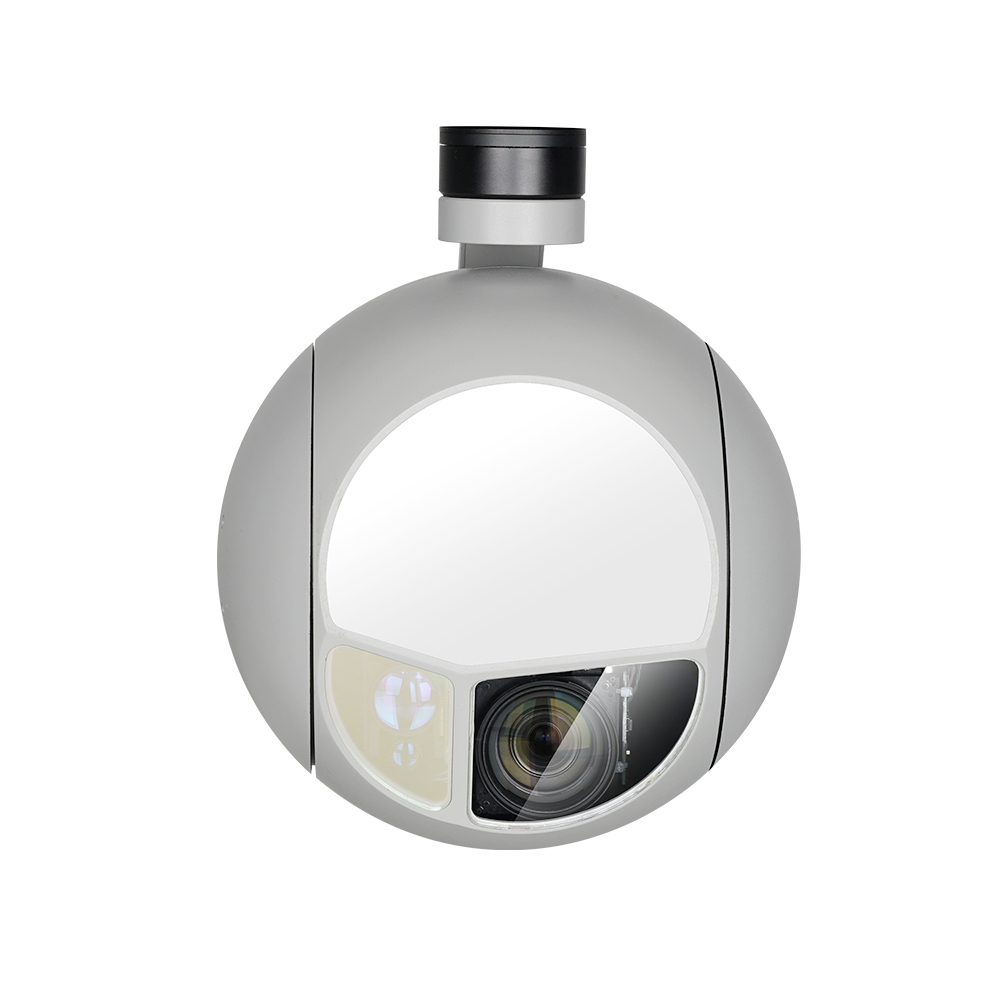

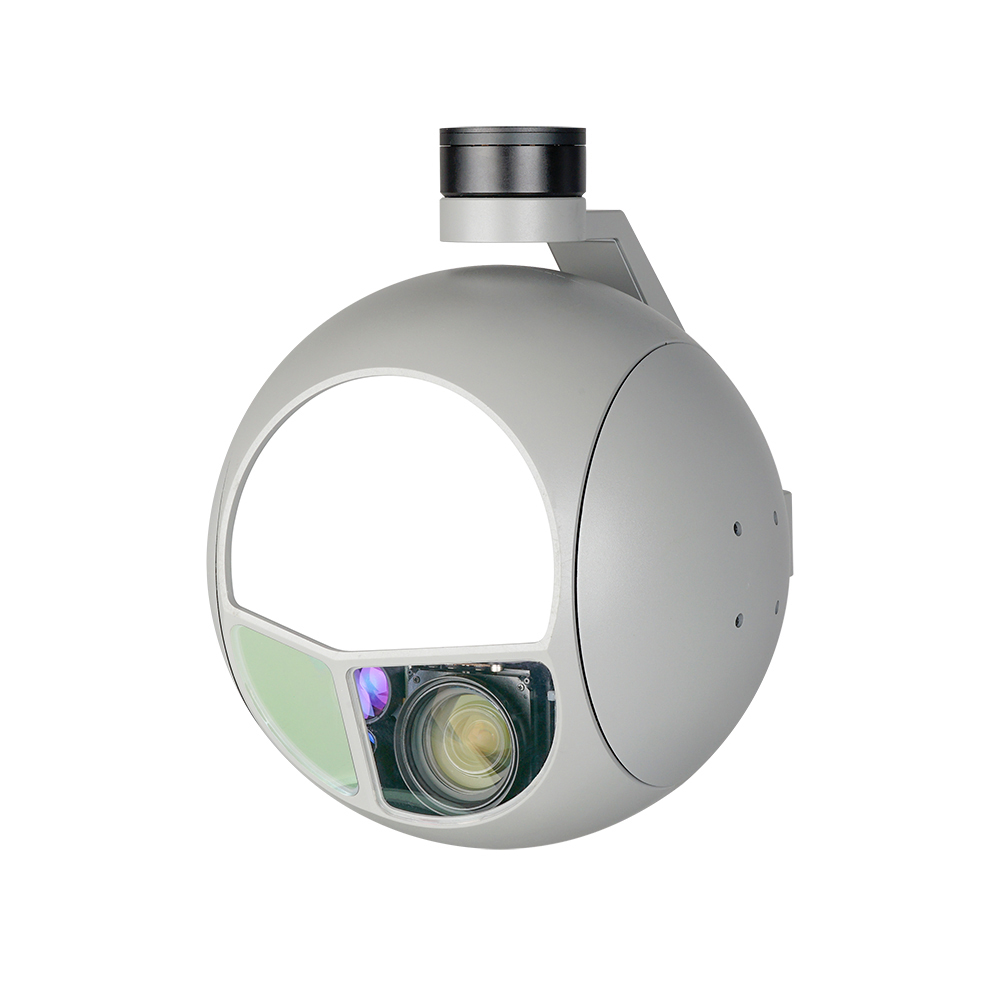

5. Q30TIRM-15100

30x EO + 7x IR Zoom + 10KM LRF Gimbal (Triple Sensors)

Our flagship model with 7x IR zoom (15~100mm) and 10km LRF capability, designed for ultra-long-range surveillance and detailed thermal analytics.

• EO: 1/1.8" STARVIS CMOS, 30x Zoom
• IR: 1280×1024, 15~100mm, 7x Zoom, 12μm, 25Hz
• LRF: 50~10000m
• Object Tracking: √
• Output: IP / SDI
• Weight: 5120g
• Size: 236×266.7×325.5mm

Viewpro High-Definition IR Gimbal Camera Comparison Table
