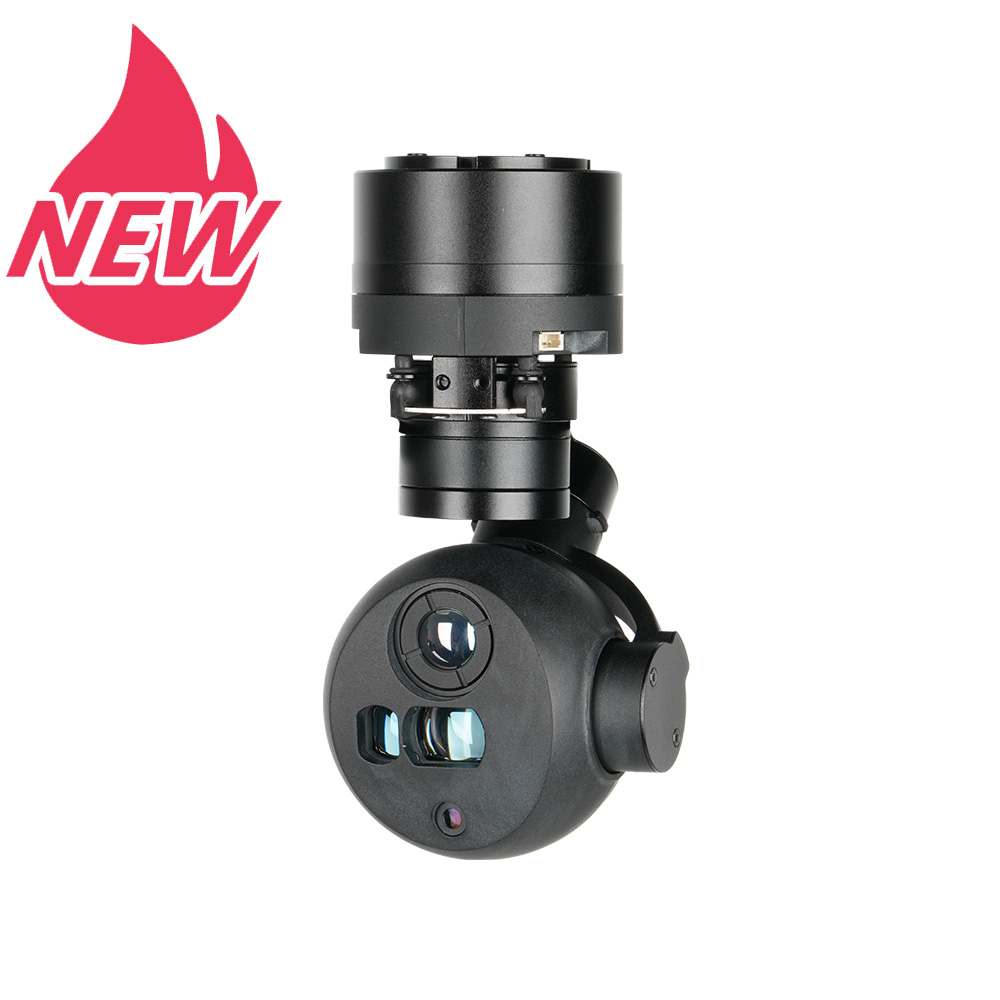

Q2RM
| Hardware Parameter | |
| Working voltage | 12~16V |
| Dynamic current | 400~800mA @ 12V |
| Power consumption | Average 4.8W, Max 9.6W |
| Working environment temp. | -20℃~+50℃ |
| Output | IP (RTSP 720p/1080p 25fps/30fps H264/H265) |
| Control method | TTL / TCP |
| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: -65°(Up)～130°(Down), Roll: ±30°, Yaw/Pan: ±150° |
| Controllable Range | Pitch/Tilt: -45°～125°, Yaw/Pan: ±130° |
| Vibration angle | Pitch/Roll/Yaw: ±0.02° |
| One-key to center | √ |
| EO Camera Spec | |
| Imager Sensor | 1/3" CMOS Sensor |
| Pixel size | 2.9um |
| Resolution | 1920*1080 @30fps |
| Focus Length | 10.36mm |
| Angle of View | 30°*17.1° |
| Digital zoom | 3x |
| IR Thermal Imager Spec | |
| Focus Length | 13mm |
| Aperture | F1.1 |
| Horizontal FOV | 33.9° |
| Vertical FOV | 27.1° |
| Detective Distance (Man: 1.8x0.5m) | 542 meters |
| Recognize Distance (Man: 1.8x0.5m) | 135 meters |
| Verified Distance (Man: 1.8x0.5m) | 68 meters |
| Detective Distance (Car: 4.2x1.8m) | 1661 meters |
| Recognize Distance (Car: 4.2x1.8m) | 415 meters |
| Verified Distance (Car: 4.2x1.8m) | 208 meters |
| Working mode | Uncooled VOx long wave (8μm~14μm) thermal imager |
| Detector pixel | 640*512 |
| Pixel size | 12μm |
| Focusing method | Athermal prime lens |
| NETD | ≤40mK@F1.0/25℃ |
| Color palette | White,black,Iron red |
| Digital zoom | 1x~8x |
| Radiometric function(Optional) | Optional range（-20℃~+150℃, 0℃~+550℃） |
| ±2℃ or +2%(take larger value)@23℃±3℃, Thermometry range 5m | |
| EO/IR Camera Object Tracking | |
| Minimum object contrast | 5% |
| Minimum object size | 16*16 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed（Man） | ±32 pixel/frame |
| Tracking speed (Car) | ±48 pixel/frame |
| Object memory time | 100 frames |
| Features | |
| OSD | Display the gimbal’s yaw and pitch angle, magnification, ranging value, card recording duration, aircraft GPS and altitude or target ranging point GPS and altitude (choose one of them, and target ranging point GPS and altitude), date and time |
| ArduPilot / PX4 | Support(Mavlink protocol ) Optional: Support Ardupilot Follow me feature |
| Video switching | EO+IR /IR+EO /EO /IR |
| Packing Information | |
| N.W. | 202±10g |
| Product meas. | 62.7*60.1*118.5mm |
| Accessories | UART and power connector, Ethernet cable, USB to TTL cable / Hight quality box with foam cushion |
