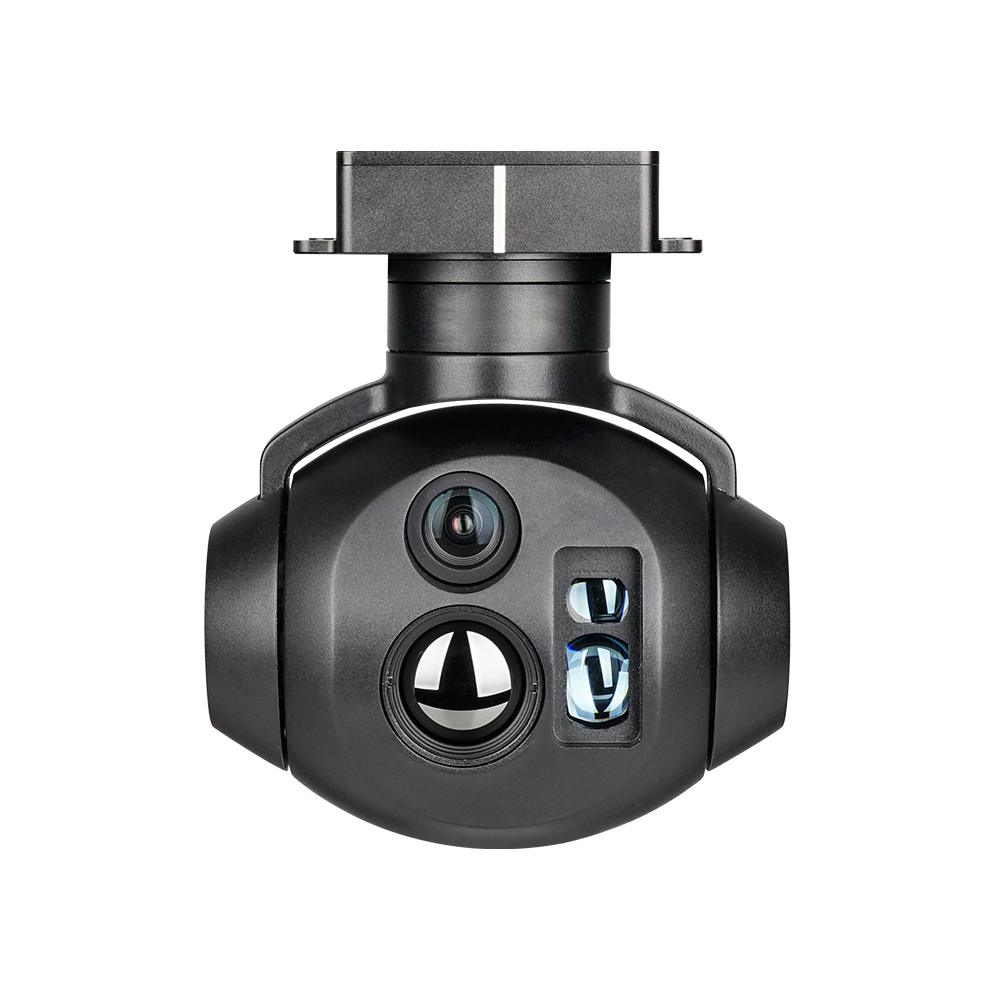

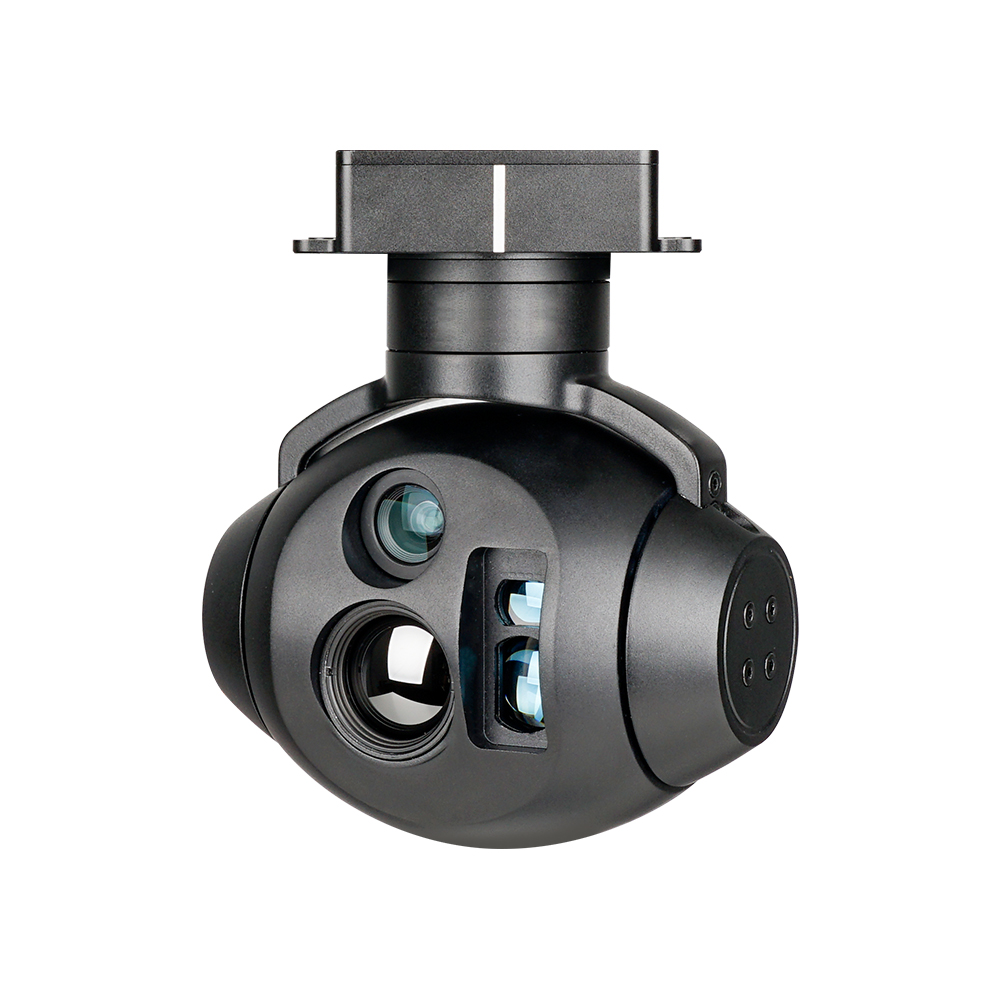

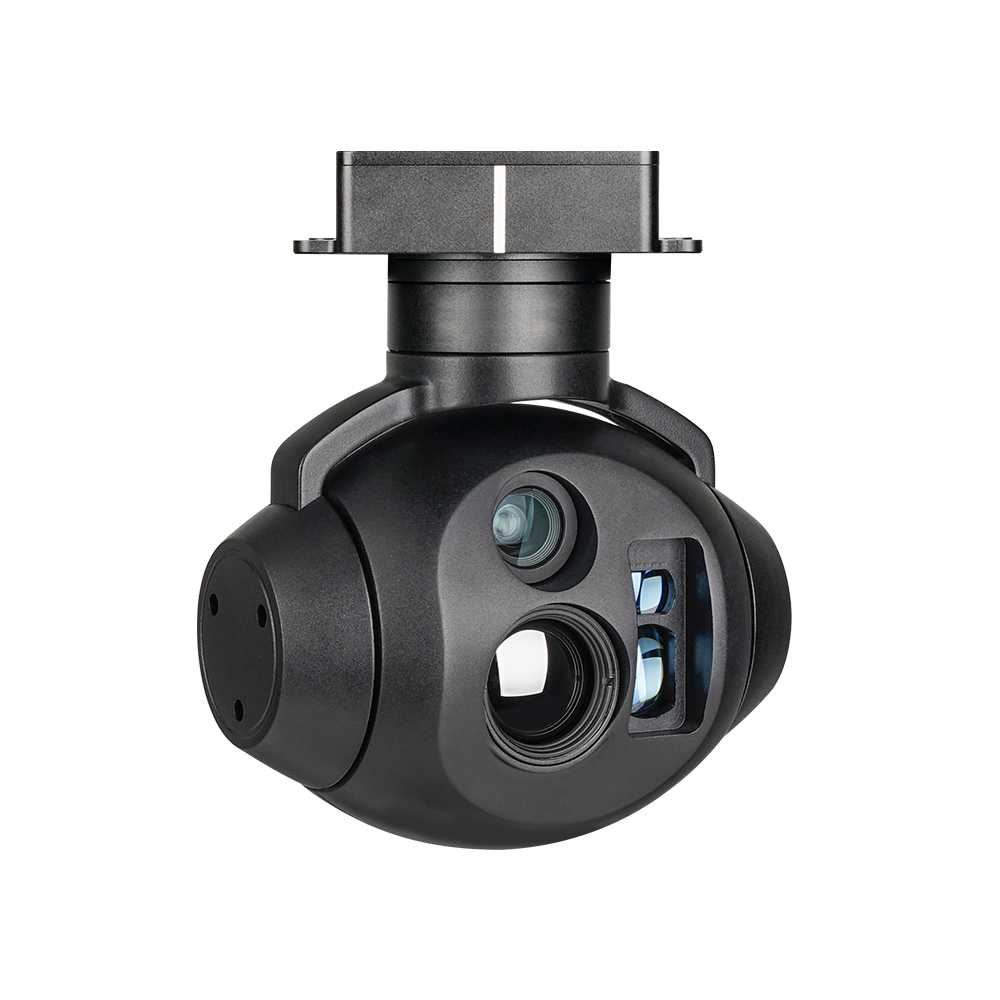

U818M
Specification
| Hardware Parameter U818M | |
| Working voltage | 16V |
| Input voltage | 4S ~ 6S (14.8V~25.2V) |
| Dynamic current | 540~900mA @ 16V |
| Power consumption | Average 8.6W, Max 14.4W |
| Working environment temp. | -20℃ ~ +40℃ |
| Output | IP (RTSP/UDP 720p/1080p 25fps/30fps H264/H265) |
| Local-storage | TF card (Up to 512G,class 10, FAT32 format) |
| Picture storage format in TF card | JPG(1920*1080) |
| Video storage format in TF card | MP4(1080P 30fps) |
| Control method | TTL or S.BUS (choose one of them, and TTL by default), and TCP/UDP |
| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: -55°(Up)～125°(Down), Yaw/Pan: ±360°*N |
| Controllable Range | Pitch/Tilt: -45°～120°, Yaw/Pan: ±360°*N |
| Vibration angle | Pitch/Yaw: ±0.02° |
| One-key to center | √ |
| EO Camera Spec | |
| Imager Sensor | CMOS Sensor |
| Resolution | 1920*1080 |
| Focus Length | 8mm |
| Angle of View | 38.3°*22.1° |
| Digital zoom | 1x ~ 8x |
| Detective Distance (Car: 4.2x1.8m) | 2000m |
| Recognize Distance (Car: 4.2x1.8m) | 1000m |
| Recognize Distance (Man: 1.8x0.5m) | 400m |
| IR Thermal Imager Spec | |
| Focus Length | 18mm |
| Horizontal FOV | 24° |
| Vertical FOV | 18.1° |
| Working mode | Uncooled VOx long wave (8μm~14μm) thermal imager |
| Detector pixel | 640*512 |
| Pixel size | 12μm |
| Focusing method | Athermal prime lens |
| NETD | ≤50mK@F1.0 @25℃ |
| Color palette | White hot, black hote, pseudo color |
| Digital zoom | 1x ~ 8x |
| Detective Distance (Car: 4.2x1.8m) | 1000m |
| Recognize Distance (Car: 4.2x1.8m) | 500m |
| Recognize Distance (Man: 1.8x0.5m) | 250m |
| EO / IR Camera Object Tracking | |
| Update rate of deviation pixel | 60Hz |
| Minimum object contrast | 5% |
| Minimum object size | 16*16 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | ±48 pixel/frame |
| Object memory time | 100 frames |
| Packing Information | |
| N.W. | 320±10g (with damping system) |
| Product meas. | 88.0*62.9*107.2mm |
| Accessories | 1pc gimbal camera device, screws, dampers, Connecting line, UART and power connector, Ethernet cable, USB to TTL cable / Hight quality box with foam cushion |
| G.W. | About 773g |
| Package meas. | 212*162*126mm |
