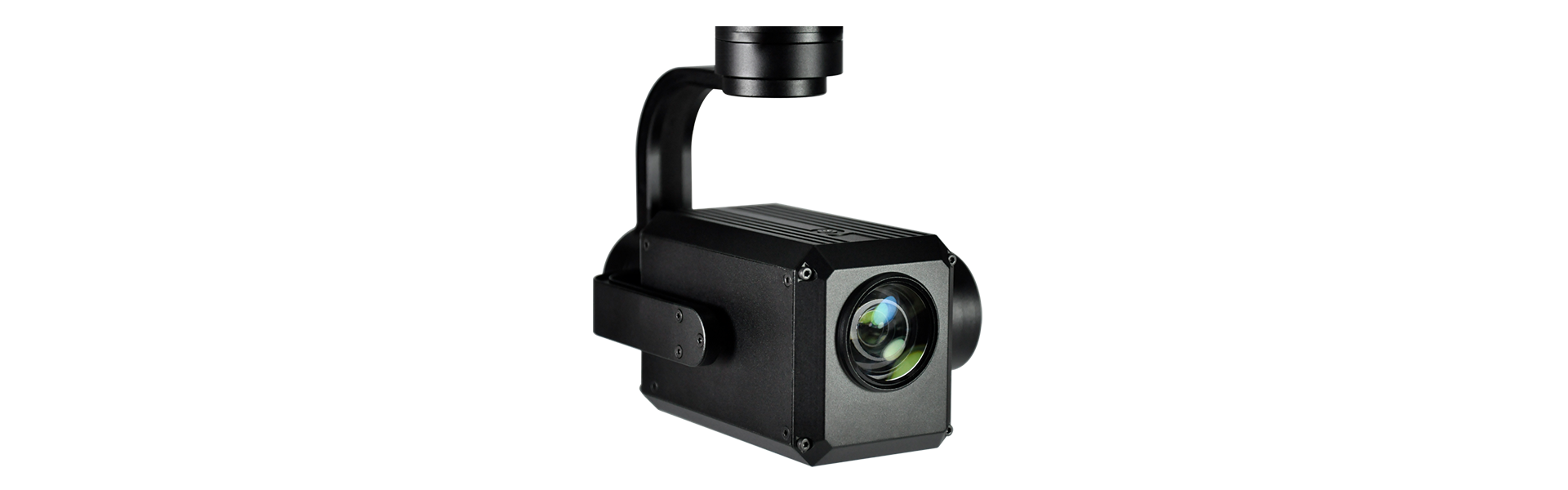

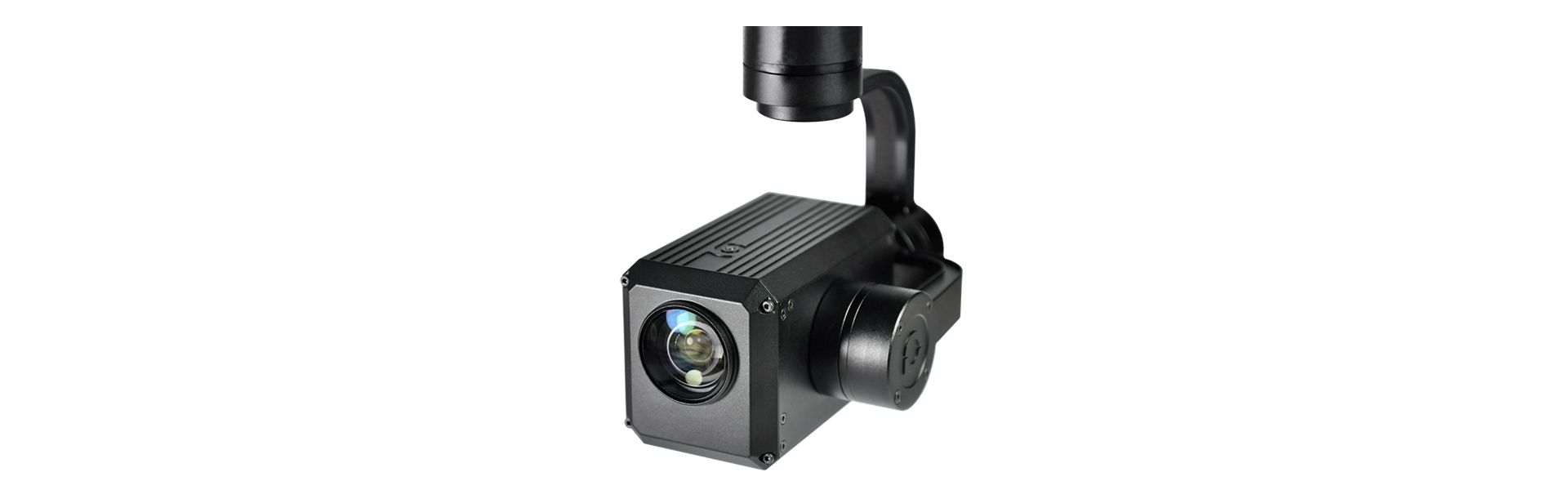

Z40K is a high-precision professional 3-axis gimbal which features high stability, small size, light weight and low power consumption. The 3-axis gimbal based on FOC motor control technology, adopts high-precision encoder in each motor. With advanced OIS function, Z40K can compensate the subtle movements of the UAV to keep the camera stable even under 25 times optical zoom. Powered by Panasonic 1/2.3inch CMOS 25.9MP 4K camera, Z40K is engineered for inspection especially power and utility industry. The speed of Z40K gimbal is adjustable, LOW speed mode for tele end, the control will be more accurate; Fast mode for wide end, which makes the gimbal control sensitive and quick. The one-key to center function will allow the gimbal return to initial position automatically and rapidly.




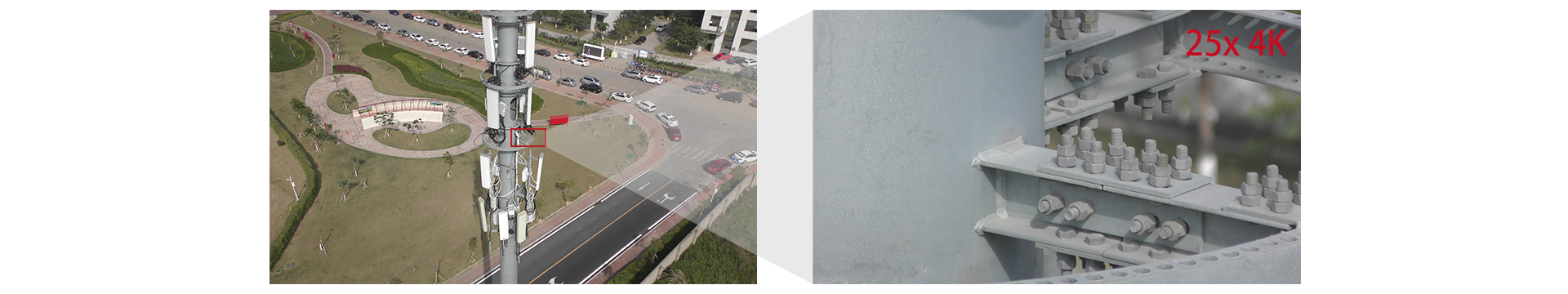

20x Optical Zoom 4K Camera, Up to 40x Zoom



Z40K is support 20x optical zoom under 4K video, and it's able to reach 25x iA zoom under 4K video and 40x iA zoom under FHD. Stabilizing the Z40K is a highly optimized 3-axis camera gimbal with pinpoint-precise motor rotation with a control accuracy of ±0.01° powered by a dedicated processor. 360°rotation remains possible through gimbal rotation. Stable, smooth footage image can be captured even when flying at high speed flight.


Camera Object Tracking



Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 192pixel/frame, object size range is from 32*32 pixel to 128*128 pixel, with the minimal signal-to-noise ratio (SNR) 4db, the mean square root values of pulse noise in the object position <0.5 pixel, which greatly improve the accuracy and tracking effect.



Applications







Specifications



Hardware Parameter
Working voltage 12V ~ 16V
Input voltage 3S ~ 4S
Output voltage 5V (connect with PWM)
Dynamic current 450mA @ 12V
Idle current 330mA @ 12V
Power consumption ≤5.4W
Working environment temp. -40 ~ +60
Output  micro HDMI(HD output 1080P 60fps) / IP
Local-storage SD card (Up to 128G, class 10, FAT32 or ex FAT format)
Control method PWM  / TTL / SBUS
Gimbal Spec
Pitch/Tilt ±90°
Roll ±85°
Yaw/Pan ±150°
Vibration angle Pitch/Roll: ±0.02°, Yaw±0.03°
One-key to center
Camera Spec
Imager Sensor Panasonic 1/2.3inch CMOS
Lens F1.8~F3.6(f=4.08~81.6mm)
Zoom Optical zoom:20x,  iA zoom:25x(4k) / 40x(FHD)
Total pixel 25.9MP
Record effective pixel 4k:8.29MP / FHD:6.10MP(16:9)
Picture effective pixel 25.9MP(16:9) 6784*3816
Optical Image Stabilization 5 axis Optical Image Stabilization
Record format MPEG-4
Record pixel 4k:3840*2160/30p  FHD:1080/60p  (HD:720/30p)
Record shutter speed(Manual) 1/30 ~ 1/8000
Picture format JPEG
Picture  pixel 20.4M(4:3)
Picture shutter speed(Manual) 1/2 ~ 1/2000
Dynamic range 65dB
Min object distance 1.5M
Viewing angle Horizontal: 53.2°(Wide end) ~ 5.65°(Tele end)
Vertical: 39.8°(wide end) ~ 4.2°(tele end)
Focus: 66.6°(wide end) ~ 7.2°(tele end)
Sync system Progressive scanning
Local video 1080P 30fps local TF card
HD output 1080P/720/480P 60fps HDMI1.4
S/N ratio 38dB
Min illumination Color 0.05lux@F1.6
Backlight compensation Backlight compensation/strong light inhibition
Gain Auto
White balance Auto/Manual
Control system UART/IR/PWM
Communication protocol PELCO-D, Hitachi protocol or VISCA
Focus Auto/Manual/One-time automatic focus
Focus speed 2s
Lens initialization Built-in
User presetting bit 20 sets
Image rotation 180°, Horizontal/Vertical mirror image
Facial recognition
Object Tracking(Optional)
Update rate of deviation pixel 50Hz
Output delay of deviation pixel <15ms
Minimum object contrast 5%
SNR 4
Minimum object size 32*32 pixel
Maximum object size 128*128 pixel
Tracking speed ±48 ~ ±192 pixel/frame
The mean square root values of pulse noise in the object position < 0.5 pixel
Packing Information
N.W. 630g
Product meas. 153*96*140mm
