Q30TIR-50 is a powerful 3-axis gimbal camera which integrates a 30x optical zoom SONY camera and a 640x480 thermal camera. The 3-axis gimbal based on FOC technology features high stability, accuracy and sensitivity. The image is very stable even at 30 times optical zoom. Detecting by heat source, the 50mm thermal can reveal the damage of buildings, fire spark in forest, the location of people or animal and more. It's widely used in day and night surveillance, search, inspection and firefighting.









30x Time Optical Zoom EO Camera

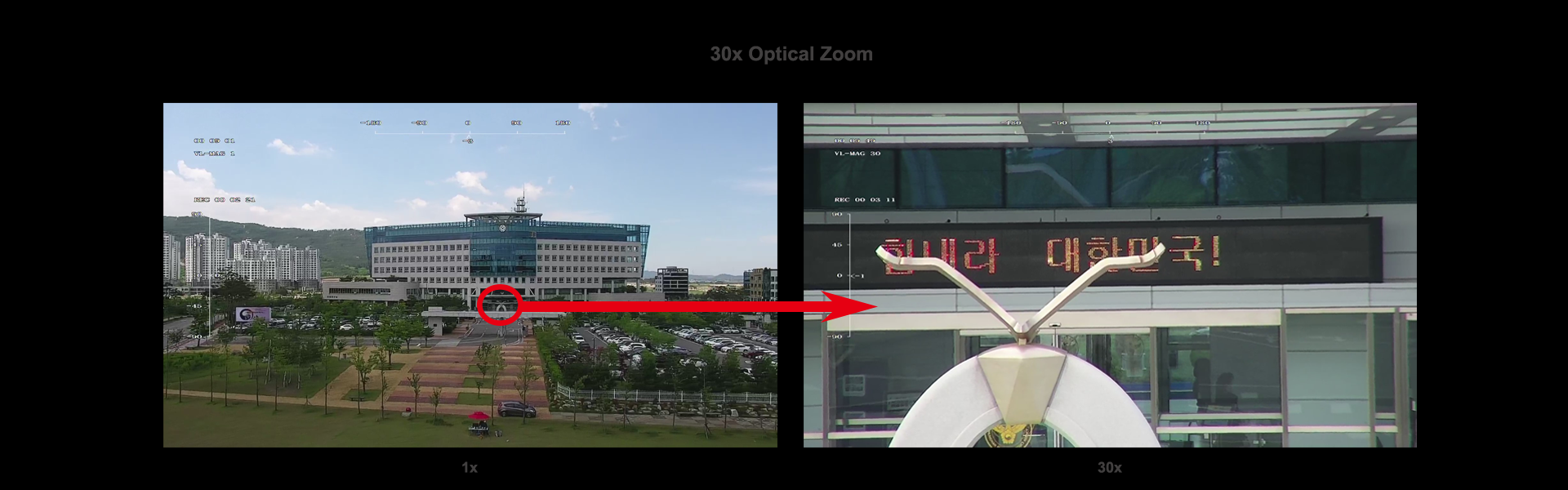

Powered by 30x optical zoom high resolution camera module, Q30TIR-50 can recognize cars, buildings and structures in 3000 meters, which can meet the application requirements of various domains.







Advanced IR Thermal Imager


Integrated French ULIS high-precision uncooled long wave (8μm ~14μm ) thermal image sensor, Q30TIR-50 can record and transmit thermal image and visible images at the same time in PIP format.


Optional thermometry version: With temperature measuring sensor, it could accurately attain the temperature of objects and individuals. The thermal sensor allows three points’ temperature ranging between 0℃~120℃ to be measured and displayed on screen. Adjust the different colors applied to the thermal data based on the needs of specific scenarios.


*Temp bar: Indicates gradually variation temperature with corresponding colors.

*Temp measurement: Display average, highest, and lowest temperatures in real time.

*Temp alarm: Don't miss a thing when object temperatures exceed pre-set alert values.





Visible Light and Thermal Imager Dual Sensors Object Tracking

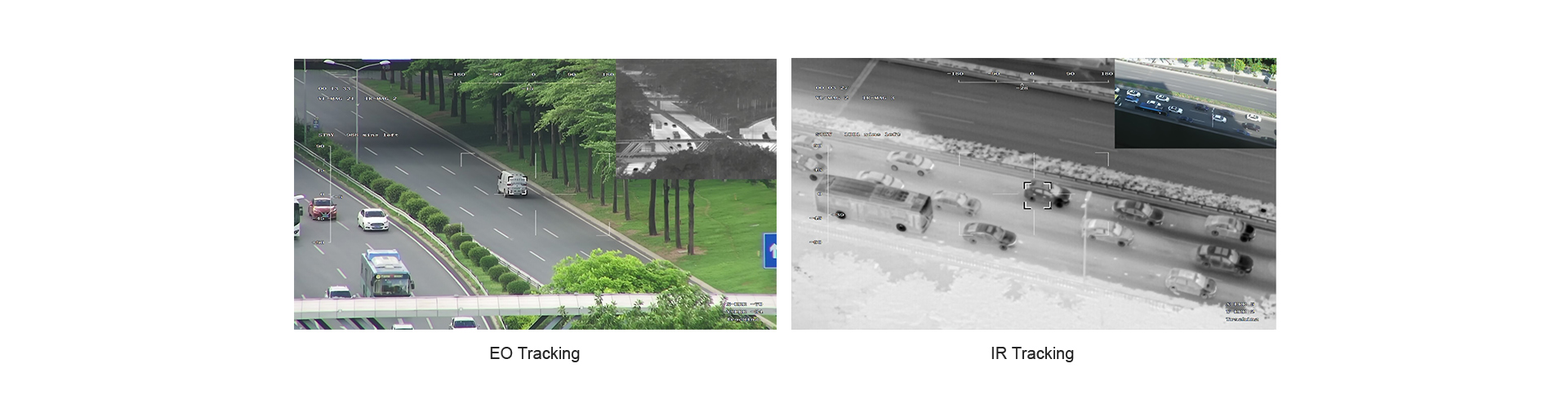

Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 32pixel/frame, object size range is from 16*16 pixel to 160*160 pixel, with the minimal signal-to-noise ratio (SNR) 4db, the mean square root values of pulse noise in the object position <0.5 pixel, which greatly improve the accuracy and tracking effect.



Multi Output Methods Optional


Q30TIR-50 support both HDMI output, Ethernet/IP output and SDI output. HDMI and output are 1080p, Ethernet output defualt as 720p and record is 1080p. IP output and SDI output versions will support 360degree enless pan.





Multi Control Methods



Defualt PWM and Serial port TTL control, SBUS is optional, IP output version also support TCP control via ethernet cable. With Viewpro software Viewlink you can fulfill IP output, TTL control and TCP contorl.


Control box signal interfaces:



Compatible with Viewport



Q30TIR-50 is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play.



For more information about Viewport, please check below video instruction:




Applications

"Our primary focus is on supplying equipment for various purposes such as firefighting, power tower maintenance, pipeline inspection, and search and rescue operations. Emergency situations demand a broad spectrum of monitoring and search capabilities to swiftly assess the situation and enhance response efficiency."





Dimensions




Specifications



Hardware Parameter
Working voltage 12V
Input voltage 3S ~ 6S
Output voltage 5V (connect with PWM)
Dynamic current 900mA @ 12V
Idle current 750mA @ 12V
Working environment temp. -20 ~ +60
Output  micro HDMI(1080P 60fps) / IP (720p) / SDI (1080P 30fps)
Local-storage TF card (Up to 128G, class 10, FAT32 or ex FAT format)
Picture storage format in TF card JPG(1920*1080)
Video storage format in TF card MP4  (1080P/720P  25fps/30fps)
Control method PWM  / TTL / S.BUS / TCP(IP output)
Gimbal Spec
Angle range of structure design Pitch/Tilt: -40°110°,      Roll: ±70°,    Yaw/Pan: ±300° / ±360°*N (IP / SDI output version)
Angle range of software design Pitch/Tilt: -30°90°,   Yaw/Pan: ±290° / ±360°*N (IP / SDI output version)
Vibration angle Pitch/Roll: ±0.02°, Yaw±0.02°
One-key to center
Camera spec
Imager Sensor SONY 1/2.8" "Exmor R" CMOS
Picture quality Full HD 1080 (1920*1080)
Effective pixel 2.13MP
Lens optical zoom 30x, F=4.3~129mm
Digital zoom 12x (360x with optical zoom)
Min object distance 10mm(wide end) to 1200mm(tele end). Default 300mm
Horizontal viewing angle 1080p mode: 63.7°(wide end) ~ 2.3°(tele end)
720p mode: 63.7°(wide end) ~ 2.3°(tele end)
SD: 47.8°(wide end) ~ 1.7°(tele end)
Sync system Internal
S/N ratio more than 50dB
Min illumination Color 0.01lux@F1.6
Exposure control Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE
Gain Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps)
Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps)
White balance Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/
Auto/Outdoor Auto)
Shutter speed 1/1s to 1/10,000s, 22 steps
Backlight compensation Yes
Aperture control 16 steps
Defog Yes
OSD Yes
Camera Object Tracking
Update rate of deviation pixel 50Hz
Output delay of deviation pixel 5ms
Minimum object contrast 5%
SNR 4
Minimum object size 32*32 pixel
Maximum object size 128*128 pixel
Tracking speed 32 pixel/frame
Object memory time 100 frames (4s)
The mean square root values of pulse noise in the object position < 0.5 pixel
Thermal Imager Spec
Lens size 50mm
Horizontal FOV 12.4
Vertical FOV 9.3
Diagonal FOV 15.5
Detective Distance (Man: 1.8x0.5m) 1471 meters
Recognize Distance (Man: 1.8x0.5m) 368 meters
Verified Distance (Man: 1.8x0.5m) 184 meters
Detective Distance (Car: 4.2x1.8m) 4510 meters
Recognize Distance (Car: 4.2x1.8m) 1127 meters
Verified Distance (Car: 4.2x1.8m) 564 meters
Working mode Uncooled long wave (8μm~14μm) thermal imager
Detector pixel 640*480
Pixel size 17μm
Focusing method Athermal prime lens
Emissivity correction 0.01~1
NETD ≤60mK (@25)
MRTD ≤650mK (@characteristic frequency)
Image enhancement Auto adjust image brightness and contrast ratio
Color palette White, iron red, pseudo color
Auto Non-uniform correction Yes (no shutter)
Digital zoom 1x ~ 4x
Sync correct time Yes
Thermometry type Temperature bar (psudo color display) max temp, min temp, FOV center temp (Optional)
Temperature warning 0~120 (For thermometry version only)
Thermal Imager Object Tracking
Update rate of deviation pixel 50Hz
Output delay of deviation pixel 5ms
Minimum object size 32*32 pixel
Maximum object size 128*128 pixel
Tracking speed 32 pixel/frame
Object memory time 100 frames (4s)
Packing Information
N.W. 1219g (Viewport version)
Product meas. 127.6*164.5*173.5mm
Accessories 1pc gimbal camera device, 16pcs screws,  4pcs copper cylinders, 12pcs damping balls, 4pcs damping boards, 1pc USB to TTL cable / Hight quality plastic box with foam cushion
