Professional 3-axis High-precise FOC program

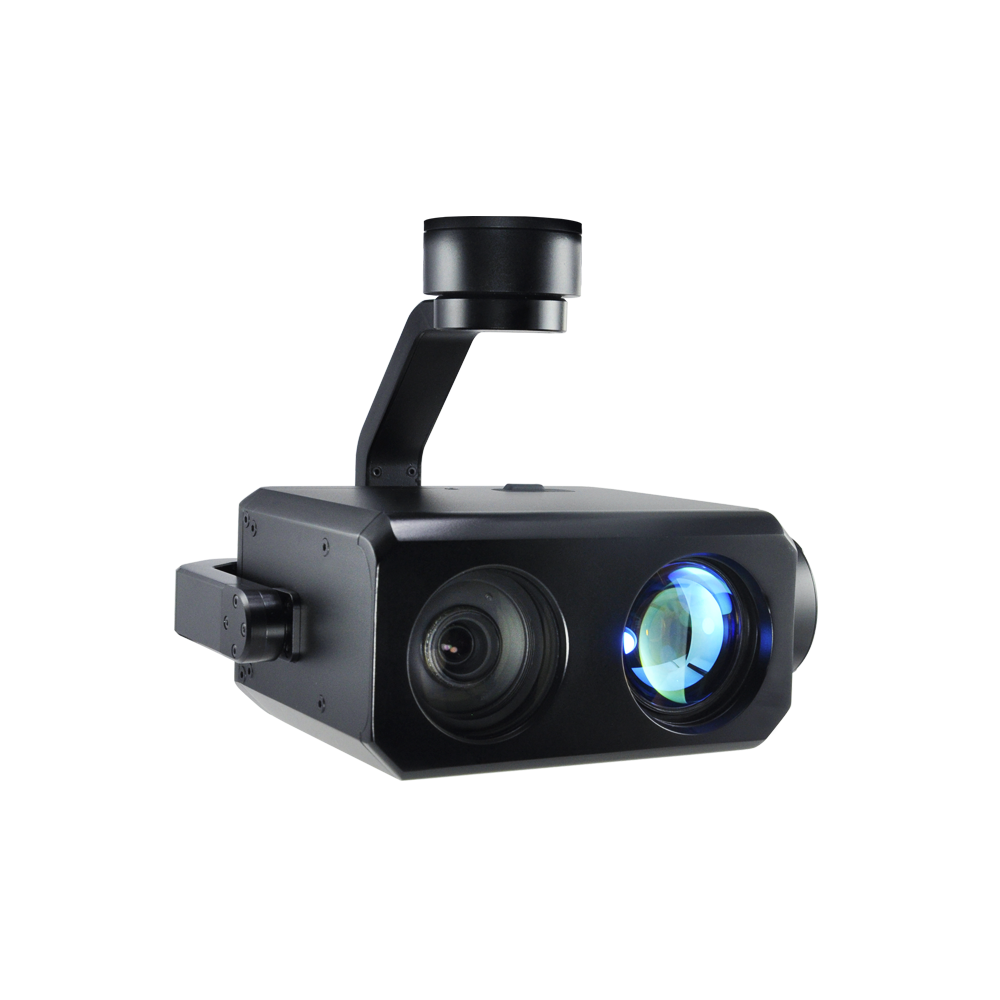

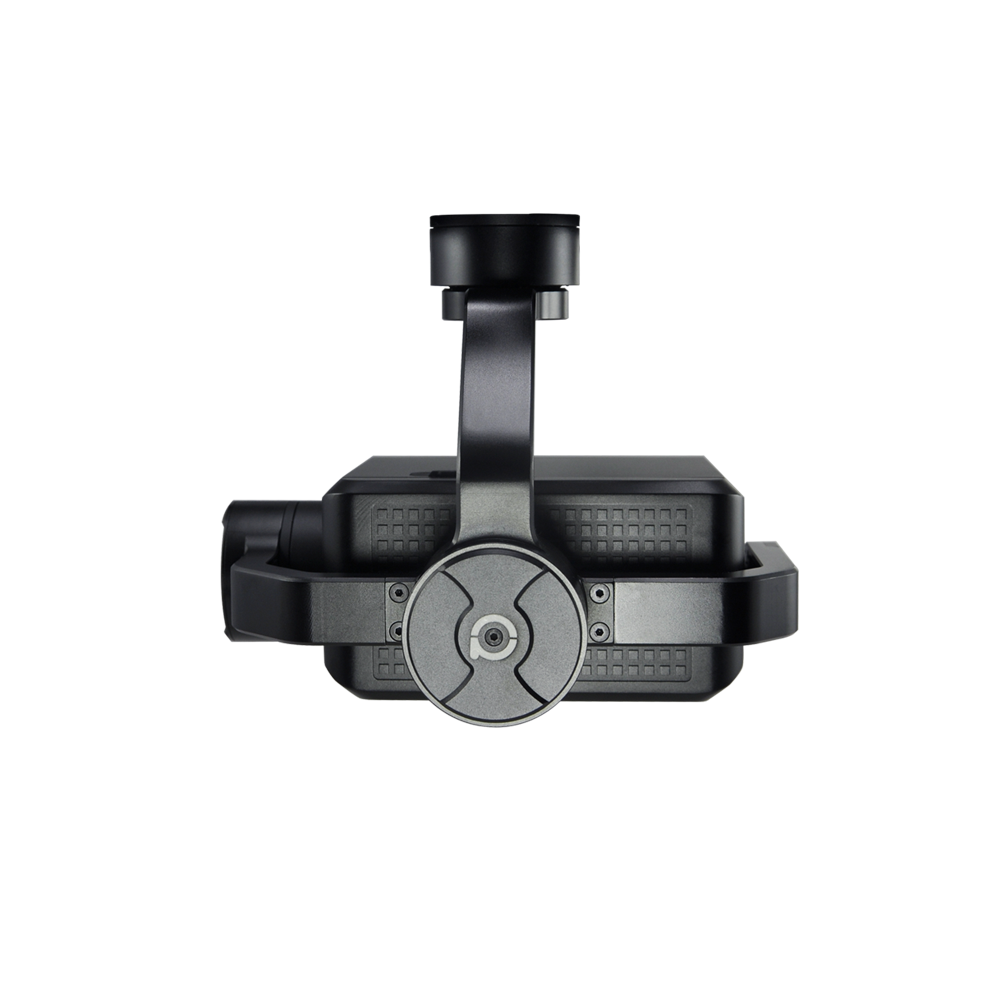

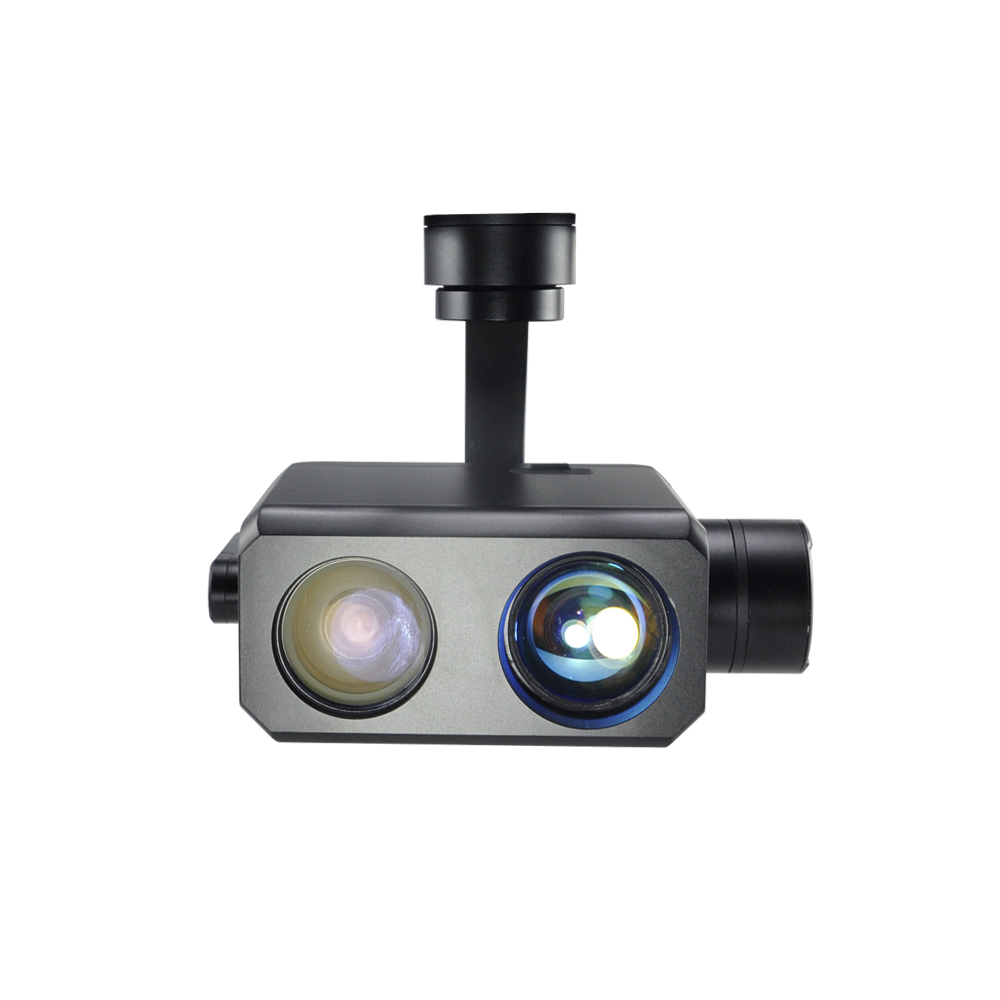

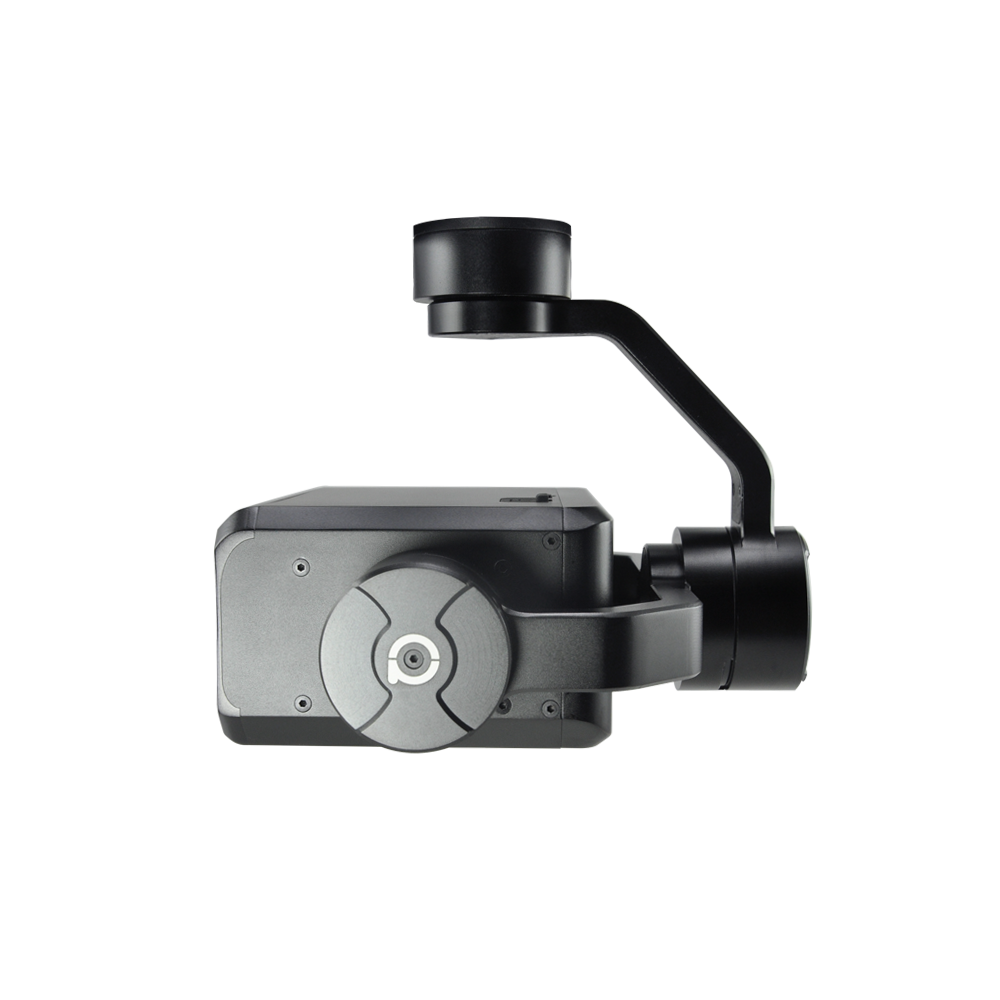

Stabilizing the Z30TL is a highly optimized 3-axis camera gimbal with pinpoint-precise motor rotation with a control accuracy of ±0.02℃ powered by a dedicated processor. Z30TL uses a unique mechanically limited design and concealed wires to ensure more stable data transmission and greater durability. Vibration is eliminated using four damping balls and a lightweight damping board, creating seamless smooth video. 300° rotation remains possible through gimbal rotation. Stable, smooth footage image can be captured even when flying at high speed light.









SONY 30x Zoom Starlight camera, 500 meters Laser Light

Powered by SONY 1/2.8 Exmor R CMOS module, with 0.01lux@F1.6 starlight level min illumination, Z30TL can still clearly display image features in utter poor light environment. 2.13 mega effective pixel and 1080p HD image quality, combined with powerful 30x optical zoom technology, the observation range is up to 6.5Km.




500m IR Illumination



500 meters illumination supplement combined with 30x optical zoom, the observation range for X30TL is up to 500 meters in a pitch black environment, which can meet the application requirements of various domains such as night surveillance, research&rescue, obtain evidence...



Built-in Object Tracking


Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 32pixel/frame, object size range is from 16*16 pixel to 160*160 pixel, with the minimal signal-to-noise ratio (SNR) 4db, the mean square root values of pulse noise in the object position <0.5 pixel, which greatly improve the accuracy and tracking effect.




Multi Output Methods Optional



Q10T support both HDMI output, Ethernet/IP output and SDI output. HDMI and output are 1080p, Ethernet output defualt as 720p and record is 1080p. IP output and SDI output versions will support 360degree enless pan.





Multi Control Methods



Defualt PWM and Serial port TTL control, SBUS is optional, IP output version also support TCP control via ethernet cable. With Viewpro software Viewlink you can fulfill IP output, TTL control and TCP contorl.



Control box signal interfaces:




Compatible with Viewport



Z30TL is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play.




Signal interfaces of Viewport control box:

For more information about Viewport, please check below video instruction:





Application


Mainly supply in military and fire-fighting, power tower and pipeline inspection, search and rescue etc. A wide range of monitoring and searching is required in an emergency to quickly transfer the situation, improve response efficiency and reduce casualties



        Dimensions




     Specifications



Hardware Parameter
Working voltage 14V ~ 16V
Input voltage 4S
Output voltage 5V (connect with PWM)
Dynamic current 1000mA @ 12V
Idle current 800mA @ 12V
Power consumption ≤ 12W
Working environment temp. -40 ~ +60
Output  1080p micro HDMI / IP / SDI
Local-storage SD card (Up to 128G, class 10, FAT32 or ex FAT format)
Control method PWM / TTL / SBUS / TCP (IP output version)
Gimbal Spec
Pitch/Tilt -65°~+90°
Roll ±85°
Yaw/Pan ±360°*N
Vibration angle Pitch/Roll: ±0.02°, Yaw±0.03°
One-key to center
Camera Spec
Imager Sensor SONY 1/2.8" "Exmor R" CMOS
Picture quality Full HD 1080 (1920*1080)
Effective pixel 2.13MP
Lens optical zoom 30x, F=4.3~129mm
Digital zoom 12x (360x with optical zoom)
Min object distance 10mm(wide end) to 1200mm(tele end). Default 300mm
Horizontal viewing angle 1080p mode: 63.7°(wide end) ~ 2.3°(tele end)
720p mode: 63.7°(wide end) ~ 2.3°(tele end)
SD: 47.8°(wide end) ~ 1.7°(tele end)
Sync system Internal
S/N ratio more than 50dB
Min illumination Color 0.01lux@F1.6, AGC on, 1/30s
Exposure control Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE
Gain Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps)
Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps)
White balance Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), One-push, Manual
Shutter speed 1/1s to 1/10,000s, 22 steps
Backlight compensation Yes
Aperture control 16 steps
Defog Yes
OSD Yes
Fotoformate JPEG
Videoformate MP4
Camera Object Tracking
Update rate of deviation pixel 50Hz
Output delay of deviation pixel <15ms
Minimum object contrast 5%
SNR 4
Minimum object size 16*16 pixel
Maximum object size 160*160 pixel
Tracking speed ±32 pixel/frame
Object memory time 100 frames (4s)
The mean square root values of pulse noise in the object position < 0.5 pixel
Laser Light Supplement
Effective range 500 meters
Light wave length 850 ± 10nm (940nm, 980nm)
Illumination angle power zoom synchronously, 70°~2.0° adjustable
Zoom time 2s (wide end - tele end)
Power consumption of laser chipset 2 ± 0.2W
Illumination angle Tele end 2.0°: effective range 500 meters, spot diameter < 20 meters
Wide end 70°: effective range  40 meters
Working voltage DC12V ± 10%
Power consumption in total < 11W
Control system PWM/TTL
Communication system UART_TTL
Communication protocol PELCO-D (defualt baud rate 9600bps)
Packing Information
N.W. 820g / 870g (Viewport version)
Product meas. 153*141.9*138mm/153*141.9*163.4mm(Viewport Version)
Accessories 1pc gimbal camera device, screws, copper cylinders, damping balls, damping boards / Hight quality plastic box with foam cushion
