Viewpro New Era AI Camera H30T Multifunction Powerful Payload

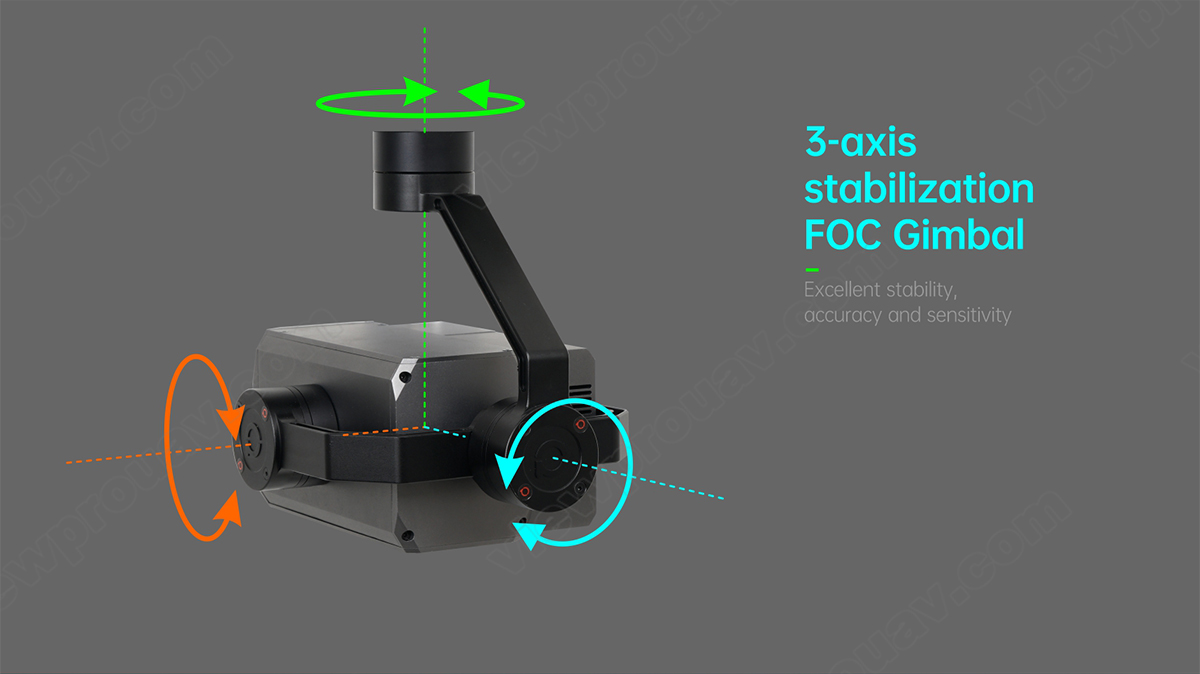

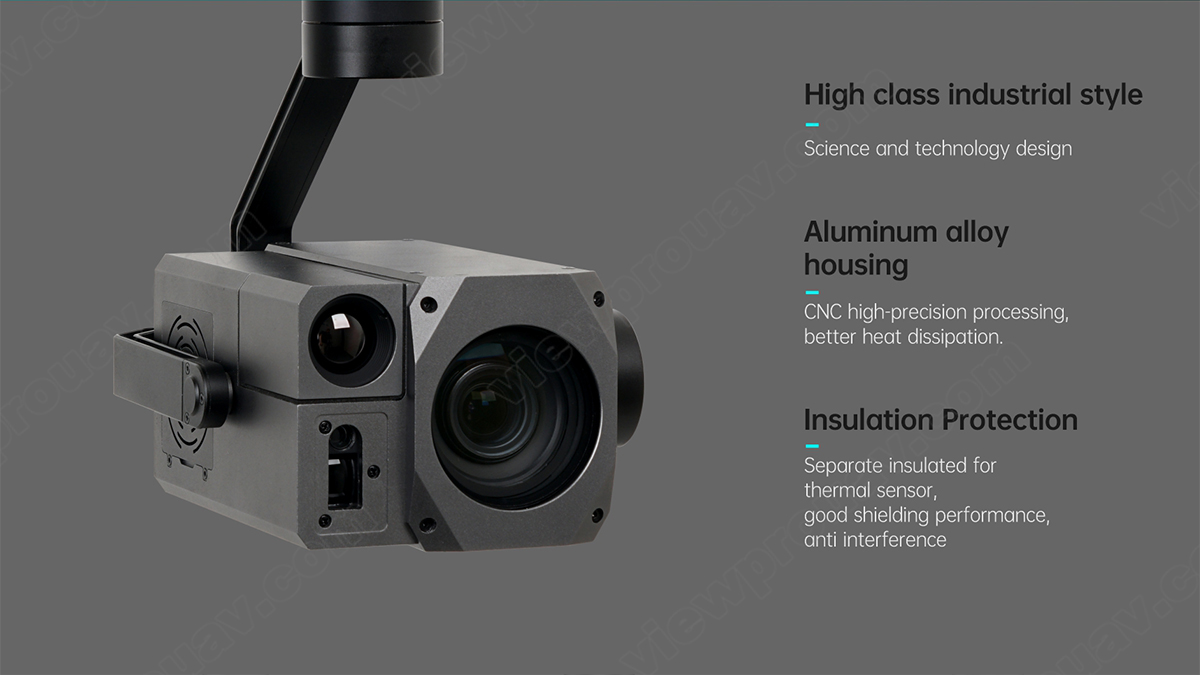

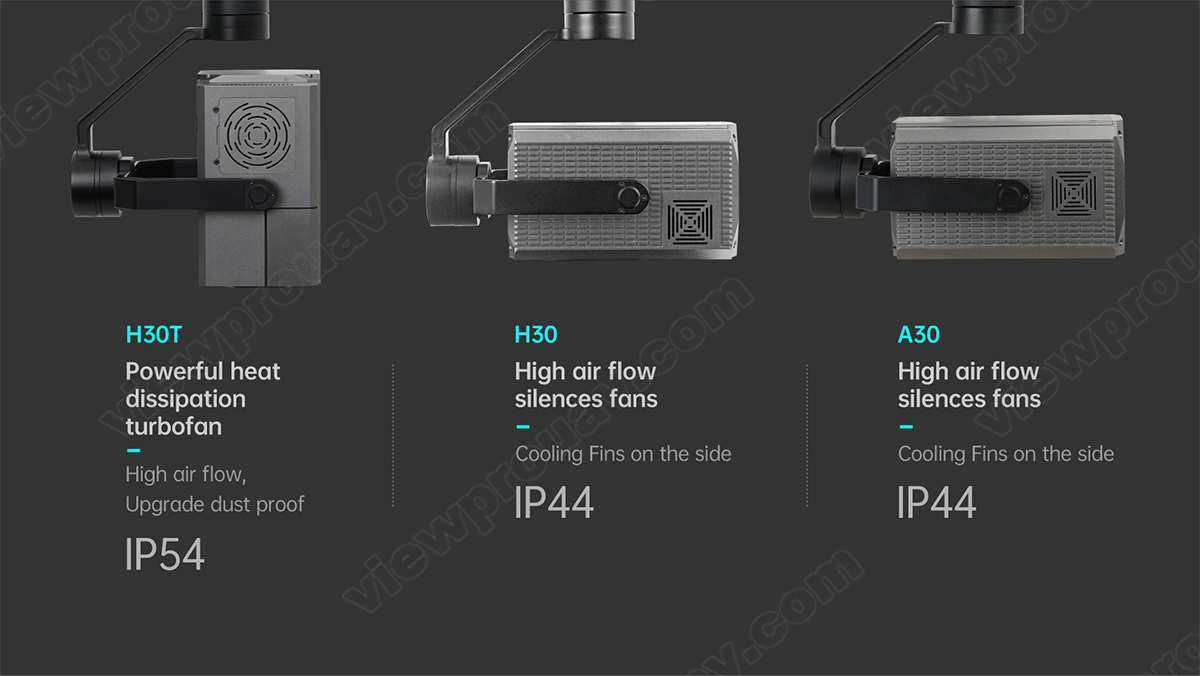

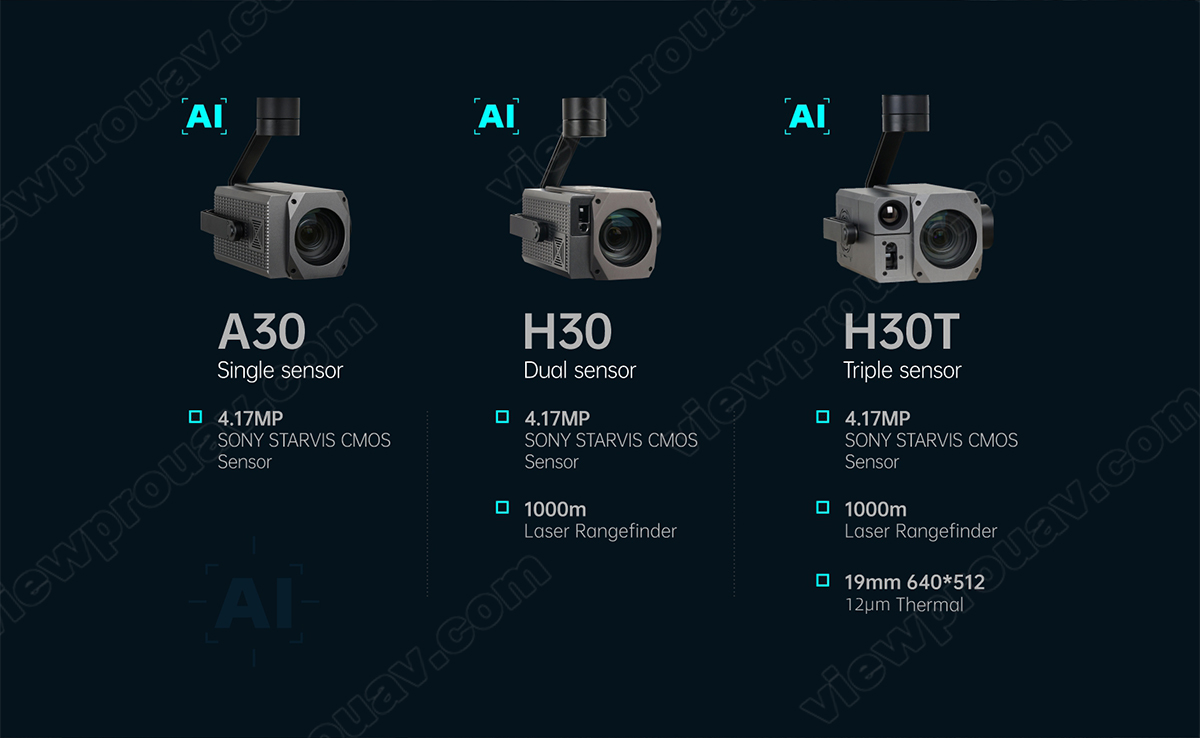

H30T is a 3-axis high-precision gimbal integrates AI based sensor with 30x optical zoom EO SONY STARVIS sensor, a 19mm lens 640*512 IR thermal sensor and 1000m laser rangefinder. It features fast focus, aluminum alloy housing and anti-interference.The 3 axis gimbal can achieve stabilization in yaw, roll and pitch. The integrated design of damping system and gimbal can greatly reduce mechanical vibration.











1.  Newest SONY STARVIS 30x Optical Zoom Colour Camera


Powered by SONY 1/1.8" STARVIS CMOS module, 4 mega effective pixel, combined with 30x advanced optical zoom technology, the observation range is up to 3000 meters, which can meet the application requirements of various domains.





High Resolution


The newest 4MP CMOS module features high-resolution lens achieved superior sharpness, and utilizes proven AF/AE/AWB technology to obtain accurate images even in low-light environments. Combined with enhanced optical zoom technology to achieve high-quality performance from the near focal end to the far focal end.



High Lite Sensitivity

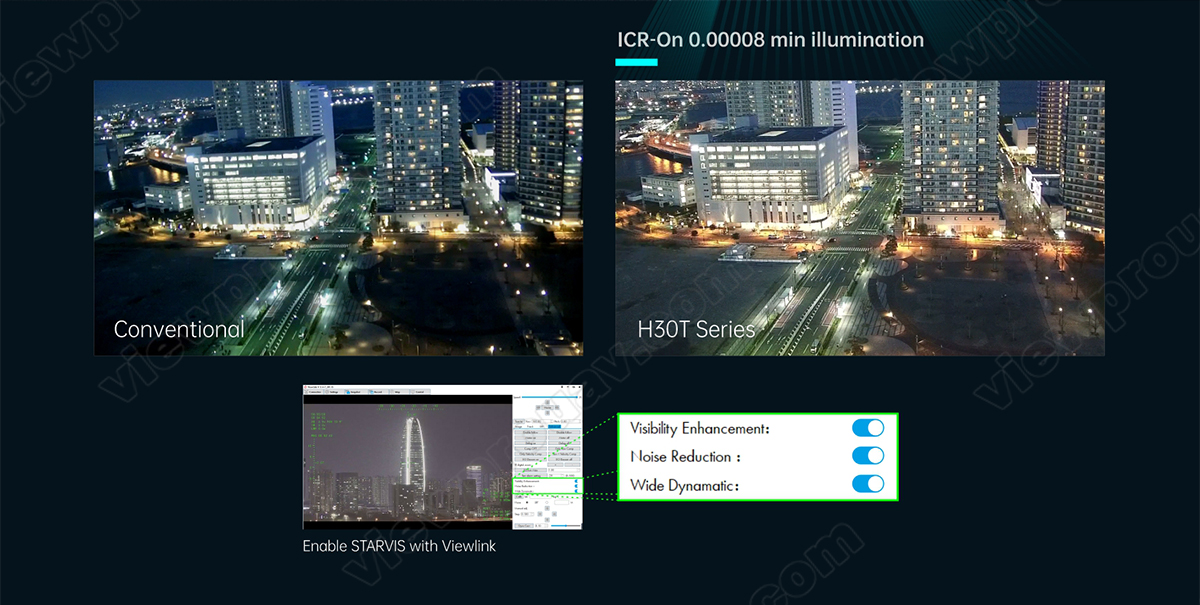

By adopting a new pixel structure and circuit technology, H30T utilizes light more efficiently, achieving twice the sensitivity compared to conventional image sensor products. Therefore, clear images can be obtained even at night and in dark environments.

Super Image Stabilization


With greatly improved blur suppression and image stabilization technology, H30T can get very accurate video by reducing image blur even in harsh environments with severe shaking.

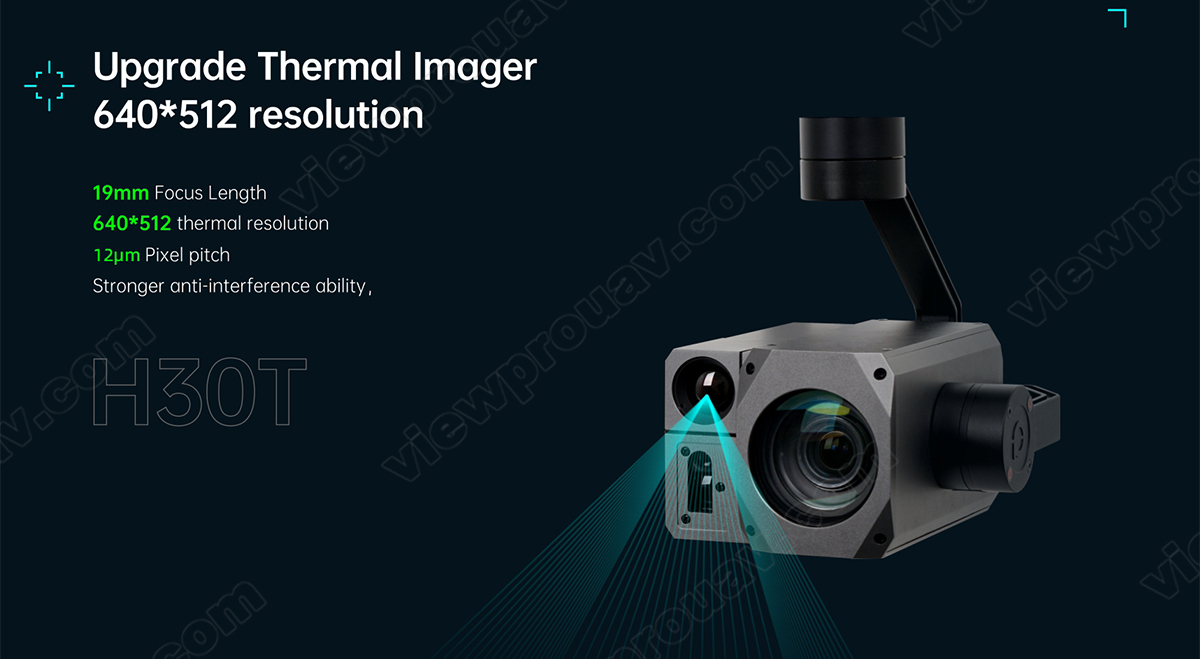

2. Upgrade Thermal Imager 640*512 resolution


Integrated high-precision uncooled long wave (8μm ~14μm ) 19mm thermal image sensor with higher resolution 640*512 detector pixel and advanced 12μm pixel size, H30T can record and transmit thermal image and visible images at the same time in PIP format. It supports IR thermal and PIP switch, IR color palette switch, thermal digital zoom.

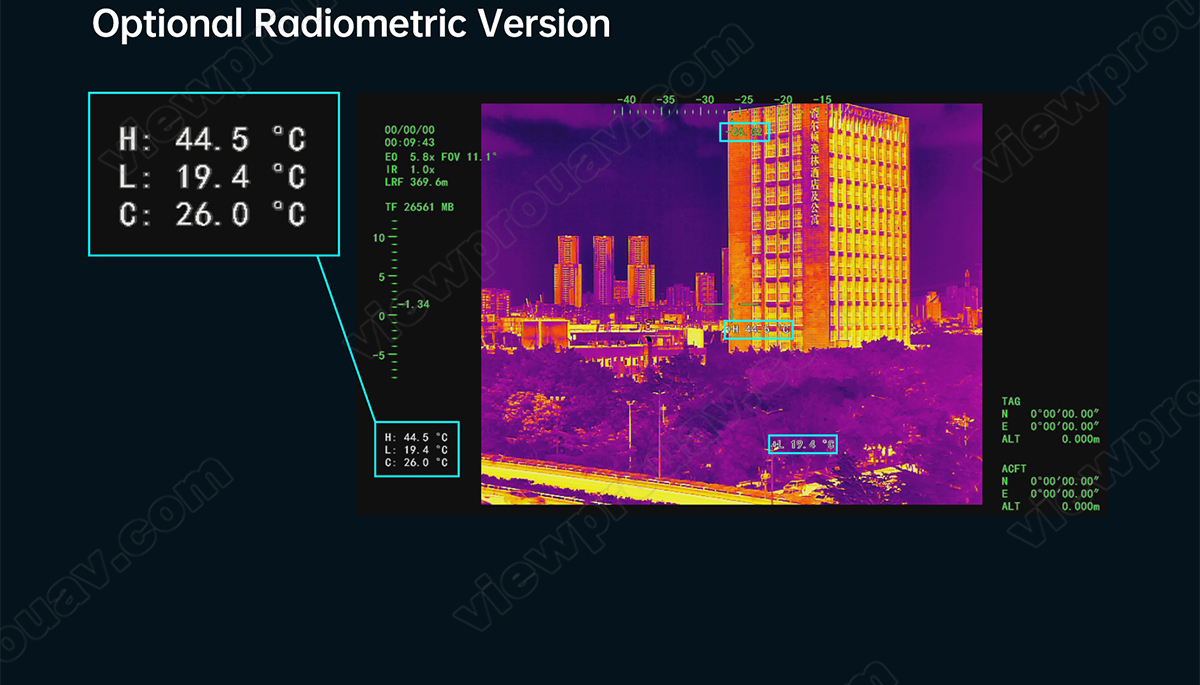

Optional thermometry version: With temperature measuring sensor, it could accurately attain the temperature of objects and individuals. The thermal sensor allows three points’ temperature ranging between -20℃~150℃ to be measured and displayed on screen. Images captured by the H30T are in R-JPG format with embedded temperature information. By importing these images into the Viewpro Thermal Analysis Tool, you can measure temperature of each pixel.





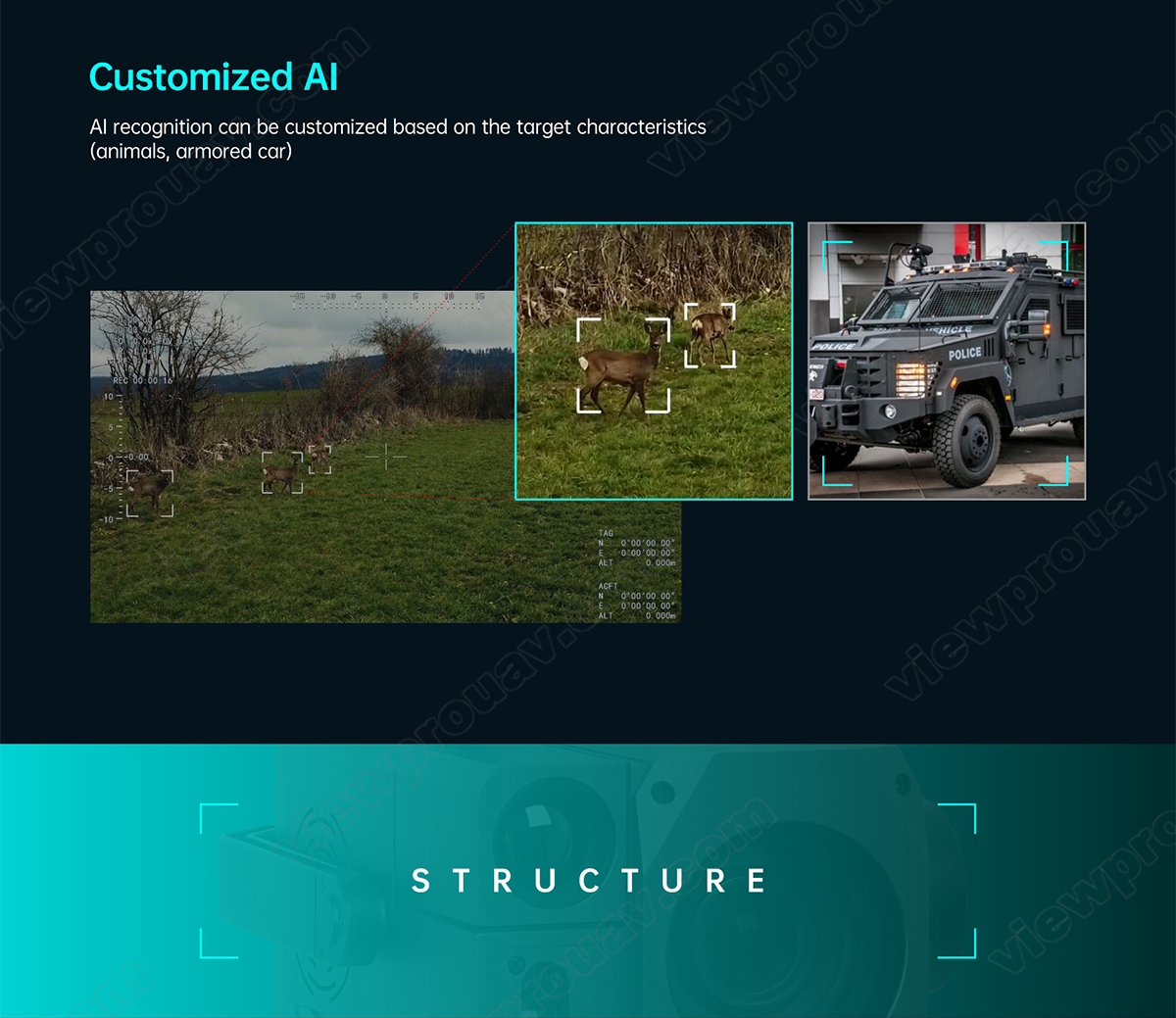

3. AI Identification And Tracking For Human / Car

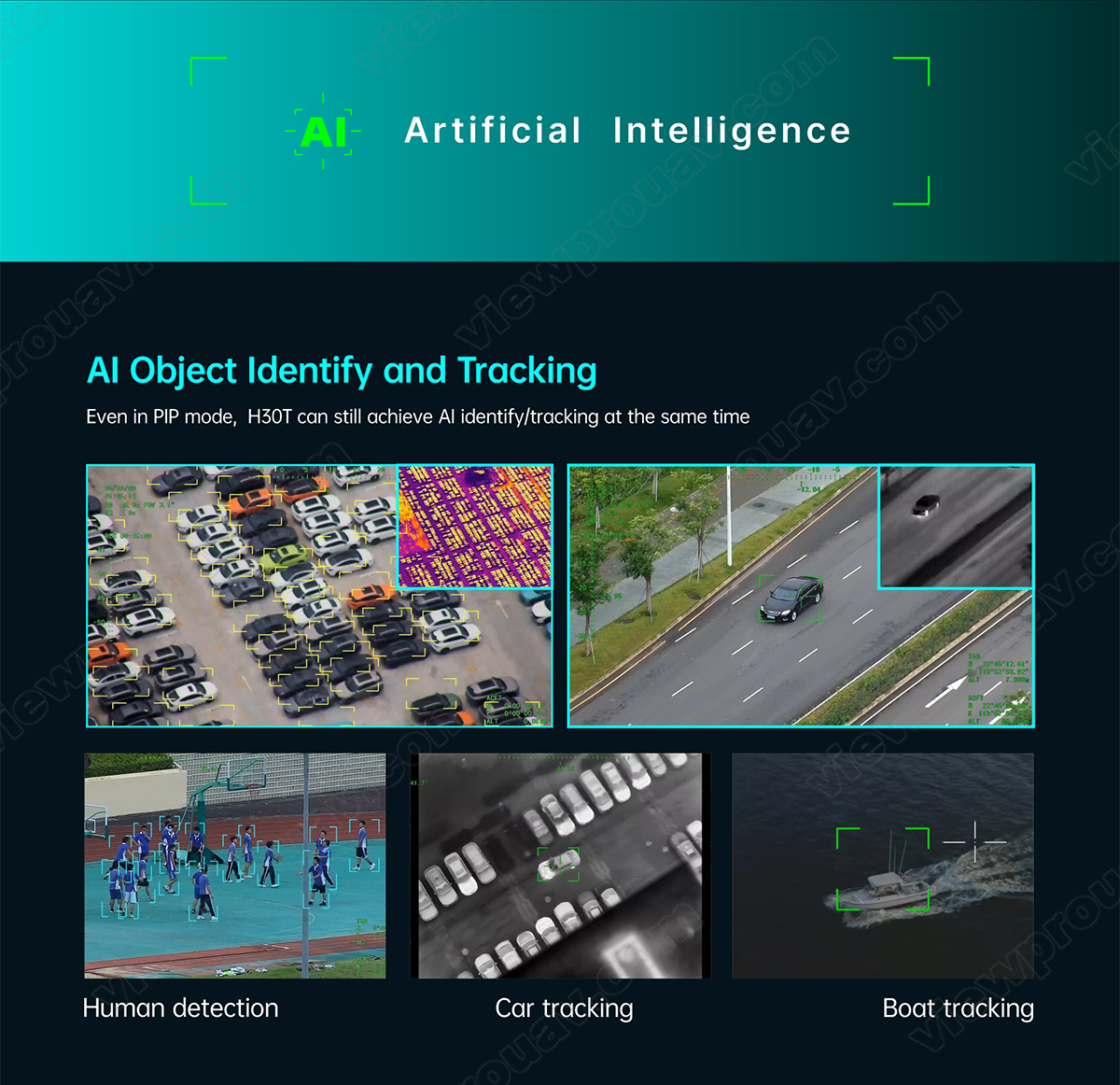

The highlight of H30T is the AI object identification and tracking module, which can realize car and human automatic recognition and tracking by choosing the corresponding tracking mode, simultaneous detection quantity of objects are more than 10.





4. Precise Distance Data


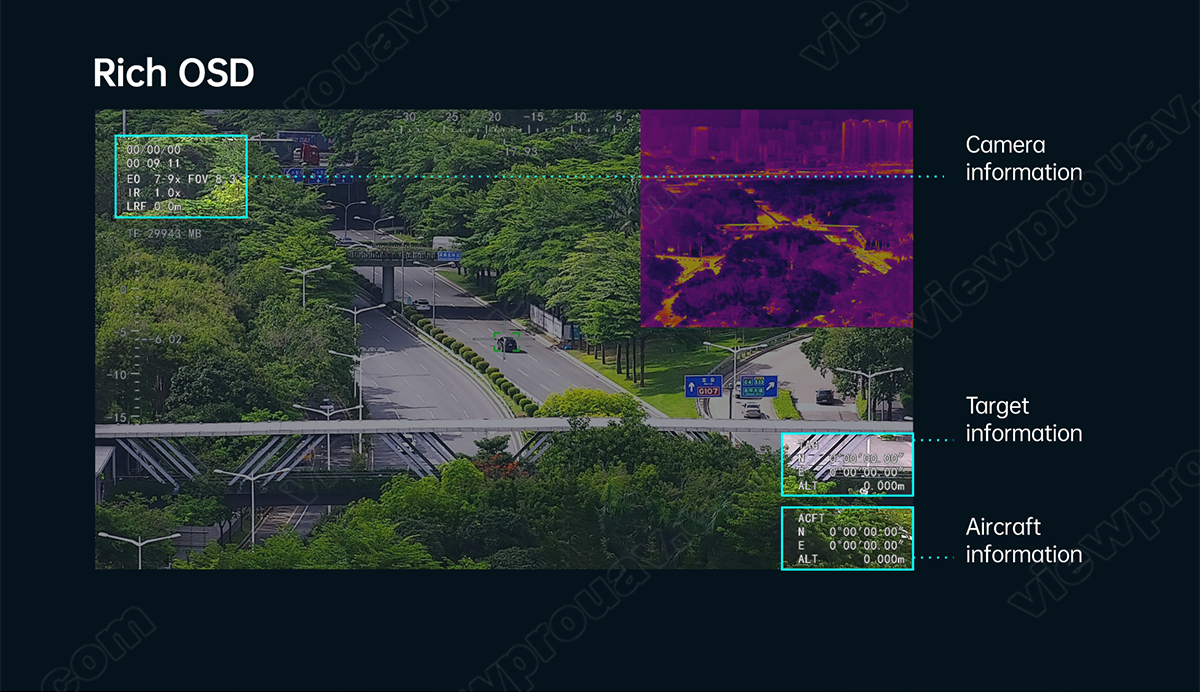

Equipping 1000m laser rangefinder, the advanced location calculating algorithm is used to calculate the range from 5 meters to 1000 meters, accurately analyze the longitude and latitude of the target, and display on the screen.



With precise target GPS coordinate resolving, H30T is widely used in UAV industries of public security, electric power, fire fighting, zoom aerial photography and other industrial applications

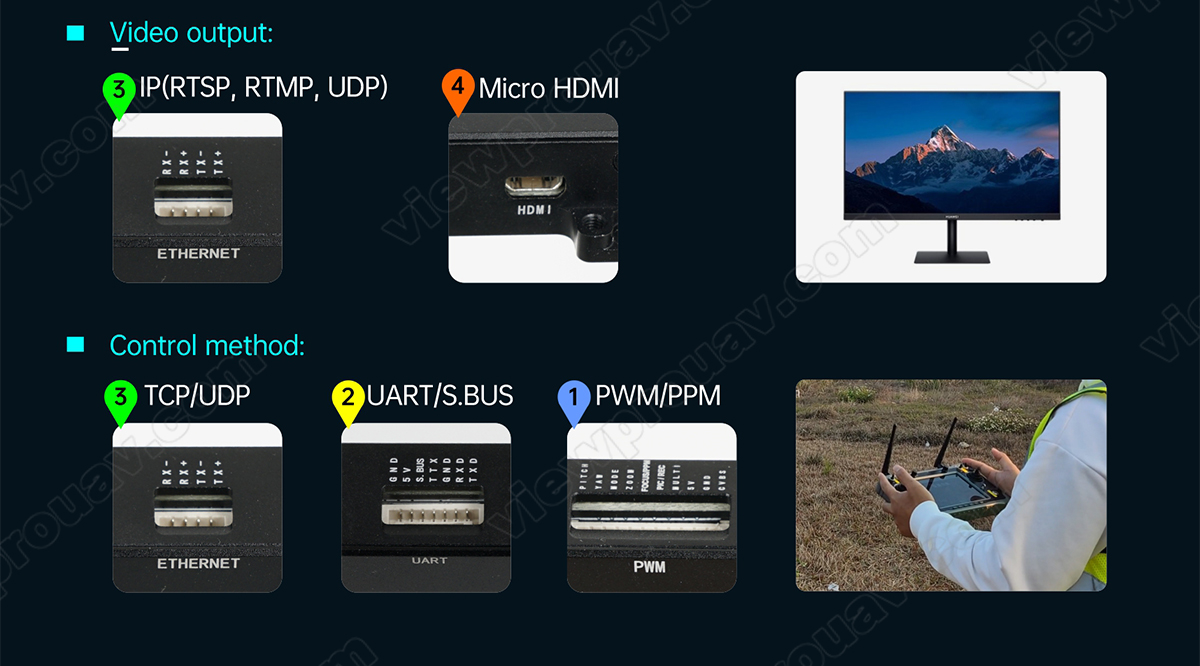

Multi Output Methods Optional



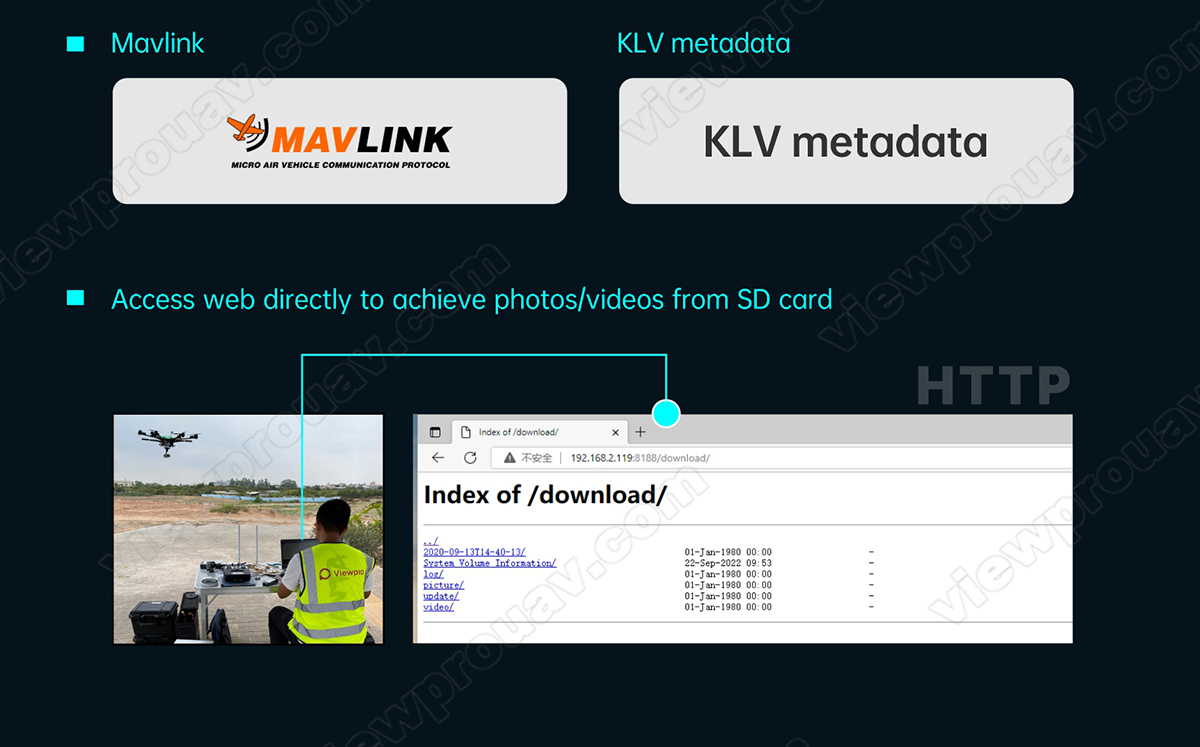

H30T supports both HDMI output and Ethernet/IP output. HDMI and output are 1080p, Ethernet output is 1080p/720p for optional. IP output versions will support 360 degree enless pan.

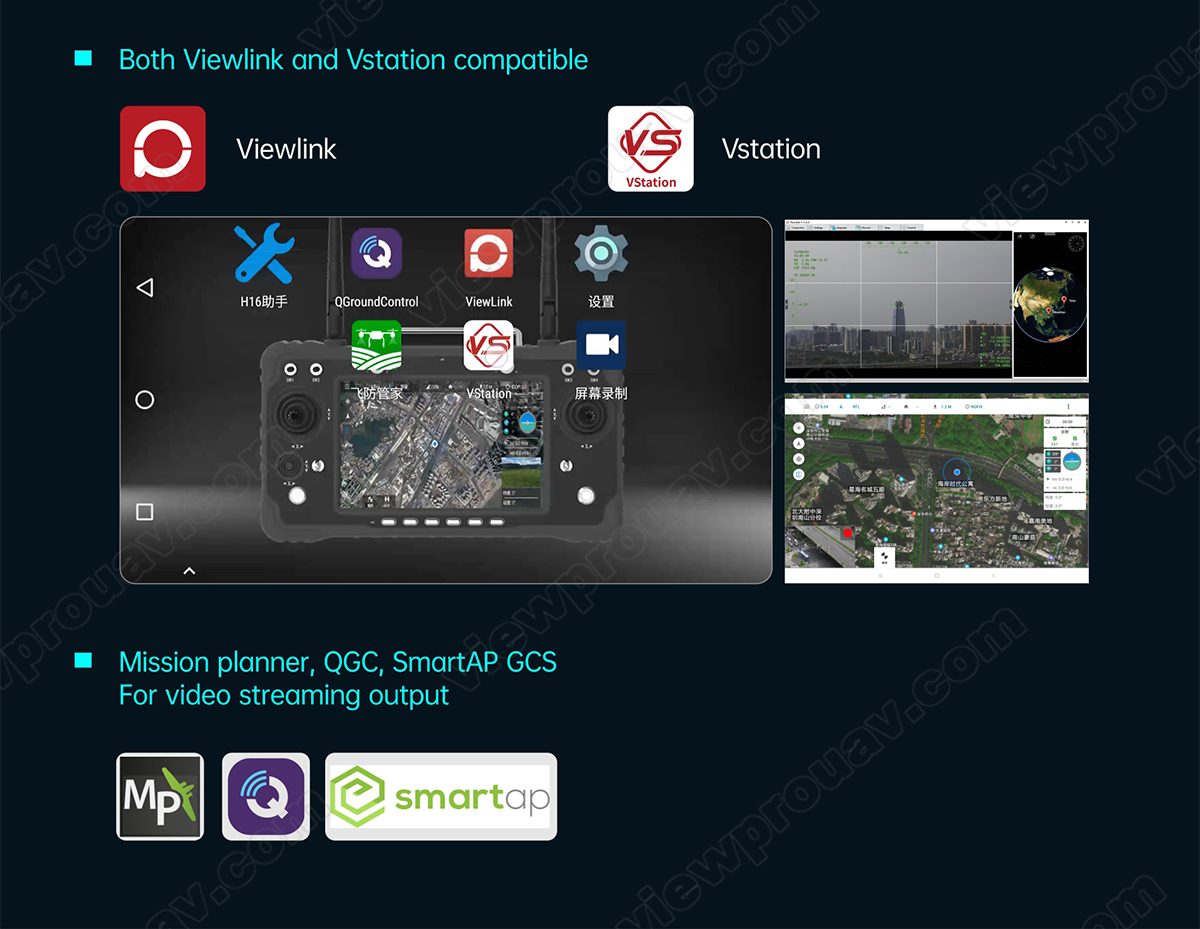

Defualt PWM and Serial port TTL control, SBUS is optional. IP output version also support TCP control via ethernet cable. With Viewpro software Viewlink you can fulfill IP output, TTL control and TCP control.


Control box signal interfaces:



Compatible with Viewport

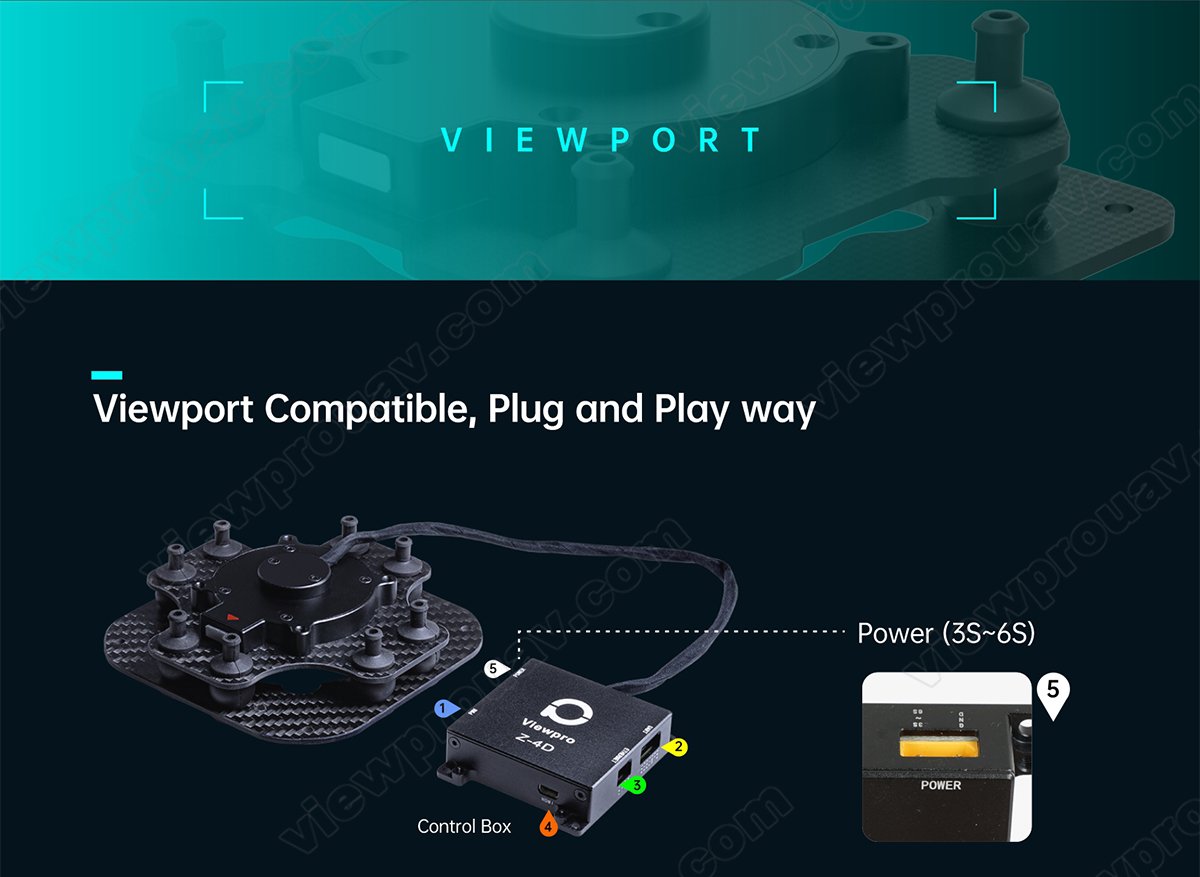

A30TR is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play.



For more information about Viewport, please check below video instruction:





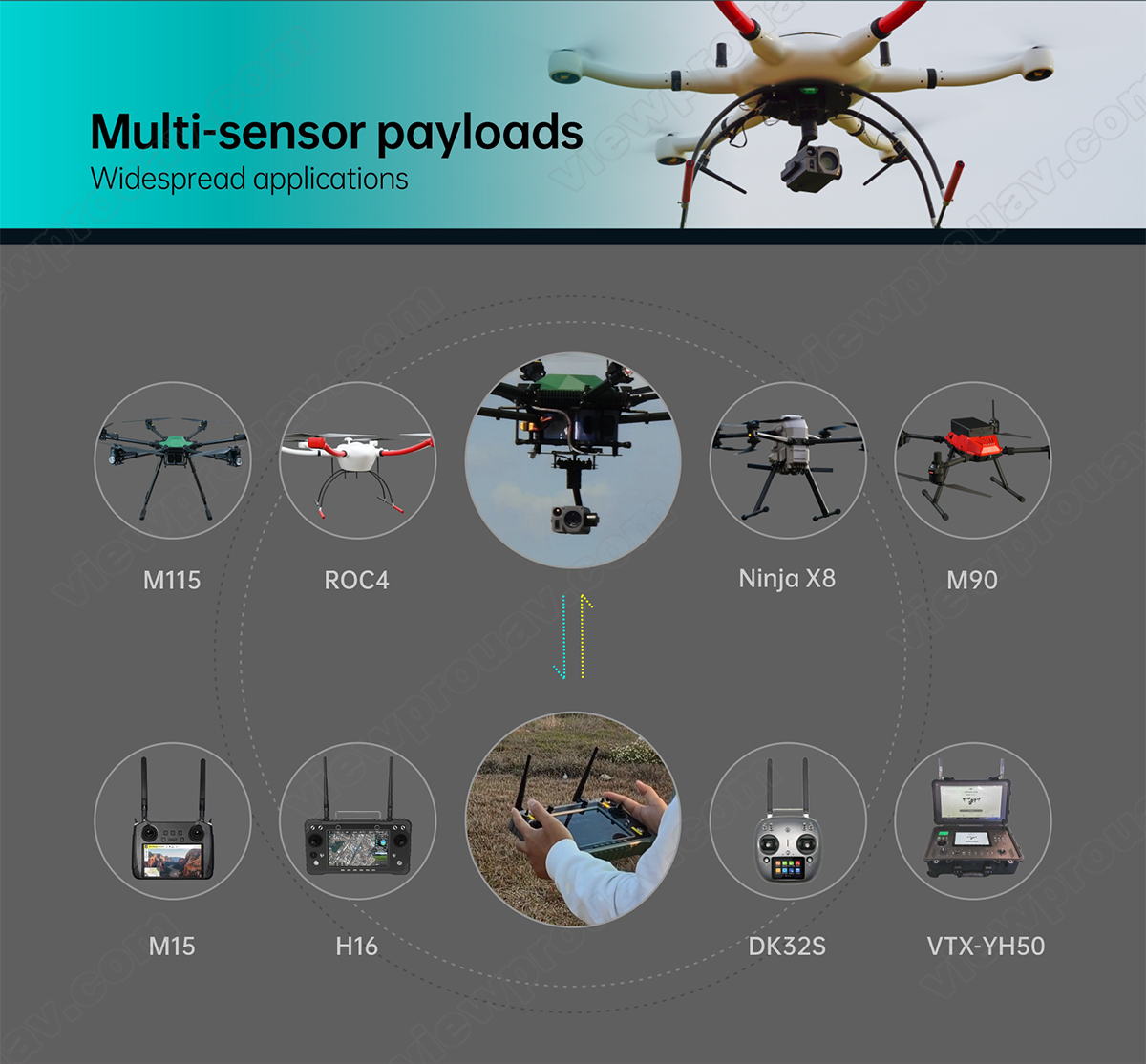

Application


Mainly supply in law enforcement, fire-fighting, power tower and pipeline inspection, search and rescue etc. A wide range of monitoring and searching is required in an emergency to quickly transfer the situation, improve response efficiency and reduce casualties.





Dimensions



 Specification



Hardware Parameter
Working voltage 12V
Input voltage 3S ~ 6S
Output voltage 5V (connect with PWM)
Dynamic current 1400~2000mA @ 12V
Idle current 1400mA @ 12V
Working environment temp. -20 ~ +60
Output  micro HDMI(1080P 30/60fps) / IP (1080p/720p  30/25fps)
Local-storage TF card (Up to 128G, class 10, FAT32 or ex FAT format)
Photo storage format JPG(1920*1080)
Video storage format MP4  (1080P 30fps/60fps)
Control method PWM  / TTL / S.BUS / TCP(IP output)
Gimbal Spec
Mechanical Range Pitch/Tilt: -60°100°,      Roll: ±75°,    Yaw/Pan: ±300° / ±360°*N (IP output version)
Controllable Range Pitch/Tilt: -40°90°,   Yaw/Pan: ±290° / ±360°*N (IP output version)
Vibration angle Pitch/Roll: ±0.02°, Yaw±0.02°
One-key to center
Camera spec
Imager Sensor SONY 1/1.8 Type STARVIS CMOS Sensor
Picture quality Full HD 1080 (1920*1080)
Effective pixel 4MP
Lens optical zoom 30x, F=6.5~162.5mm,,F1.6 to F4.8
Digital zoom 12x (max. 432x with StableZoom)
Min object distance 100mm(wide end) to 1200mm(tele end).
Horizontal viewing angle 1080p mode: 58.1°(wide end) ~ 2.3°(tele end)
Sync system Internal
S/N ratio more than 50dB
Min illumination Color 0.01lux@F1.6
Exposure control Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE
Gain Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps)
Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps)
White balance Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto)
Shutter speed 1/1s to 1/10,000s, 22 steps
Backlight compensation Yes
Aperture control 16 steps
Defog Yes
OSD Yes
IR Thermal Imager Spec
Focus Length 19mm
Coating Film DLC
Horizontal FOV 22.9°
Vertical FOV 18.4°
Diagonal FOV 29.0°
Detective Distance (Man: 1.8x0.5m) 792 meters
Recognize Distance (Man: 1.8x0.5m) 198 meters
Verified Distance (Man: 1.8x0.5m) 99 meters
Detective Distance (Car: 4.2x1.8m) 2428 meters
Recognize Distance (Car: 4.2x1.8m) 607 meters
Verified Distance (Car: 4.2x1.8m) 303 meters
Working mode Uncooled VOx long wave (8μm~14μm) thermal imager
Detector pixel 640*512
Pixel size 12μm
Focusing method Athermal prime lens
NETD ≤50mK@F.0 @25
Color palette White, iron red, pseudo color
Digital zoom 1x ~ 8x
Sync correct time Yes
EO / IR Camera Object Tracking
Update rate of deviation pixel 30Hz
Output delay of deviation pixel <30ms
Minimum object contrast 5%
SNR 4
Minimum object size 16*16 pixel
Maximum object size 256*256 pixel
Tracking speed <32 pixel/frame
Object memory time 100 frames
IR Laser Rangefinder
Range 5~1000 meters
Resolution 0.5m
Working current: 80mA max
Light Beam 905nm pulse laser
Divergent Angle 12 mrad
Laser pulse frequency 1HZ
Power  1 mW (safe for eye)
Ranging mode Pulse
Location Resolving Latitude and longitude of target
Ranefinder Target distance measuring
EO Camera AI Recognition Performance
Targets type Car and human
Simultaneous detection quantity ≥ 10 targets
Min contrast ratio 5%
Min target size 5×5 pixel
Car detection rate ≥85%
False alarm rate ≤10%
Packing Information
N.W. 1134g (Viewport version)

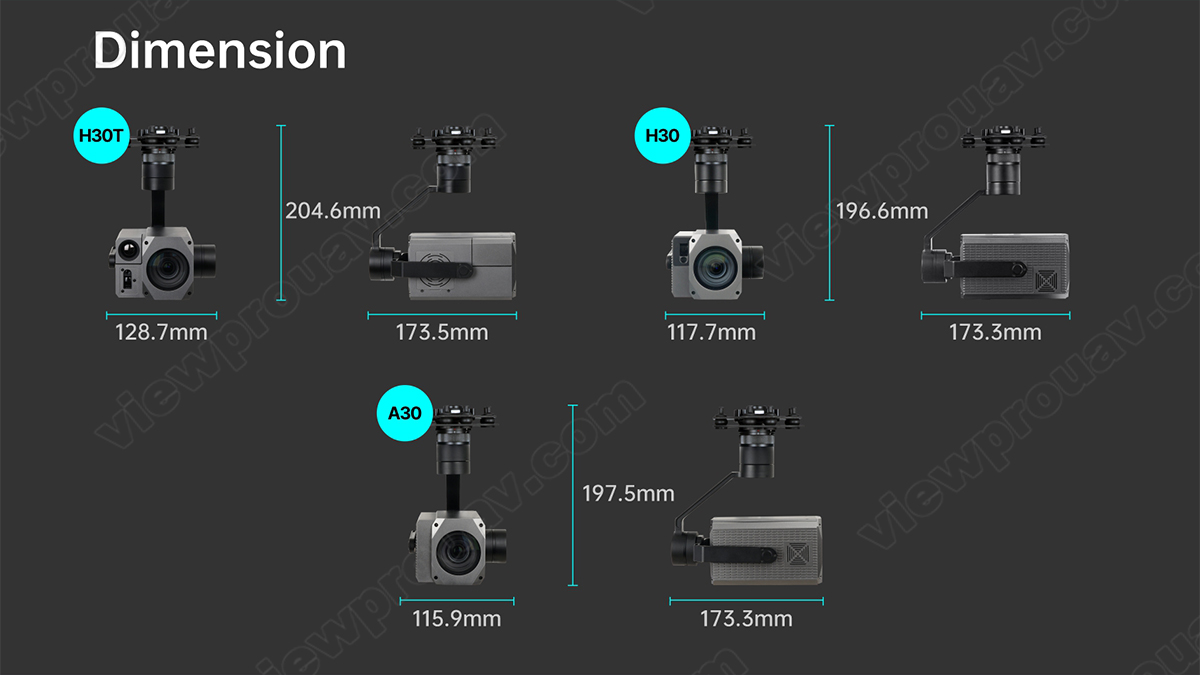

Product meas. 173.5*128.7*198.9mm(Standard version) / 173.5*128.7*204.6mm(Viewport Version)

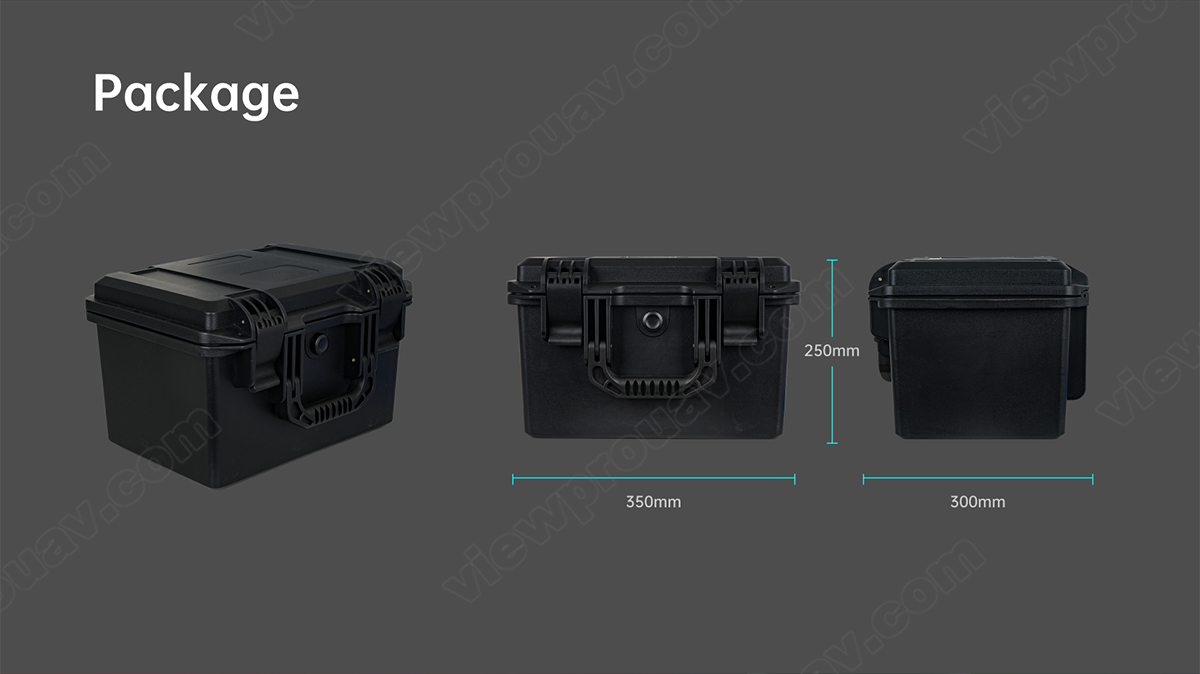

Accessories 1pc gimbal camera device, screws, copper cylinders, damping balls,1pc USB to TTL cable / Hight quality plastic box with foam cushion
