Professional 3-axis High-precise FOC Program



Stabilizing the Q10F is a highly optimized 3-axis camera gimbal with pinpoint-precise motor rotation with a control accuracy of ±0.01° powered by a dedicated processor. 300° rotation remains possible through gimbal rotation. Stable, smooth footage image can be captured even at high speed moving.





10x Optical Zoom Camera



Q10F gimbal and camera features an 10x optical zoom lens. The type 1/3 inch CMOS sensor supports approx, 4 million effective pixels, HD 1080p video, fast auto-focus speed, small size.

3-axis Samll Size Gimbal Camera



Q10F is a professional 3-axis gimbal which features high stability, small size, light weight and low power consumption.





Multi Output Methods Optional




The Q10F support HDMI and AV output. HDMI is 1080P and AV output is 720p.


Multi Control Methods




Defualt PWM and Serial port TTL control. Sbus is optional. With Viewpro software Viewlink you can fulfill TTL control.




Control box signal interfaces:

Applications

"Our primary focus is on supplying equipment for various purposes such as firefighting, power tower maintenance, pipeline inspection, and search and rescue operations. Emergency situations demand a broad spectrum of monitoring and search capabilities to swiftly assess the situation and enhance response efficiency."

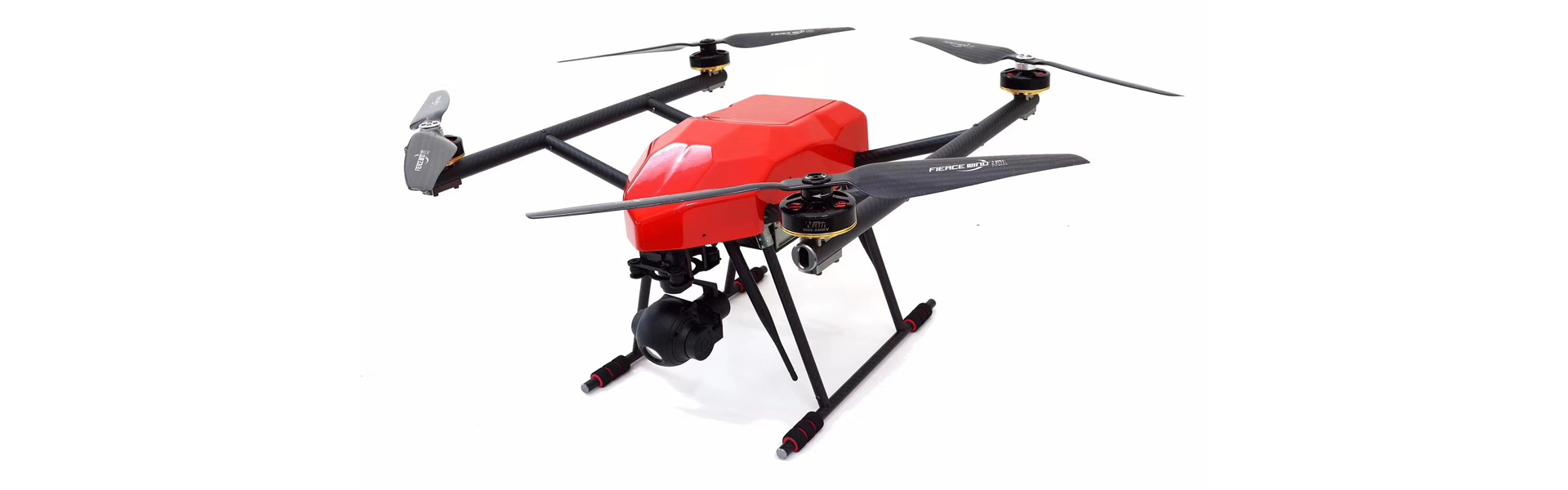

Compatible with Viewport



Q10F is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play.


Dimensions



Specifications

Hardware Parameter
Working voltage 16V
Input voltage 4S ~ 6S
Output voltage 5V (connect with PWM)
Dynamic current 180~500mA @ 16V
Working environment temp. -20 ~ +50
Output  micro HDMI(HD output 1080P 60fps/30fps)  / Analog
Local-storage SD card (Up to 32G, class 10, FAT32 or ex FAT format)
Photo storage format JPG (1920*1080)
Video storage format MOV (1080P 30fps)
Control method PWM  / SBUS / TTL
Geotagging not support
Gimbal Spec
Mechanical Range Pitch/Tilt: ±120°,   Roll: ±70°,  Yaw/Pan:±300°
Controllable Range Pitch/Tilt: -45°90°,   Yaw/Pan: ±290°
Vibration angle Pitch/Roll: ±0.02°, Yaw±0.02°
One-key to center
Camera Spec
Image Sensor 1/3inch CMOS
Total pixel 4MP
Effective pixels 2688*1520
Dynamic range 65dB
Lens 5MP
Optical zoom 10x, F=4.9~49mm
Min focus distance 1.5m
Scope of observation Horizontal: 53.2°(close focus) ~ 5.65°(far focus)
Vertical: 39.8°(close focus) ~ 4.2°(far focus)
Focus: 66.6°(close focus) ~ 7.2°(far focus)
Sync system Progressive scanning
HD output 1080P/720/480P 60fps HDMI1.4
Analog output

Standard CVBS 1Vp-p
SNR 38dB
Min illumination Chromatic color 0.05lux@F1.6
Backlight compensation Backlight compensation/strong light suppression
Gain Auto
White balance Auto/Manual
Electronic shutter Auto
Control system UART/IR/PWM
Communication protocol PELCO-D, Hitachi protocol or VISCA
Focus Auto/Manual/One-time automatic focus
Focus speed 2s
Lens initialization Built-in
User presetting bit 20 sets
Image rotation 180°, Horizontal/Vertical mirror image
OSD Not support
Camera Object Tracking(Optional)
Update rate of deviation pixel 50Hz
Output delay of deviation pixel 5ms
Minimum object contrast 5%
SNR 4
Minimum object size 32*32 pixel
Maximum object size 128*128 pixel
Tracking speed ±48 pixel/frame
Object memory time 4s
The mean square root values of pulse noise in the object position < 0.5 pixel
Packing Information
N.W. 437g / 530g(Viewport version)
Product meas. 108*86.2*140.6mm / 108*86.2*146.3mm(Viewport version)
Accessories 1pc gimbal camera device with damping system, screws  / Hight quality box with foam cushion
G.W. 820g
Package meas. 200*200*150mm
