Professional 3-axis High-precise FOC Program

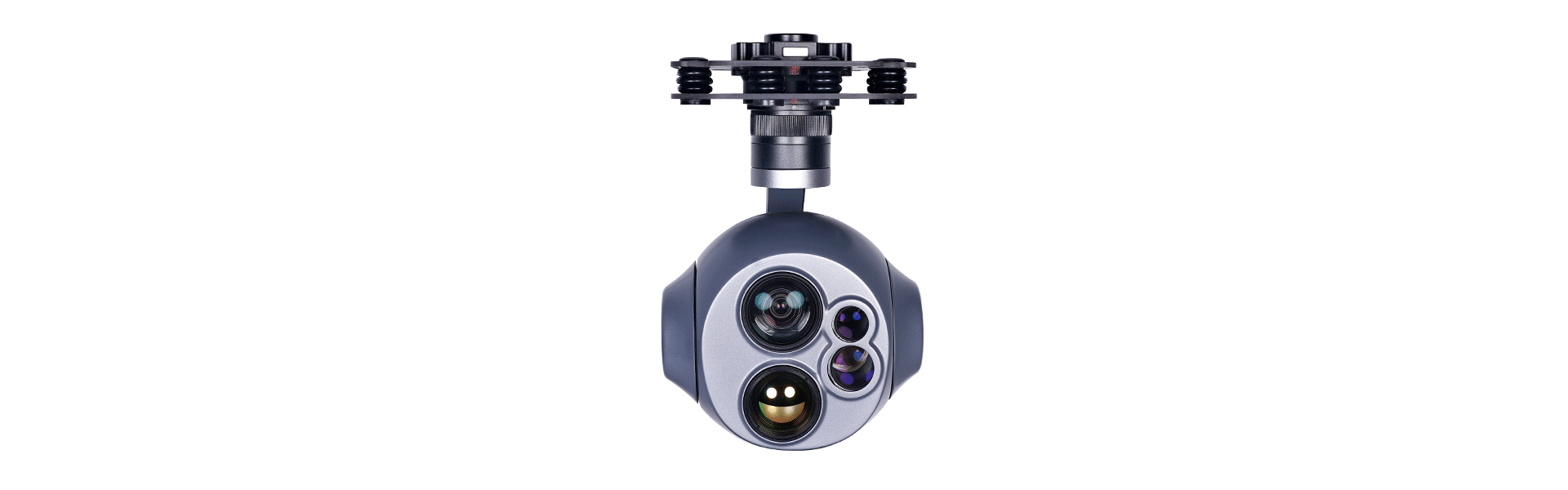

Stabilizing the Q10TIRM is a highly optimized 3-axis camera gimbal with pinpoint-precise motor rotation with a control accuracy of ±0.01° powered by a dedicated processor. Q10TIRM uses a unique mechanically limited design and concealed wires to ensure more stable data transmission and greater durability. Vibration is eliminated using four damping balls and a lightweight damping board, creating seamlessly smooth video. 360°rotation remains possible through gimbal rotation.
10x Optical Zoom Camera
Stabilizing the Q10TIRM is a highly optimized 3-axis camera gimbal with pinpoint-precise motor rotation with a control accuracy of ±0.01° powered by a dedicated processor. 360°rotation remains possible through gimbal rotation.
IR+EO Dual Sensors Object Tracking
Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 32pixel/frame, object size range is from 16*16 pixel to 160*160 pixel, with the minimal signal-to-noise ratio (SNR) 4db, the mean square root values of pulse noise in the object position < 0.5 pixel, which greatly improve the accuracy and tracking effect.
GPS Location Resolving
The advanced location calculating algorithm is used to calculate the distance of the object within 3000 meters, accurately analyze the longitude and latitude of the object, and display the on the screen.
Multi Output Methods Optional
Q10TIRM pro supports both HDMI output, Ethernet/IP output and SDI output. HDMI and output are 1080p, Ethernet output default as 720p and record is 1080p. IP output and SDI output versions will support 360degree enless pan.
Multi Control Methods
Default PWM and Serial port TTL control, SBUS is optional, IP output version also support TCP control via ethernet cable. With Viewpro software Viewlink you can fulfill IP output, TTL control and TCP contorl.
Control box signal interfaces:
Compatible with Viewport
Q30TIRM pro is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play.
Applications
"Our primary focus is on supplying equipment for various purposes such as firefighting, power tower maintenance, pipeline inspection, and search and rescue operations. Emergency situations demand a broad spectrum of monitoring and search capabilities to swiftly assess the situation and enhance response efficiency."
Dimensions
Specifications
Hardware Parameter | |
Working voltage | 16V |
Input voltage | 4S ~ 6S |
Output voltage | 5V (connect with PWM) |
Dynamic current | 600~1200mA @ 16V |
Working environment temp. | -20℃ ~ +60℃ |
Output | micro HDMI(1080P 60fps) / IP (RTSP/UDP 720p/1080p 25fps/30fps) |
Local-storage | SD card (Up to 512G,class 10, FAT32 format) |
Photo storage format | JPG(1920*1080) |
Video storage format | MP4 (1080P 30fps) |
Card reading online | SMB read/ HTTP read |
Control method | PWM / TTL / S.BUS / TCP(IP output)/UDP(IP output version) |
Geotagging | Support, display time and GPS coordinate in picture exif |
Gimbal Spec | |
Mechanical Range | Pitch/Tilt: -90°~125°, Roll: ±40°, Yaw/Pan: ±300° / ±360°*N (IP output version) |
Controllable Range | Pitch/Tilt: -45°~120°, Yaw/Pan: ±290° / ±360°*N (IP output version) |
Vibration angle | Pitch/Roll: ±0.02°, Yaw:±0.02° |
One-key to center | √ |
EO Camera spec | |
Imager Sensor | 1/3" Panasonic CMOS Sensor |
Total pixel | 2.48M |
Picture quality | Full HD 1080 (1920*1080) |
Optical zoom | 10x, f = 5.1mm ~ 51mm |
Digital zoom | 32x |
Angle of View (D, H, V) | D: 68°(Wide end) ~ 6.7° (Tele end) |
H: 54°(wide end) ~ 4.9°(tele end) | |
V: 31°(wide end) ~ 4.0°(tele end) | |
Photo storage format | JPG(1920*1080/1280*720) |
Video storage format | MP4 (1080P/720P 25fps/30fps) |
Sync system | Progressive Scan |
Sync. System Internal | Internal |
S/N ratio | more than 50dB |
Min illumination | Color : 0.5 lux , BW : 0.1lux Color DSS : 0.125 lux , BW DSS : 0.025 lux |
Gain Control (AGC) | Off / On |
White balance | Auto / One Push / Manual / Indoor / Outdoor |
Shutter speed | 1/30(25) ~ 1/30,000 sec |
Focus | Auto / One Push / Manual |
Iris | 0 ~ 20 steps |
Exposure | Mode / AGC / Shut Speed / Iris / DSS / Flickerless / Brightness / WDR/BLC / D&N |
Defog | Yes |
OSD | Yes |
IR Thermal Imager Spec | |
Focus Length | 25mm |
Horizontal FOV | 24.6° |
Vertical FOV | 18.5° |
Diagonal FOV | 30.4° |
Detective Distance (Man: 1.8x0.5m) | 735 meters |
Recognize Distance (Man: 1.8x0.5m) | 184 meters |
Verified Distance (Man: 1.8x0.5m) | 92 meters |
Detective Distance (Car: 4.2x1.8m) | 2255 meters |
Recognize Distance (Car: 4.2x1.8m) | 564 meters |
Verified Distance (Car: 4.2x1.8m) | 282 meters |
Working mode | Uncooled long wave (8μm~14μm) thermal imager |
Detector pixel | 640*480 |
Pixel pitch | 17μm |
Focusing method | Athermal prime lens |
Emissivity correction | 0.01~1 |
NETD | ≤50mK (@25℃) |
MRTD | ≤650mK (@characteristic frequency) |
Image enhancement | Auto adjust image brightness and contrast ratio |
Color palette | White, iron red, pseudo color |
Auto Non-uniform correction | Yes (no shutter) |
Digital zoom | 1x ~ 4x |
Sync correct time | Yes |
Thermometry type | Temperature bar (psudo color display) max temp, min temp, FOV center temp (Optional) |
Temperature warning | 0℃~120℃ (For thermometry version only) |
Laser Rangefinder | |
Laser Wavelengths | 1550nm |
Optical aperture | Transmit 13mm / Receive17 mm |
Resolution | 0.75m |
Measure ability | 3000m (Typical value 1: · Object size: the target surface is larger than the laser spot area · Reflectivity: 60% · Accuracy rate: 90% · Visibility: 10 km · Environment temperature: 20℃ · Atmospheric pressure: 1013 mbar) |
Vehicle target measuring | 2300m (Typical value 2: · Object size: 2.3*2.3 m · Emissivity: 30% · Others same as Typcial value 1) |
Eye-safe | Class 1【Standard IEC 60825-1, Second Edition (2007-03)】 |
Laser beam angle (Typical value) | 1.0 mrad |
Accuracy (Typical value) | ± 0.75m |
Accuracy (In harsh condition) | ± 2m |
Measurement frequency | 2Hz |
Multi-target measuring | Max.3 targets distance values returning |
Object resolution (Typical value) | 30m |
EO/IR Camera Object Tracking | |
Update rate of deviation pixel | 50Hz |
Output delay of deviation pixel | 5ms |
Minimum object contrast | 5% |
SNR | 4 |
Minimum object size | 32*32 pixel |
Maximum object size | 128*128 pixel |
Tracking speed | ±48 pixel/frame |
Object memory time | 100 frames (4s) |
The mean square root values of pulse noise in the object position | < 0.5 pixel |
Packing Information | |
N.W. | 896g / 959g(Viewport version) |
Product meas. | 116.7*111.2*185.8mm / 116.7*111.2*191.5mm (Viewport version) |
Accessories | 1pc gimbal camera device, 8pcs screws, 4pcs copper cylinders, 4pcs damping balls,1pc USB to TTL cable / Hight quality plastic box with foam cushion |
G.W. | 2250g |
Package meas. | 300*250*200mm |
