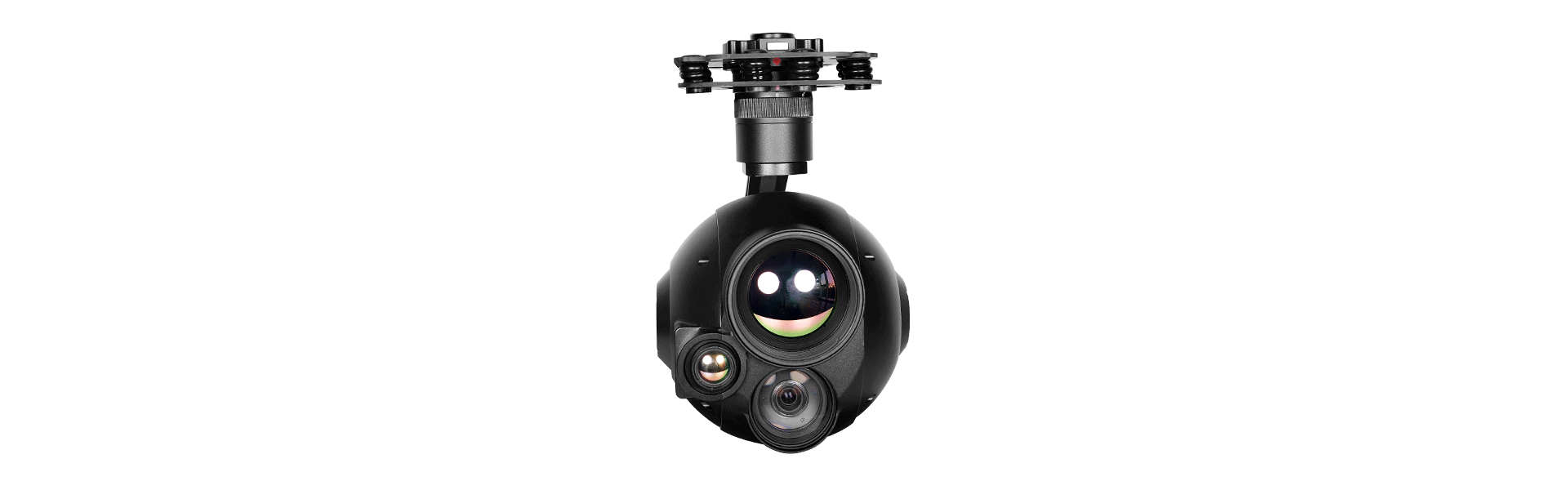

Q30TIR-1352 is a powerful 3-axis gimbal camera which integrates a 30x optical zoom SONY camera and dual thermal zoom sensor. The 3-axis gimbal based on FOC technology features high stability, accuracy and sensitivity. The image is very stable even at 30 times optical zoom. With dual 13mm & 52mm thermal sensor, it  features wide field of view to cover large areas in a single flight or narrow in on a target with 1x to 4x zoom for enhanced image detail. It's widely used in public safety, industrial inspection, search, and firefighting.



30x Time Optical Zoom EO Camera



Powered by 30x optical zoom high resolution camera module, Q30TIR-1352 can recognize cars, buildings and structures in 3000 meters, which can meet the application requirements of various domains.

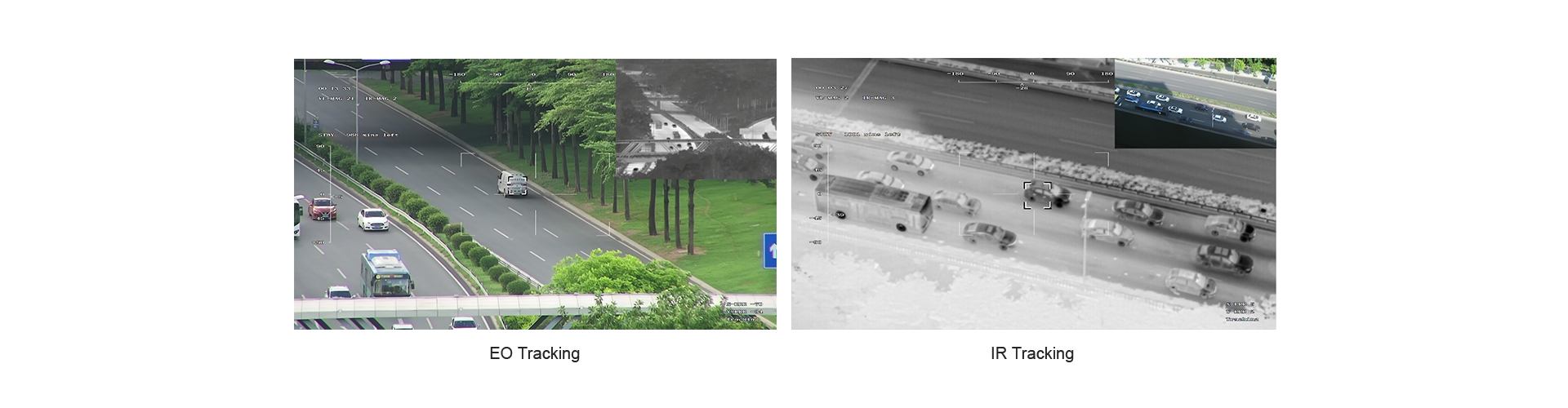

Visible Light and Thermal Imager Object Tracking



Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 32pixel/frame, object size range is from 16*16 pixel to 160*160 pixel, with the minimal signal-to-noise ratio (SNR) 4db, the mean square root values of pulse noise in the object position <0.5 pixel, which greatly improve the accuracy and tracking effect.

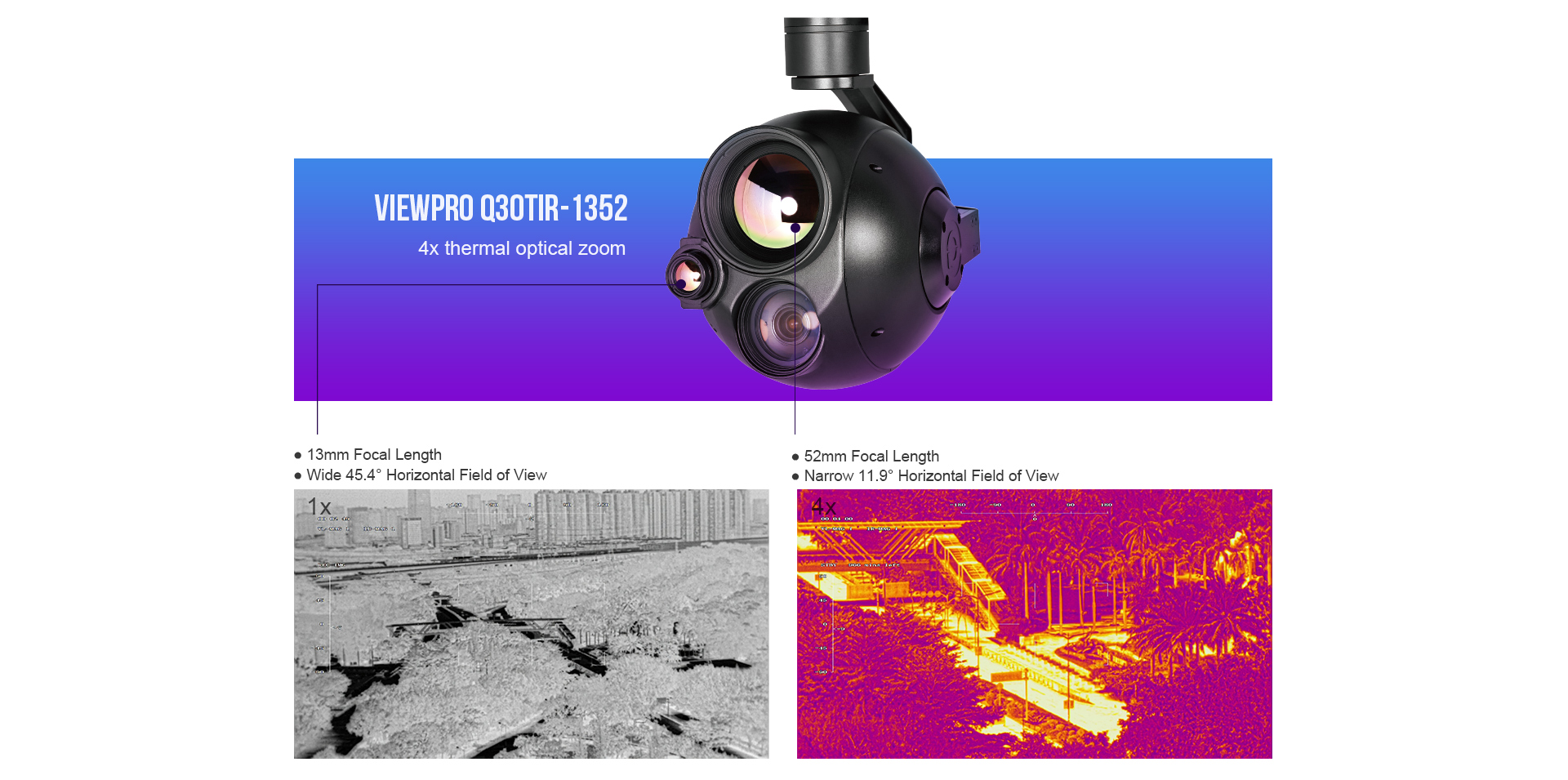

High Resolution Dual Thermal Zooming Camera


Integrated French ULIS high-precision uncooled long wave (8μm ~14μm ) thermal image sensor, Q30TIR-1352 can record and transmit thermal image and visible images at the same time in PIP format. 4x thermal zooming can realize when IR sensor swithes from 13mm to 52mm, this system provides a wide 45.4° field of view for maximum situational awareness and a narrow 11.9° field of view to get the most thermal pixels on your target. Viewpro Q30TIR-1352 allows people to gain thermal FOV flexibility for improved image detail and magnification to assess situations and make critical decisions.











Multi Output Methods Optional


Q30TIR-1352 support both HDMI output, Ethernet/IP output and SDI output. HDMI and output are 1080p, Ethernet output default as 720p and record is 1080p. IP output and SDI output versions will support 360 degree enless pan.



Multi Control Methods



Default PWM and Serial port TTL control, SBUS is optional, IP output version also support TCP control via ethernet cable. With Viewpro software Viewlink you can fulfill IP output, TTL control and TCP contorl.


Control box signal interfaces:



Compatible with Viewport



Q30TIR-1352 is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play.



For more information about Viewport, please check below video instruction:






Applications



Mainly supply in law enforcement, fire-fighting, power tower and pipeline inspection, search and rescue etc. A wide range of monitoring and searching is required in an emergency to quickly transfer the situation, improve response efficiency and reduce casualties.

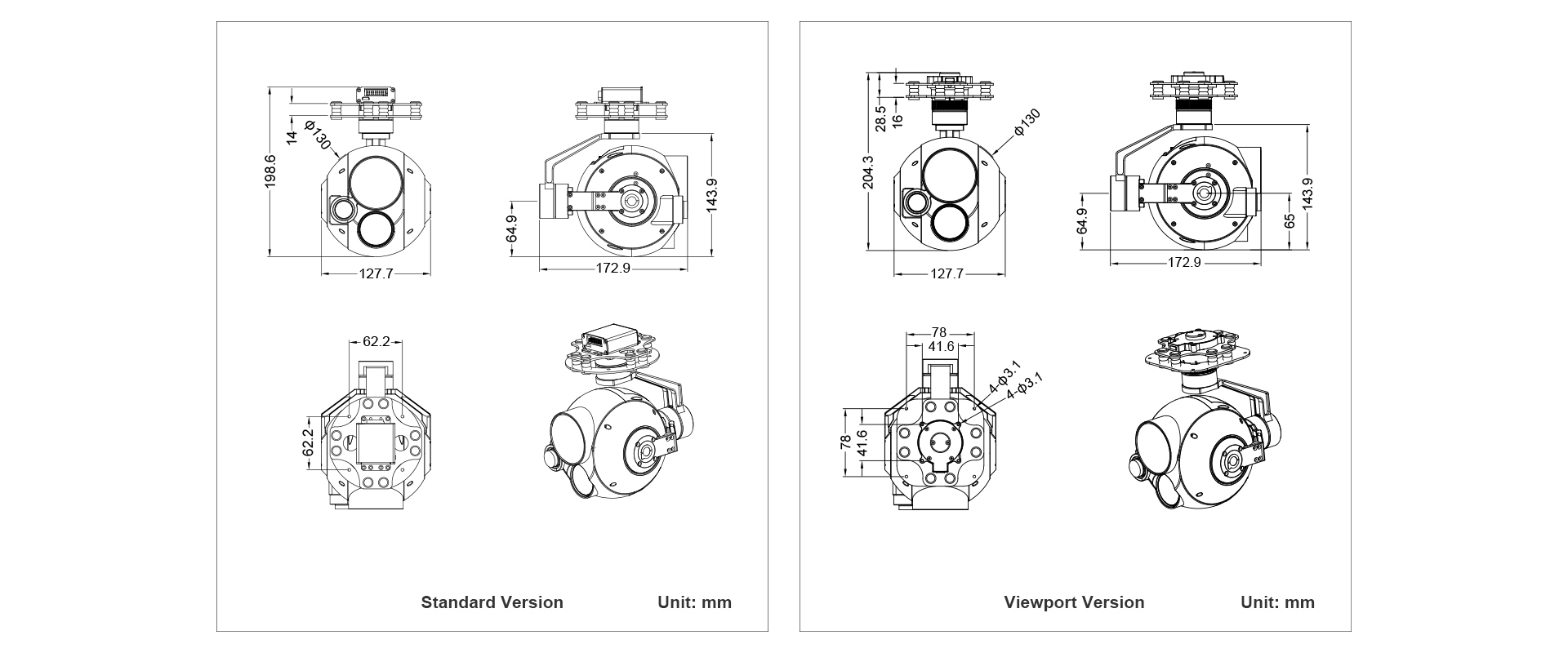

Dimensions



Specifications

Hardware Parameter
Working voltage 12V
Input voltage 3S ~ 6S
Output voltage 5V (connect with PWM)
Dynamic current 1000mA @ 12V
Idle current 830mA @ 12V
Working environment temp. -20 ~ +60
Output  micro HDMI(1080P 60fps) / IP (720p)
Local-storage TF card (Up to 128G, class 10, FAT32 or ex FAT format)
Photo storage format JPG(1920*1080)
Video storage format MP4  (1080P/720P 25fps/30fps)
Control method PWM  / TTL / S.BUS / TCP(IP output)
Gimbal Spec
Angle scope of structure design Pitch/Tilt: -40110°,      Roll: ±70°,    Yaw/Pan: ±300° / ±360°*N (IP / SDI output version)
Angle scope of software design Pitch/Tilt: -35°90°,   Yaw/Pan: ±290° / ±360°*N (IP / SDI output version)
Vibration angle Pitch/Roll: ±0.02°, Yaw±0.02°
One-key to center
Camera spec
Imager Sensor SONY 1/2.8" "Exmor R" CMOS
Picture quality Full HD 1080 (1920*1080)
Effective pixel 2.13MP
Lens optical zoom 30x, F=4.3~129mm
Digital zoom 12x (360x with optical zoom)
Min object distance 10mm(wide end) to 1200mm(tele end). Default 300mm
Horizontal viewing angle 1080p mode: 63.7°(wide end) ~ 2.3°(tele end)
Sync system Internal
S/N ratio more than 50dB
Min illumination Color 0.01lux@F1.6
Exposure control Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE
Gain Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps)
Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps)
White balance Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/
Auto/Outdoor Auto)
Shutter speed 1/1s to 1/10,000s, 22 steps
Backlight compensation Yes
Aperture control 16 steps
Defog Yes
OSD Yes
Camera Object Tracking
Update rate of deviation pixel 50Hz
Output delay of deviation pixel 5ms
Minimum object contrast 5%
SNR 4
Minimum object size 32*32 pixel
Maximum object size 128*128 pixel
Tracking speed 32 pixel/frame
Object memory time 100 frames (4s)
The mean square root values of pulse noise in the object position < 0.5 pixel
Thermal Imager Spec
Lens size 52mm
Horizontal FOV 11.9°
Vertical FOV
Diagonal FOV 14.9°
Detective Distance (Man: 1.8x0.5m) 1529 meters
Recognize Distance (Man: 1.8x0.5m) 382 meters
Verified Distance (Man: 1.8x0.5m) 191 meters
Detective Distance (Car: 4.2x1.8m) 4690 meters
Recognize Distance (Car: 4.2x1.8m) 1173 meters
Verified Distance (Car: 4.2x1.8m) 586 meters
Working mode Uncooled long wave (8μm~14μm) thermal imager
Detector pixel 640*480
Pixel size 17μm
Focusing method Athermal prime lens
Emissivity correction 0.01~1
NETD ≤60mK (@25)
MRTD ≤650mK (@characteristic frequency)
Image enhancement Auto adjust image brightness and contrast ratio
Color palette White, iron red, pseudo color
Auto Non-uniform correction Yes (no shutter)
Digital zoom 1x ~ 4x
Sync correct time Yes
Thermometry type Temperature bar (psudo color display) max temp, min temp, FOV center temp (Optional)
Temperature warning 0~120 (For thermometry version only)
Thermal Imager Spec
Lens size 13mm
Horizontal FOV 45.4°
Vertical FOV 34.8°
Diagonal FOV 55.2°
Detective Distance (Man: 1.8x0.5m) 382 meters
Recognize Distance (Man: 1.8x0.5m) 96 meters
Verified Distance (Man: 1.8x0.5m) 48 meters
Detective Distance (Car: 4.2x1.8m) 1173 meters
Recognize Distance (Car: 4.2x1.8m) 293 meters
Verified Distance (Car: 4.2x1.8m) 147 meters
Working mode Uncooled long wave (8μm~14μm) thermal imager
Detector pixel 640*480
Pixel size 17μm
Focusing method Athermal prime lens
Emissivity correction 0.01~1
NETD ≤60mK (@25)
MRTD ≤650mK (@characteristic frequency)
Image enhancement Auto adjust image brightness and contrast ratio
Color palette White, iron red, pseudo color
Auto Non-uniform correction Yes (no shutter)
Digital zoom 1x ~ 4x
Sync correct time Yes
Thermal Imager Object Tracking
Update rate of deviation pixel 50Hz
Output delay of deviation pixel 5ms
Minimum object size 32*32 pixel
Maximum object size 128*128 pixel
Tracking speed 32 pixel/frame
Object memory time 100 frames (4s)
Packing Information
N.W. 1527g
Product meas. 172.9*127.7*198.6mm
Accessories 1pc gimbal camera device, 16pcs screws,  4pcs copper cylinders, 12pcs damping balls, 4pcs damping boards, 1pc USB to TTL cable / Hight quality plastic box with foam cushion
