Professional 3-axis High-precise FOC Program


The Q10N is a gimbal designed for 10X zoom camera for inspection,surveillance,search and rescue mission.It consists of HD 10X optical zooming camera and a 3-axis high stabilized gimbal, which is able to take and record 1080p 30fps video to an on board TF card, giving you a stable eye in the sky that can be controlled  a secondary individual allowing for an overhead view that can cover a large amount of ground quickly and effectively. The 10X zoom function will allow you to remain at a distance yet zoom closely in on anything that requires your attention.


10x Optical Zoom Camera



Q10N gimbal and camera features an 10x optical zoom lens. It powered by 1/3 SENSOR CMOS module, supports approx.2.48 million effective pixels, with Color 0.05lux@F 1.6 ultra-low illumination, can still clearly display image features in the poor light environment, and has a wide dynamic range of 105dB. In the presence of backlight or strong light, the view of the over bright and over dark regions can sill be captured at the same time. Q10N has 2.48 Mega effective pixels, supports 10x optical qutofocus, and HD 1080P video recording.

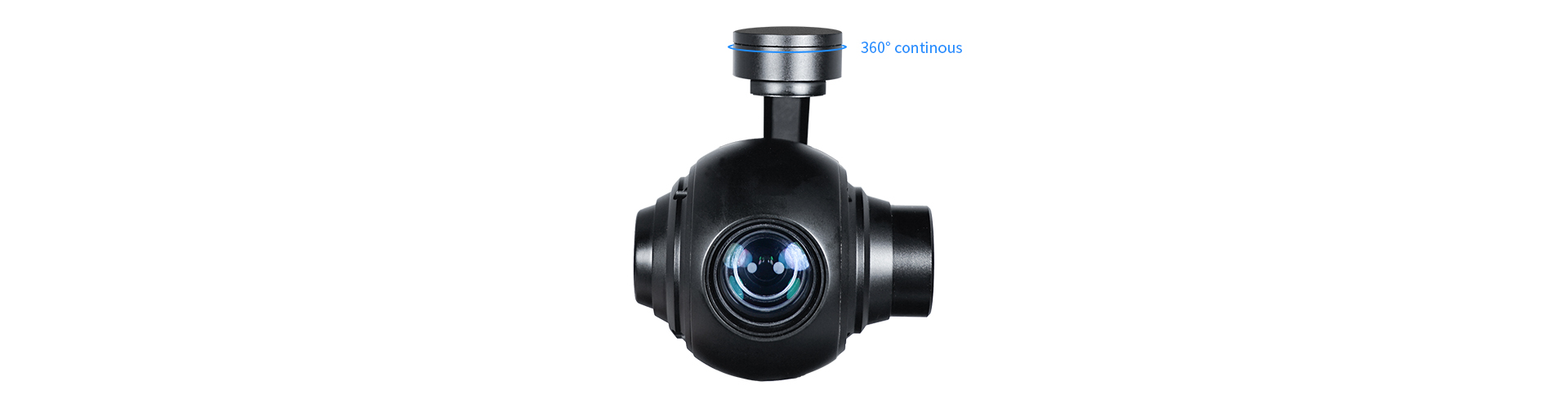

IP Output with 360 degrees continuous


 The Q10N support IP output with 360 degrees continuous. IP output as default is 720P.



Multi Control Methods


Defualt PWM, Serial port TTL and TCP control. Sbus is optional. With Viewpro software Viewlink you can fulfill TTL control.

Control box signal interfaces:


"Our primary focus is on supplying equipment for various purposes such as firefighting, power tower maintenance, pipeline inspection, and search and rescue operations. Emergency situations demand a broad spectrum of monitoring and search capabilities to swiftly assess the situation and enhance response efficiency."

Compatible with Viewport


Q10N is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play.







Hardware Parameter
Working voltage 12V
Input voltage 3S ~ 6S
Output voltage 5V (connect with PWM)
Dynamic current 550mA @ 12V
Idle current 450mA @ 12V
Power consumption 3.85W
Working environment temp. -20 ~ +60
Output  IP output (720p/1080P 25/30 fps)
Local-storage SD card (Up to 128G, class 10, FAT32 or ex FAT format)
Control method PWM  / TTL /S.BUS / TCP
Gimbal Spec
Mechanical Range Pitch/Tilt: -35°120°, Roll: ±60°, Yaw/Pan: ±300° / ±360°*N (IP output version)±90°
Controllable Range
Pitch/Tilt: -35°90°, Yaw/Pan: ±290° / ±360°*N (IP / SDI output version)
Vibration angle Pitch/Roll: ±0.02°, Yaw±0.02°
One-key to center
Camera Spec
Imager Sensor 1/3" CMOS
Total pixel 2.48MP
Picture quality Full HD 1080(1920*1080)
Optical zoom 10x, F=5.1~51mm
Angle of View(D,H,V) D: 68°(Wide end) ~ 6.7°(Tele end)
H: 54°(wide end) ~ 4.9°(tele end)
V: 31°(wide end) ~ 4.0°(tele end)
Photo storage format JPG(1920*1080/1280*720)
Video storage format MP4 (1080P/720P 25fps/30fps)
Sync system Progressive scanning
Sync. System Internal Internal
S/N ratio more than 50dB
Min illumination Color 0.05lux, BW:0.1lux, Color DSS: 0.125lux, BW DSS:0.025 lux
Backlight compensation Backlight compensation/strong light inhibition
Gain Control Off/On
White balance Auto/Manual
Shutter speed Auto
Focus Auto/Manual/One-time automatic focus
Iris 0~20 steps
Exposure Mode / AGC / Shut Speed / Iris / DSS / Flickerless / Brightness / WDR/BLC / D&N
Defog Yes
Packing Information
N.W. 410g (Viewport version)

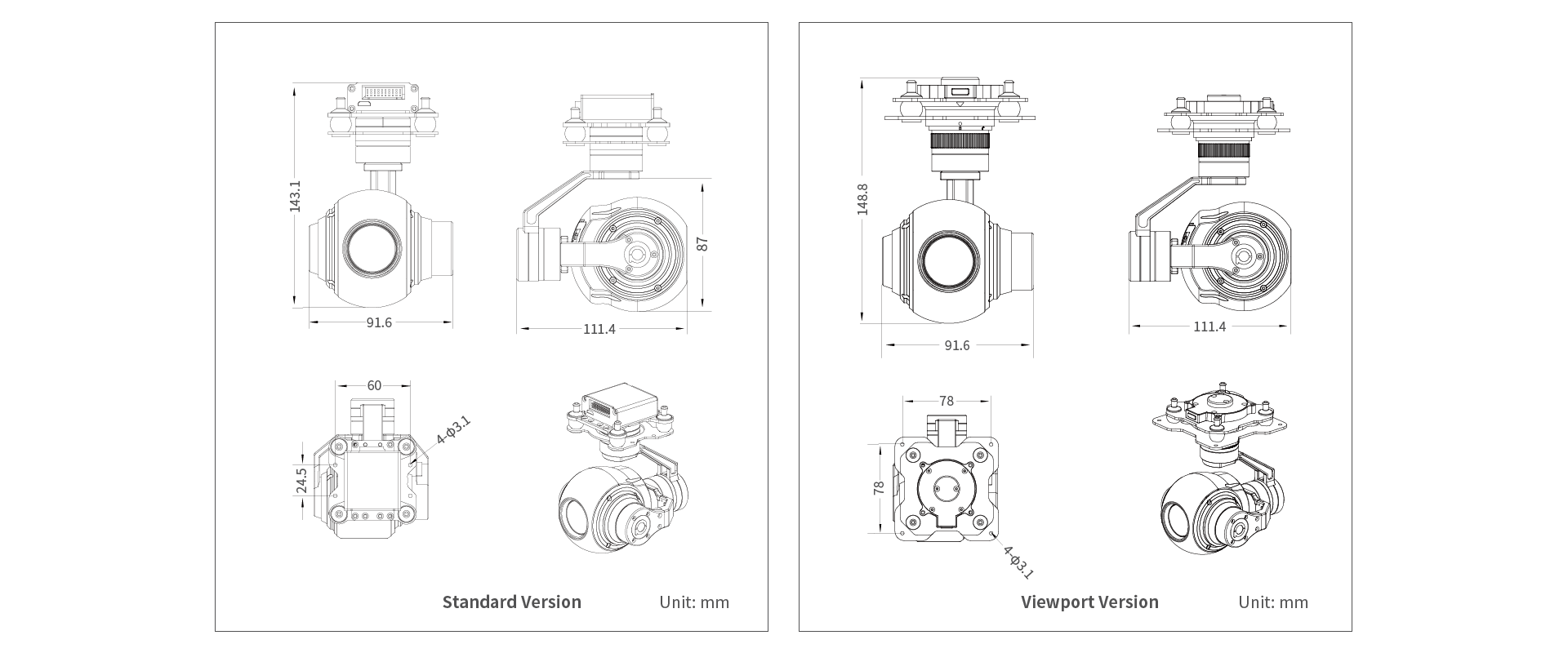

Product meas. 91.6*111.4*143.1mm / 91.6*111.4*148.8mm(Viewport Version)
1pc gimbal camera device, screws, USB to TTL cable / Hight quality box with foam cushion
Package meas. 200*200*150mm
