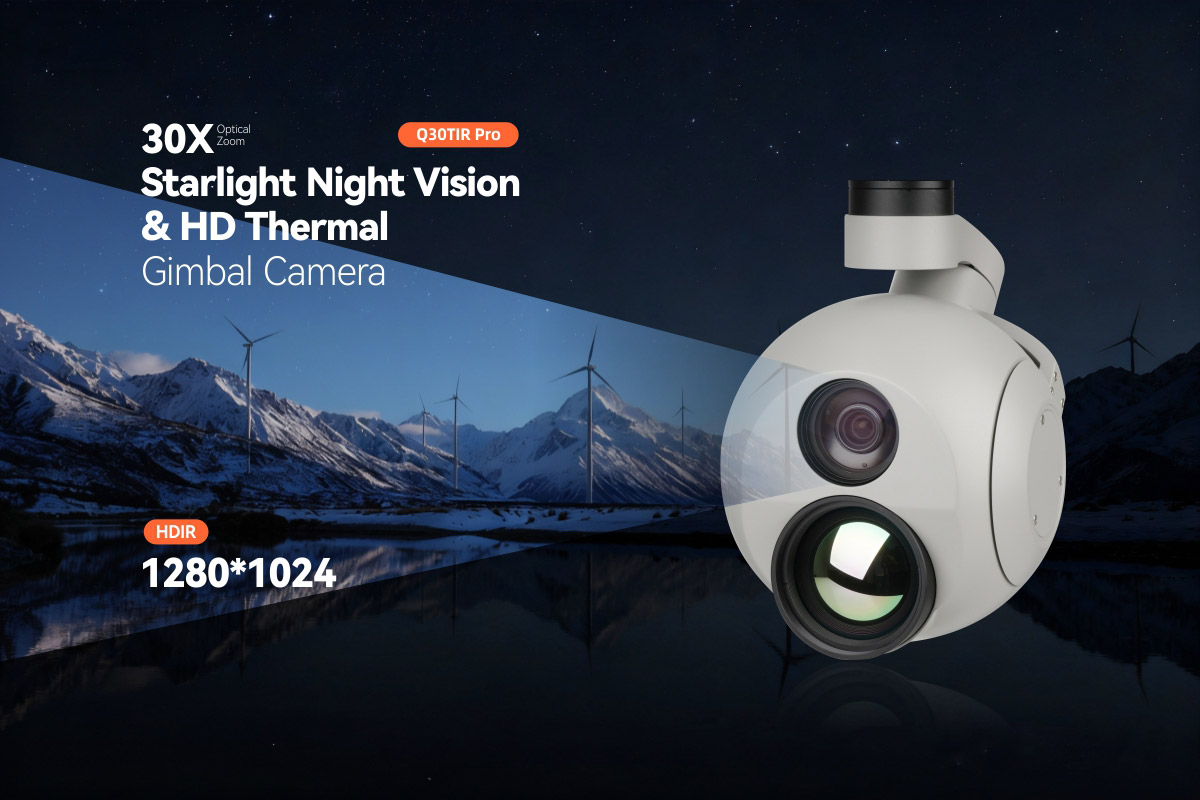

30x Starlight Night Vision 1280 IR thermal Camera Tracking Payload Camera

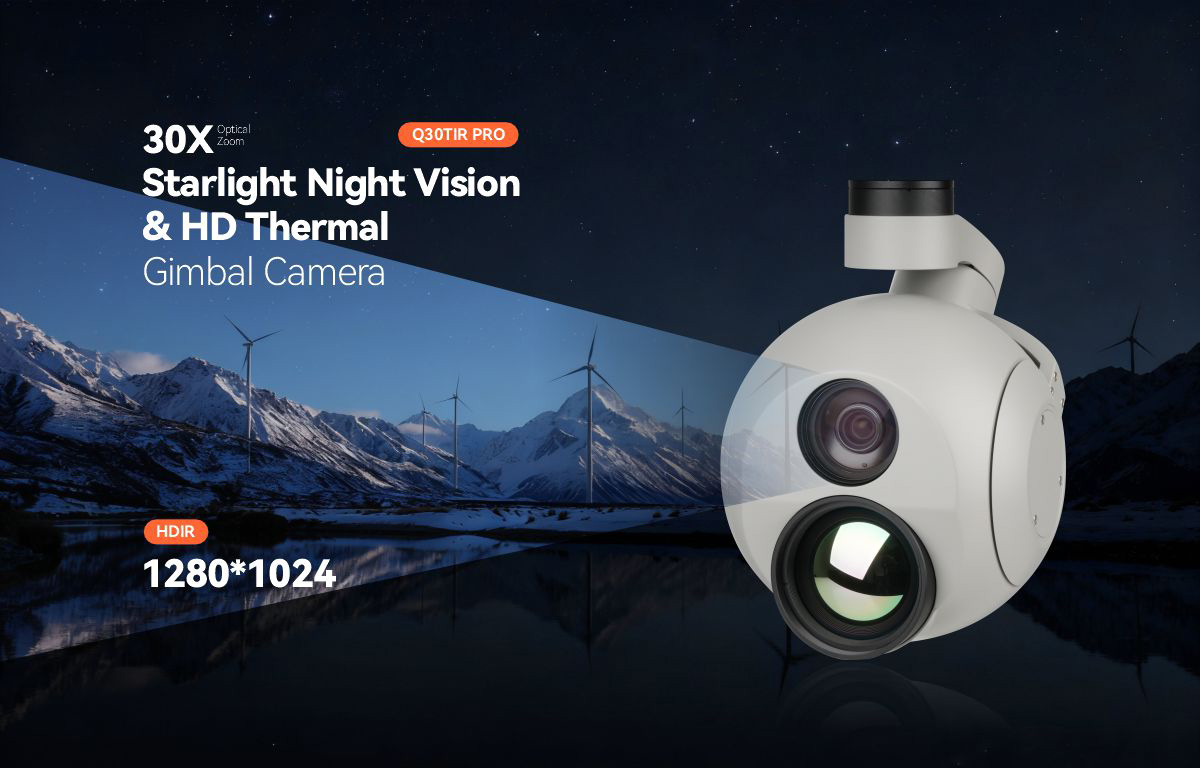

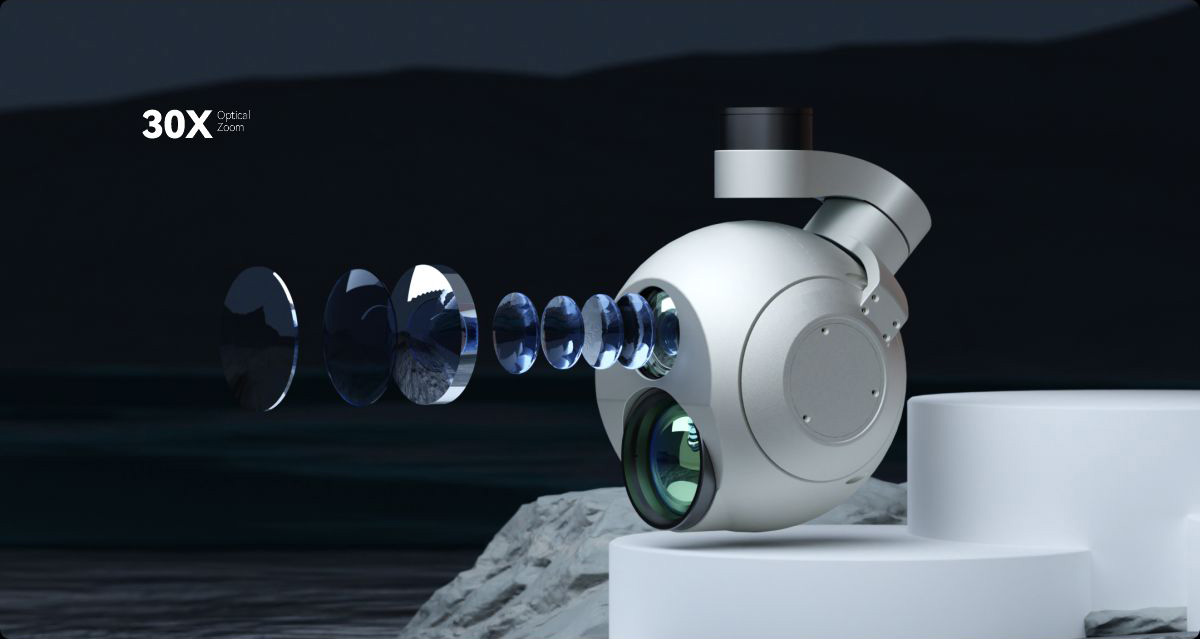

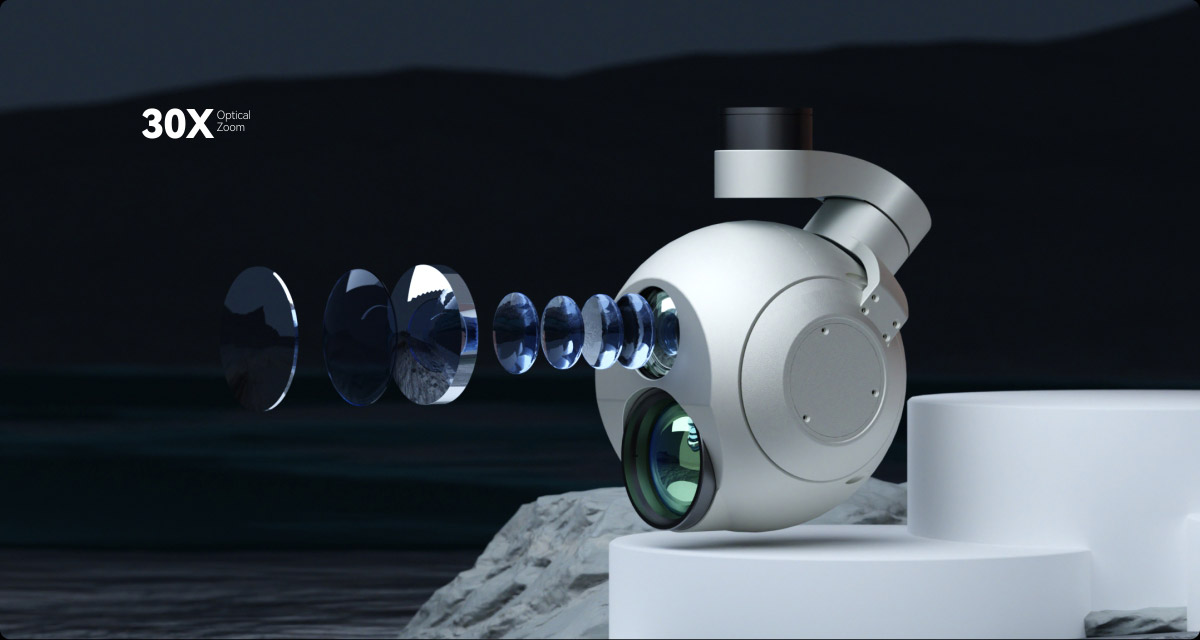

Q30TIR pro is a high level dual-sensor gimbal camera for long range surveillance and inspection. It integrates 30x optical zoom SONY 1/1.8 Type STARVIS night vision camera and a 50mm 1280*1024 12μm IR thermal camera. Supports stable target tracking. It with 3-axis high-precision gimbal which has advantages of better aluminum alloy housing, anti-interference and better heat dissipation. It widely used in UAV industries of long range inspection, surveillance, search and rescue and other industrial applications.






Specification


Hardware Parameter
Working voltage 12V
Input voltage 3S ~ 6S
Output voltage 5V (connect with PWM)
Dynamic current 1350~2000mA @ 12V
Idle current 1350mA @ 12V
Working environment temp. -20 ~ +60

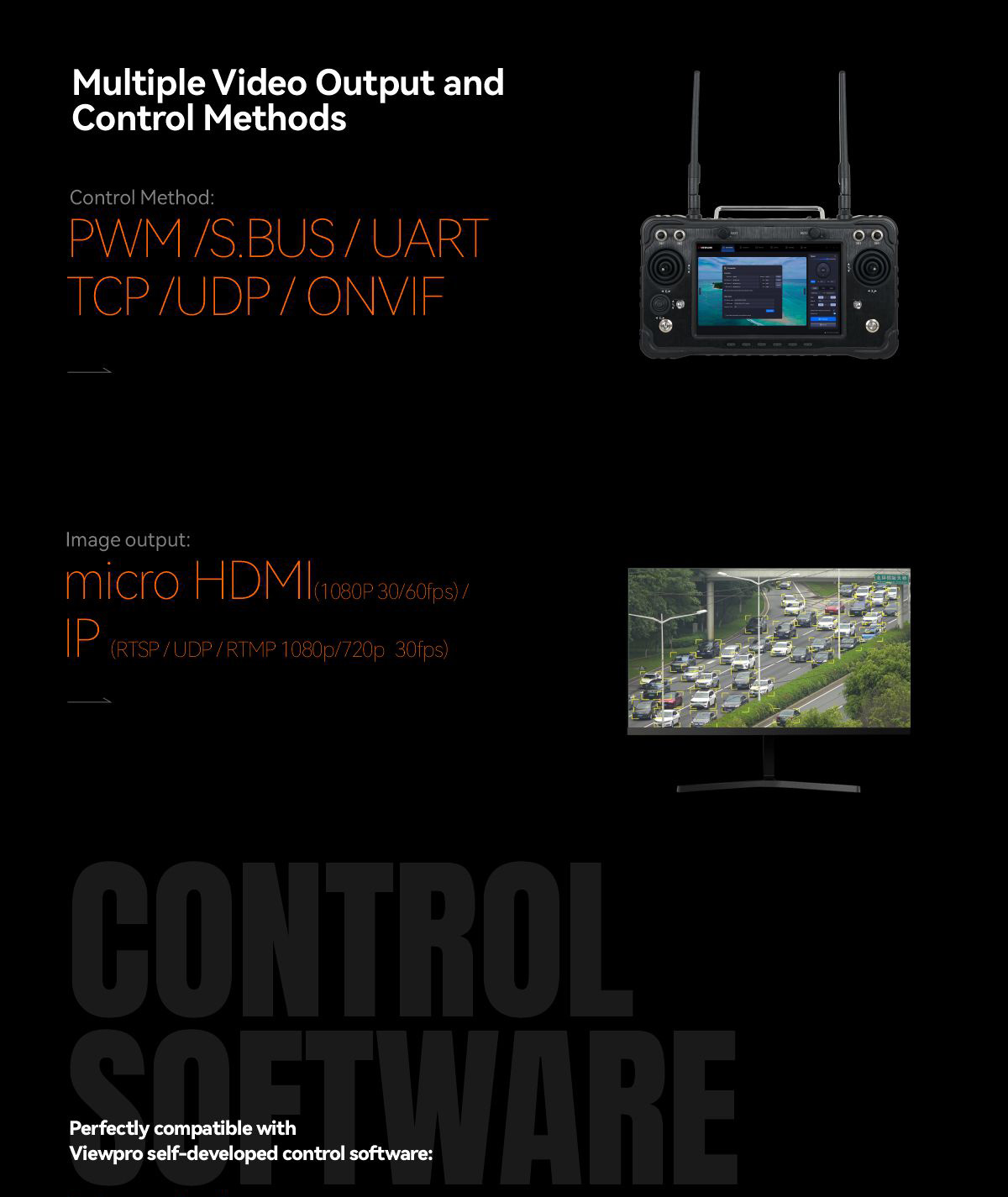

Output  micro HDMI(1080P 25fps/30fps/50fps/60fps) / IP (720p/1080p  25fps/30fps) / SDI (1080P 30fps)

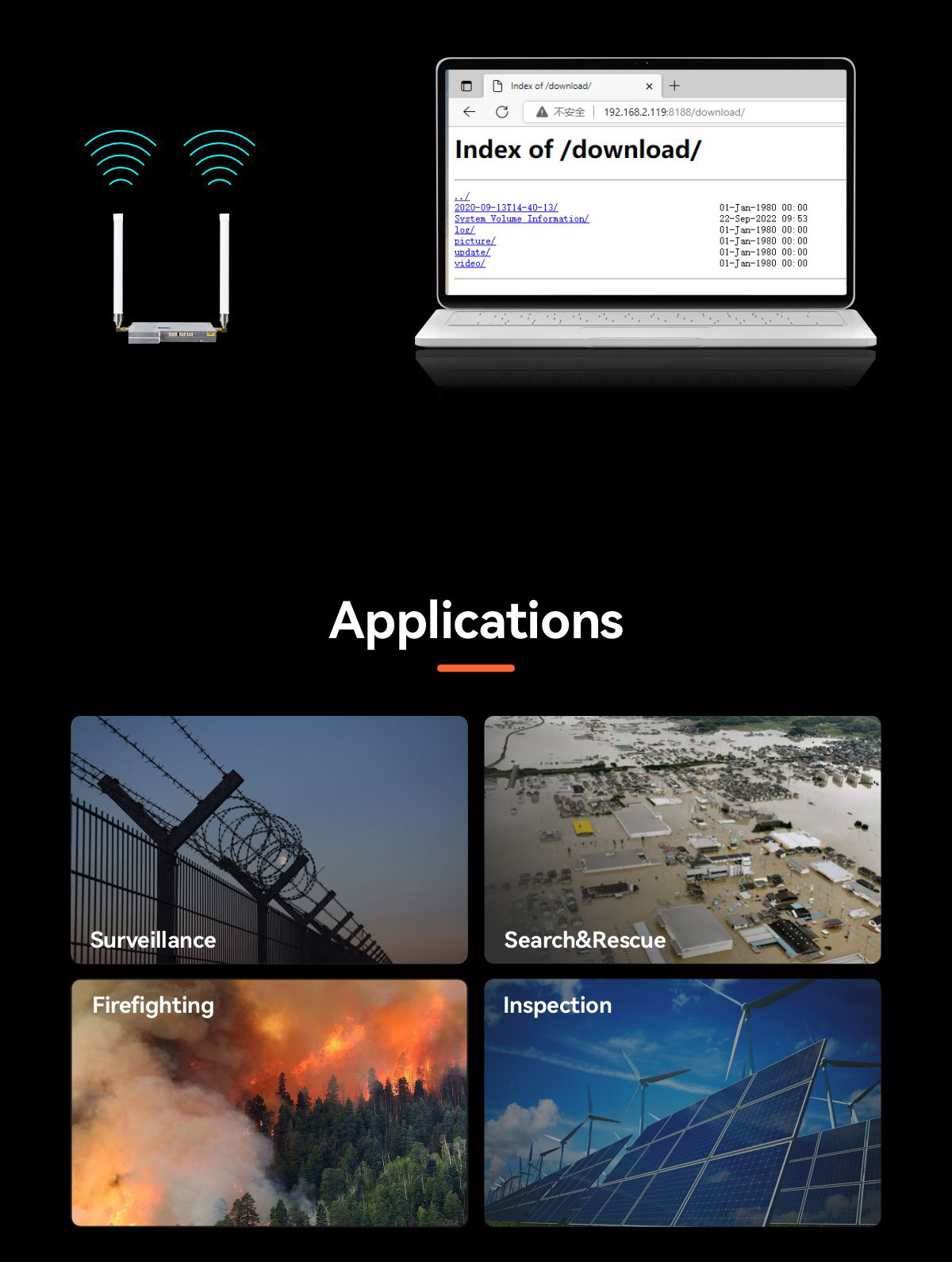

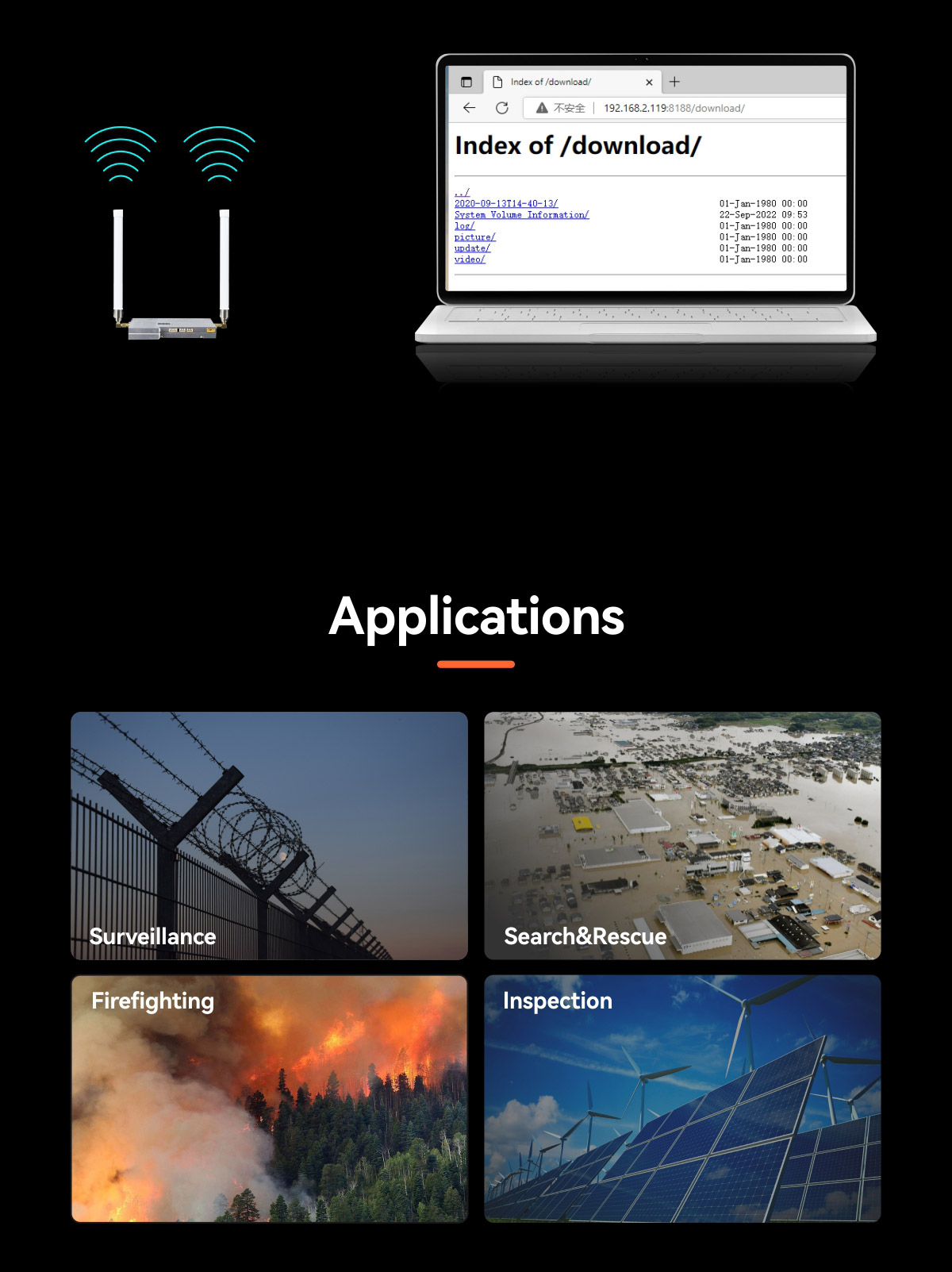

Local-storage TF card (Up to 128G, class 10, FAT32 or ex FAT format)
Photo storage format JPG(1920*1080)
Video storage format MP4  (1080P 30fps/60fps)

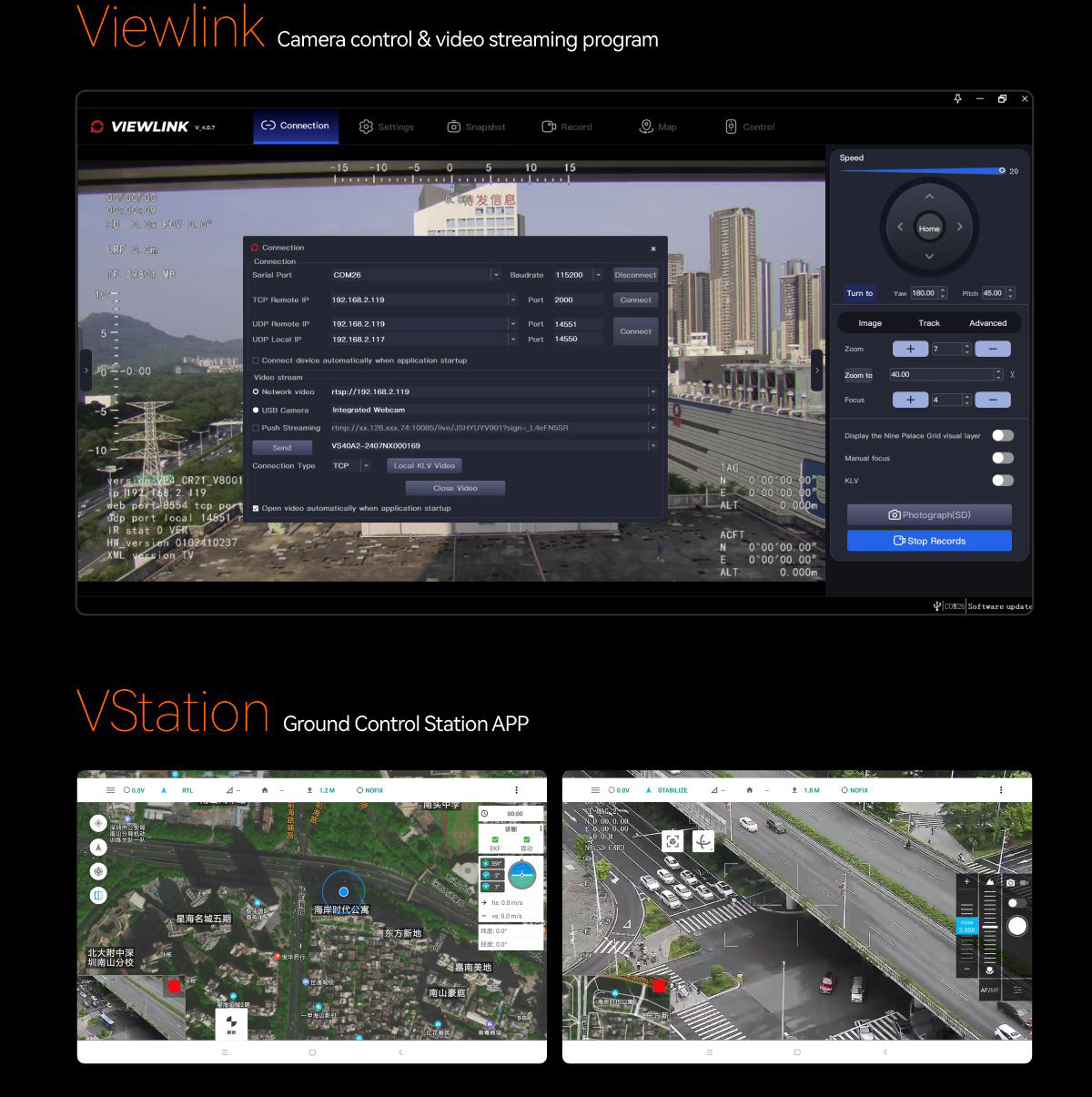

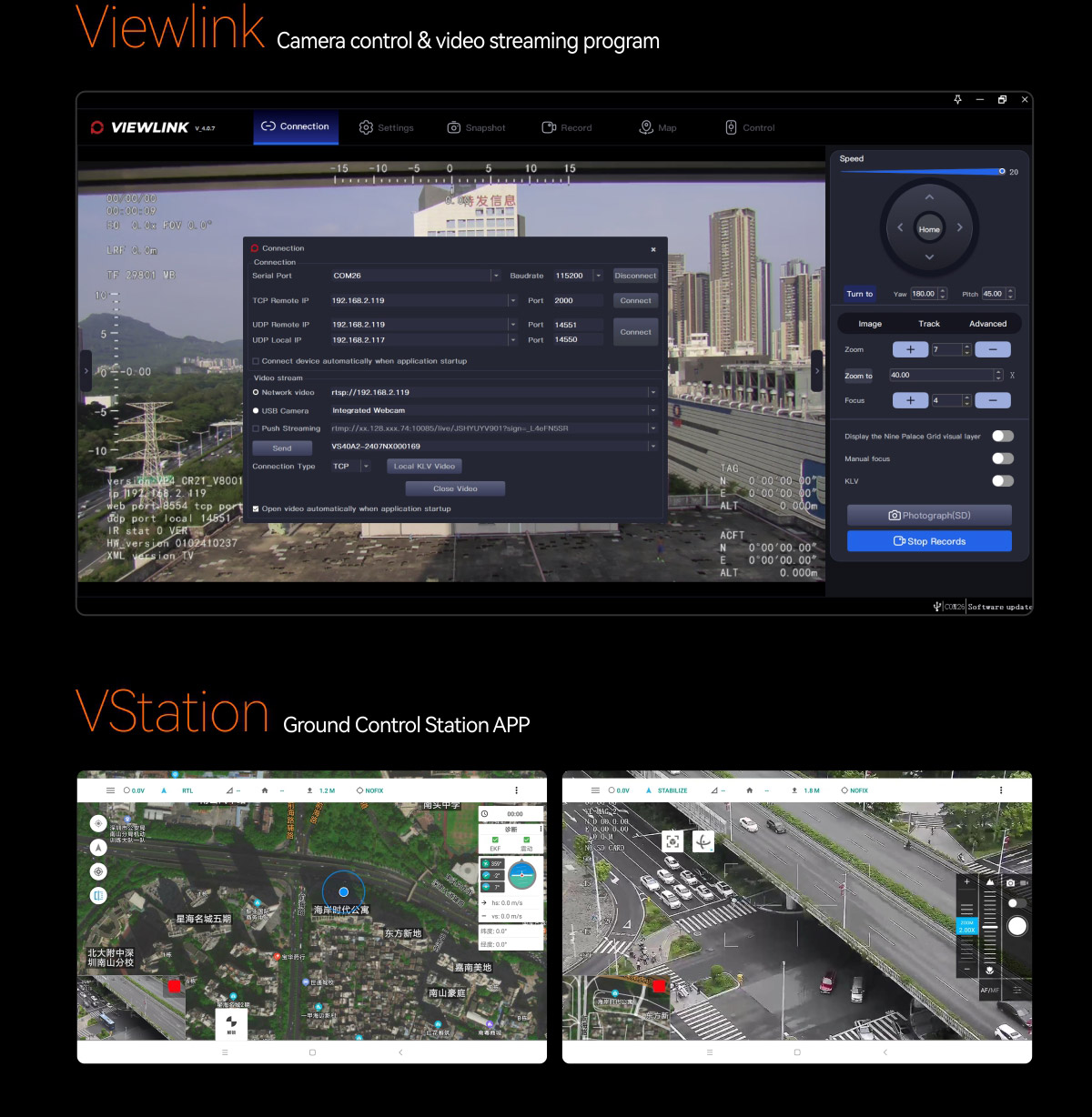

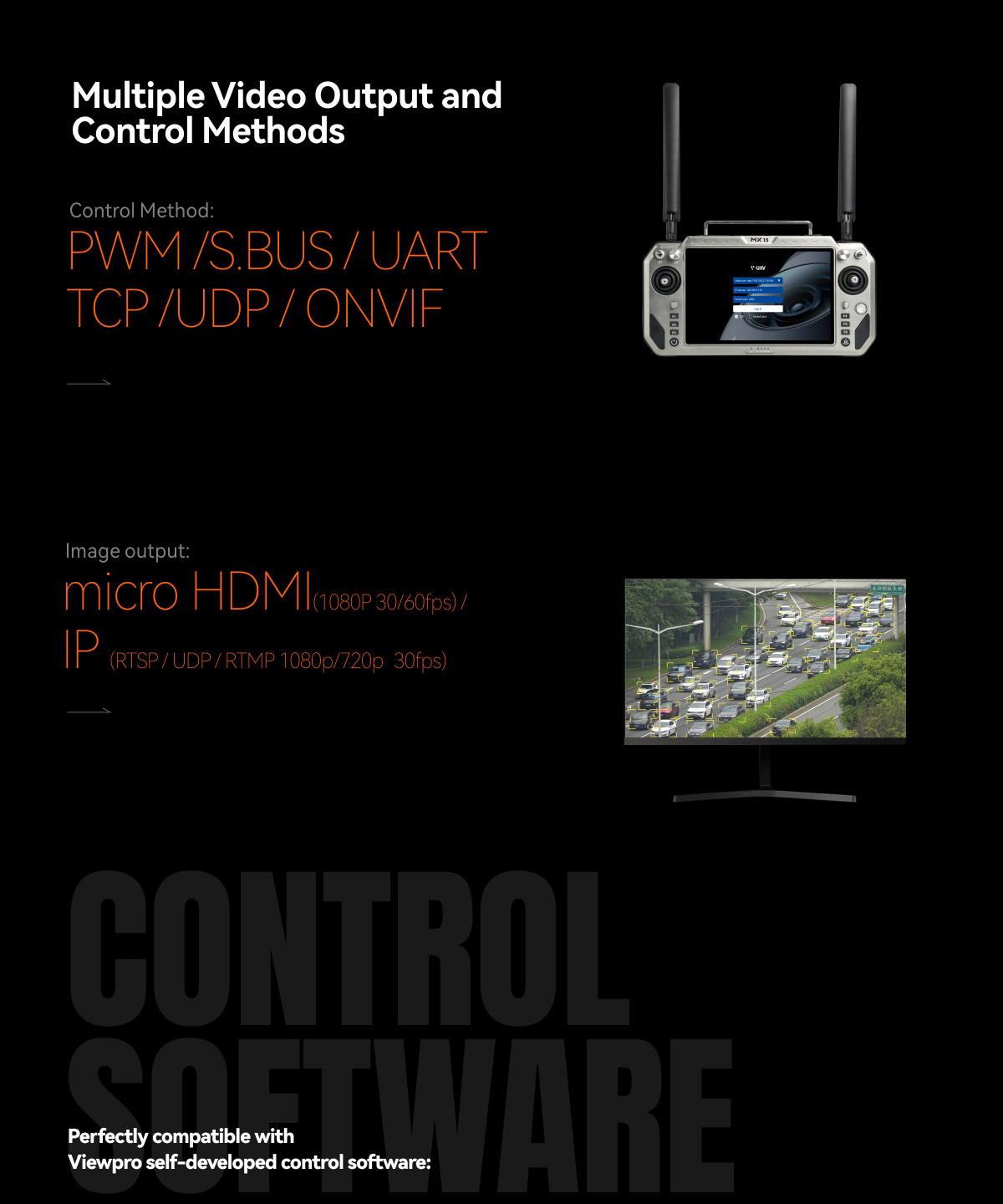

Control method PWM  / TTL / S.BUS / TCP(IP output)

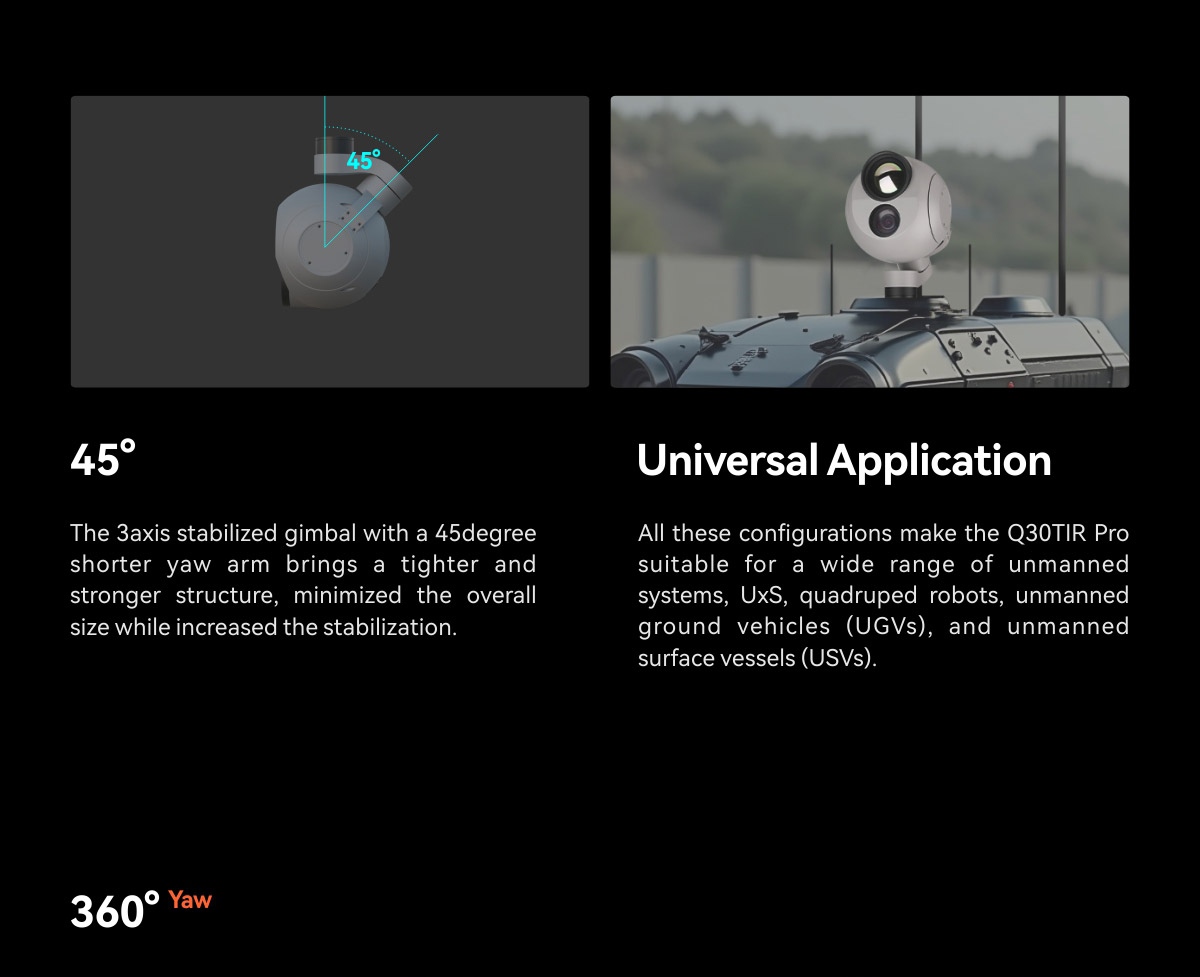

Gimbal Spec

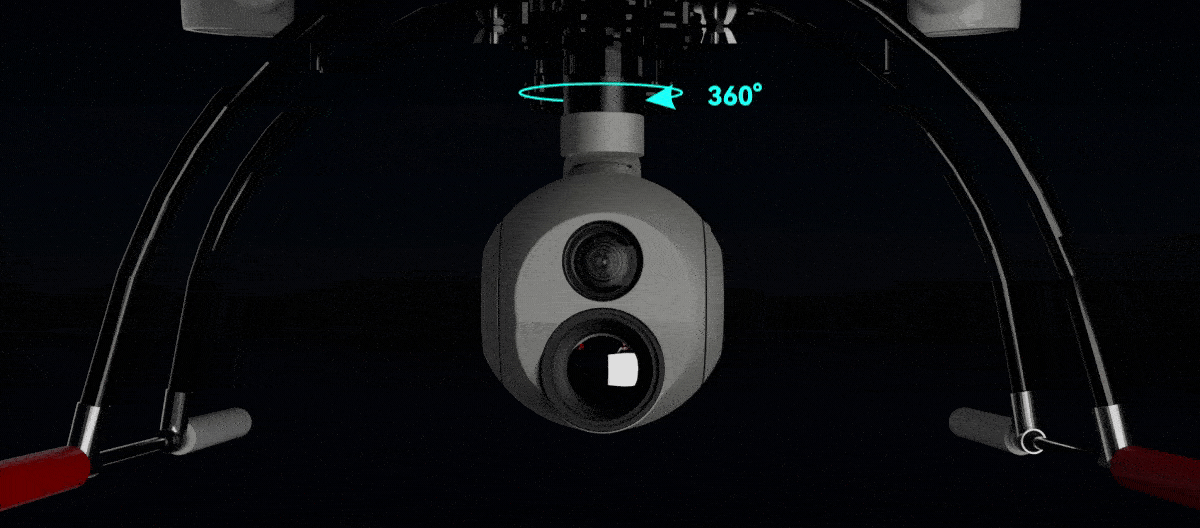

Angle range of structure design Pitch/Tilt:-60°~135°,   Roll: ±40°,    Yaw/Pan: ±300° / ±360°*N (IP / SDI output version)
Angle range of software design Pitch/Tilt: -45°90°,   Yaw/Pan: ±290° / ±360°*N (IP output version)
Vibration angle Pitch/Roll: ±0.02°, Yaw±0.02°
One-key to center
EO Camera spec

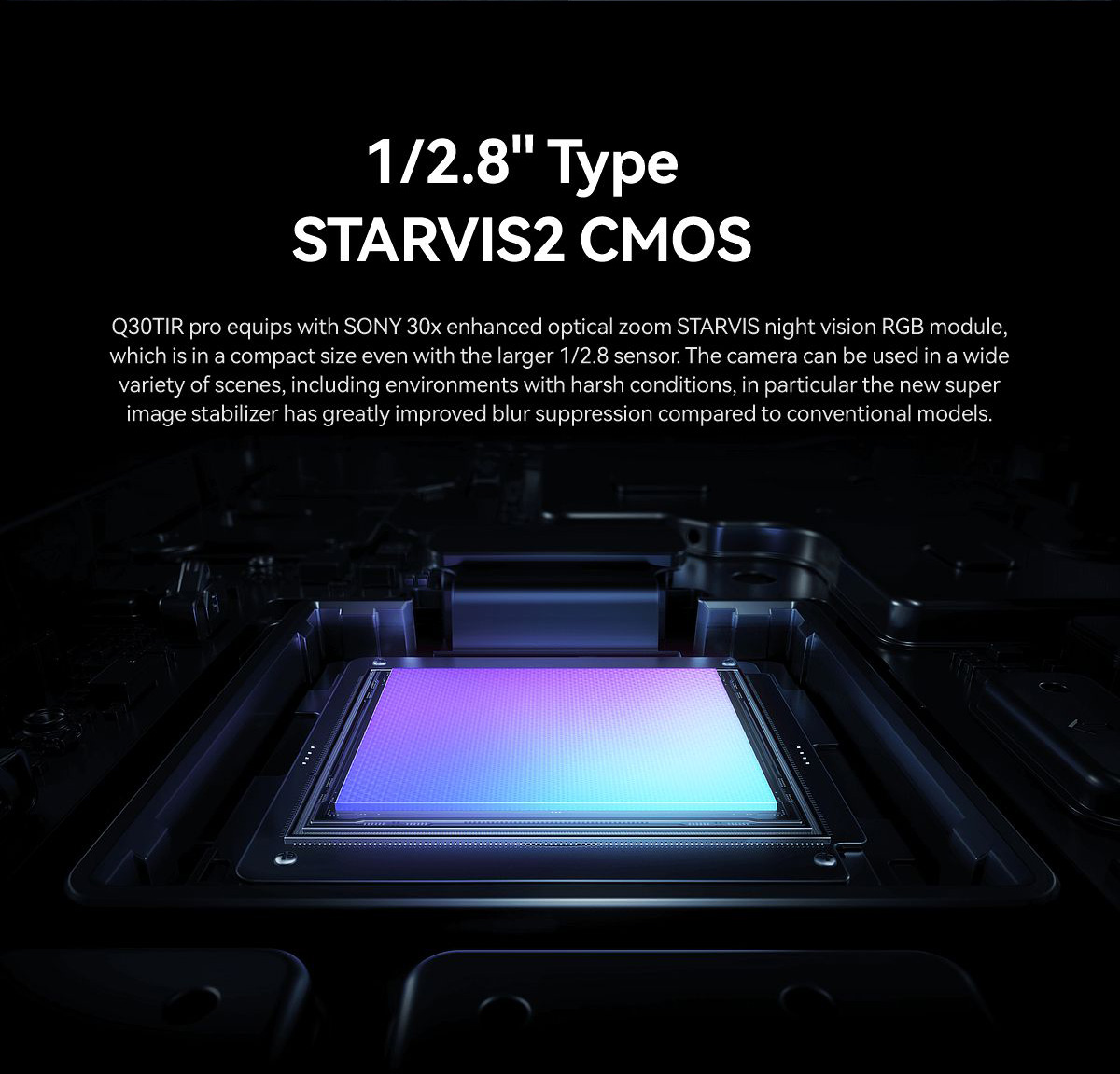

Imager Sensor 1/1.8 Type STARVIS CMOS Sensor
Picture quality 4.17MP

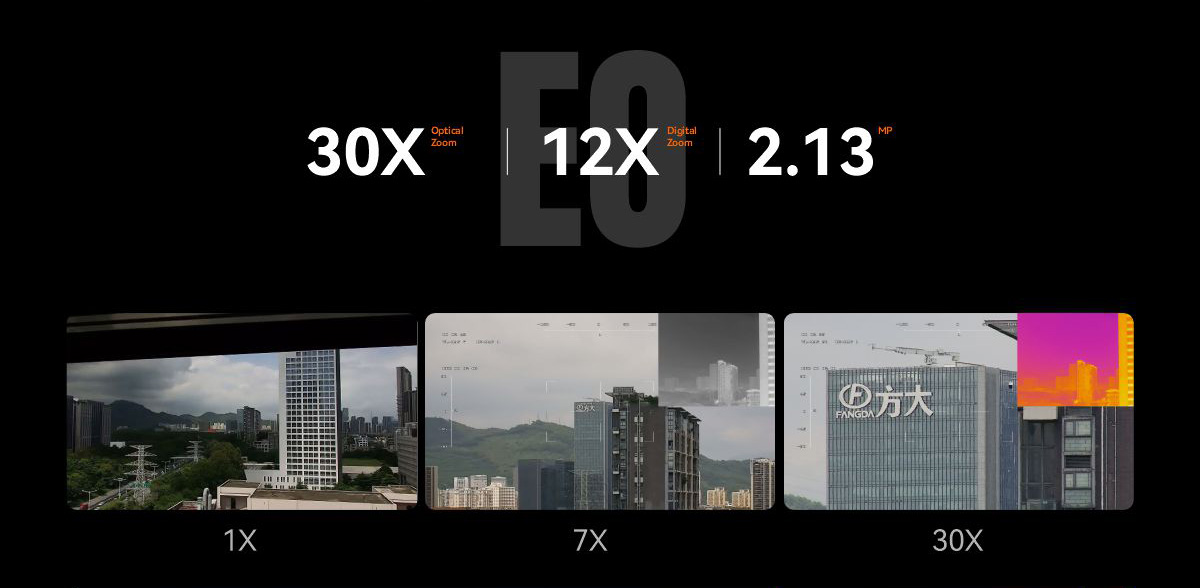

Lens optical zoom 30x, f=6.5~162.5mm, F1.6 to F4.8
Digital zoom 12x (max. 432x with StableZoom)
Min object distance 100 mm (Wide end), 1200 mm (Tele end)
Horizontal viewing angle 58.1°(wide end) ~ 2.3°(tele end)
Sync system Internal
Image S/N 50 dB (Weight On)

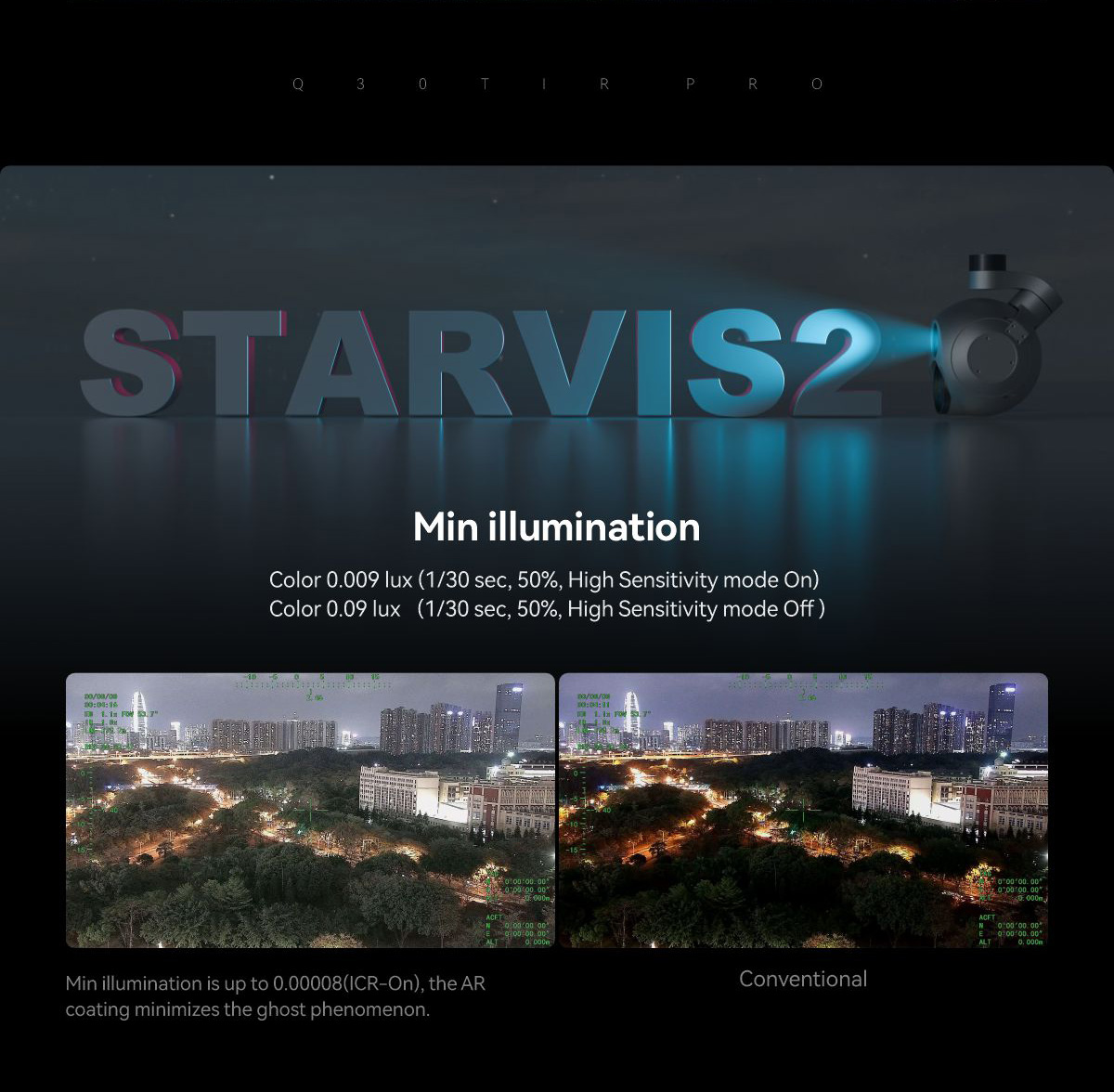

Min illumination In the case of ICR-Off

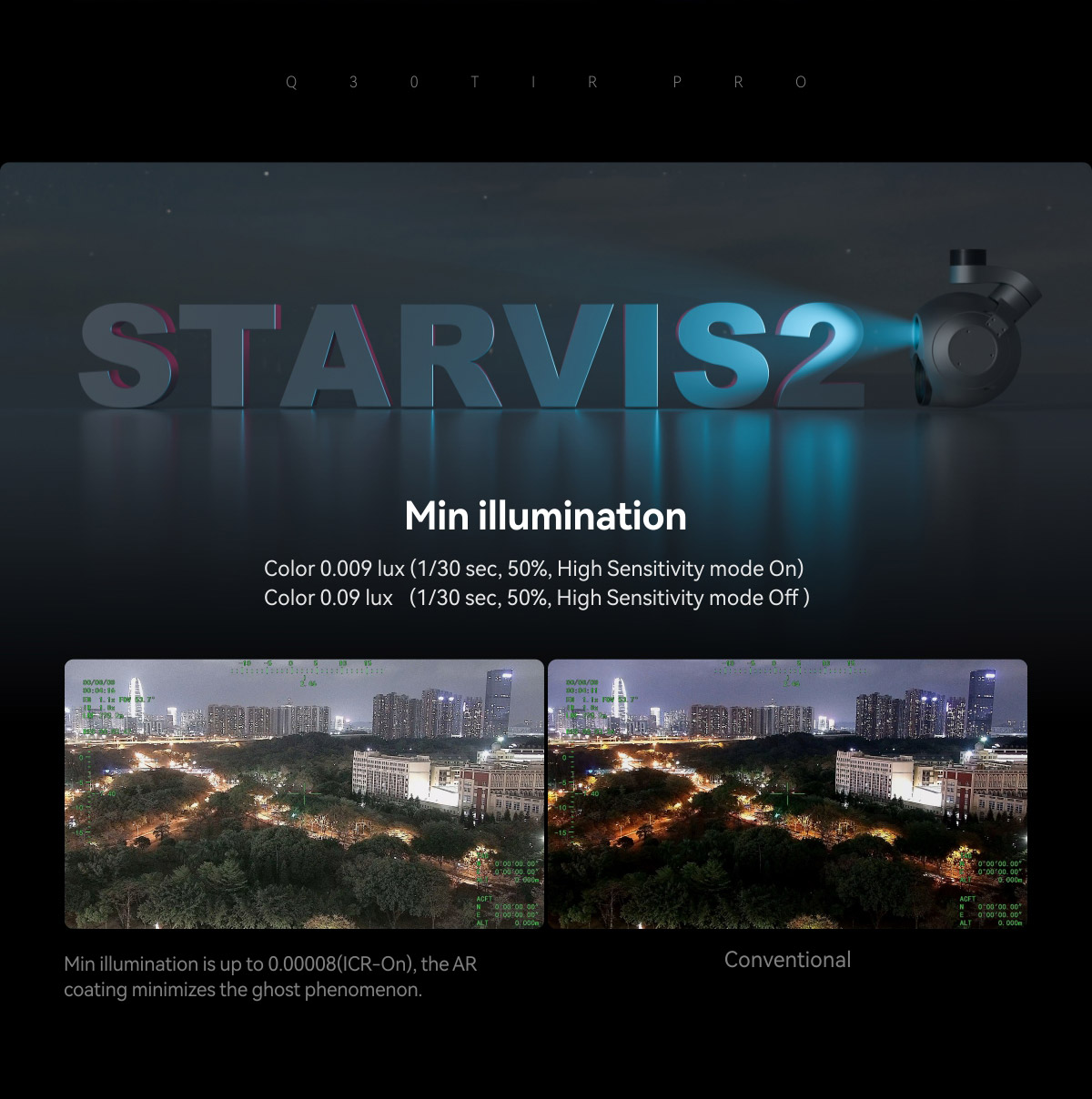

(Typical value) 0.009 lx (1/30 sec, 50%, High Sensitivity mode On)
0.09 lx (1/30 sec, 50%, High Sensitivity mode Off)
0.0012 lx (1/4 sec, 1/3 sec, 50%, High Sensitivity mode On)
0.012 lx (1/4 sec, 1/3 sec, 50%, High Sensitivity mode Off)
In the case of ICR-On
0.00008 lx (1/30 sec, 50%, High Sensitivity mode On)
0.00063 lx (1/30 sec, 50%, High Sensitivity mode Off)
0.000005 lx (1/4 sec, 1/3 sec, 30%, High Sensitivity mode On)
High Sensitivity mode On/Off  Off
Recommended illumination 100 lx to 100,000 lx
Gain Auto/Manual (0 to 50.0 dB (0 to 28 step))
Max. Gain Limit (10.7 to 50.0 dB (6 to 28 step))
White balance Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto)
Wide Dynamic Range Mode On/Off
Shutter speed 1/1 sec to 1/10000 sec (22 steps)
Backlight compensation On/Off Off

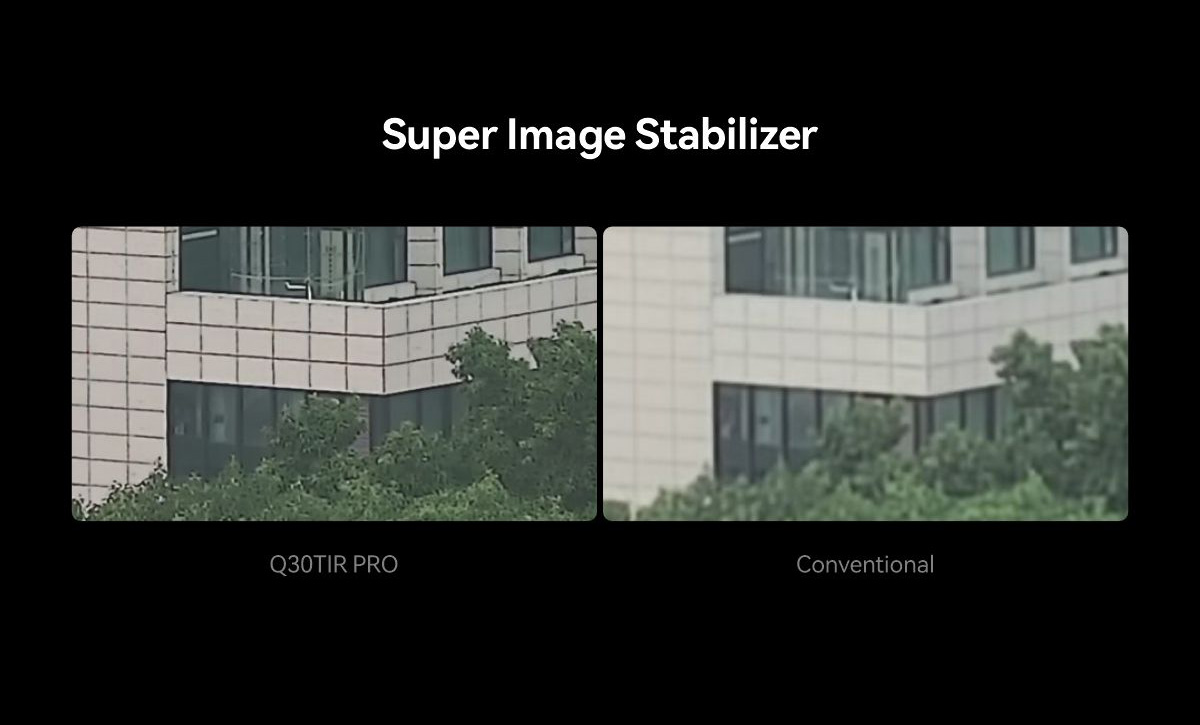

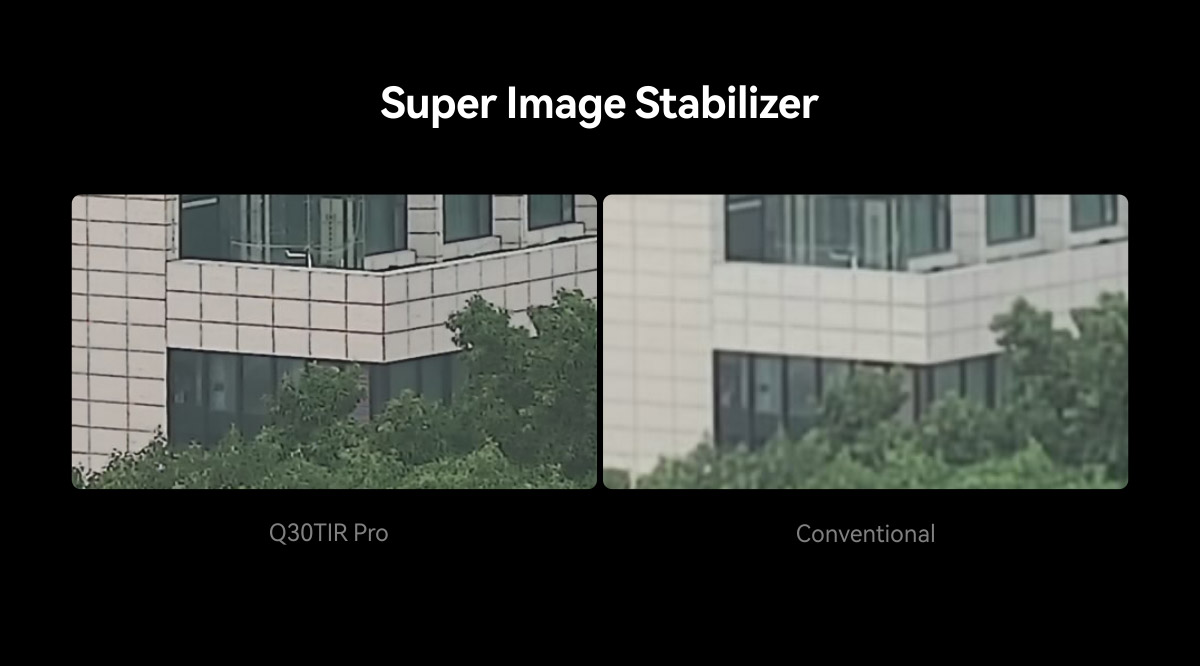

Image Stabilizer On/Off/Hold Off
ICR On/Off Off
Aperture control 16 steps
Noise Reduction On/Off (level 5 to 1 / Off, 6 steps)
Defog On/Off (low, mid, high)
OSD Yes
IR Thermal Imager Spec

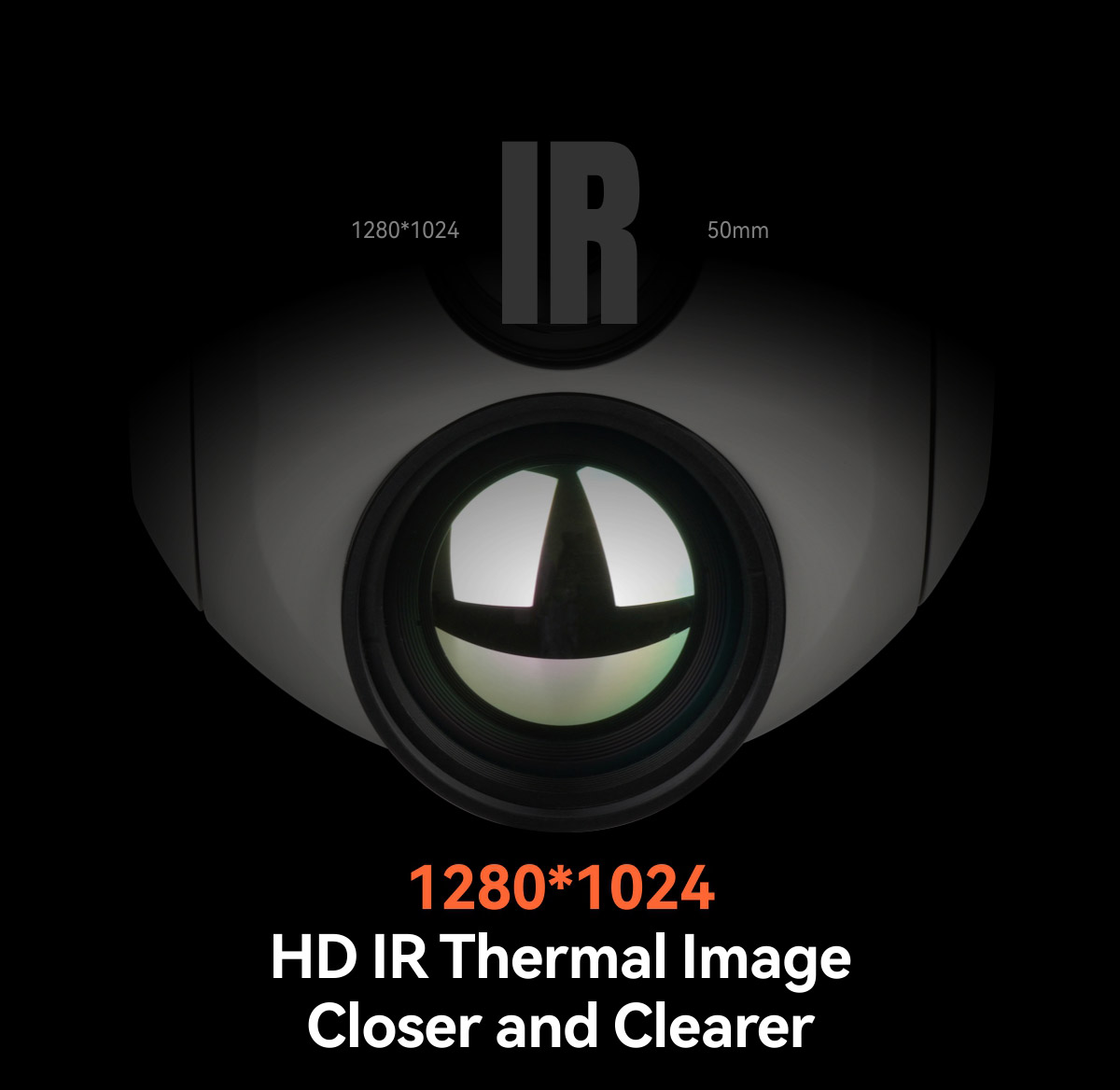

Focus Length 50mm
Horizontal FOV 17.5°
Vertical FOV 14°
Diagonal FOV 22.3°
Detective Distance (Man: 1.8x0.5m) 2083 meters
Recognize Distance (Man: 1.8x0.5m) 521 meters
Verified Distance (Man: 1.8x0.5m) 260 meters
Detective Distance (Car: 4.2x1.8m) 6389 meters
Recognize Distance (Car: 4.2x1.8m) 1597 meters
Verified Distance (Car: 4.2x1.8m) 799 meters

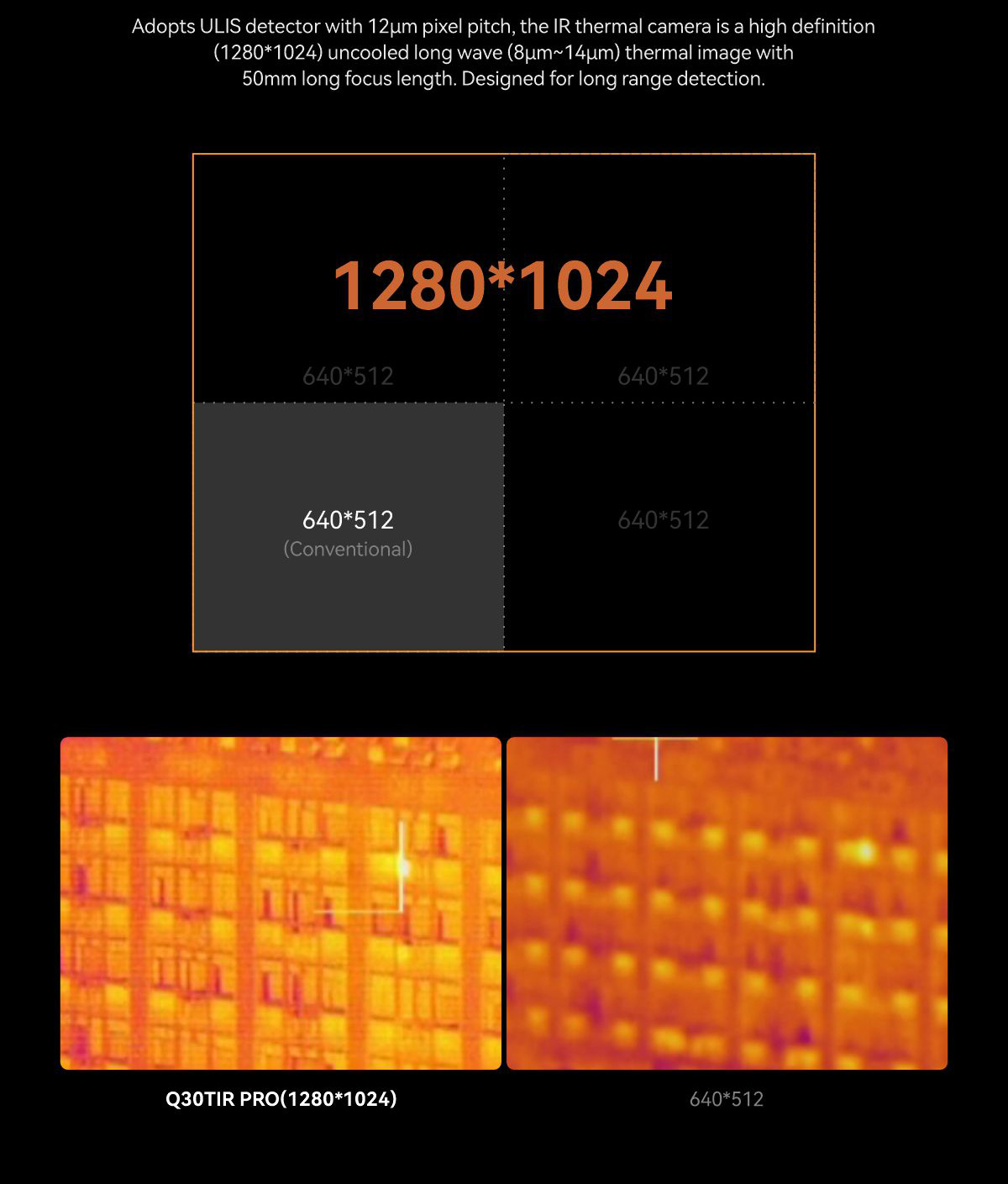

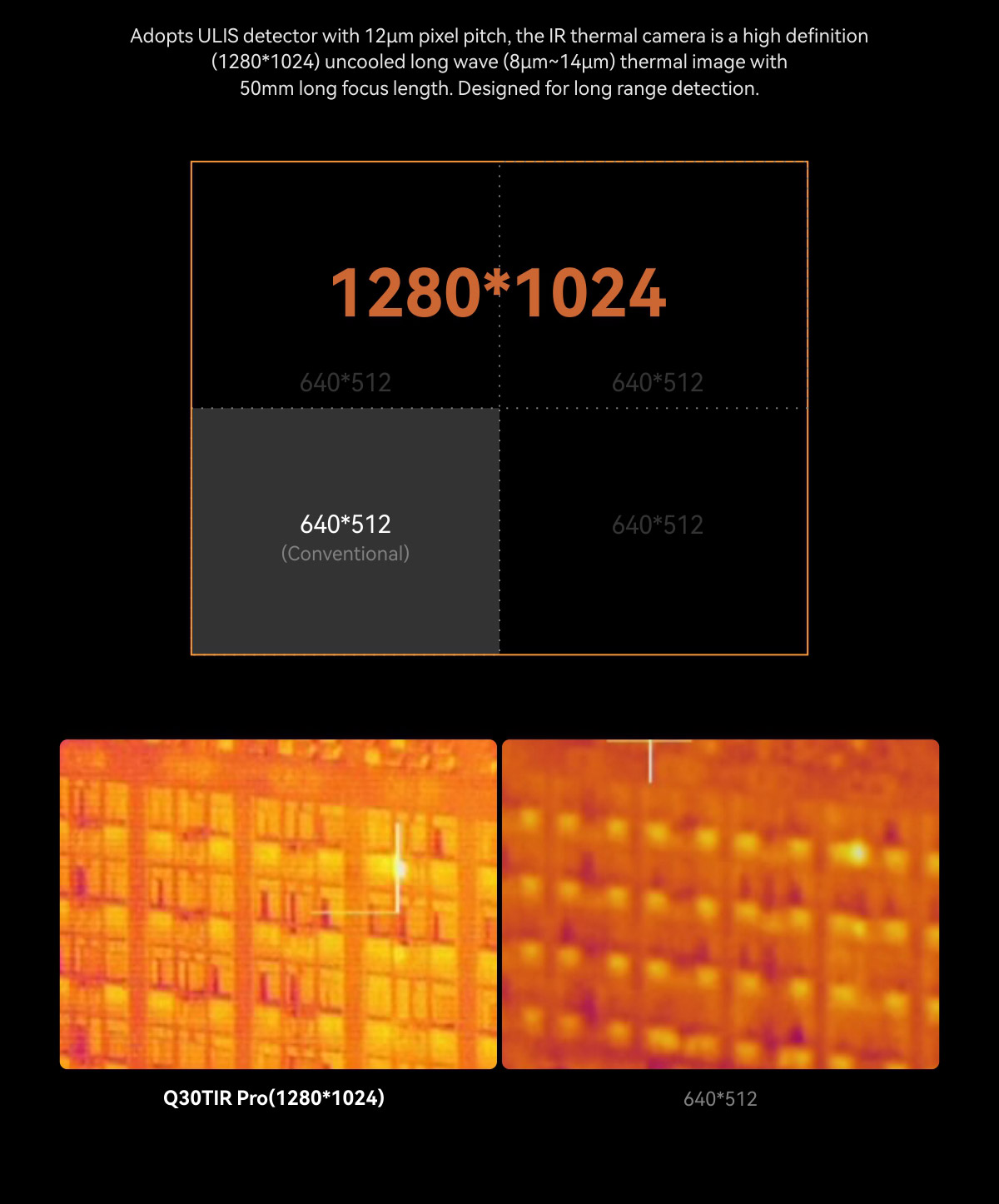

Working mode Uncooled VOx long wave (8μm~14μm) thermal imager

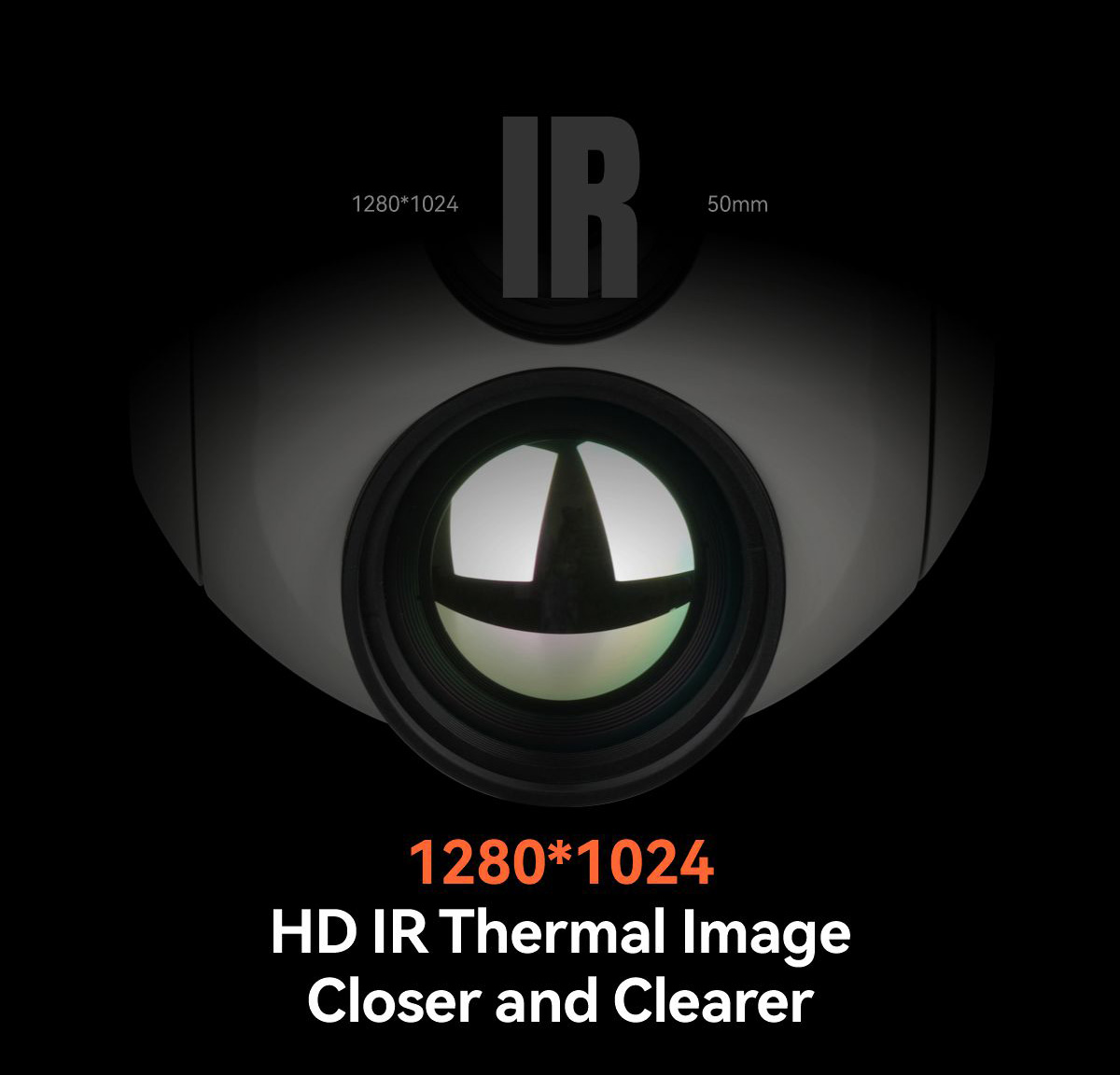

Detector pixel 1280*1024
Pixel pitch 12μm
Focusing method Athermal prime lens
Emissivity correction 0.01~1
NETD ≤50mK @25
MRTD ≤650mK (@characteristic frequency)
Image enhancement Auto adjust image brightness and contrast ratio

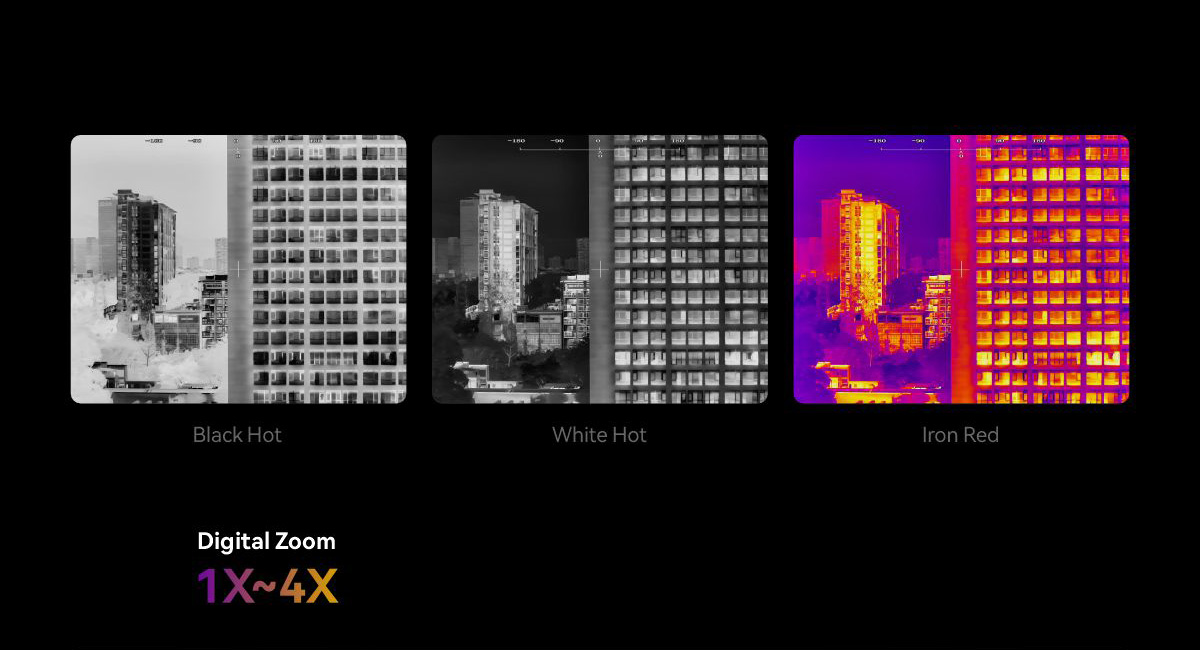

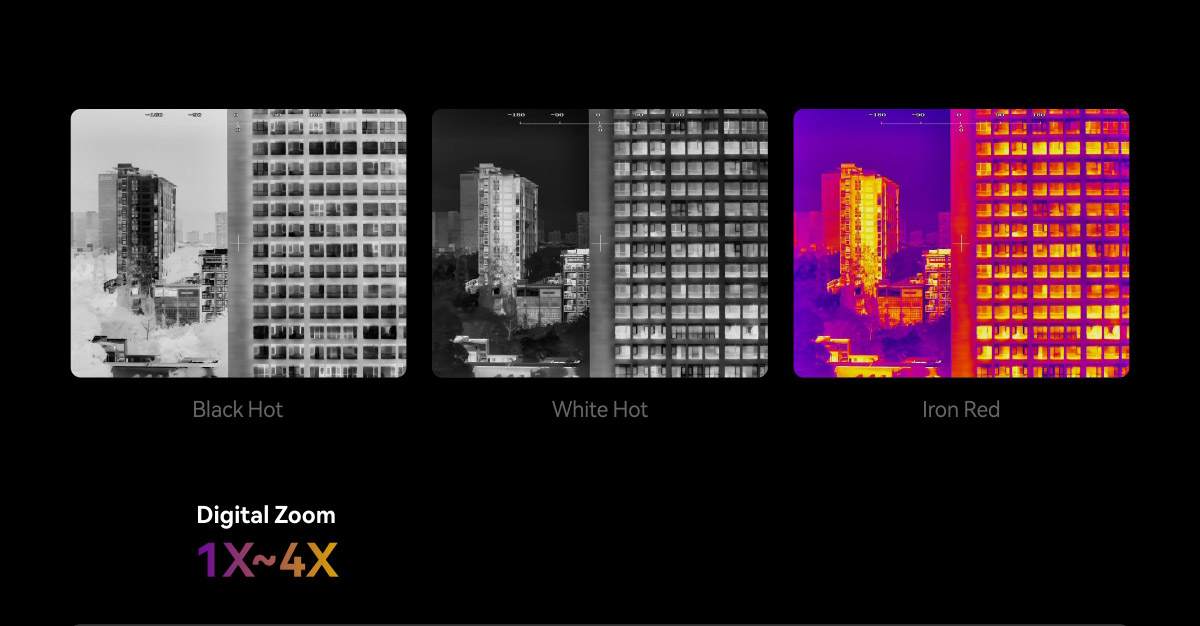

Color palette White hot, black hot, pseudo color
Digital zoom 1x ~ 4x
Sync correct time Yes
Thermometry type / Radiometric Temperature bar (psudo color display) max temp, min temp, FOV center temp (Optional)
Temperature warning '0℃~120℃ (For thermometry version only)

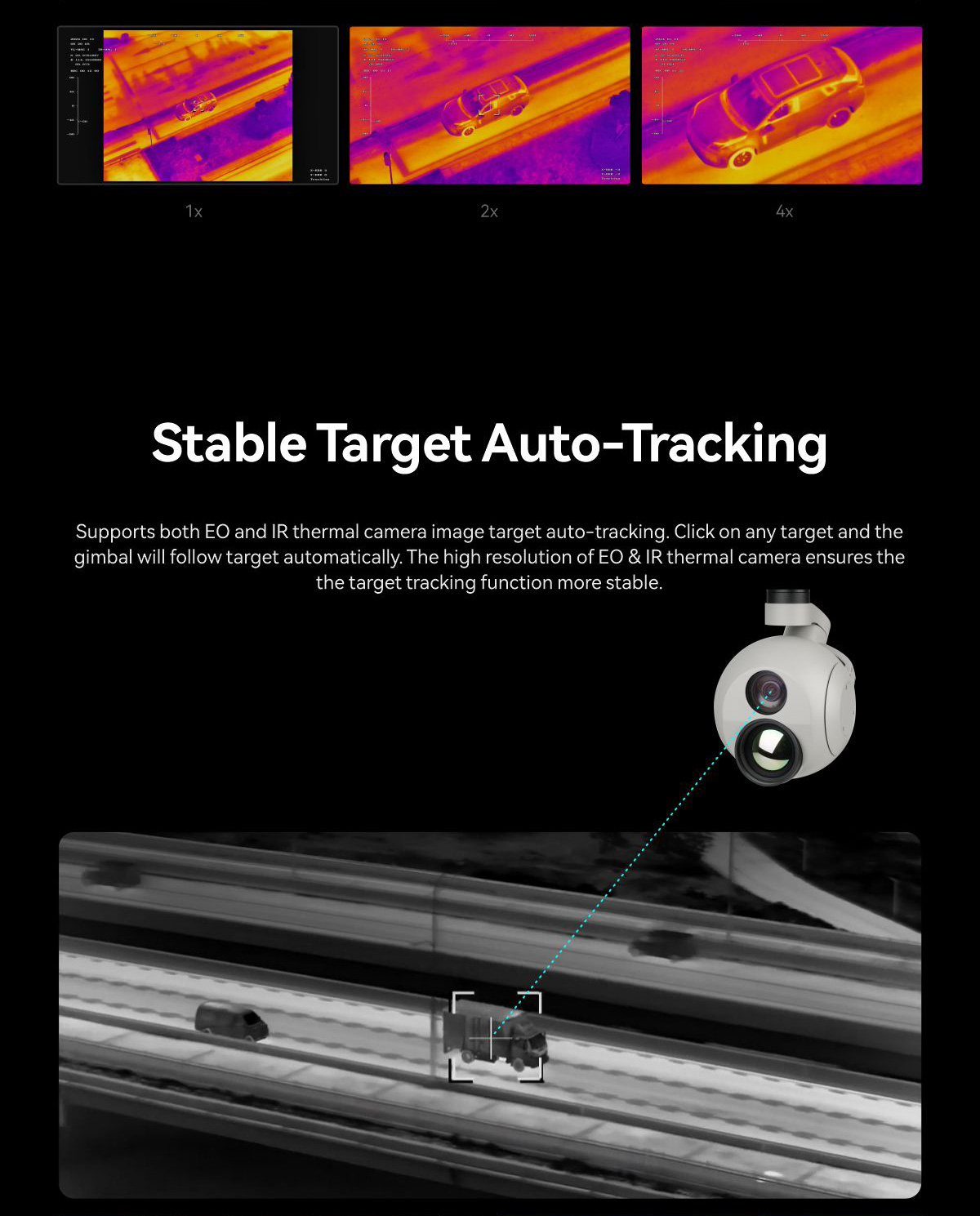

EO/IR Camera Object Tracking
Update rate of deviation pixel 50Hz
Output delay of deviation pixel 5ms
Minimum object contrast 5%
SNR 4
Minimum object size 32*32 pixel
Maximum object size 128*128 pixel
Tracking speed ±48 pixel/frame
Object memory time 100 frames (4s)
Packing Information

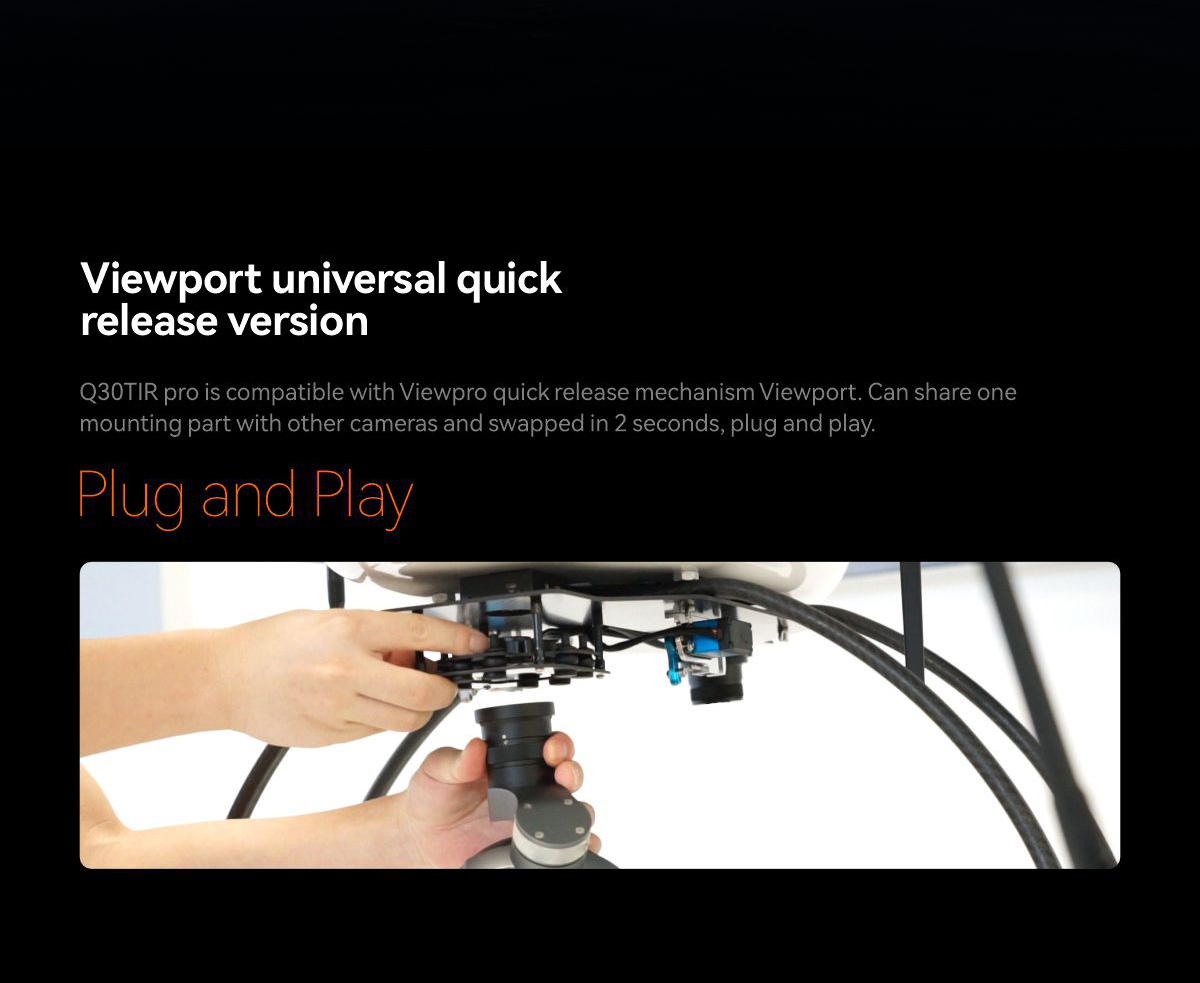

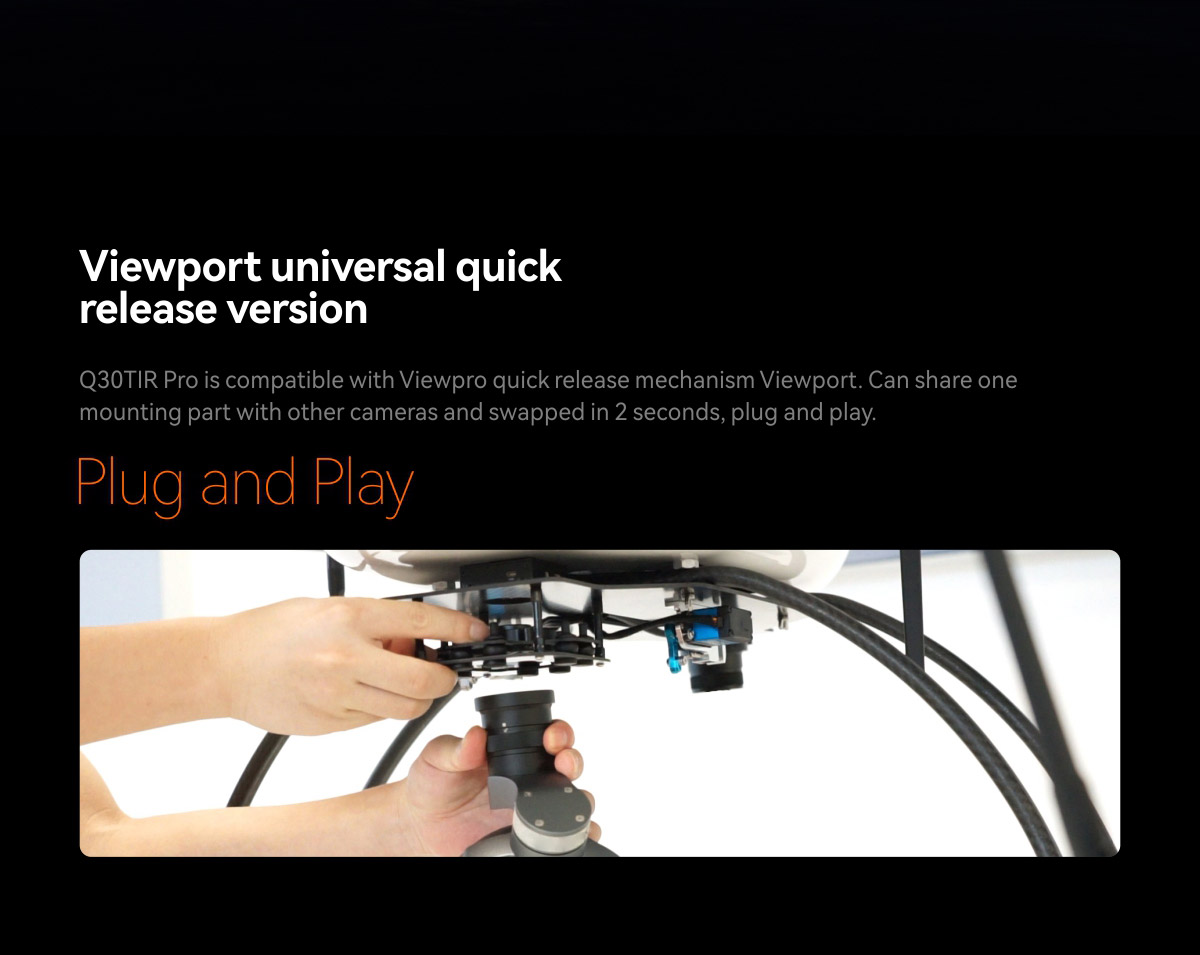

N.W. 1732g(Viewport Version)

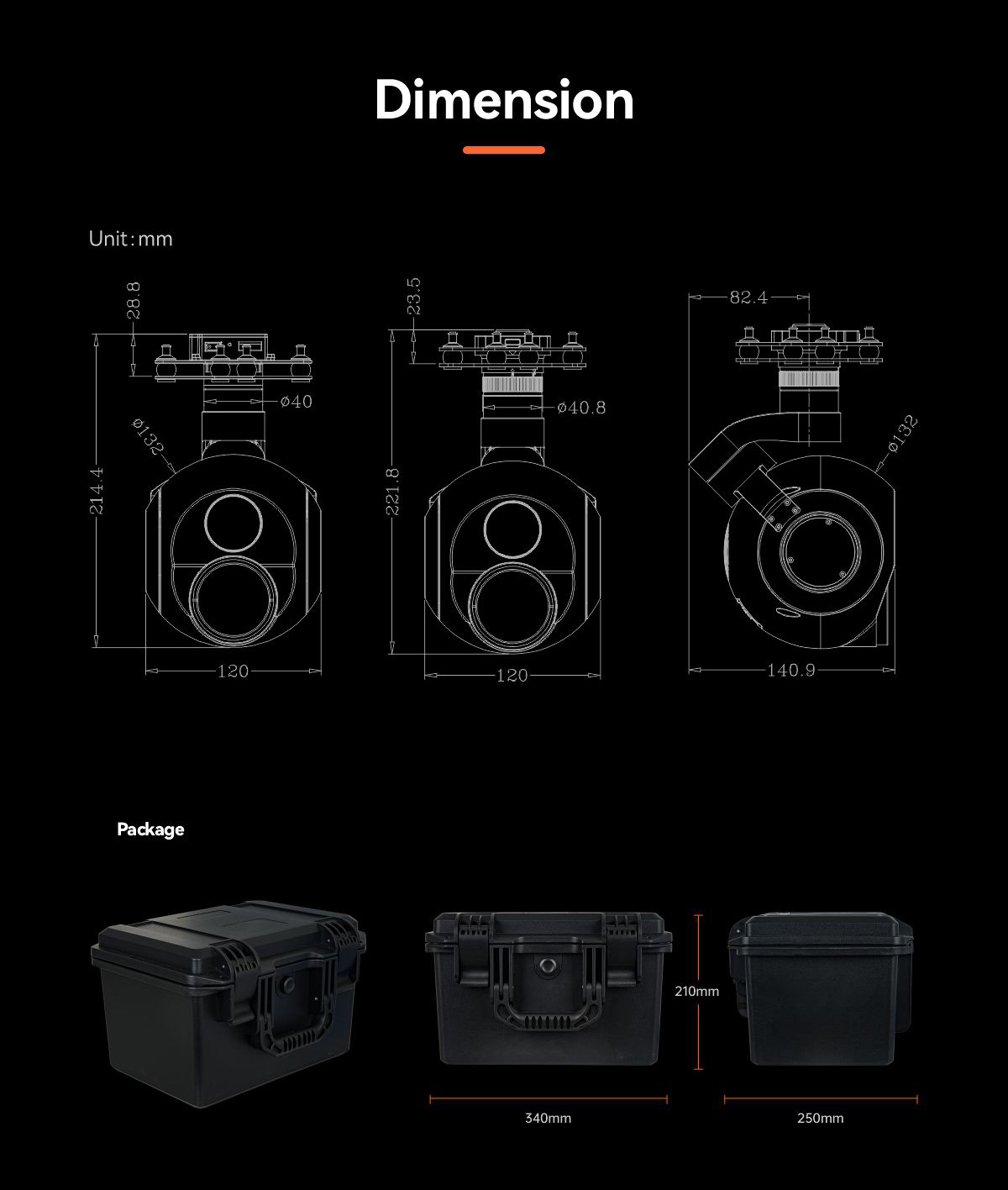

Product meas. 162.8*146*240.1mm / 162.8*146*245.8mm(Viewport Version)

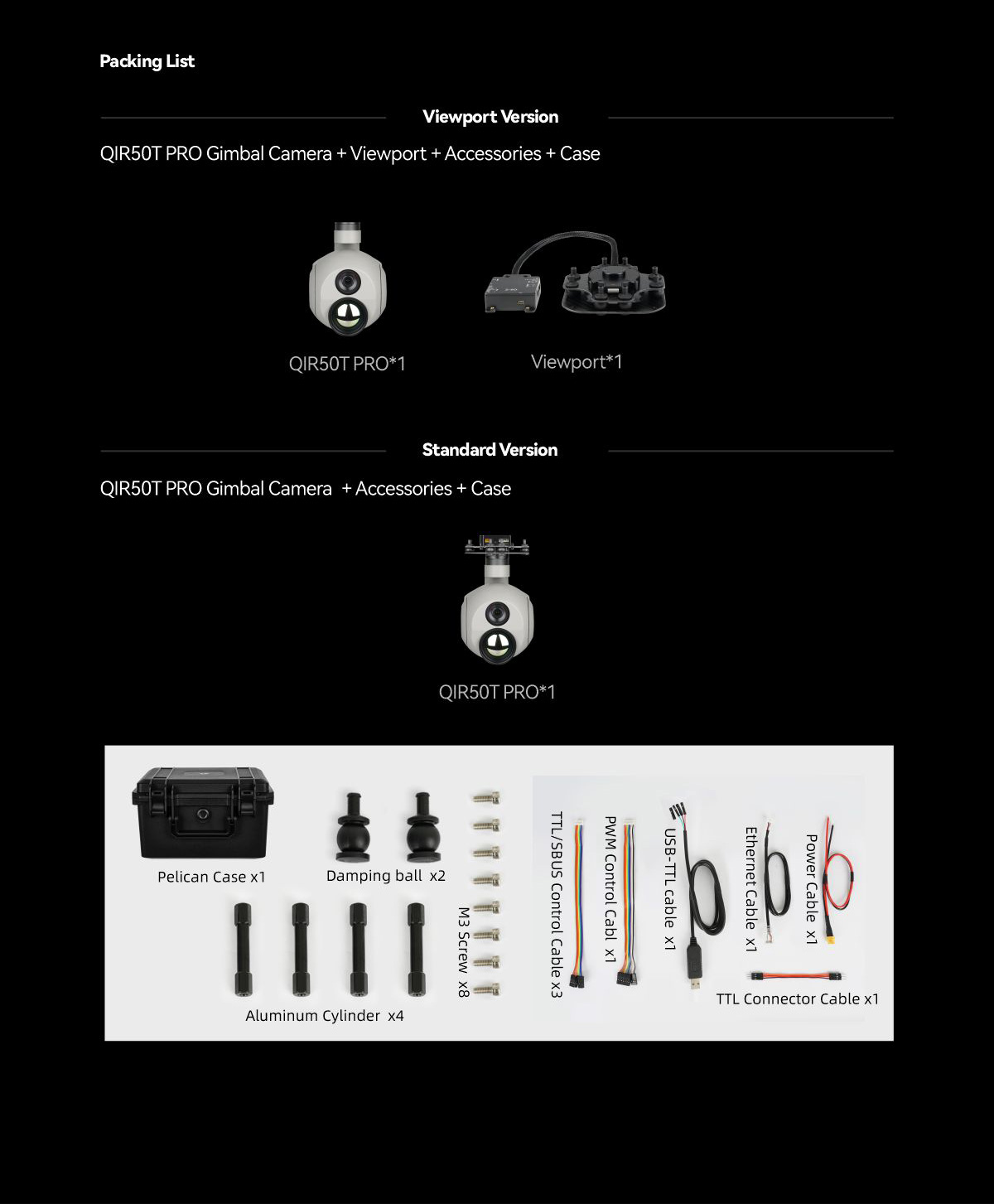

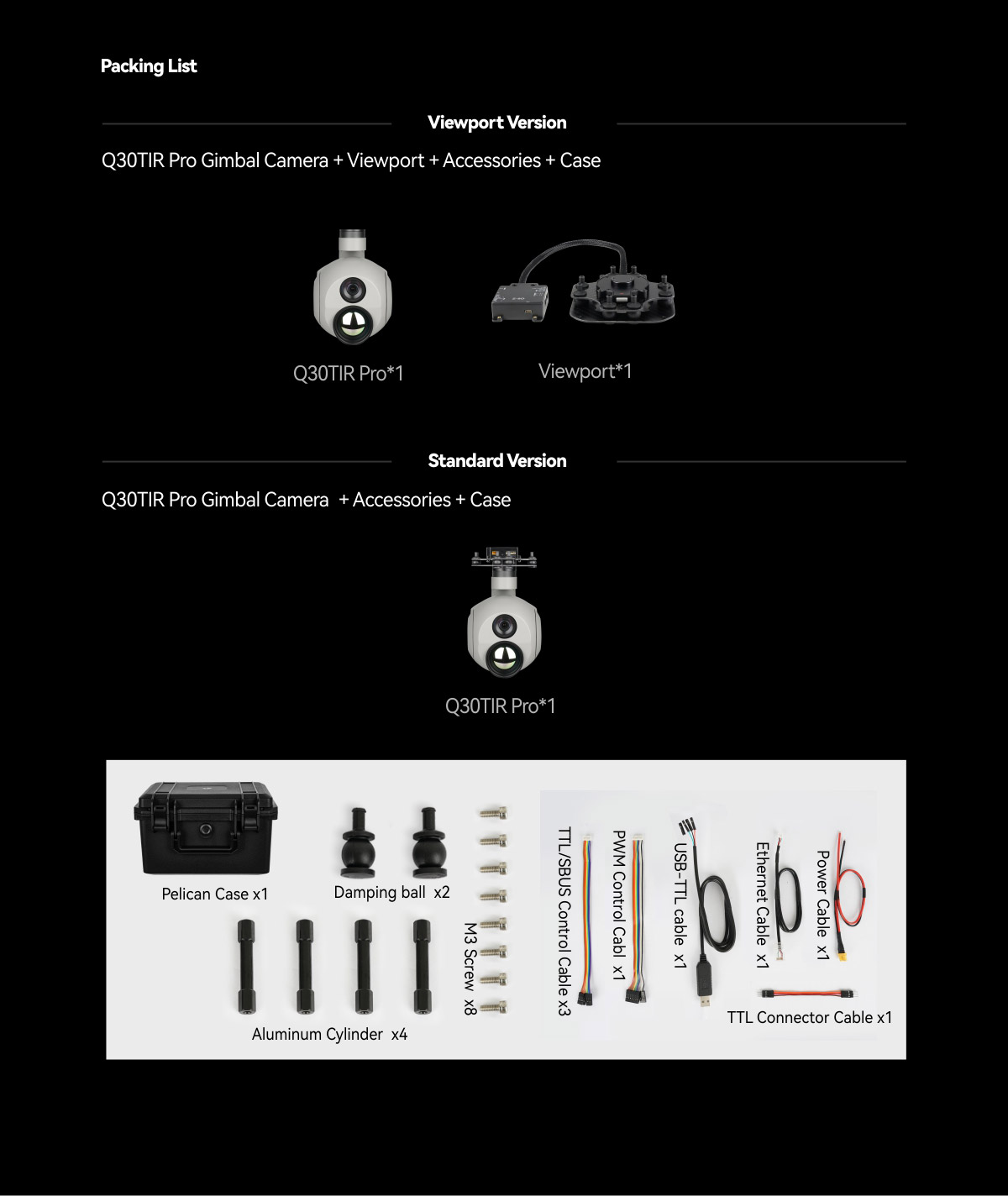

Accessories 1pc gimbal camera device, screws,  copper cylinders, damping balls, damping boards, 1pc USB to TTL cable / Hight quality plastic box with foam cushion
G.W. 3844g
Package meas. 350*300*250mm
