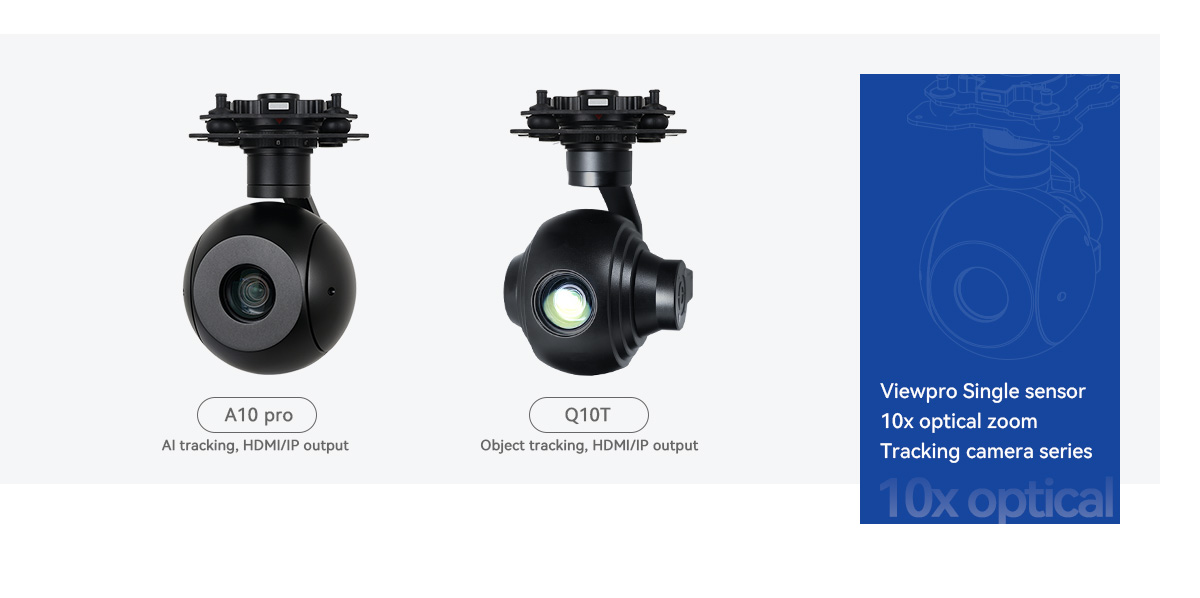

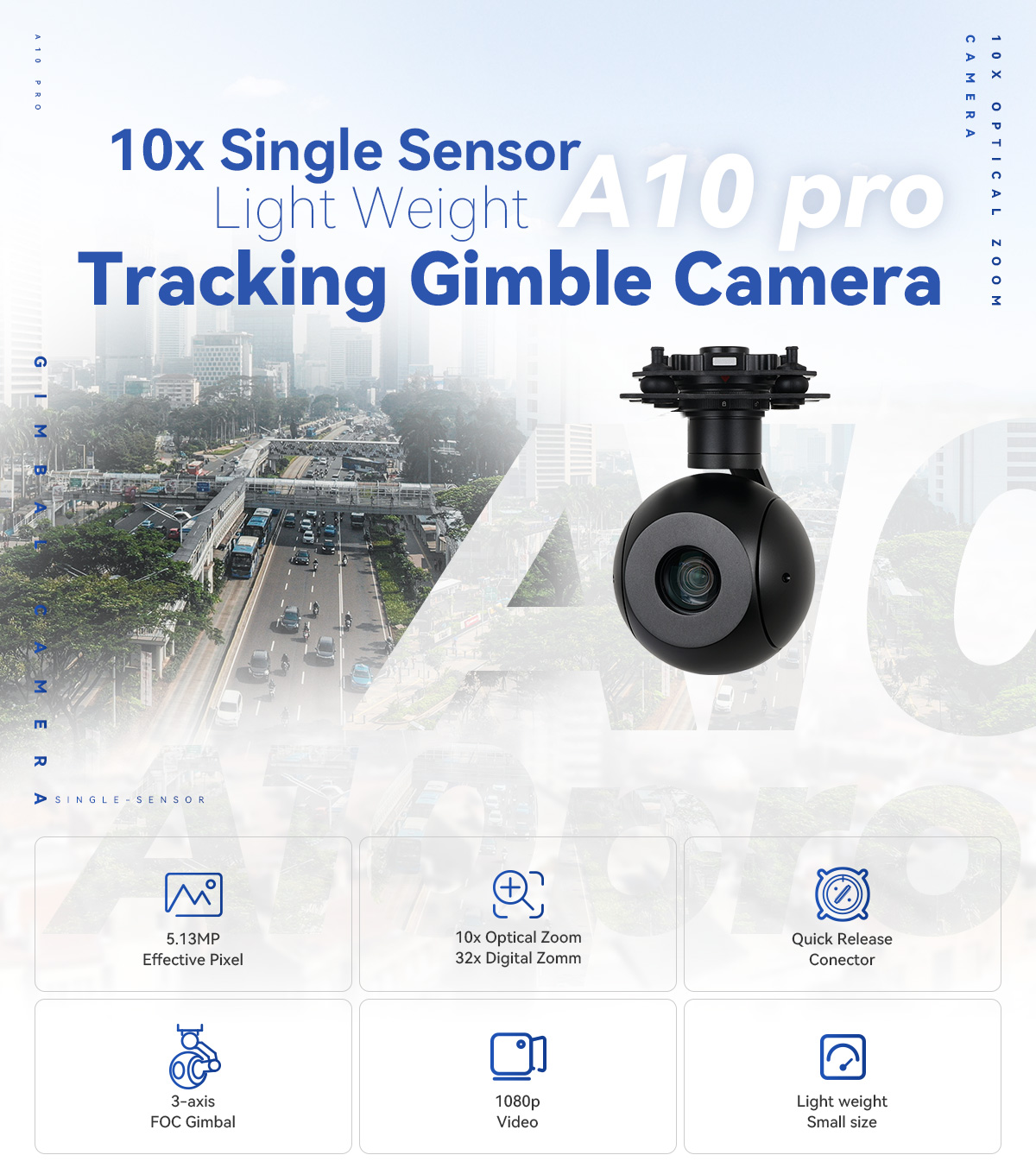

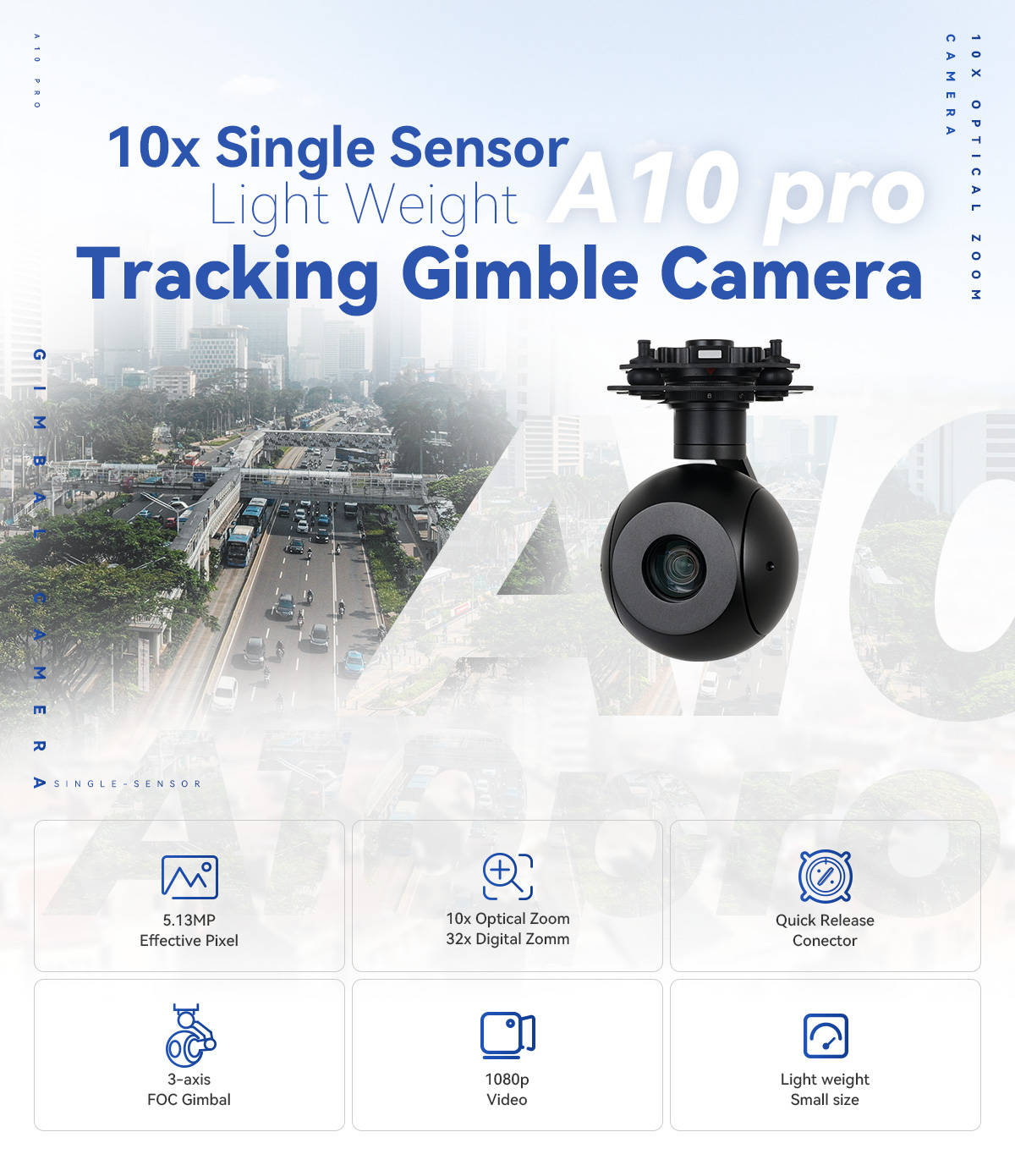

10x Single Sensor Light Weight Tracking Gimbal Camera
A10 Pro is a high-precision 3-axis gimbal integrated with a 10x optical zoom, powered by 1/3" Panasonic CMOS Sensor, 2.48 million effective pixels and built-in tracking module. It supports visible optical zoom, photographing and video, target tracking, 360°yaw endless rotation.

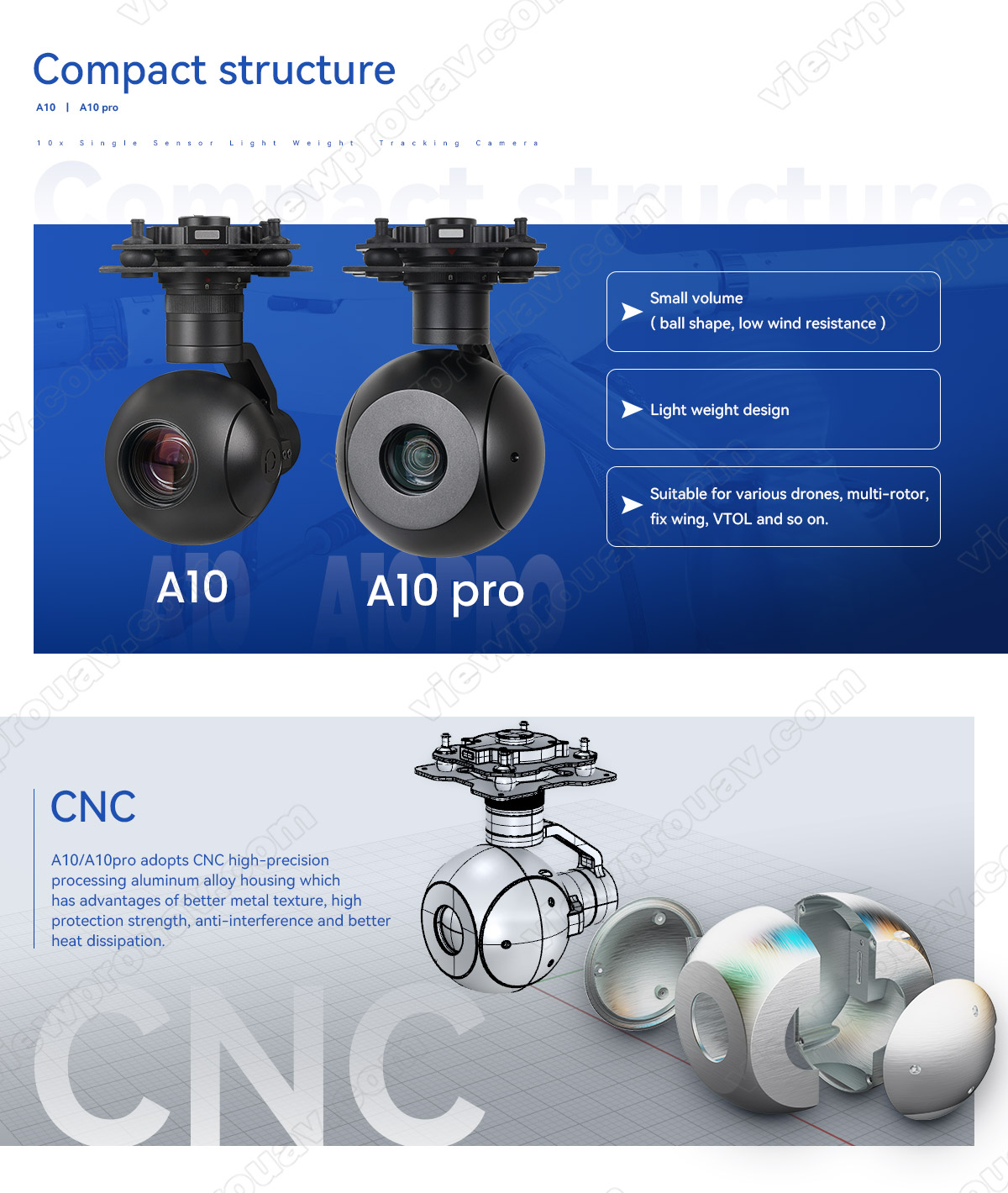

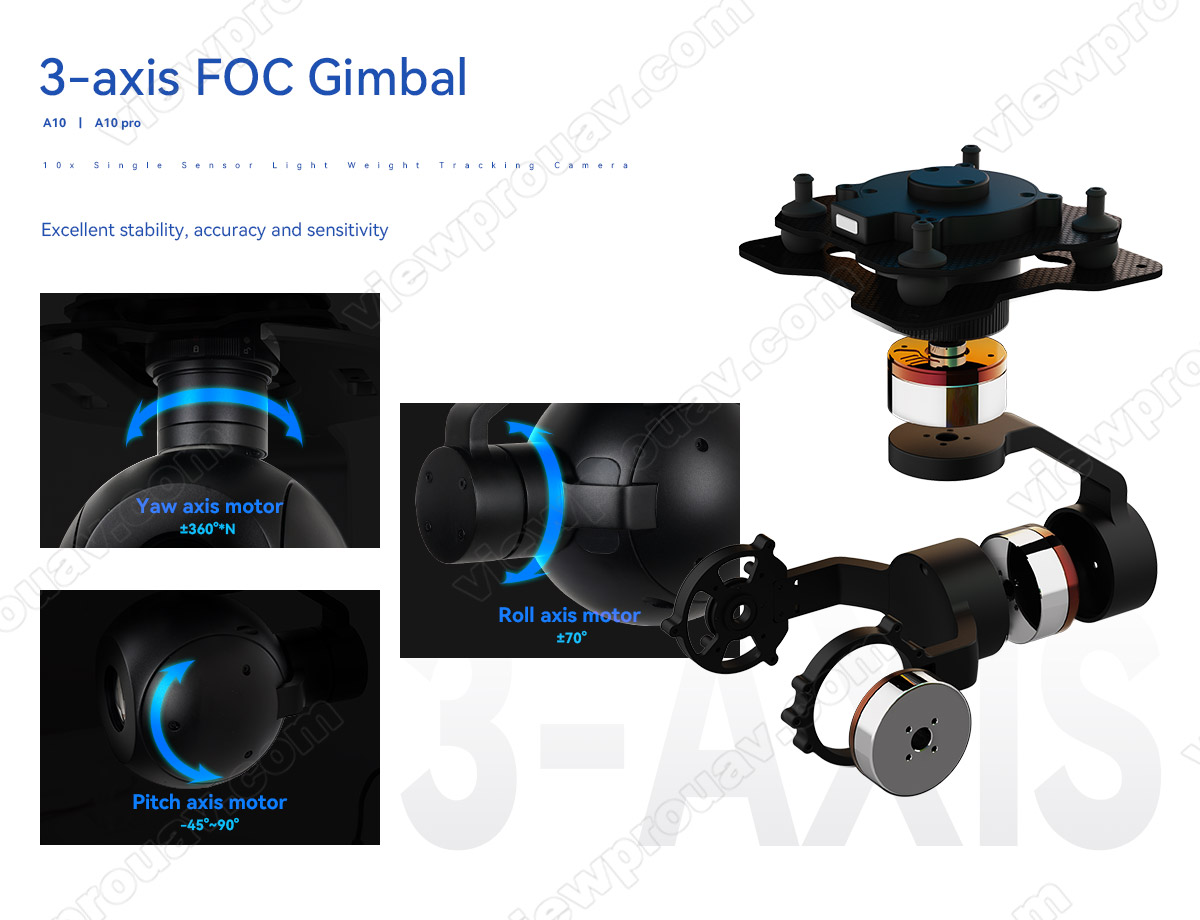

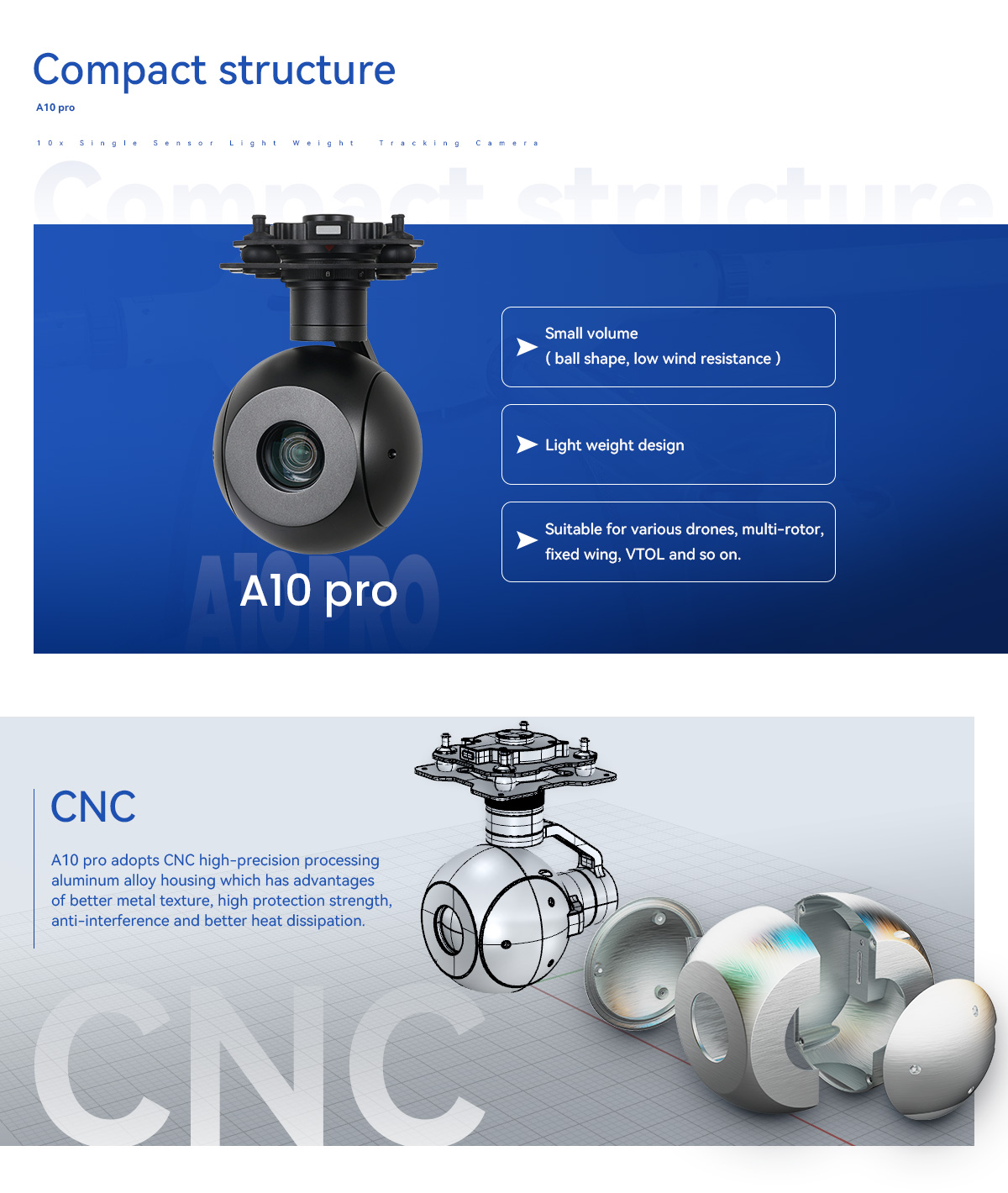

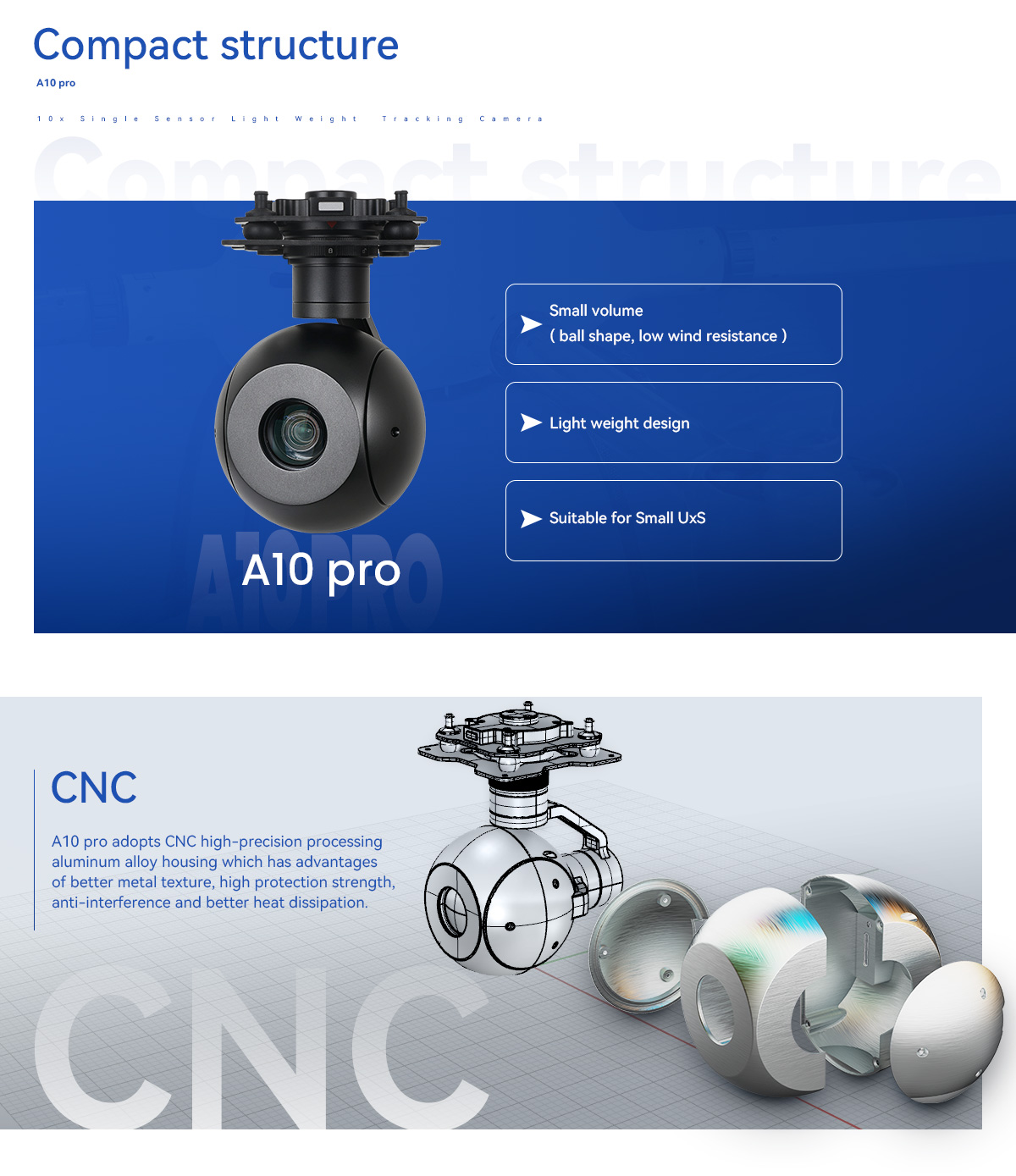

It features compact structure, aluminum alloy housing, anti-interference and better heat dissipation. The 3 axis gimbal can achieve stabilization in yaw, roll and pitch. The integrated design of damping system and gimbal can greatly reduce mechanical vibration.

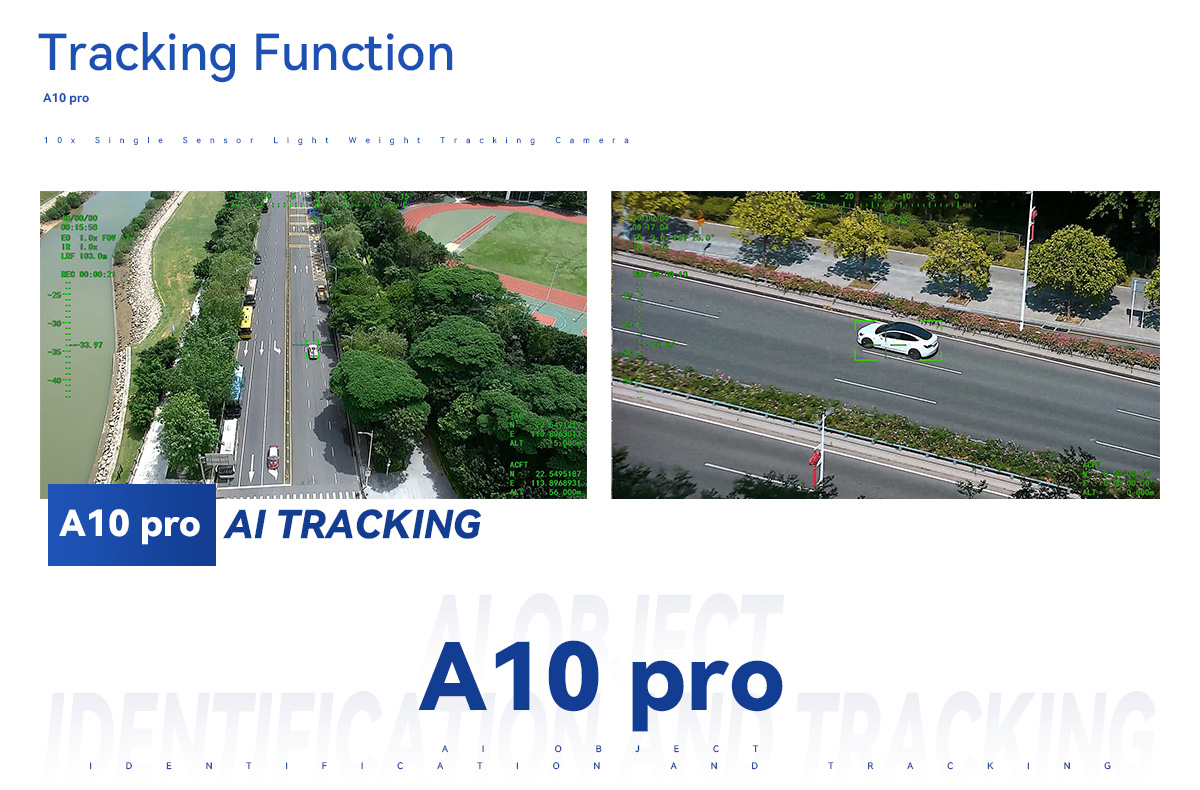

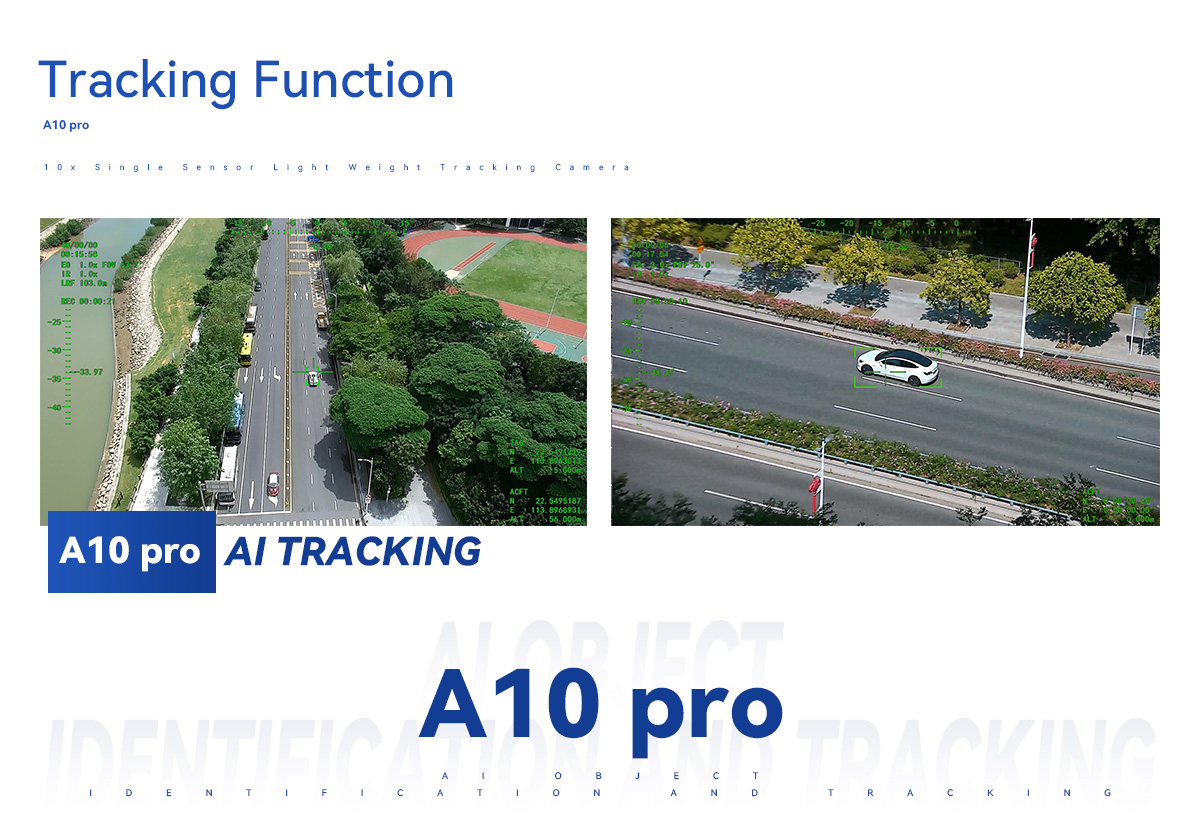

Integrated with AI object identification and tracking module, it can realize car and human automatic recognition and tracking. It is widely used in electric power, zoom photography and other industrial applications.
Specification
| Hardware Parameter | |
| Working voltage | 16V |
| Input voltage | 4S ~ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 520~1300mA @ 16V |
| Working environment temp. | -20℃ ~ +60℃ |

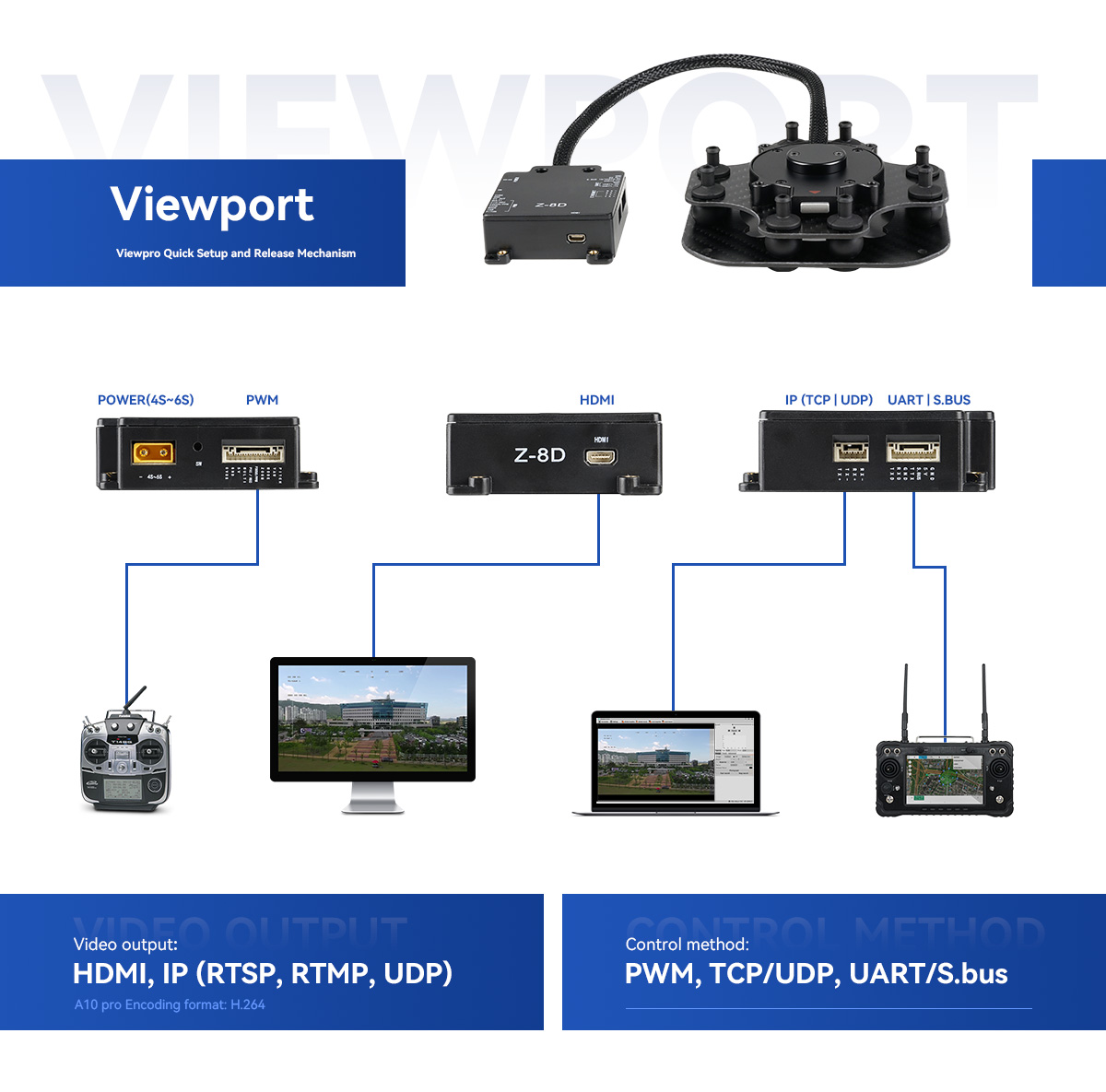

| Output | micro HDMI(1080P 30fps/60fps) / IP (RTSP/UDP 720p/1080p 30fps) |
| Local-storage | SD card (Up to 128G,class 10, FAT32 or ex FAT format) |
| Photo storage format | JPG(1920*1080) |
| Video storage format | MP4 (1080P 30fps) |

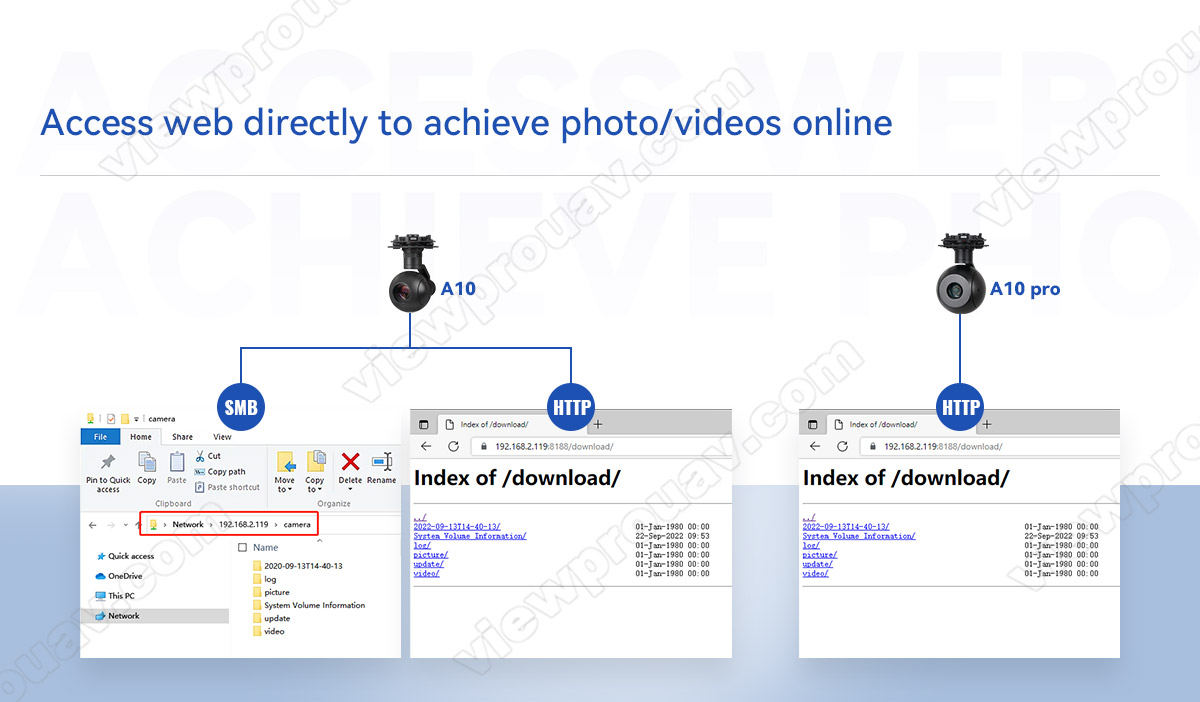

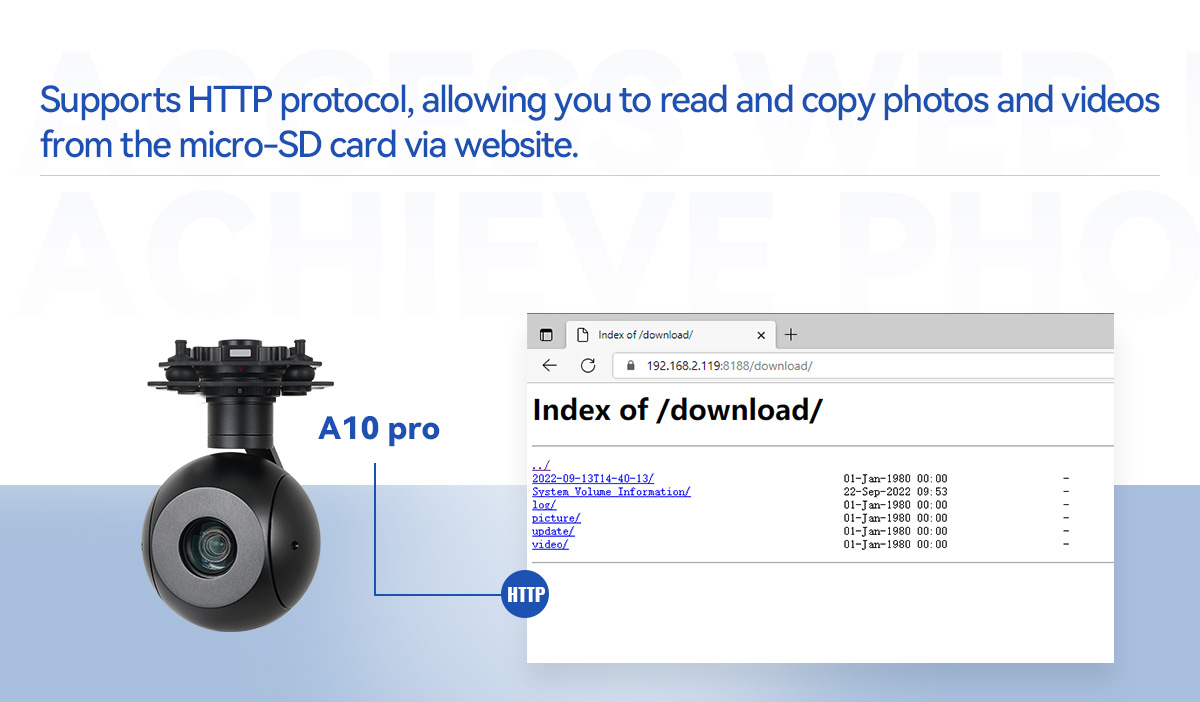

| Card reading online | HTTP read pictures |
| Geotagging | Support, display time and GPS coordinate in picture exif |

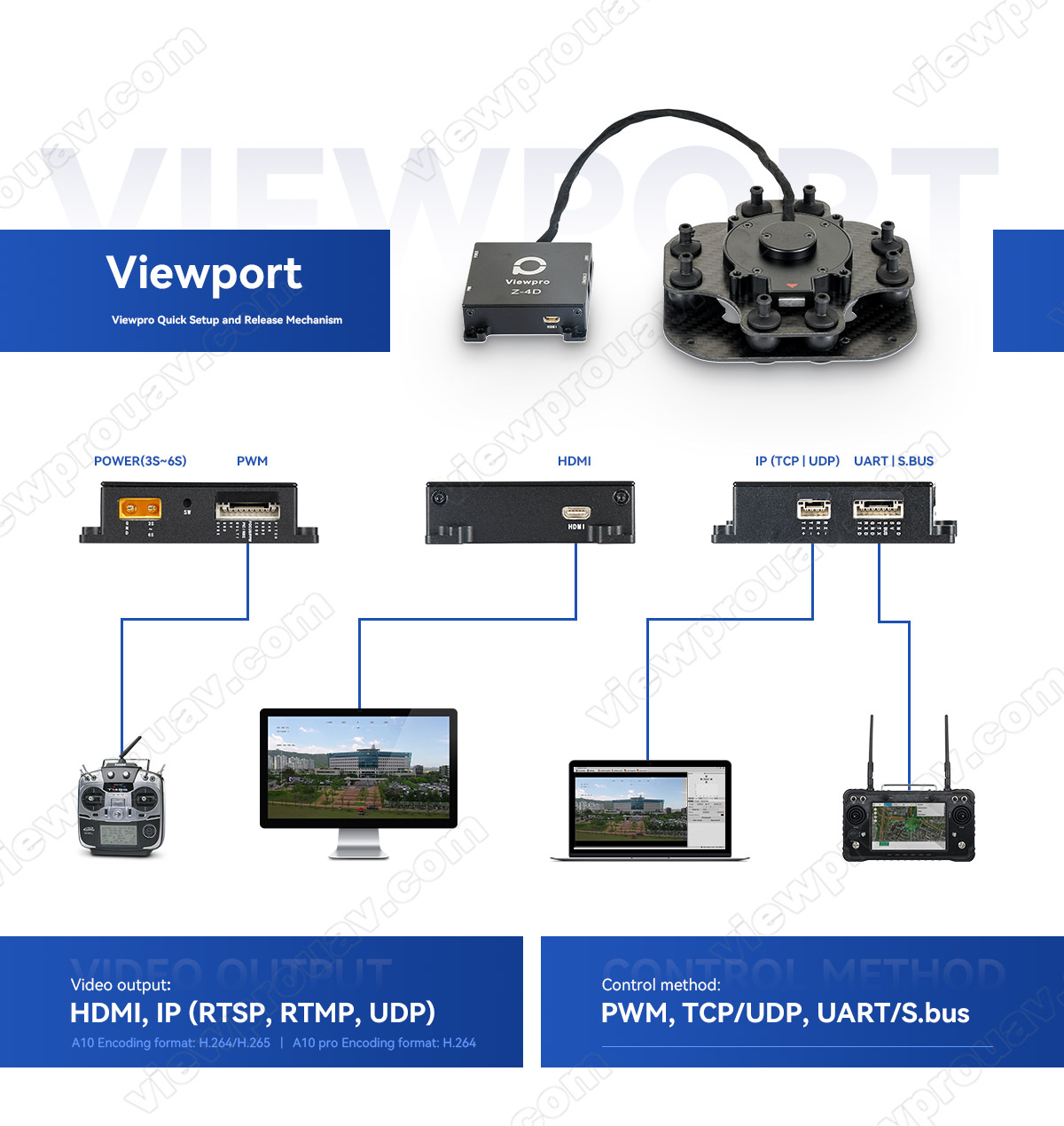

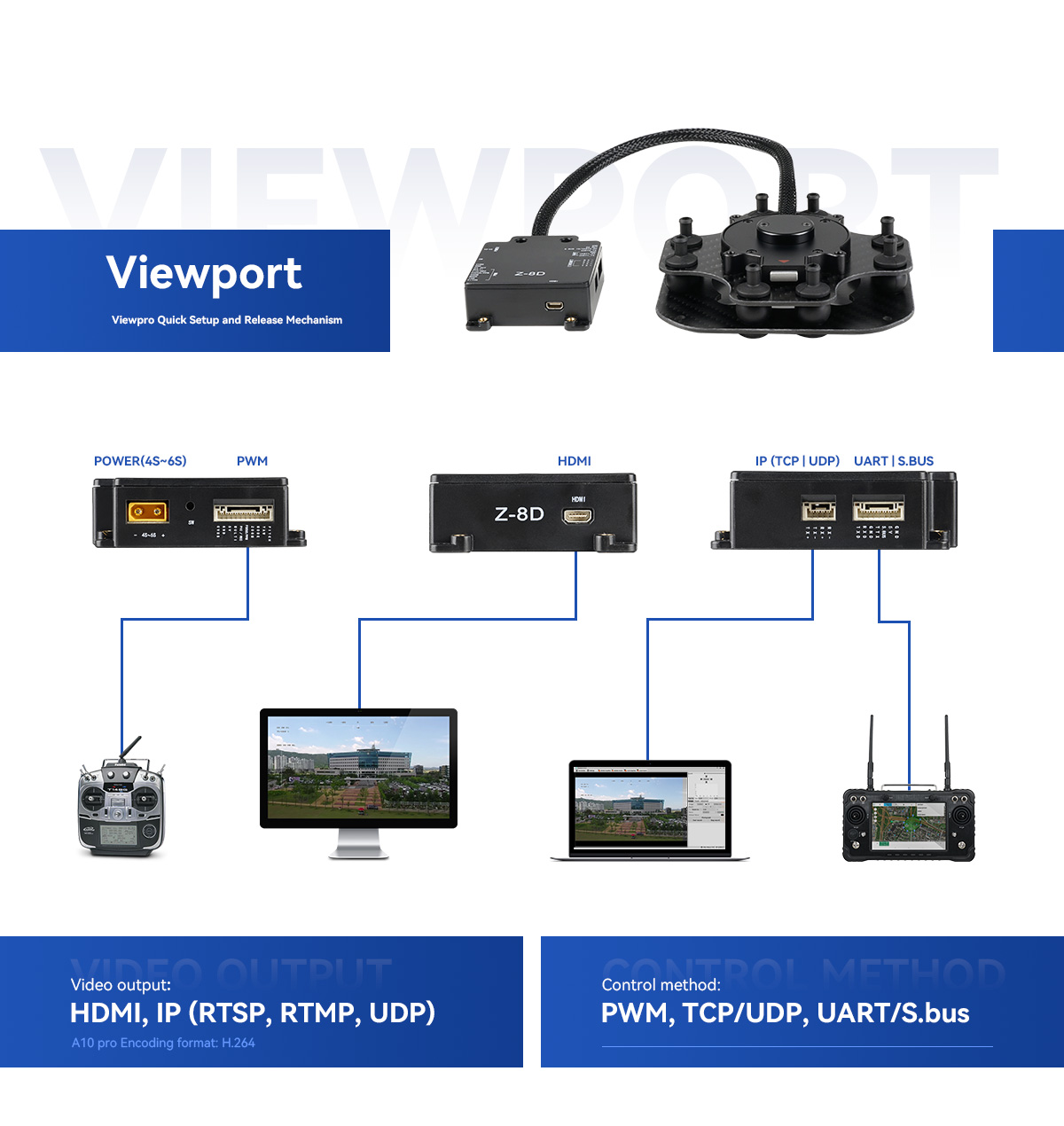

| Control method | PWM / TTL / S.BUS/ TCP(IP output version)/UDP(IP output version) |
| Gimbal Spec | |

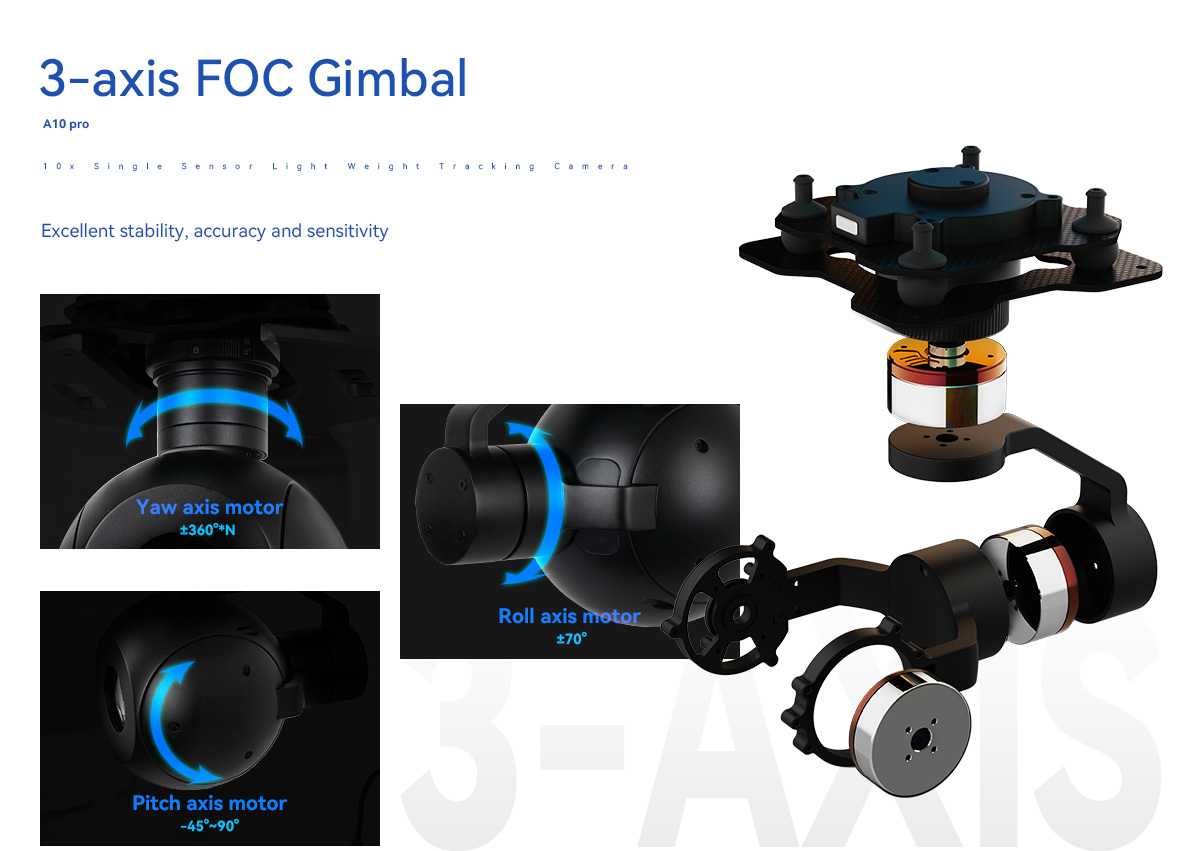

| Angle scope of structure design | Pitch/Tilt: ±120°, Roll: ±70°, Yaw/Pan: ±300° / ±360°*N (IP output version) |
| Angle scope of software design | Pitch/Tilt: -45°～115°, Yaw/Pan: ±290° / ±360°*N (IP output version) |
| Vibration angle | Pitch/Roll/Yaw: ±0.02° |
| One-key to center | √ |
| Camera Spec | |
| Imager Sensor | 1/2.8" SONY CMOS Sensor |
| Total pixel | 5.13MP |
| Picture quality | Full HD 1080 (1920*1080) |

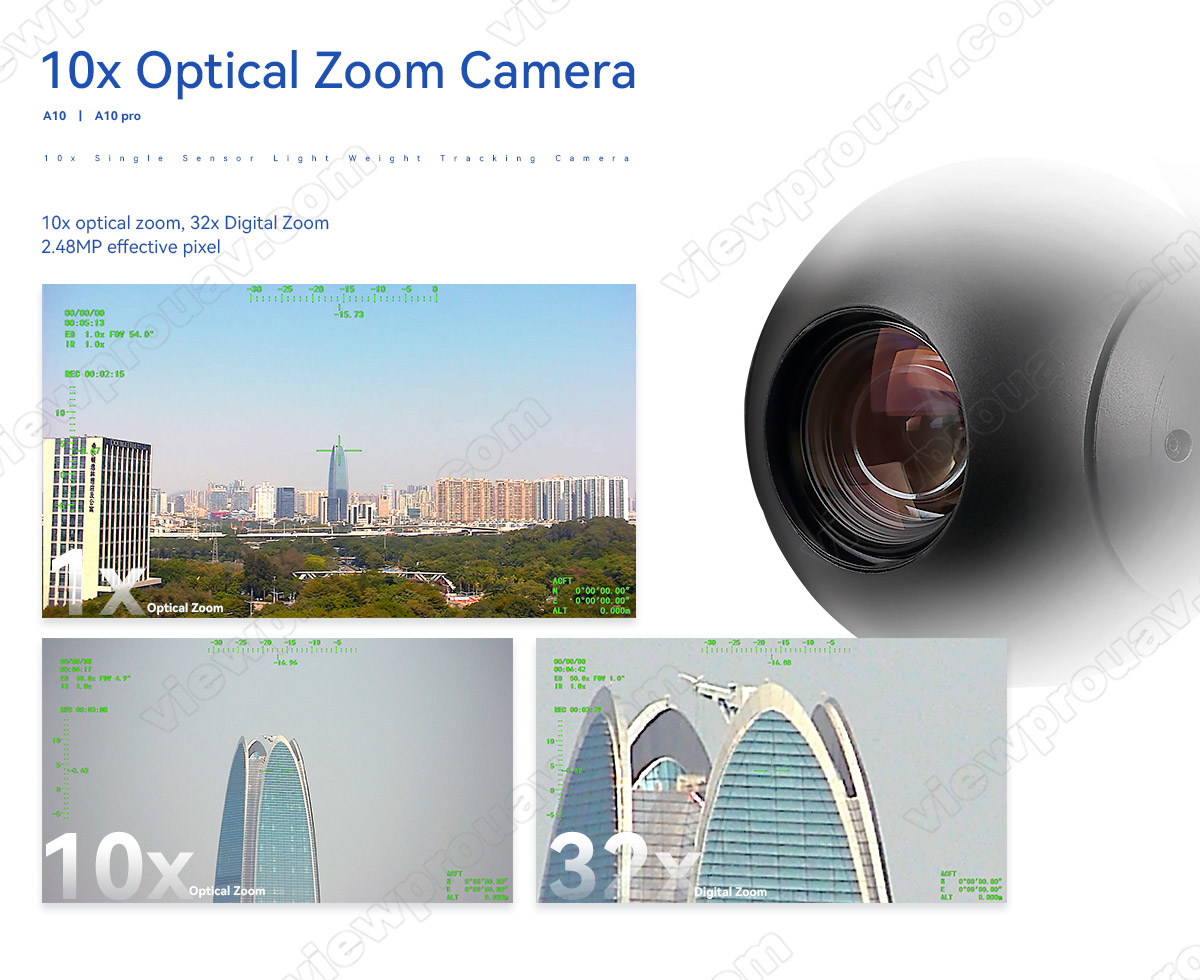

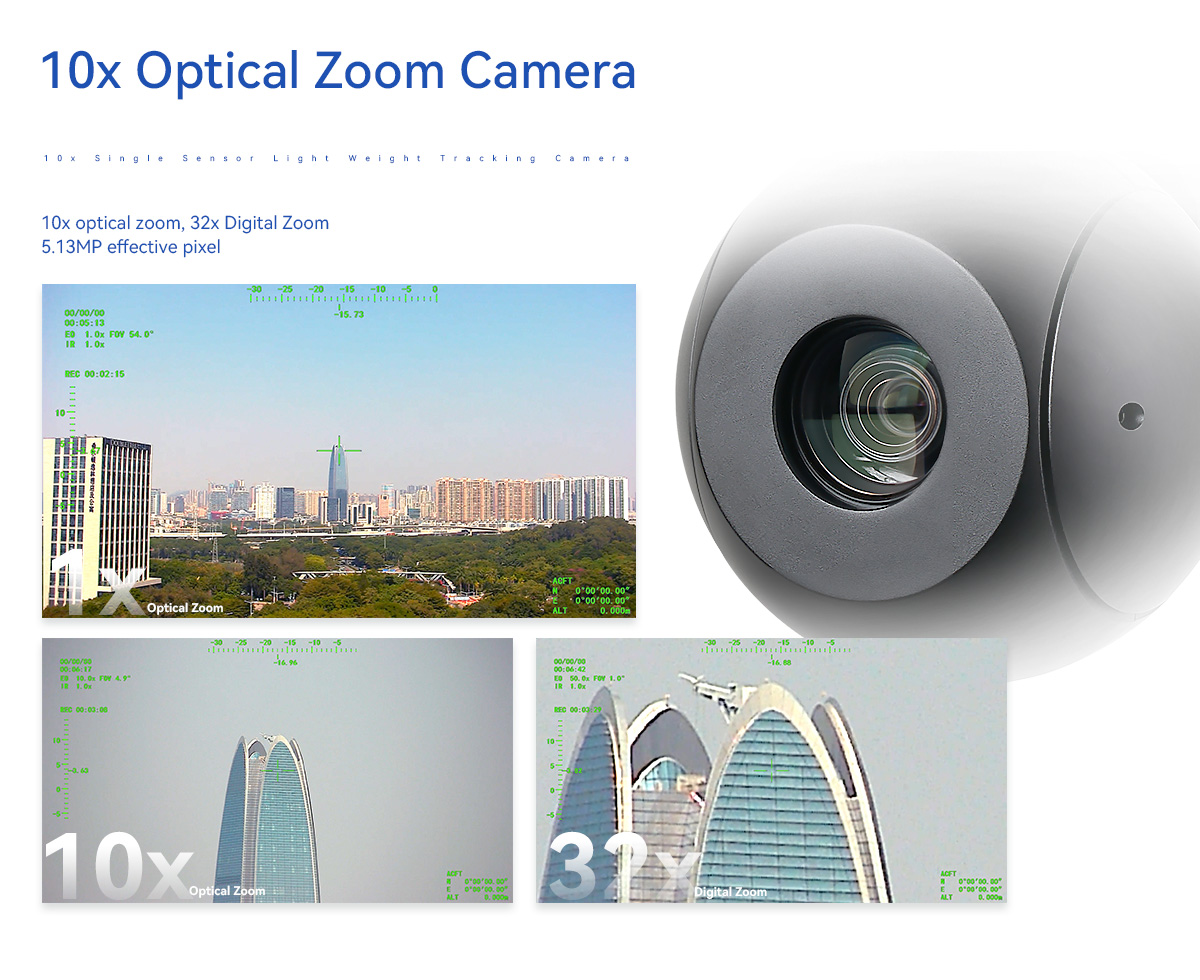

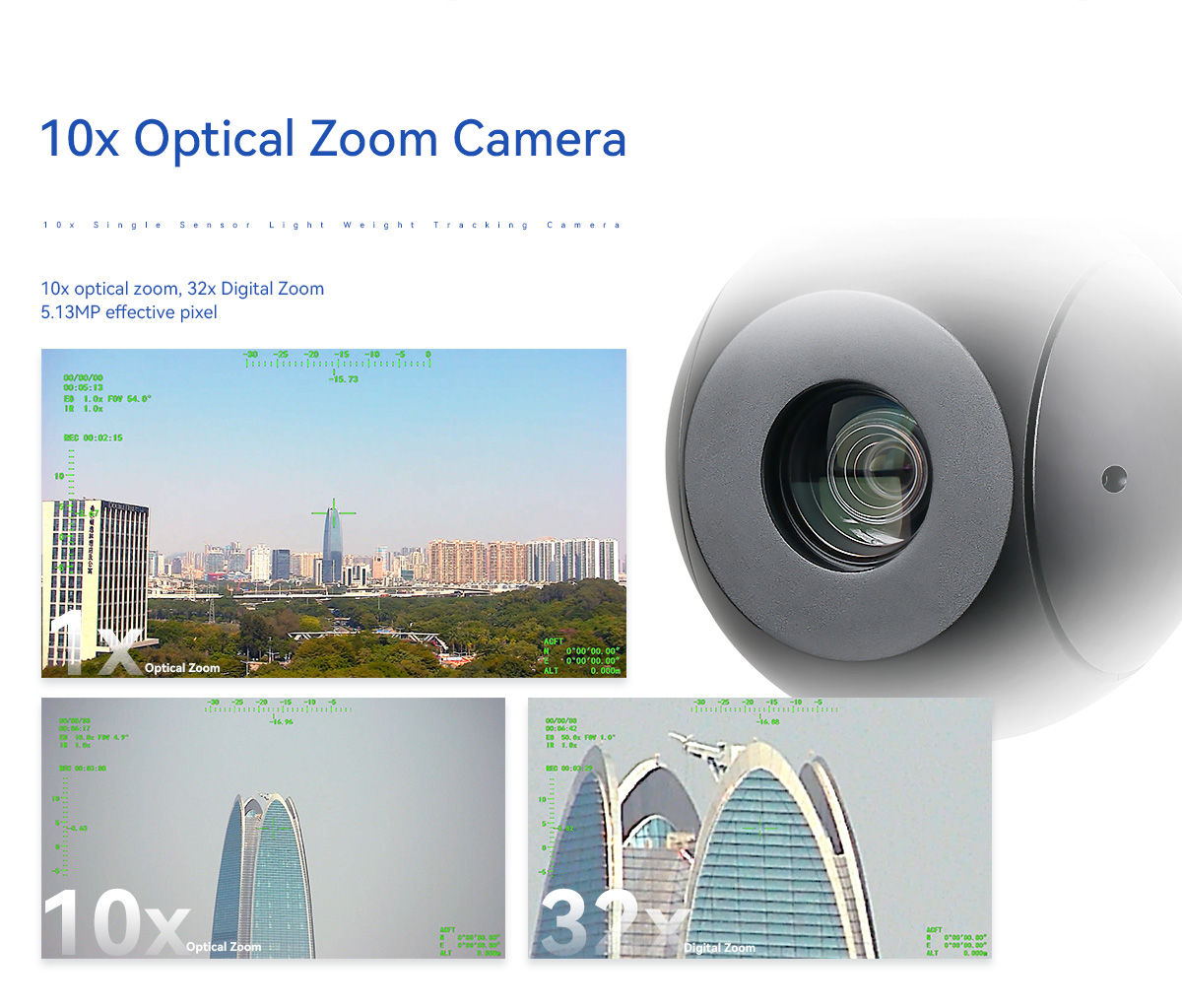

| Optical zoom | 10x, f = 4.7mm ~ 47mm, F1.7~F3.1 |
| Digital zoom | 32x |
| Angle of View (H) | 69.9°(Wide end) ~ 8.7° (Tele end) |
| Min target distance | 0.1 / 1.5 / 3.0 / 5.0 / 10.0 m |
| Min illumination | Color(1/30s, 72.0dB): 0.02 lux , BW(1/30s, 72.0dB): 0.005lux Color DSS(1/1s, 72.0dB): 0.002 lux , BW DSS(1/1s, 72.0dB): 0.0005 lux |
| White balance | Auto / One Push / Manual / Indoor / Outdoor |
| Shutter speed | 1/1sec ~ 1/100,000 sec |
| Focus | Auto / One Push / Manual |
| Iris | 0 ~ 20 steps |
| Exposure | Auto / Manual / Priority Mode (Shutter priority & aperture priority) |
| Sync system | Progressive Scan |
| Sync. System Internal | Internal |
| Backlight compensation | Yes |
| Auto ICR | Yes |
| Image stabilization | Yes |
| Defog | Yes |
| EO Camera Object Tracking | |
| Update rate of deviation pixel | 30Hz |
| Output delay of deviation pixel | <30ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 16*16 pixel |
| Maximum object size | 256*256 pixel |
| Tracking speed | ±48 pixel/frame |
| Object memory time | 100 frames |

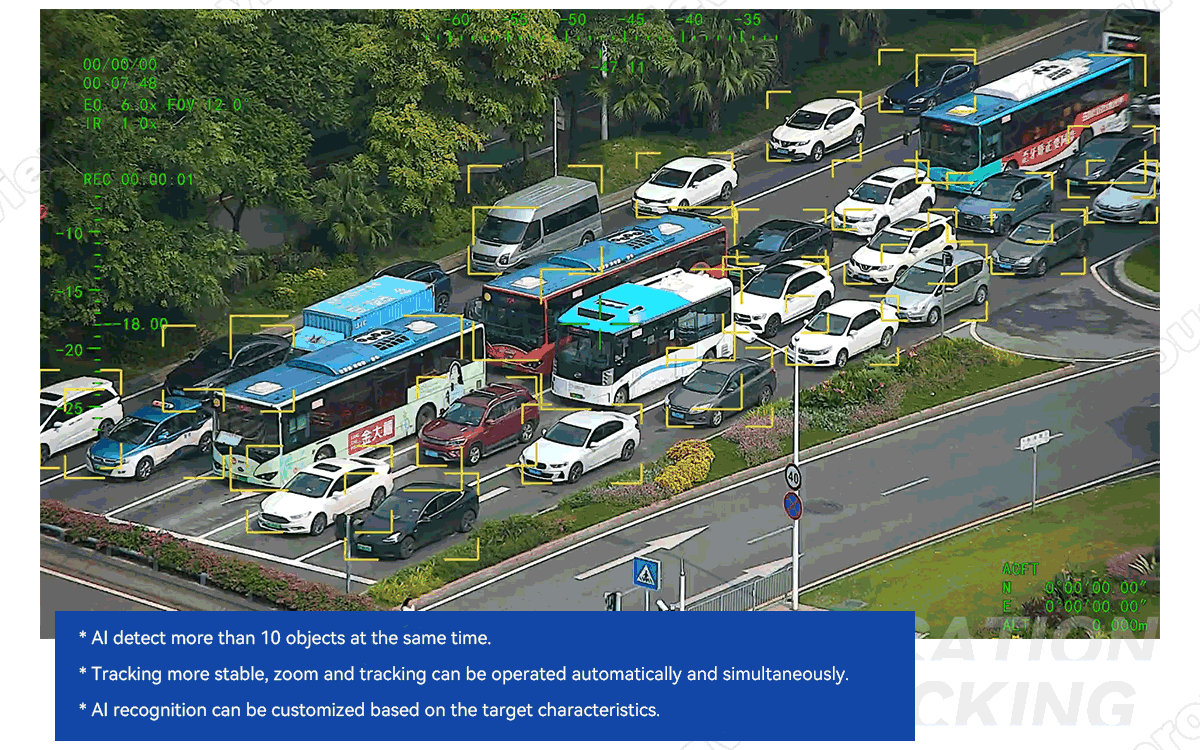

| EO Camera AI Performance | |
| Targets type | Car and human |
| Simultaneous detection quantity | ≥ 10 targets |
| Min contrast ratio | 5% |
| Min target size | 5×5 pixel |
| Car detection rate | ≥85% |
| False alarm rate | ≤10% |
| Packing Information | |
| N.W. | 660g(Viewport version with Viewport) |

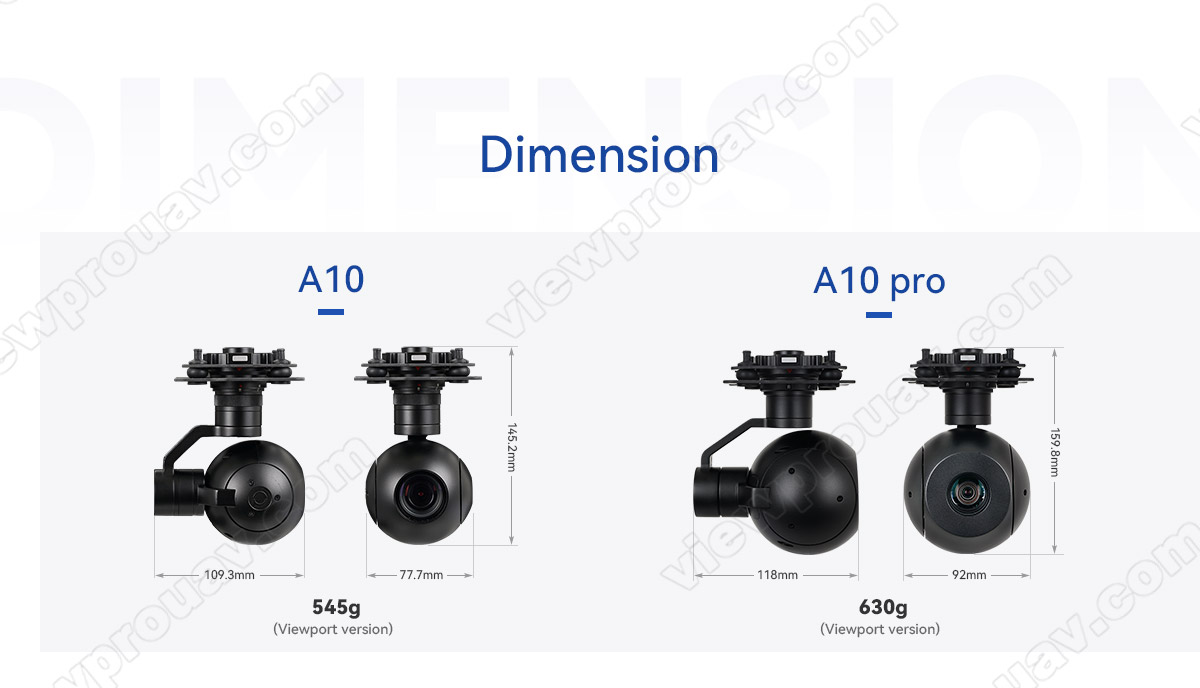

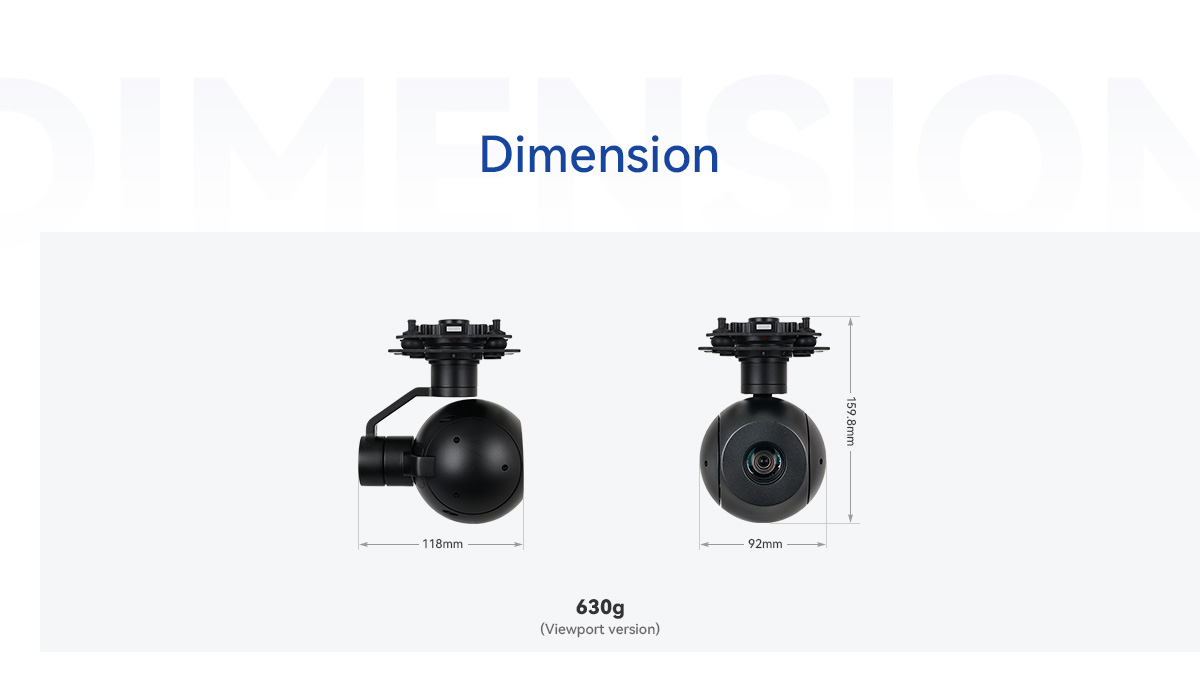

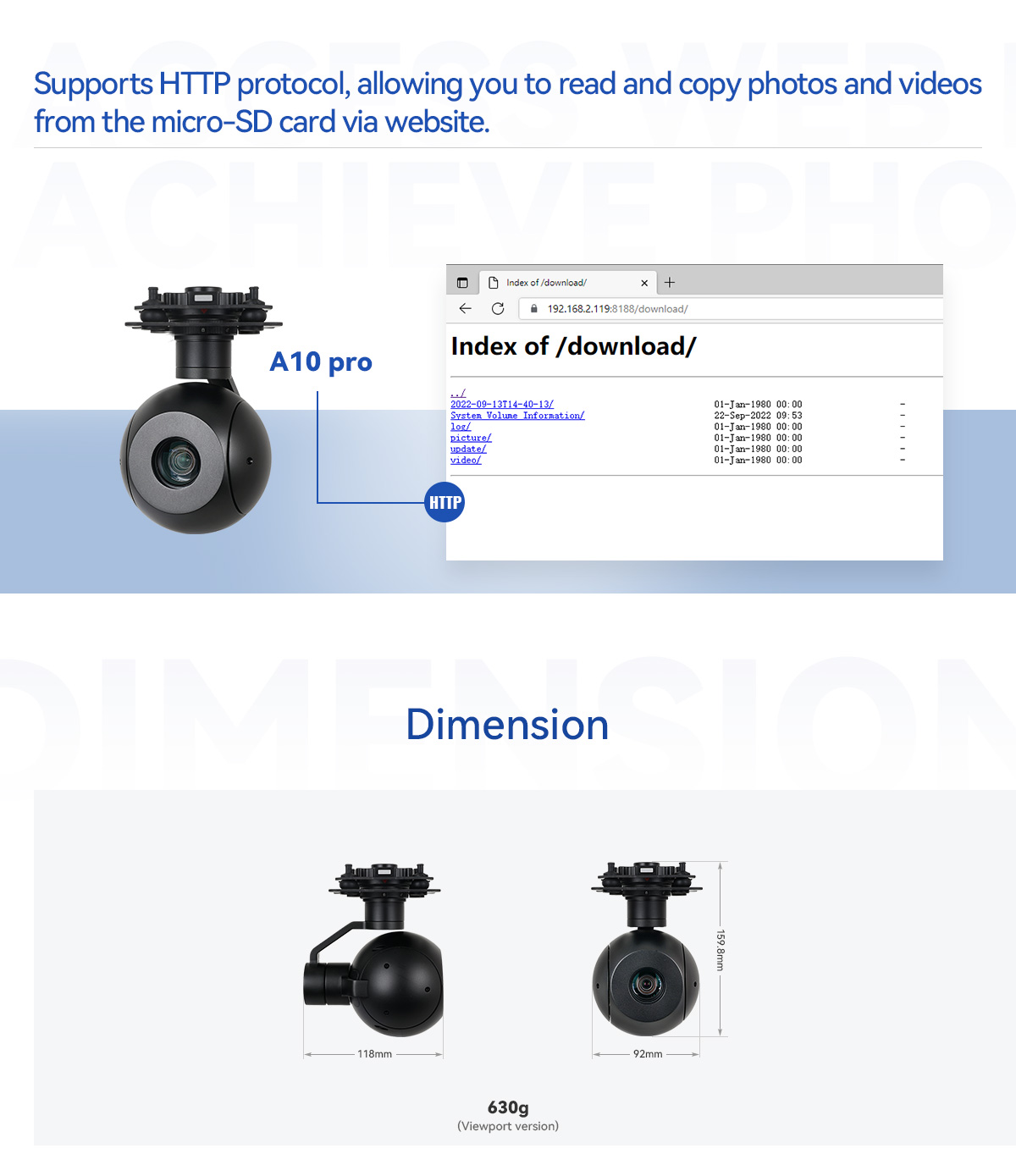

| Product meas. | 121.5*96*158.1mm / 121.5*96*163.8mm(Viewport Version) |
| Accessories | 1pc gimbal camera device, screws, USB to TTL cable / Hight quality box with foam cushion |
| G.W. | 1740g |

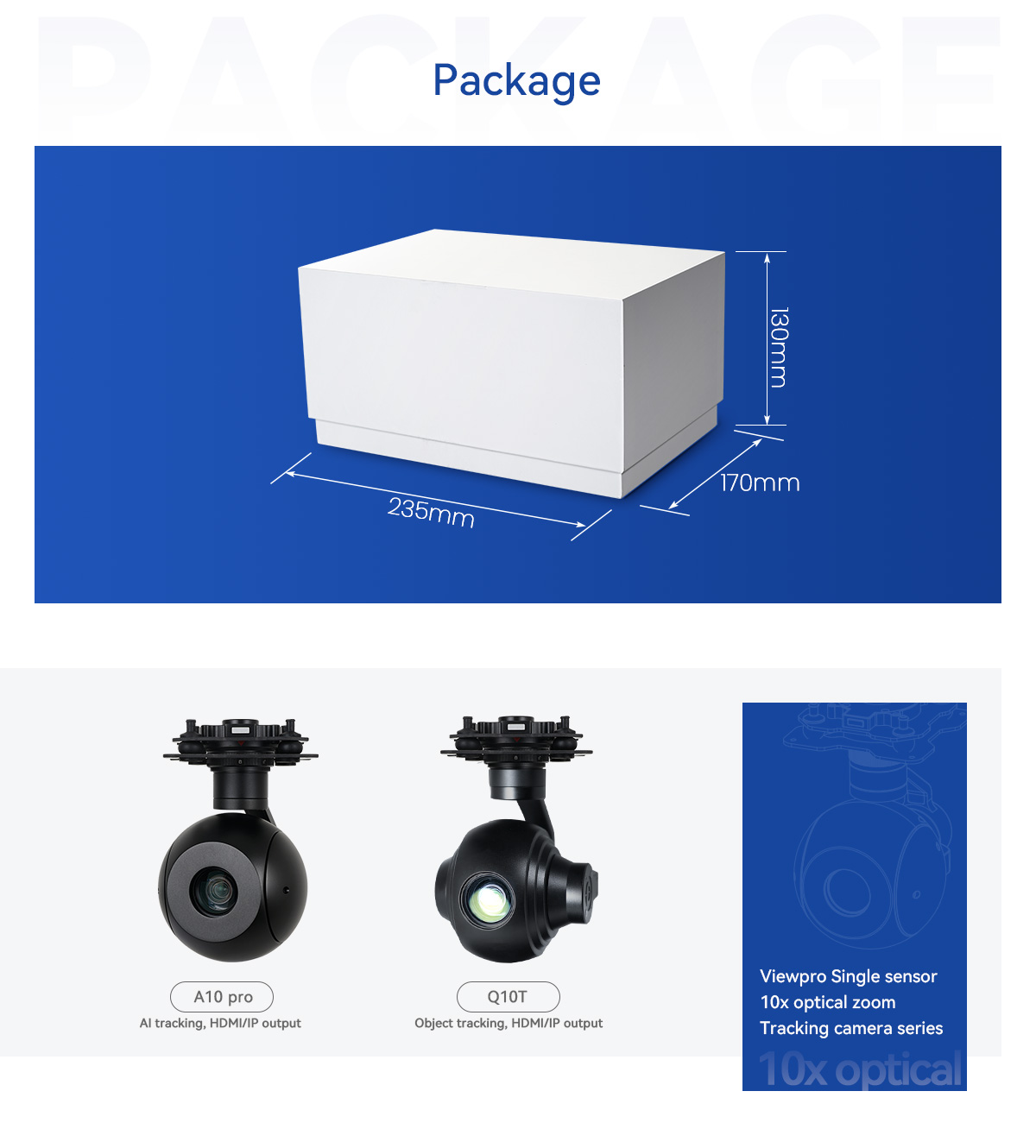

| Package meas. | 300*250*200mm |
