A30TIR-50 --Viewpro First 5km Laser Rangefinder EO/IR Camera with AI Auto-Identify and Track Targets

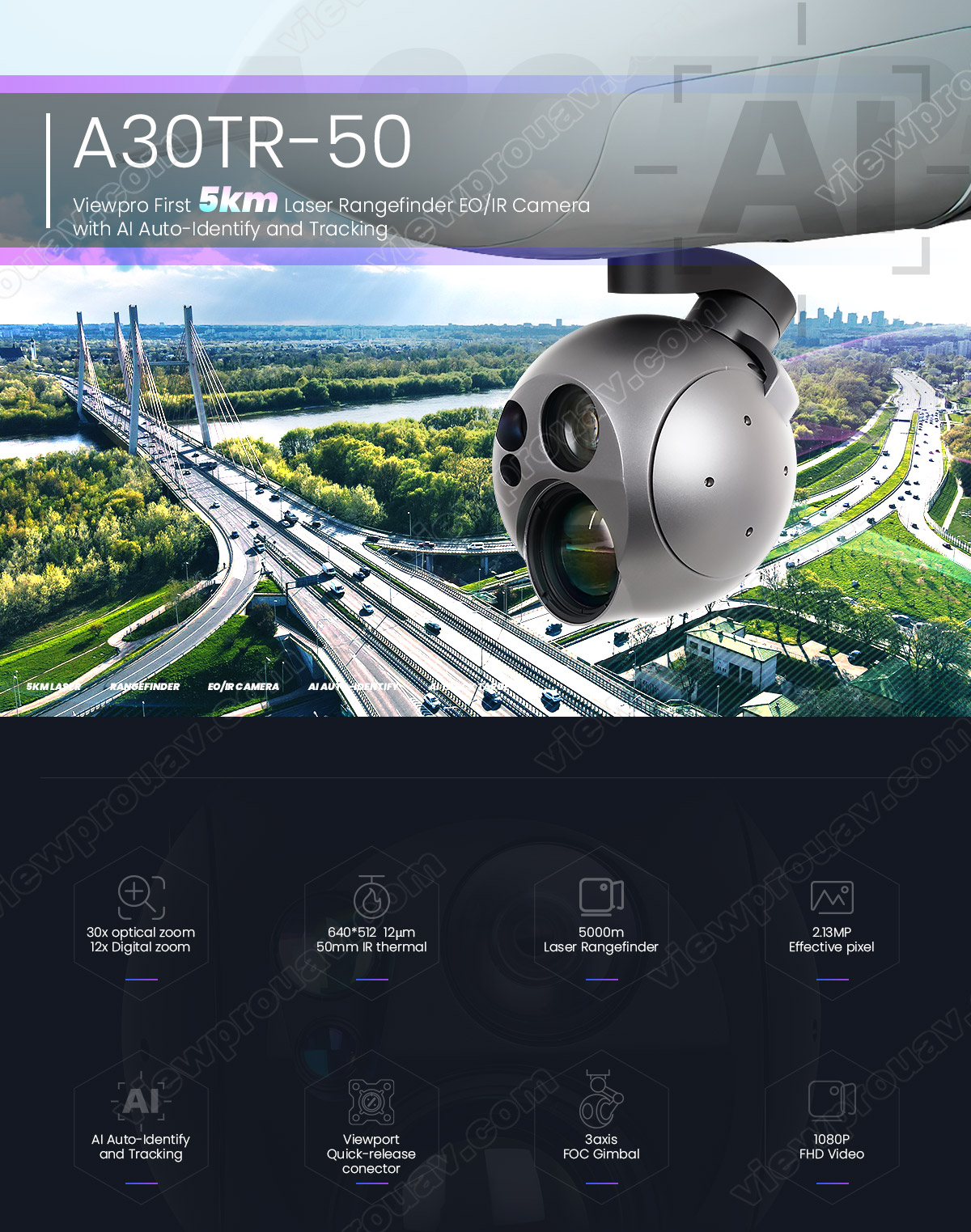

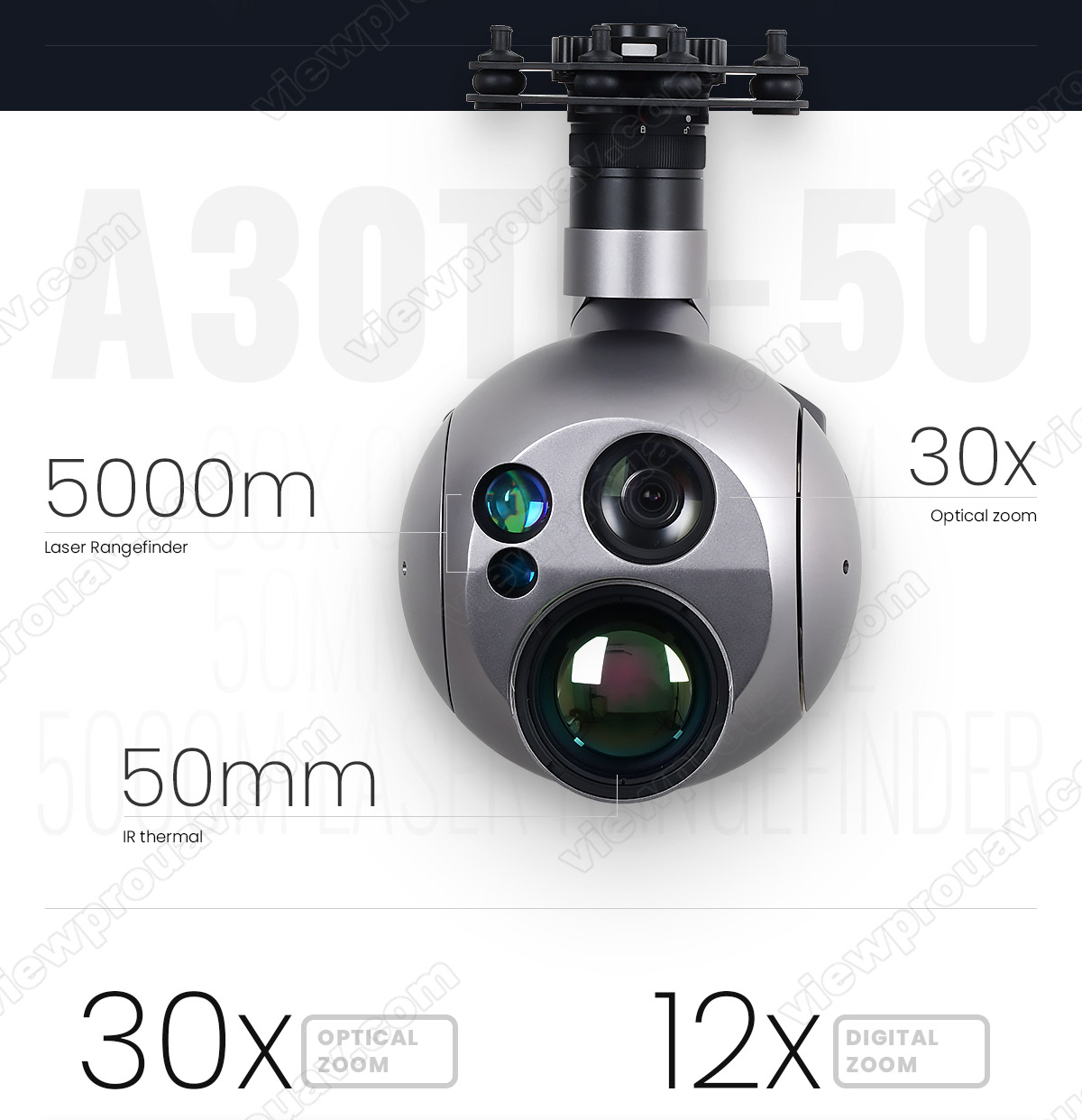

A30TR-50 is a 3-axis high-precision gimbal that integrates an AI-based sensor with a 30x optical zoom EO SONY camera, a 50mm 640*512 IR thermal sensor, and a 5km laser rangefinder. It is the most powerful and multi-function payload camera at present. A30TIR-50 can be installed on all kinds of drones for public safety, first responders, inspections, patrol, disaster prevention, emergency monitoring inspections, search and rescue, etc.
Specification

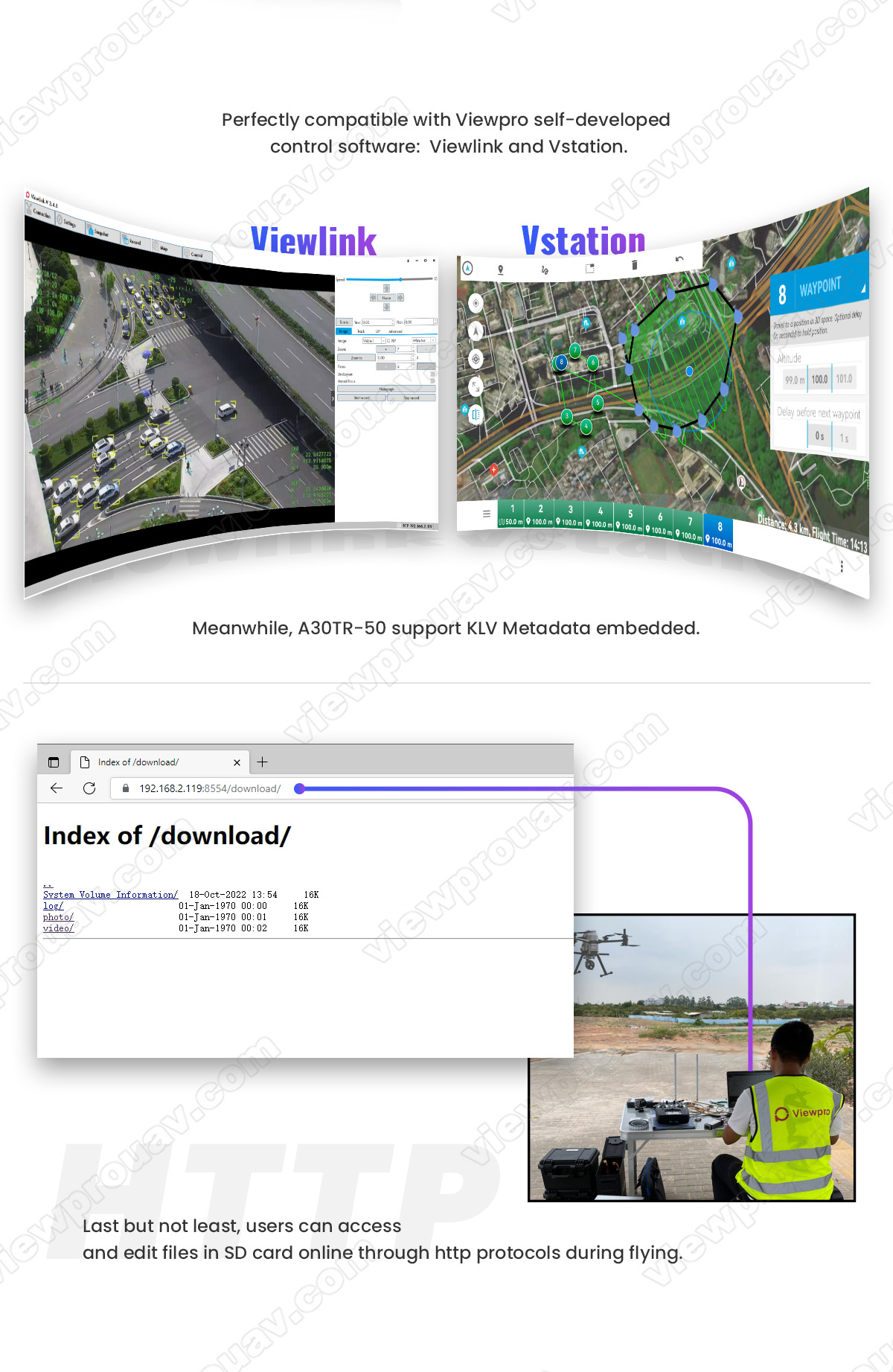

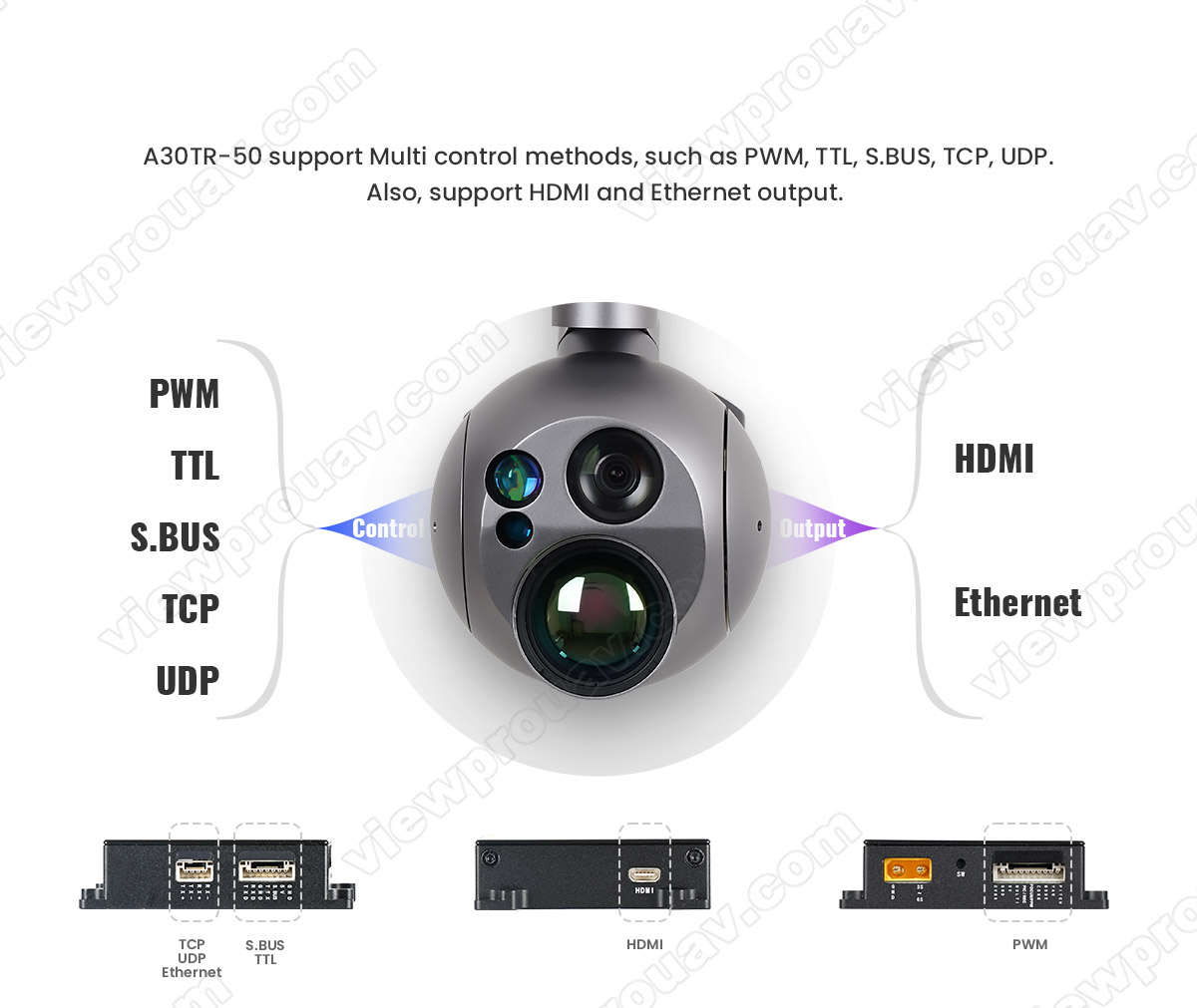

| Hardware Parameter | |
| Working voltage | 12V |
| Input voltage | 3S ~ 6S |
| Dynamic current | 1100-2000mA @ 12V |
| Idle current | 1100mA @ 12V |
| Working environment temp. | -20℃ ~ +60℃ |
| Output | micro HDMI(1080P 30/60fps) / IP (1080p/720p 30fps) |
| Local-storage | SD card (Up to 128G, class 10, FAT32 or ex FAT format) |
| Control method |
PWM / TTL / S.BUS / TCP(IP output)
|

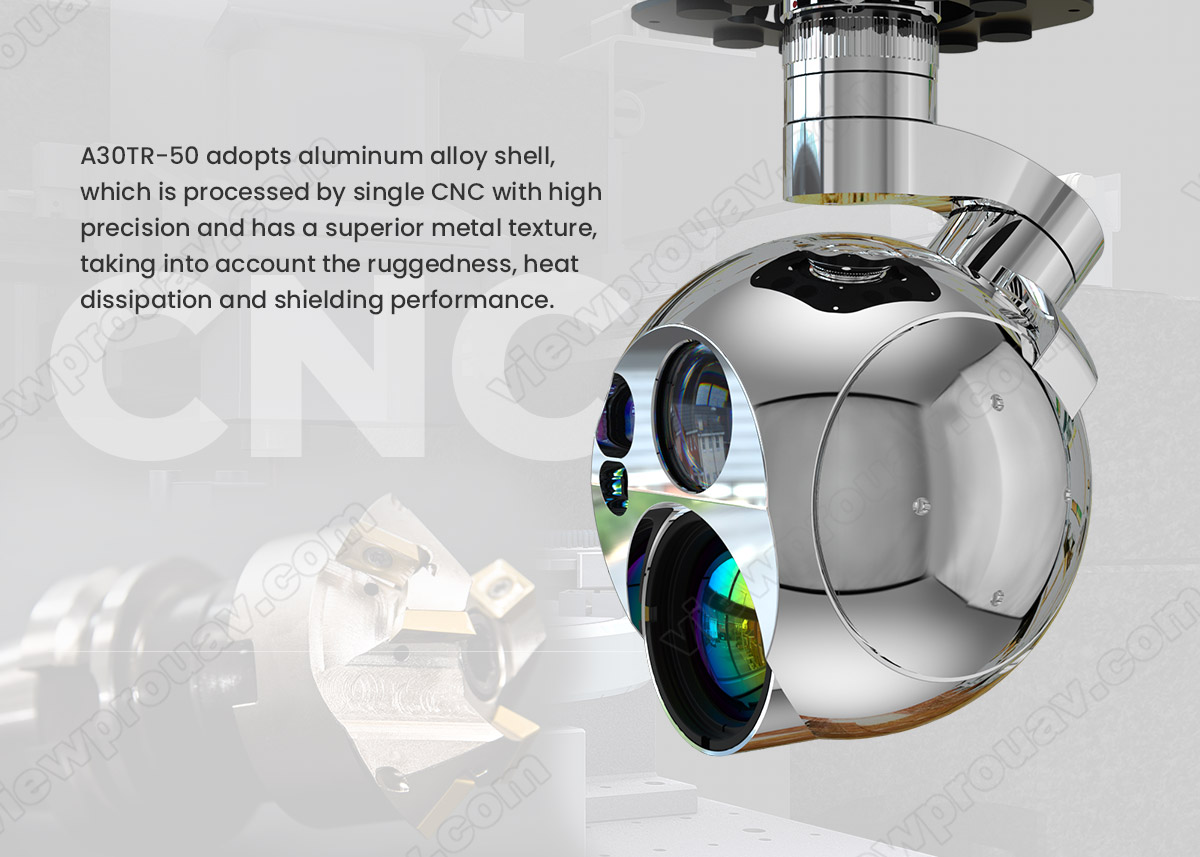

| Gimbal Spec | |

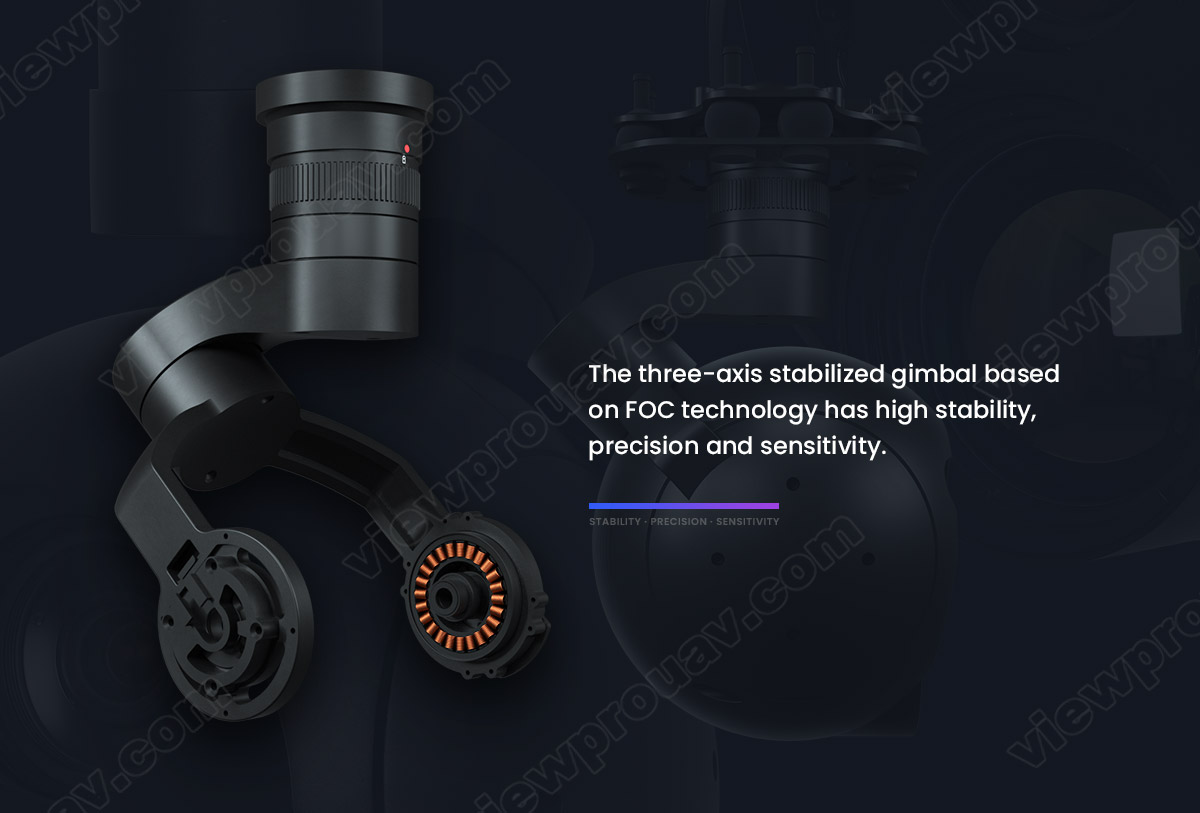

| Mechanical Range | Pitch/Tilt: -45°～125°, Roll: ±45°, Yaw/Pan: ±360°*N |
| Controllable Range |
Pitch/Tilt: -45°～90°, Yaw/Pan: ±290° / ±360°*N (IP output version)
|
| Vibration angle | Pitch/Roll: ±0.02°, Yaw：±0.02° |
| One-key to center | √ |
| EO Camera Spec | |
| Imager Sensor |
SONY 1/2.8" "Exmor R" CMOS
|
| Picture quality | Full HD 1080 (1920*1080) |
| Effective pixel | 2.13MP |
| Lens optical zoom | 30x, F=4.3~129mm |
| Digital zoom | 12x (360x with optical zoom) |
| Min object distance | 10mm(wide end) to 1200mm(tele end) |
| Horizontal viewing angle | 63.7°(wide end) ~ 2.3°(tele end) |
| Sync system | Internal |
| S/N ratio | more than 50dB |
| Min illumination |
Color 0.01lux@F1.6
|
| Illumination range | 100 lx ~100,000 lx |
| Gain | Auto/Manual |
| White balance | ATW1 (Narrow), ATW2 (Wide), single touch, manual (B, R) |
| Shutter speed | 1/1s to 1/10,000s, 22 steps |
| Exposure compensation | -12dB ~ +12dB (13steps in total) |
| Backlight compensation | Yes |
| Aperture control | 16 steps |
| OSD | Yes |
| Fotoformate | JPEG |
| Videoformate | MP4 |
| EO/IR Camera Object Tracking | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | <5ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 32*32 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | ±48 pixel/frame |
| Object memory time | 100 frames (4s) |
| The mean square root values of pulse noise in the object position | < 0.5 pixel |

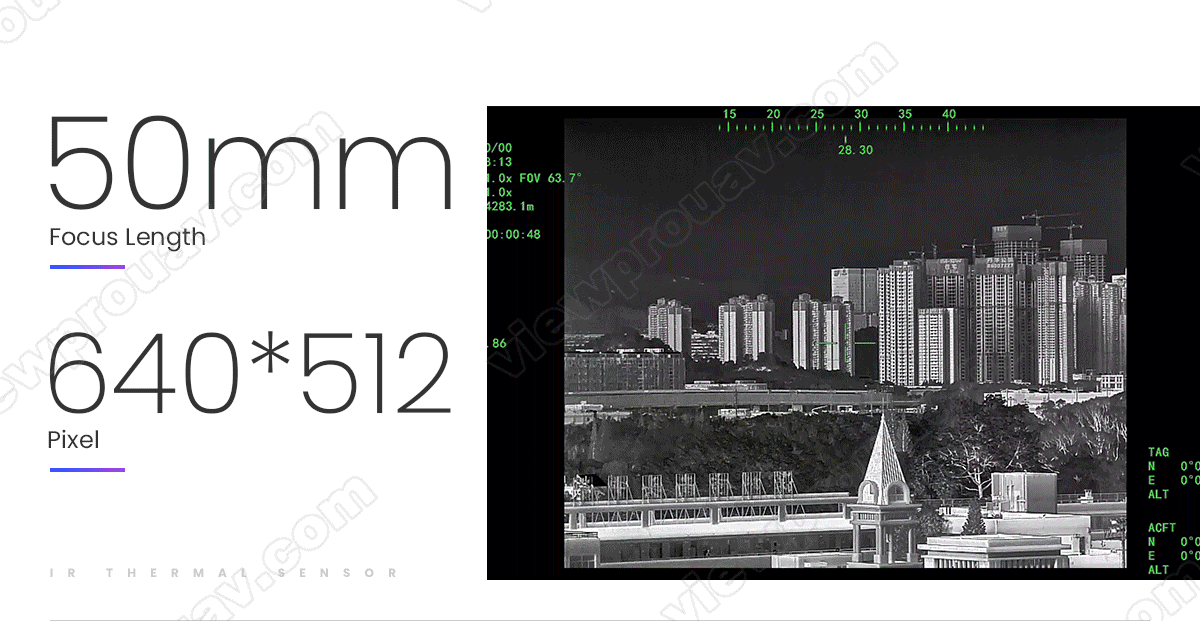

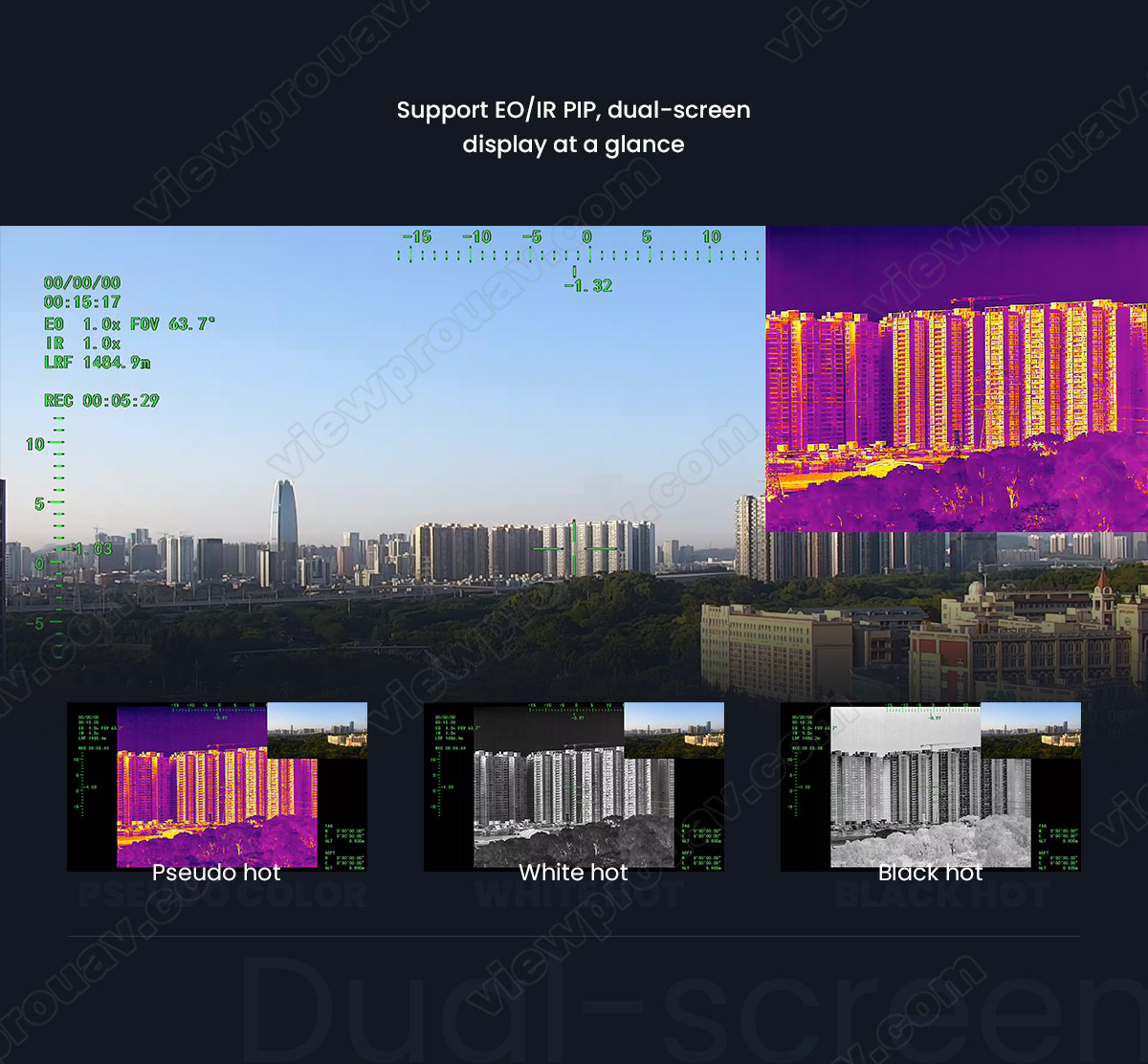

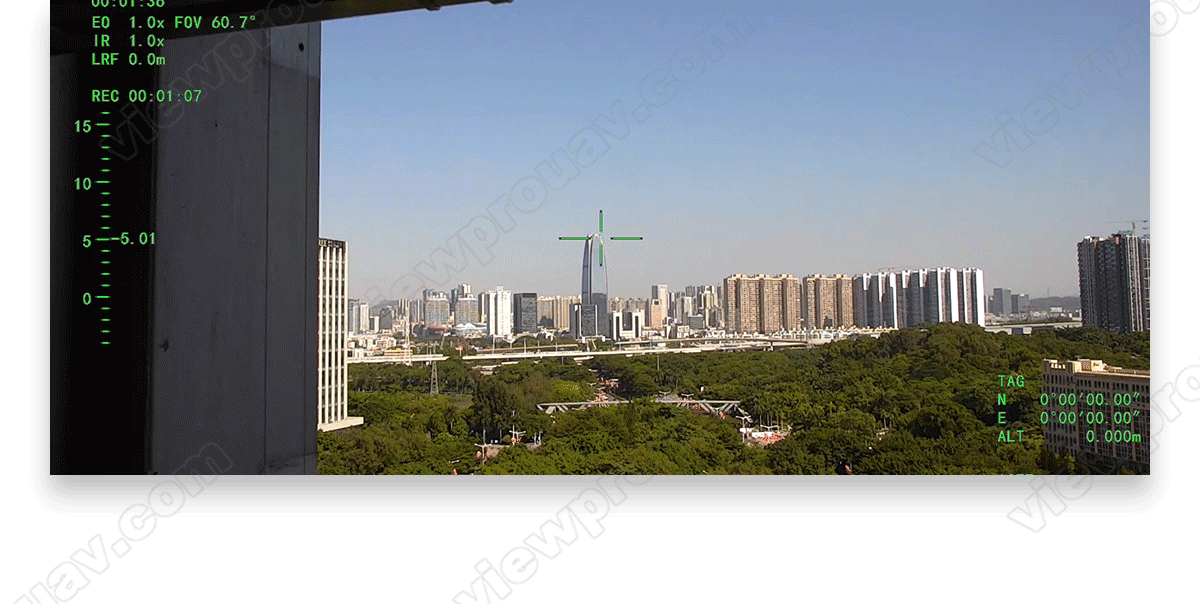

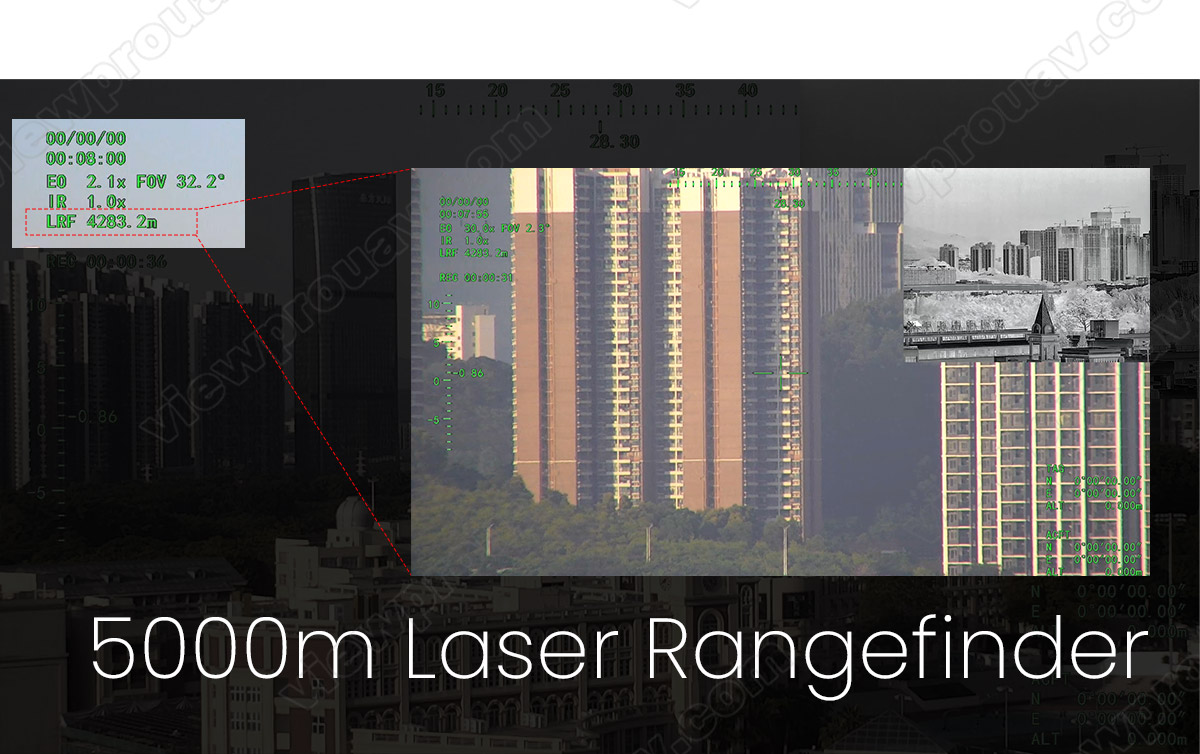

| Thermal imager spec | |
| Lens size | 50mm |
| Horizontal FOV | 8.8° |
| Vertical FOV | 7.0° |
| Diagonal FOV | 11.2° |
| Detective Distance (Man: 1.8x0.5m) | 2083 meters |
| Recognize Distance (Man: 1.8x0.5m) | 521 meters |
| Verified Distance (Man: 1.8x0.5m) | 260 meters |
| Detective Distance (Car: 4.2x1.8m) | 6389 meters |
| Recognize Distance (Car: 4.2x1.8m) | 1597 meters |
| Verified Distance (Car: 4.2x1.8m) | 799 meters |
| Working mode | Uncooled long wave (8μm~14μm) thermal imager |
| Detector pixel | 640*512 |
| Pixel size | 12μm |
| Focusing method | Athermal prime lens |
| Emissivity correction | 0.01~1 |
| NETD | ≤50mK (@25℃) |
| MRTD | ≤650mK (@characteristic frequency) |
| Image enhancement | Auto adjust image brightness and contrast ratio |
| Color palette | White, iron red, pseudo color |
| Auto Non-uniform correction | Yes (no shutter) |
| Digital zoom | 1x~12x |
| Sync correct time | Yes |
| Thermometry type | Not Support |
| Temperature warning | 0℃~100℃ |
| Thermal Object Tracking | |
| Update rate of deviation pixel | 25Hz |
| Output delay of deviation pixel | <3ms |
| Minimum object size | 16*16 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | ±32 pixel/frame |
| Object memory time | 100 frames (4s) |
| Laser Rangefinder | |
| Range |
≥5km for big target (eg. building)
≥3km for car（
2.3m×2.3m ）
≥1.5km for people（1.75m×0.75m ）
(Based on typical value:
LOS visibiligy: ≥8km
Diffuse reflection rate: ≥0.3
Humility: ≤80%)
|
|
Accuracy (Typical value)
|
≤ ±1m (RMS)
|
| Working current: | 80mA （max） |
|
Wave length
|
1535nm pulse laser
|
| Divergent Angle |
≤ 0.5mrad
|
| Laser pulse frequency | 1-10HZ |
| Power | ＜ 1 mW (safe for eye) |
| Ranging mode | Pulse |
| Location Resolving | Latitude and longitude of target |
| Ranefinder | Target distance measuring |

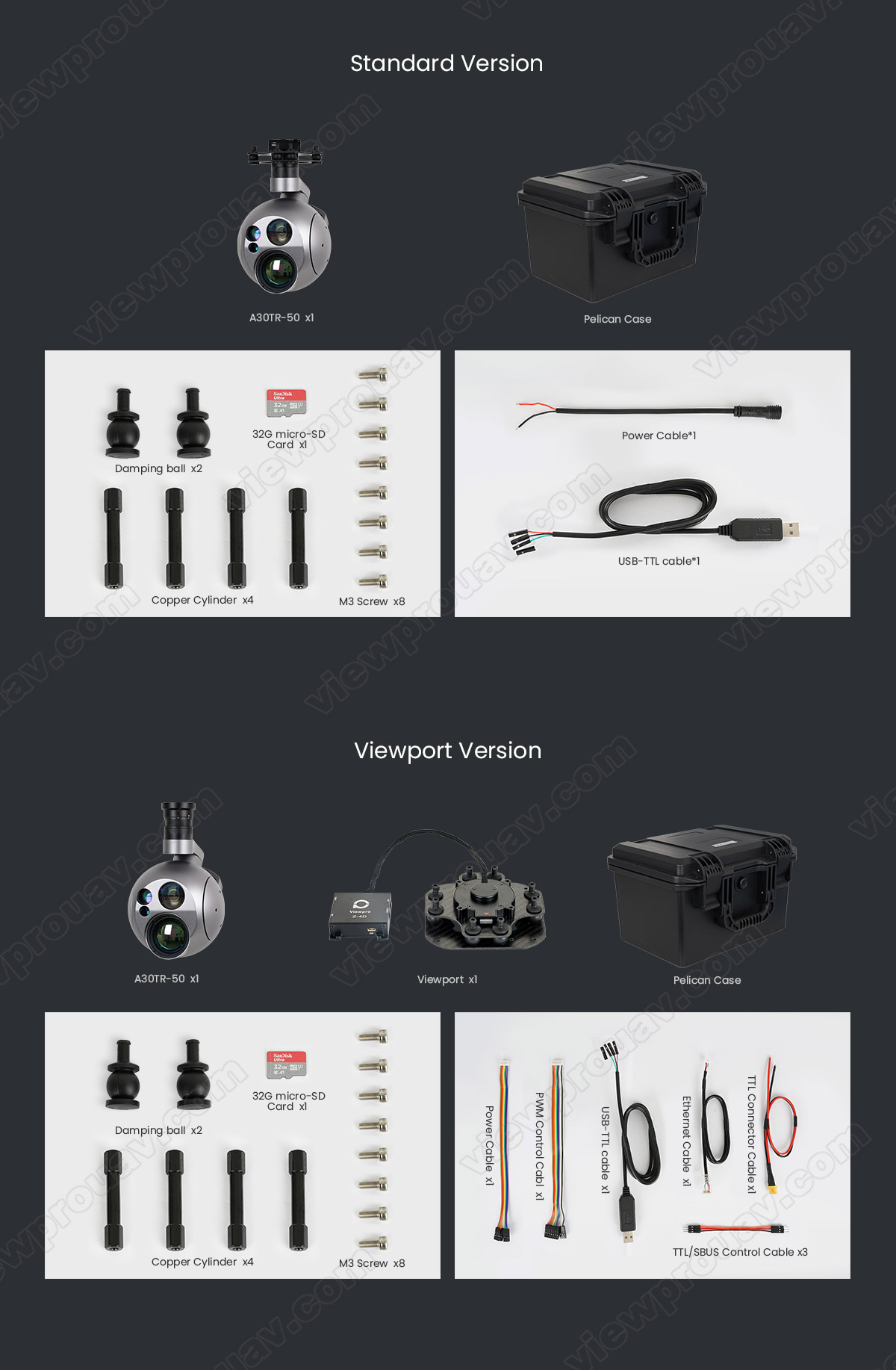

| Packing Information | |
| N.W. | 1500g |

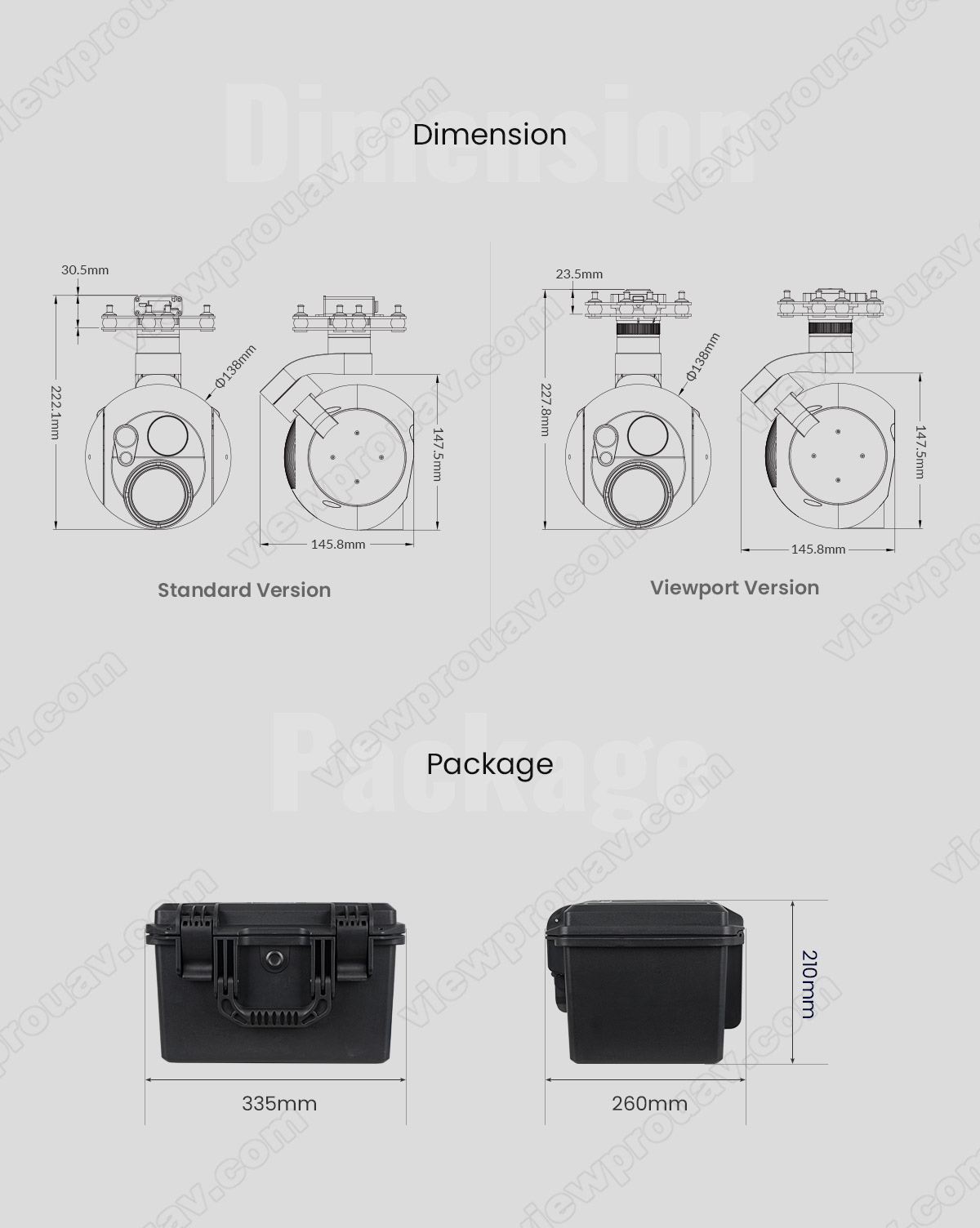

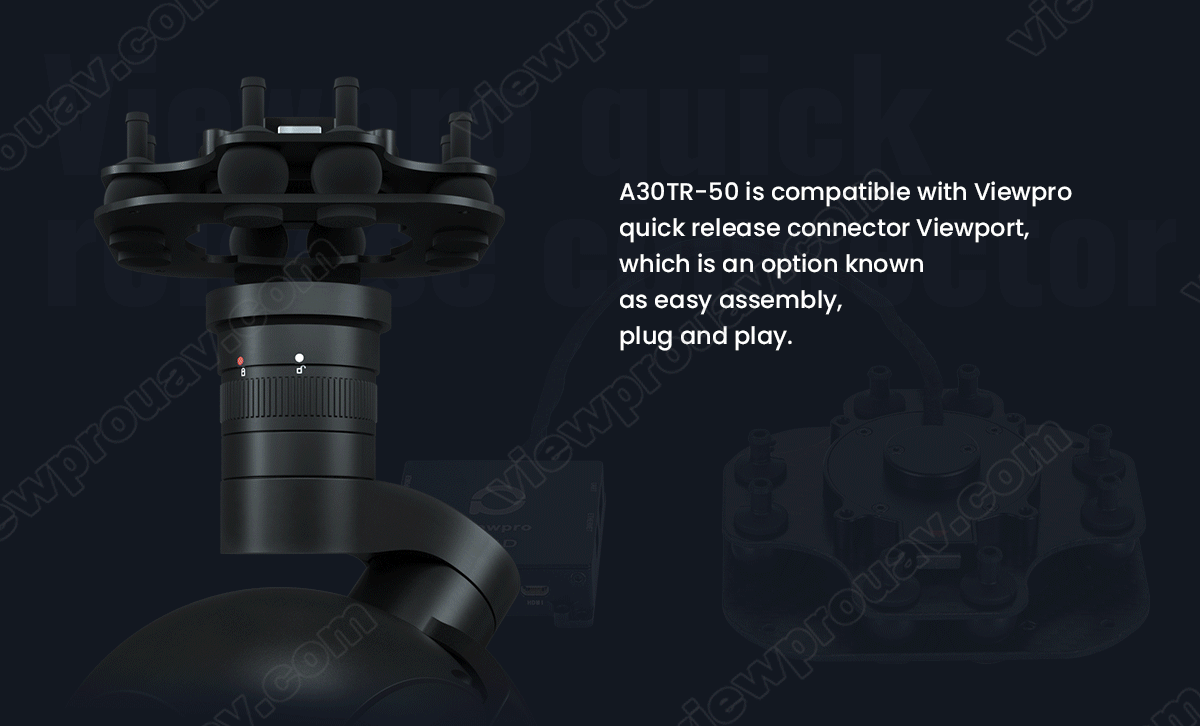

| Product meas. |
145.8*138*222.1mm (Standard version) / 145.8*138*227.8mm (Viewport version)
|
