Specification

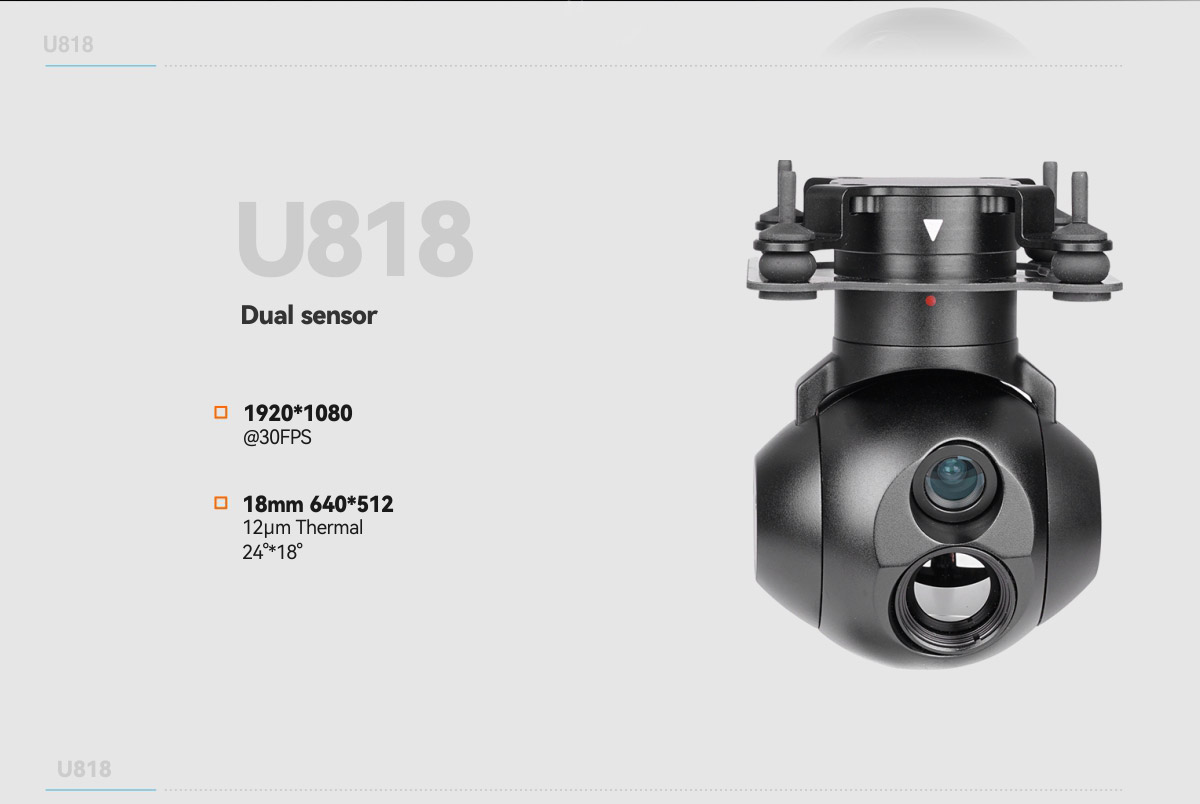

Hardware Parameter U818
Working voltage 12V
Input voltage 3S ~ 6S
Output voltage 5V (connect with PWM)
Dynamic current 600~900mA @ 12V
Idle current 600mA @ 12V
Working environment temp. -40℃ ~ +60℃
Output IP rtsp (1080p 30fps)
Local-storage SD card (Up to 128G,class 10, FAT32 or ex FAT format)
Photo storage format JPG(1920*1080)
Video storage format MP4  (1080P 30fps)

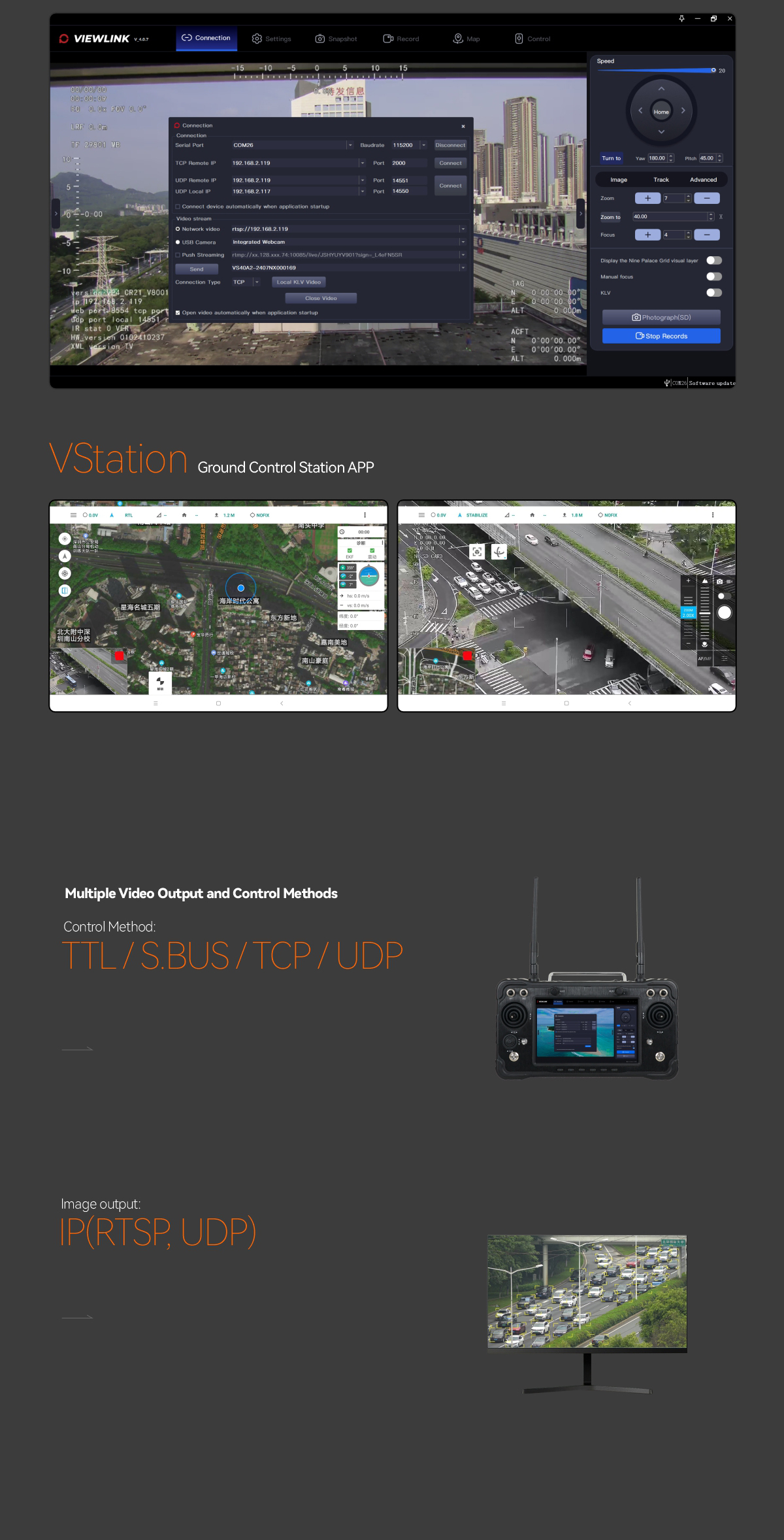

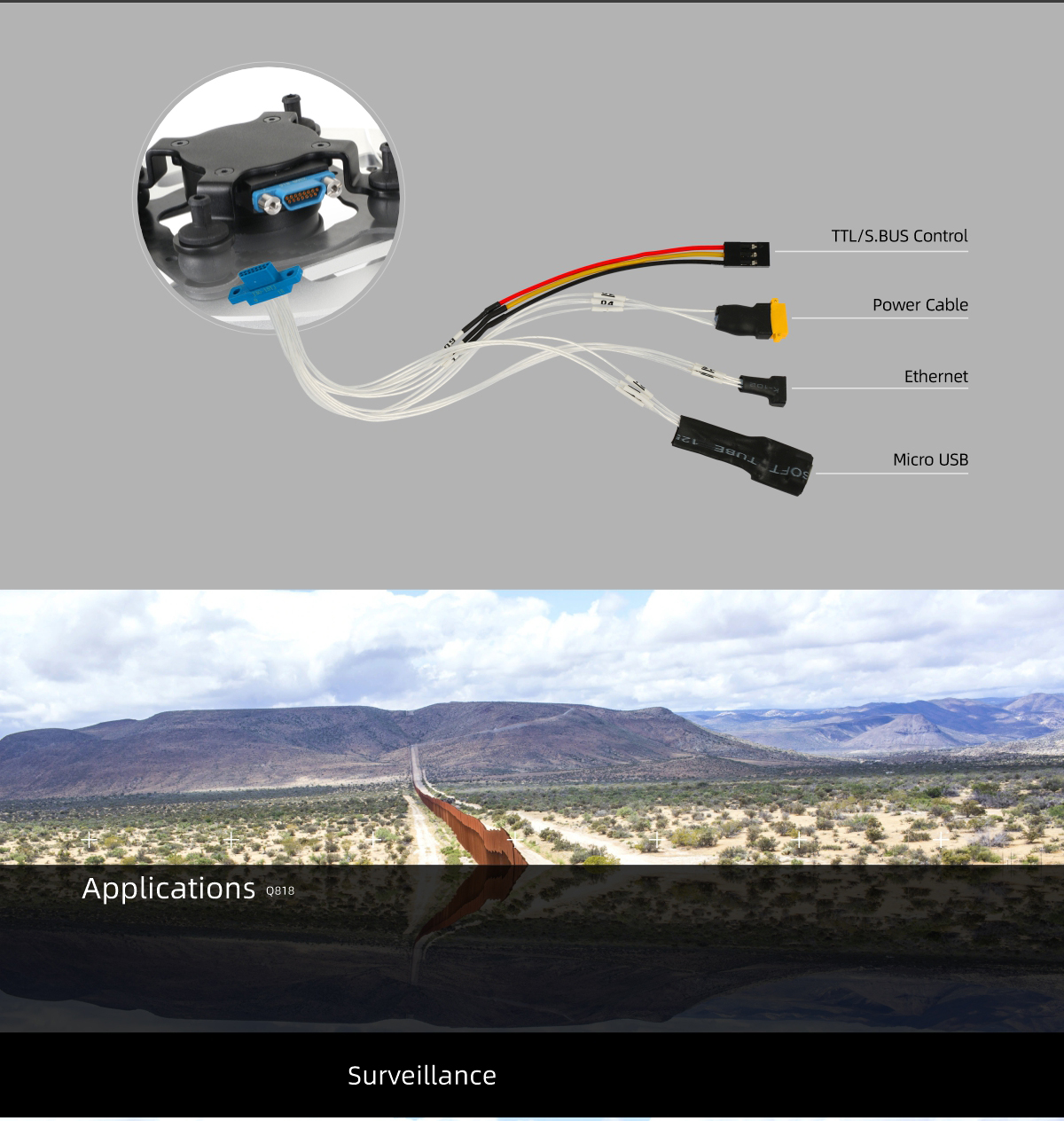

Control method TTL / S.BUS/ TCP
Gimbal Spec
Angle scope of structure design Pitch/Tilt: -90°~120°,    Yaw/Pan: ±360°*N
Angle scope of software design Pitch/Tilt: -45°~90°,   Yaw/Pan: ±360°*N
Vibration angle Pitch/Roll: ±0.02°, Yaw:±0.02°
One-key to center
EO Camera Spec
Imager Sensor CMOS Sensor
Resolution 1920*1080 (3.68MP) @60fps
Focus Length 8mm
Pixel Pitch 3μm
Angle of View 51°*30°
Recognize Distance (Car: 6.5x3m) ≥3.6km
Digital zoom 1x ~ 4x
Defog Yes

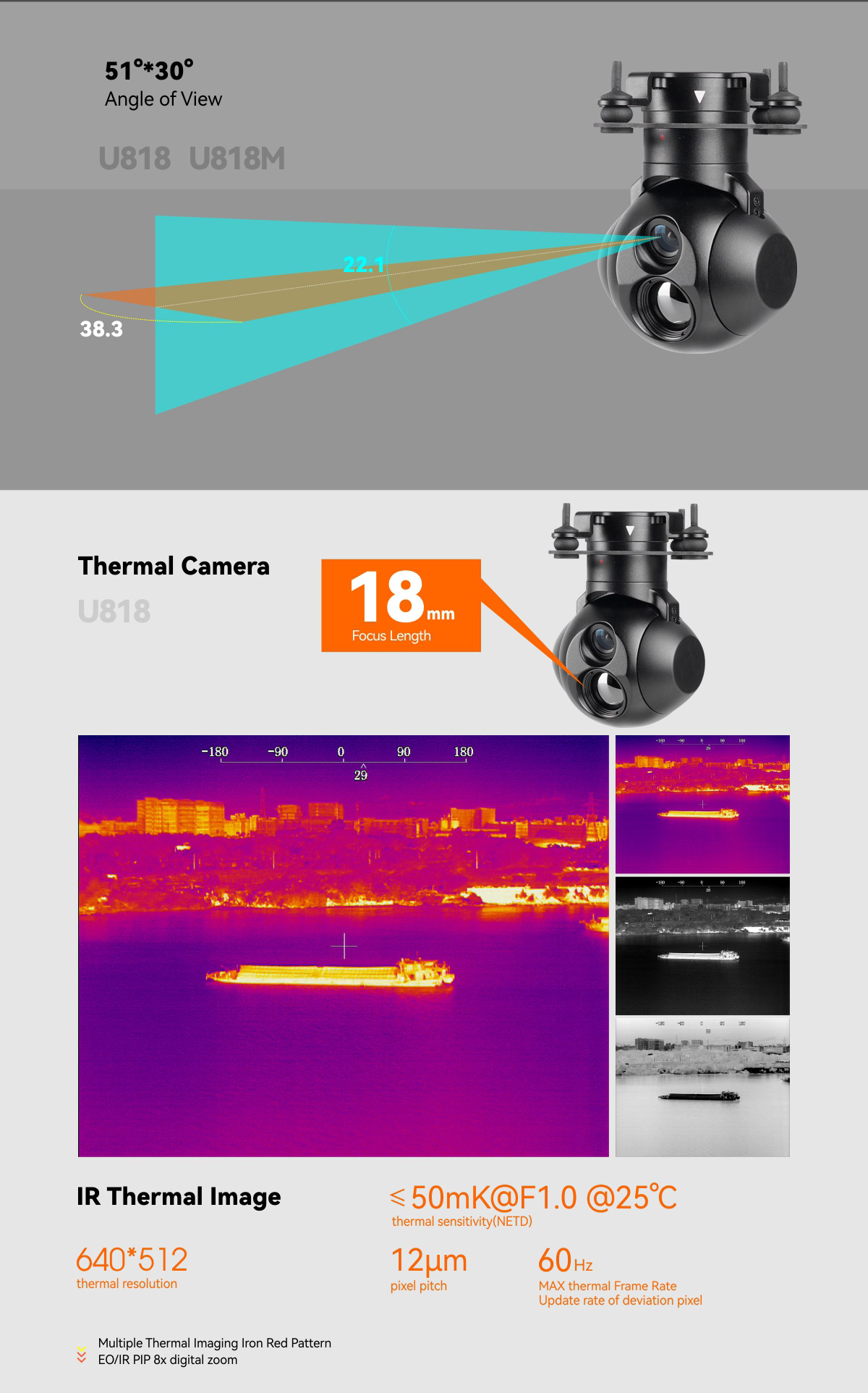

IR Thermal Imager Spec
Focus Length 18mm
Horizontal FOV 24°
Vertical FOV 18°
Recognize Distance (Car: 6.5x3m) ≥1km
Working mode Uncooled VOx long wave (8μm~14μm) thermal imager
Detector pixel 640*512
Pixel size 12μm
Focusing method Athermal prime lens
NETD ≤50mK@F.0 @25℃
Color palette White hot, black hote, pseudo color
Digital zoom 1x ~ 4x
Sync correct time Yes
EO / IR Camera Object Tracking
Update rate of deviation pixel 60Hz
Minimum object contrast 5%
Minimum object size 16*16 pixel
Maximum object size 128*128 pixel
Tracking speed >48 pixel/frame
Object memory time 100 frames

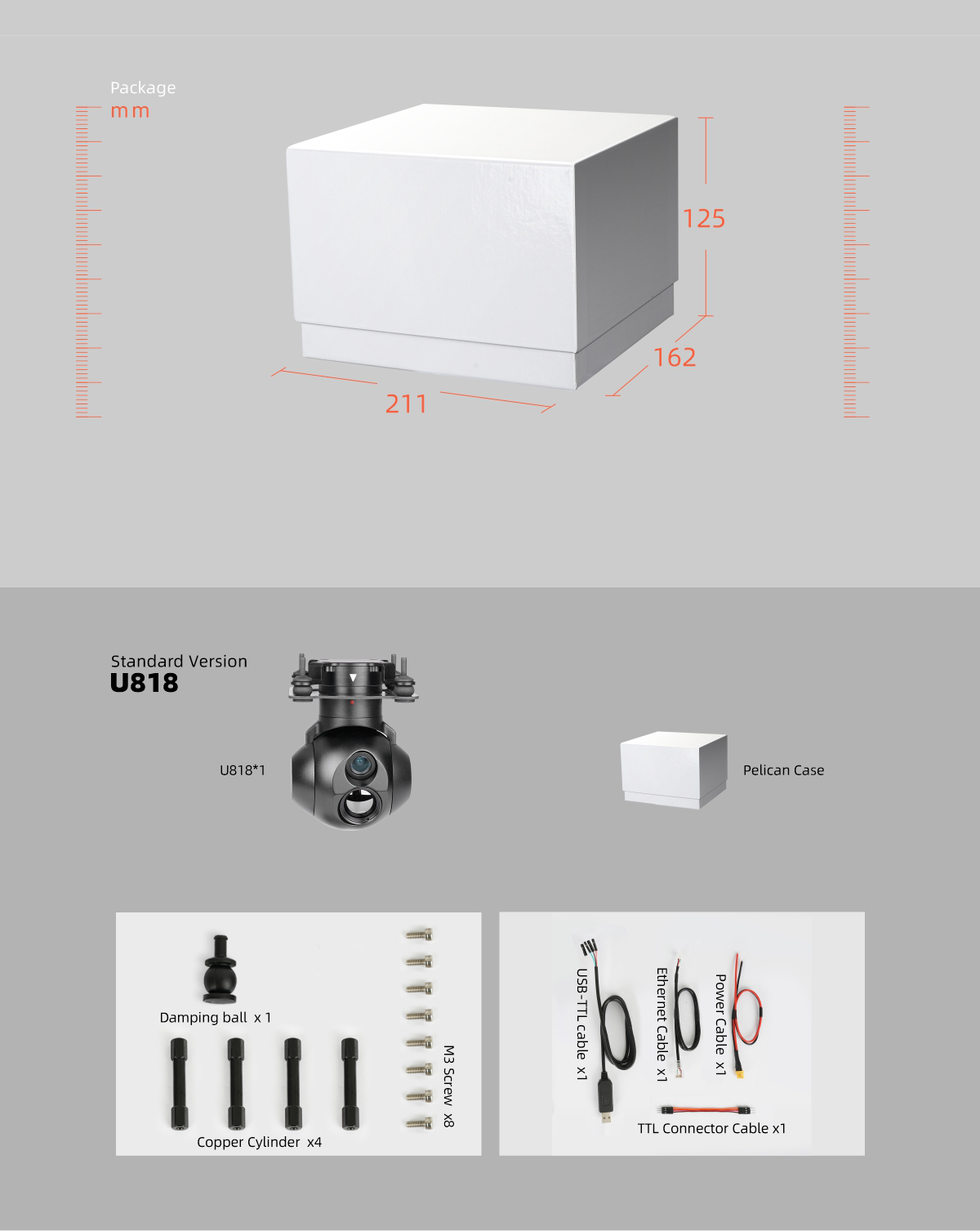

Packing Information

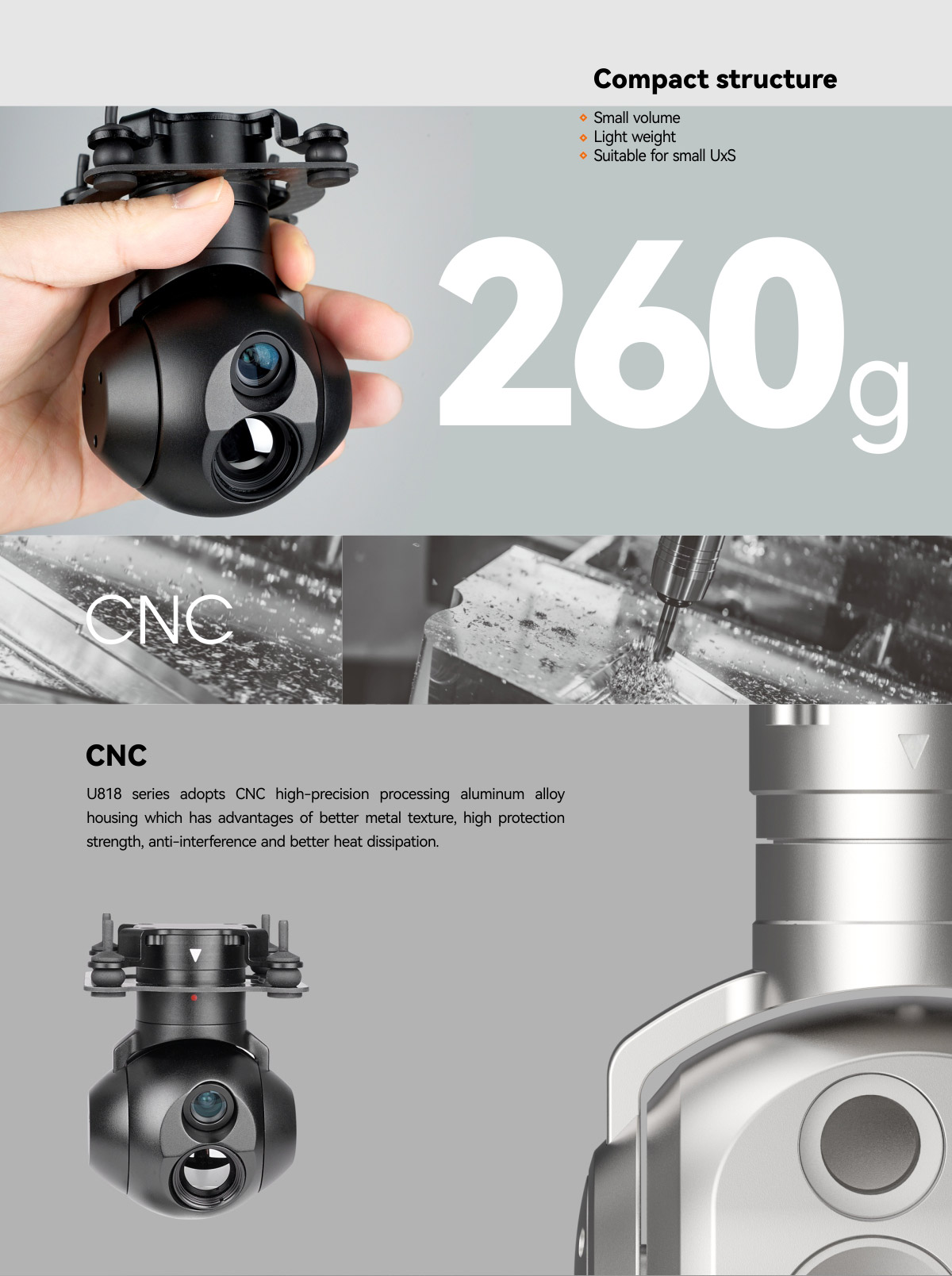

N.W. 310g (with damping system)

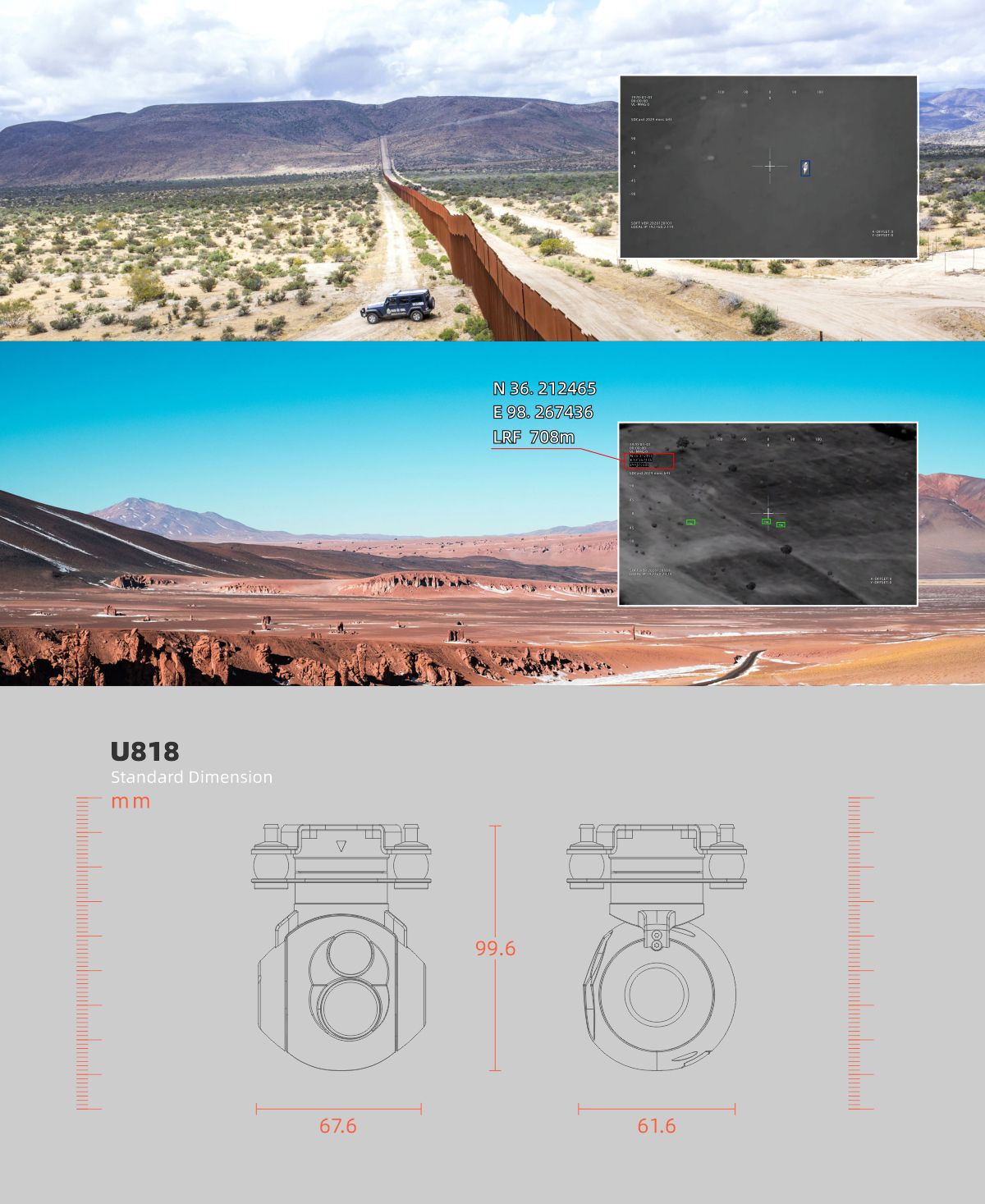

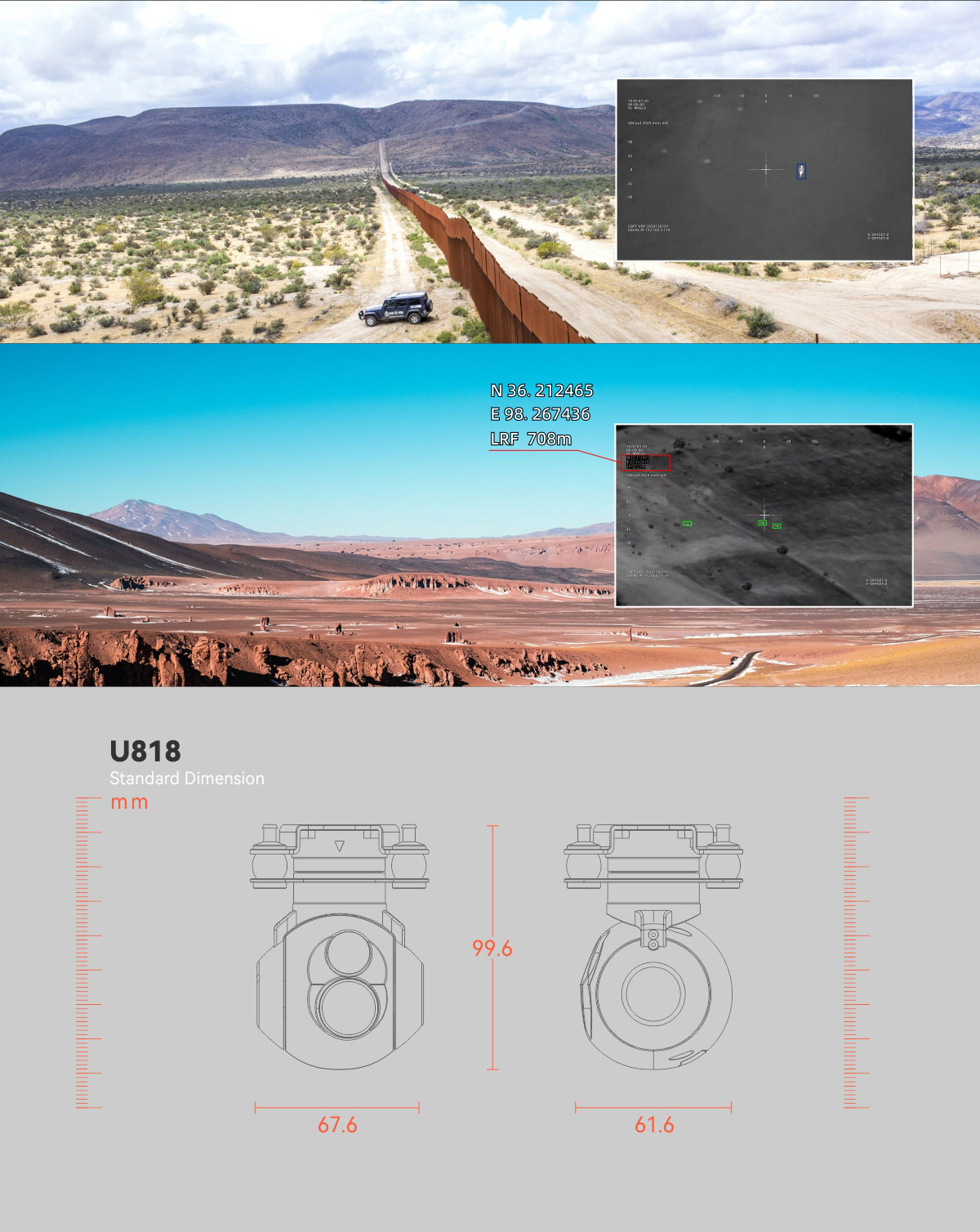

Product meas. 67.9*61.6*89.7mm

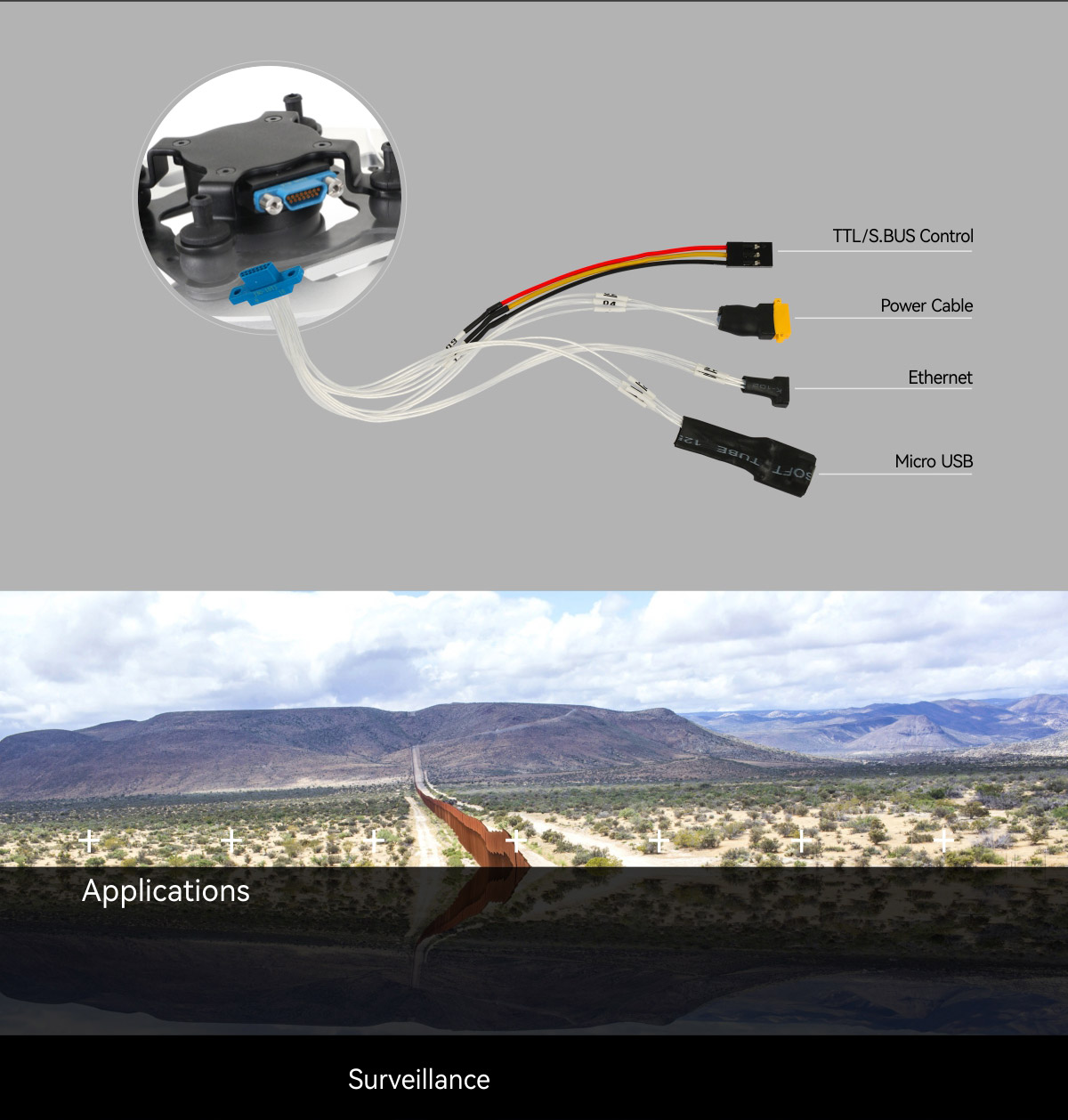

Accessories 1pc gimbal camera device, screws, USB to TTL cable  / Hight quality plastic box with foam cushion
G.W. 720g



Hardware Parameter U818M
Working voltage 12V(3S)
Output voltage 5V (connect with PWM)
Dynamic current 650~1000mA @ 12V
Idle current 650mA @ 12V
Working environment temp. -20℃~+60℃
Output IP rtsp (1080p 30fps)
Local-storage SD card (Up to 128G,class 10, FAT32 or ex FAT format)
Photo storage format JPG(1920*1080)
Video storage format MP4  (1080P 25fps)
Control method TTL / S.BUS/ TCP
Gimbal Spec
Angle scope of structure design Pitch/Tilt: -35°~105°,    Yaw/Pan: ±360°*N
Angle scope of software design Pitch/Tilt: -30°~90°,   Yaw/Pan: ±360°*N
Vibration angle Pitch: ±0.02°, Yaw: ±0.02°
One-key to center
EO Camera Spec
Imager Sensor CMOS Sensor
Resolution 1920*1080 (3.68MP) @60fps
Focus Length 8mm
Pixel Pitch 3μm
Angle of View 51°*30°
Recognize Distance (Car: 6.5x3m) ≥3.6km
Digital zoom 1x ~ 4x
Defog Yes
IR Thermal Imager Spec
Focus Length 18mm
Horizontal FOV 24°
Vertical FOV 18°
Recognize Distance (Car: 6.5x3m) ≥1km
Working mode Uncooled VOx long wave (8μm~14μm) thermal imager
Detector pixel 640*512
Pixel size 12μm
Focusing method Athermal prime lens
Color palette White hot, pseudo color
Digital zoom 1x ~ 4x
Sync correct time Yes
EO / IR Camera Object Tracking
Update rate of deviation pixel 60Hz
Minimum object contrast 5%
Minimum object size 16*16 pixel
Maximum object size 128*128 pixel
Tracking speed ±48 pixel/frame
Object memory time 100 frames
IR Laser Rangefinder
Range 5~1200 meters
Resolution 1m
Light Beam 905nm pulse laser
Divergent Angle ~6 mrad
Laser pulse frequency 1~4Hz
Location Resolving Latitude and longitude of target
Ranefinder Target distance measuring
Packing Information
N.W. 360g (with damping system)
Product meas. 83.7*72.5*110.6mm
Accessories 1pc gimbal camera device, screws, USB to TTL cable  / Hight quality plastic box with foam cushion
G.W. 770g
Package meas. 200*200*150mm
