| Hardware Parameters | ||||
| Working voltage | 16V | |||
| Input voltage | 4S ~ 6S | |||
| Output voltage | 5V (connect with PWM) | |||
| Dynamic current | 1200~2500mA @ 16V | |||
| Working environment temp. | -20°C ~ +60°C | |||
| Video Output | micro HDMI (1080P 30/60fps) / IP Rtsp (720P/1080P 30fps) | |||
| Local-storage | SD card (Up to 128G,class 10, FAT32 or ex FAT format) | |||
| Photo storage format | JPG (1920*1080) | |||
| Video storage format | MP4 (1080P 30fps) | |||

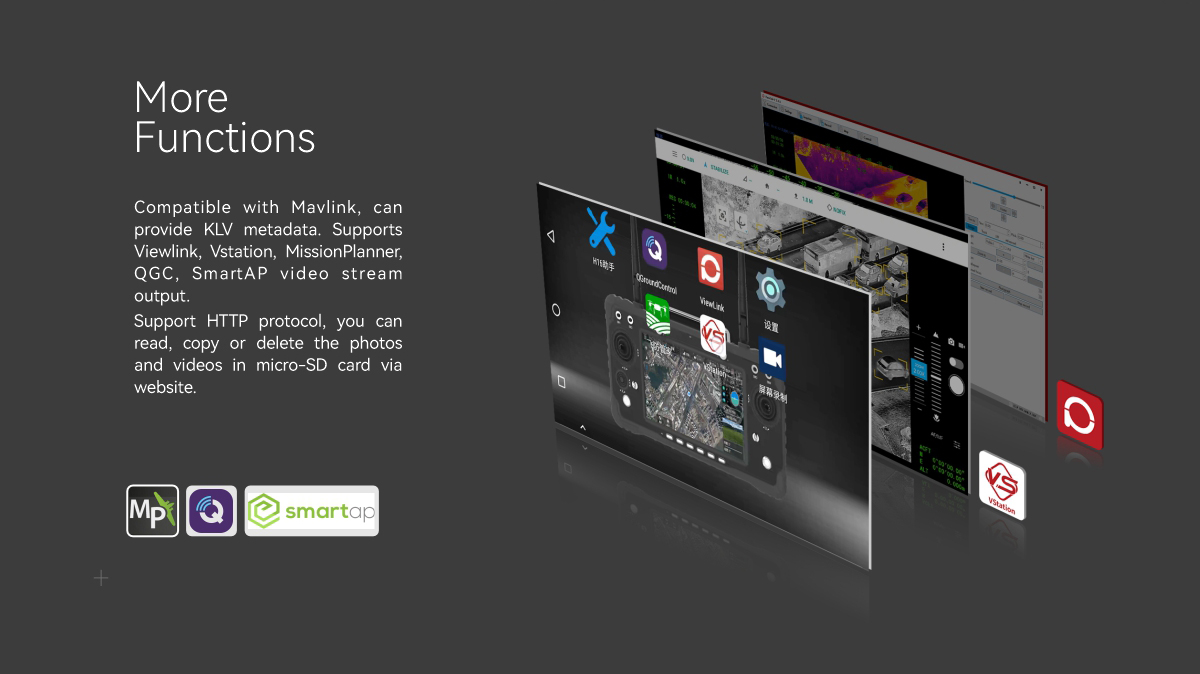

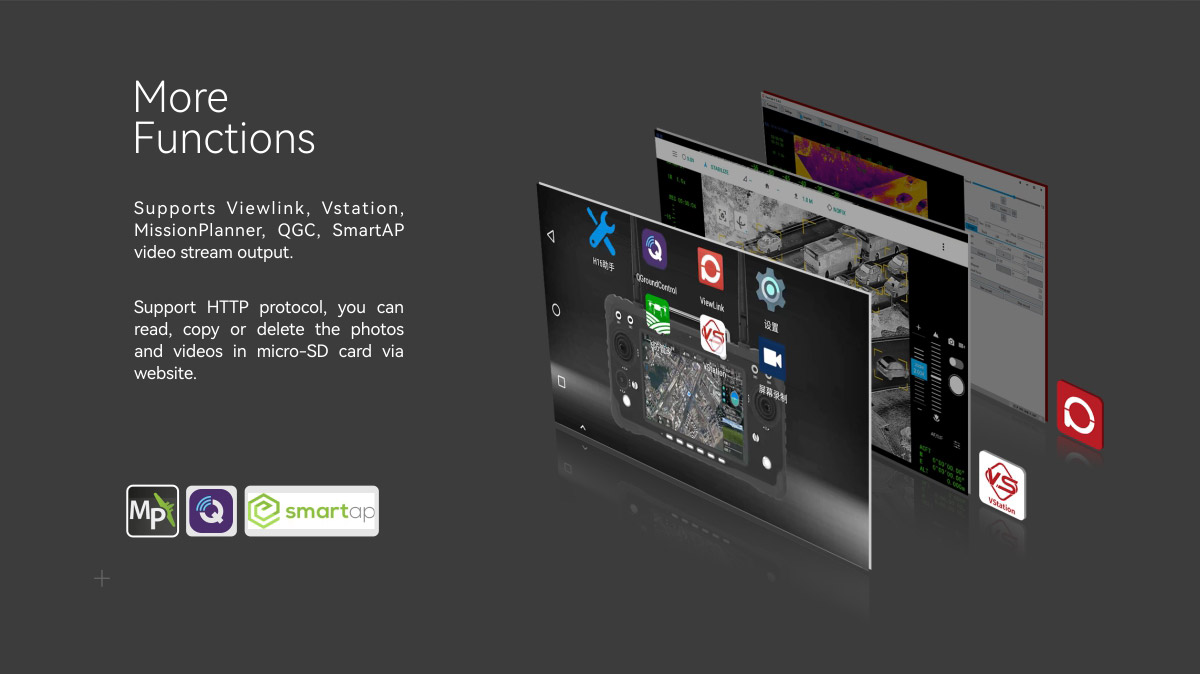

| Network reader | HTTP reading | |||

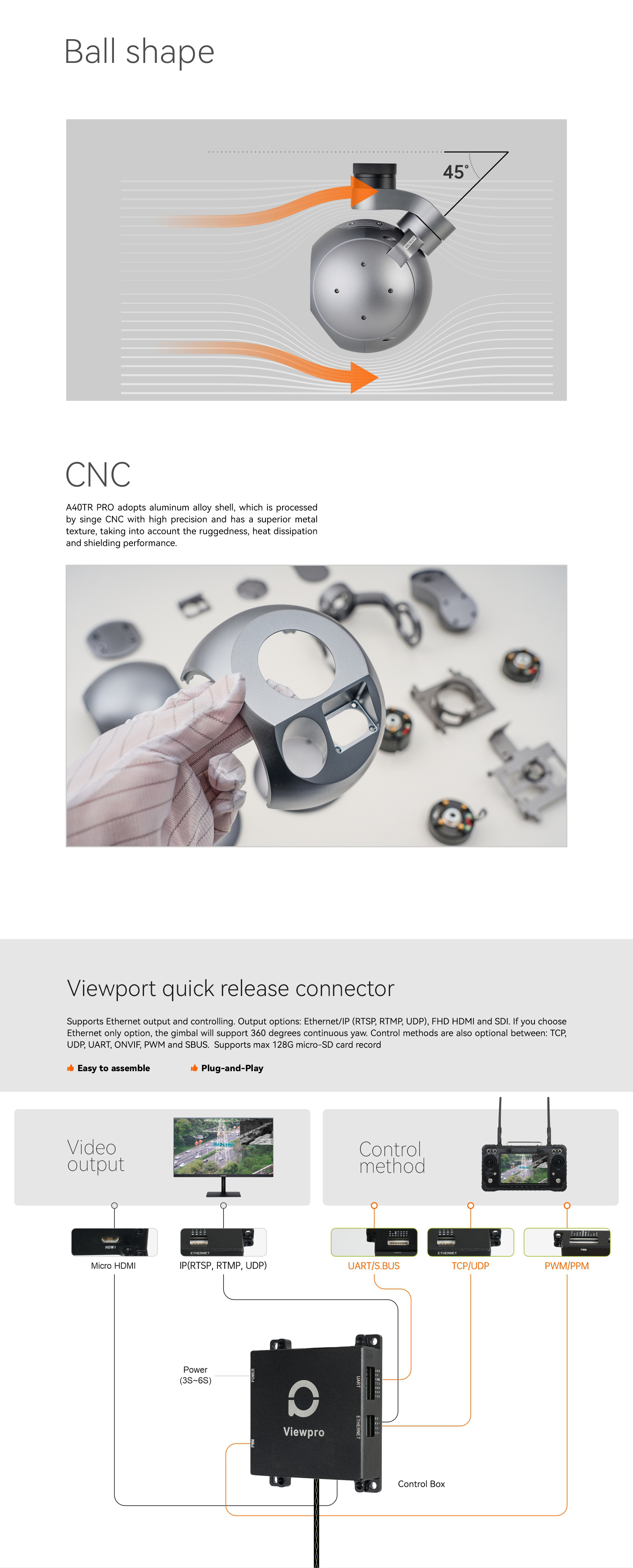

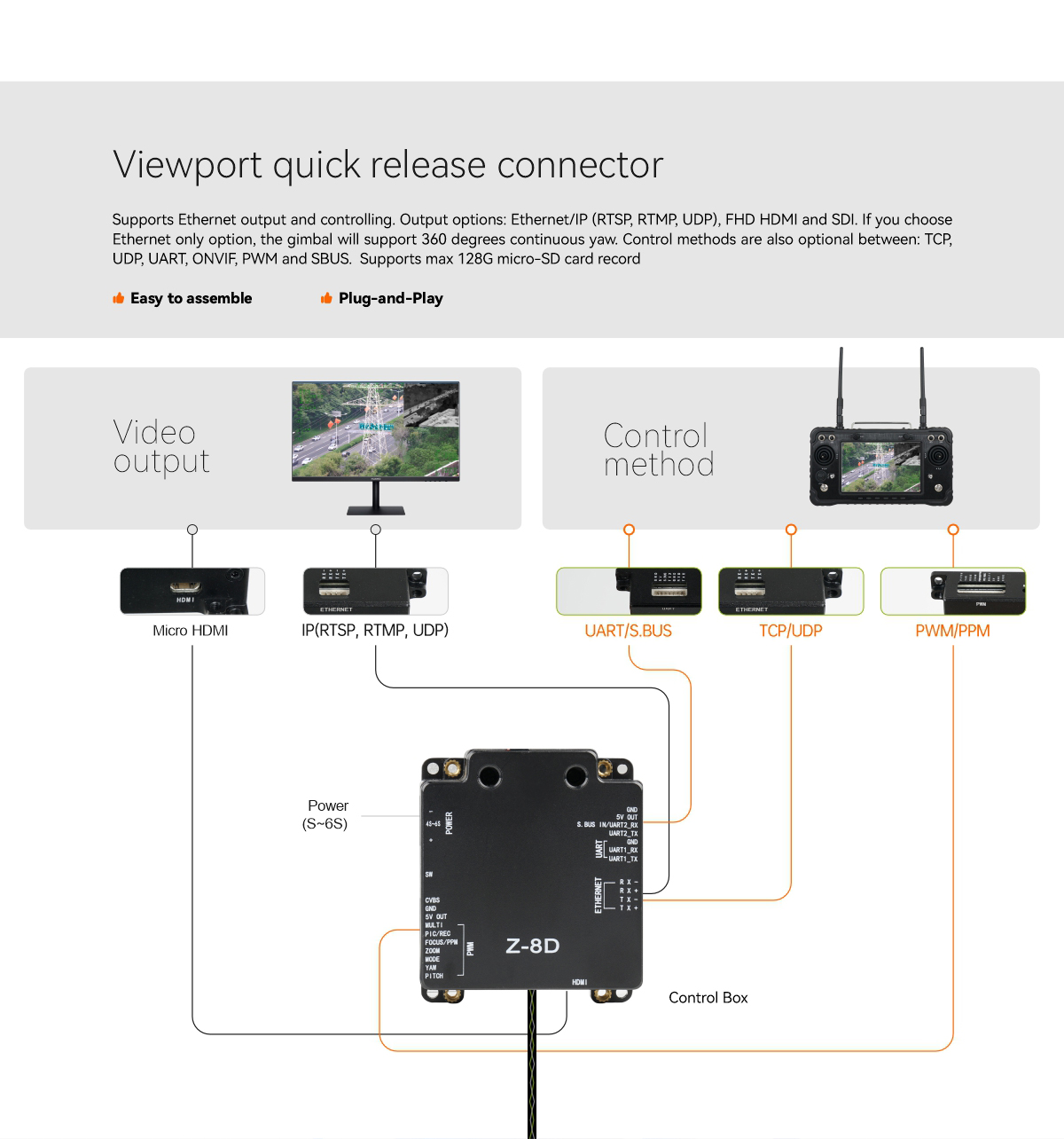

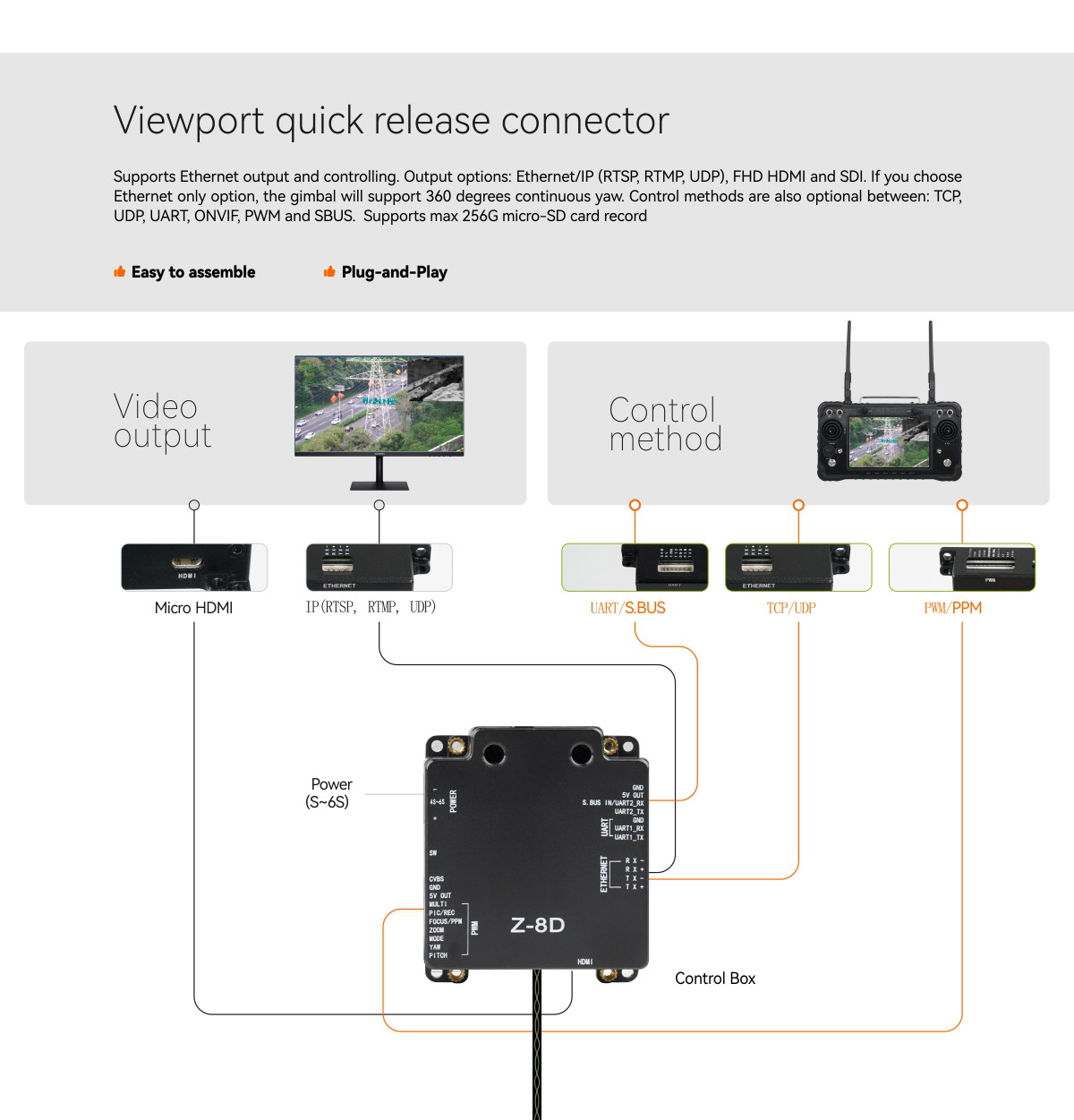

| Control method | PWM / S.BUS / TTL / TCP(IP output version) / UDP(IP output version) | |||
| Gimbal Parameters | ||||
| Mechanical Range | Pitch/Tilt: -60°～130°, Roll: ±40°, Yaw/Pan: ±300° / ±360°*N (IP output version) |
|||
| Controllable Range | Pitch/Tilt: -45°～90°, Yaw/Pan: ±290° / ±360°*N (IP output version) |
|||
| Vibration angle | Pitch/Roll/Yaw：±0.02° | |||
| One-key to center | √ | |||
| Camera Parameters | ||||
| Imager Sensor | 1/2.8" Sony CMOS | |||
| Effective pixel | 5.13 MP | |||

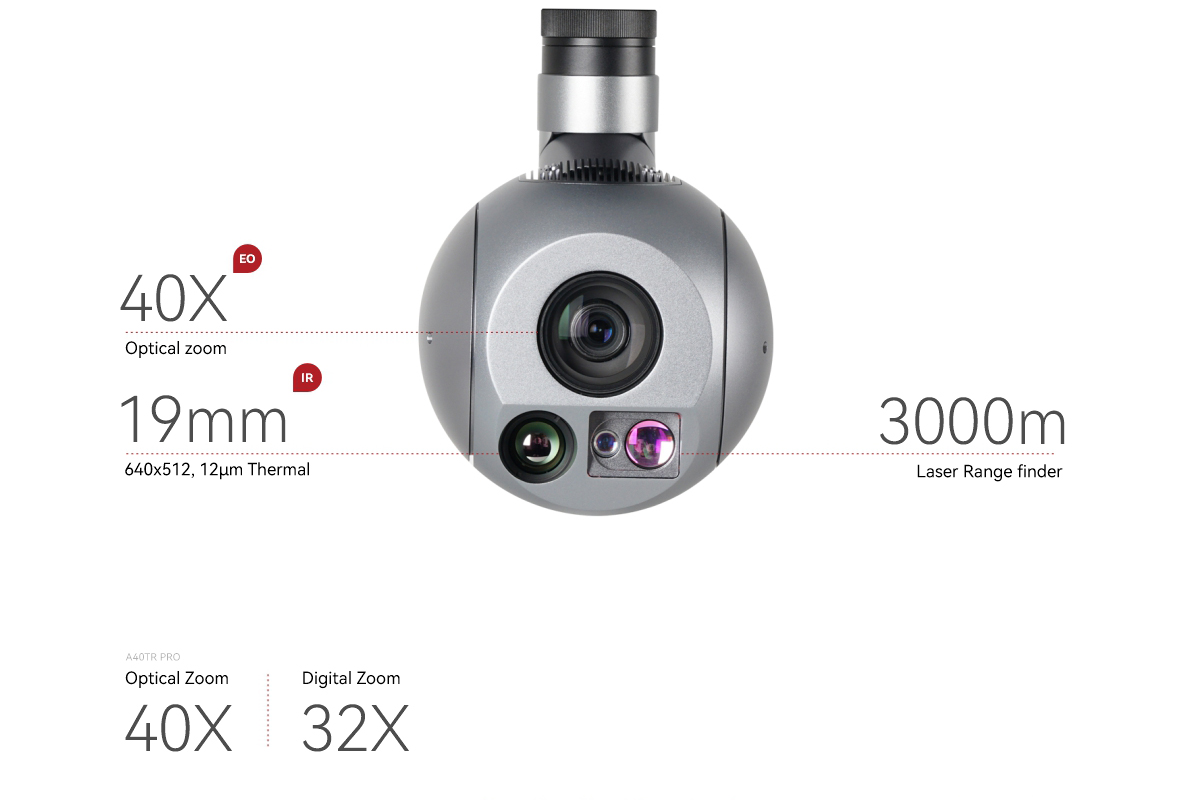

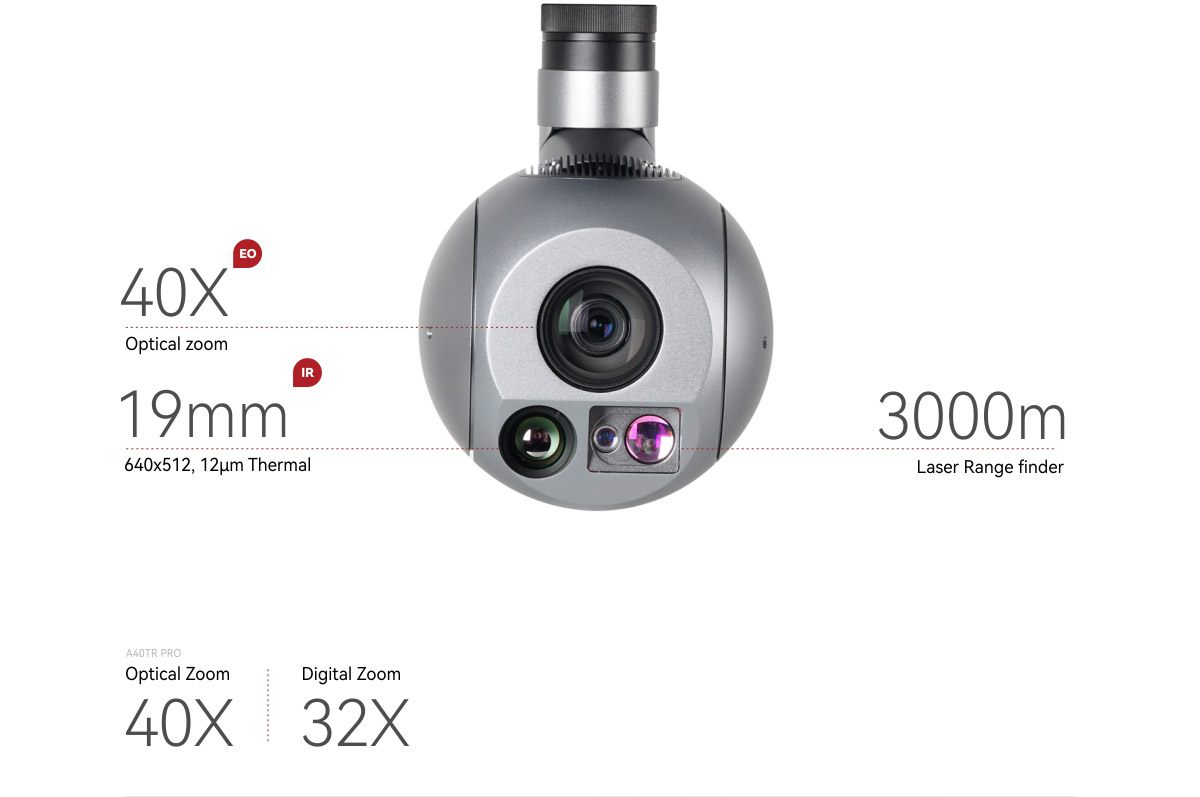

| Lens | Optical zoom: 40x f = 4.25 mm (Wide), 170 mm (Tele) F1.6 to F4.95 |
|||
| Digital zoom | 32x | |||
| Angle of view ( H ) | 66.35°(Wide) ~ 1.9°(Tele) | |||
| Min. object distance | 0.1 / 1.5 / 3.0 / 5.0 / 10.0 m | |||
| Focus | Auto / One-click auto focus / Manual | |||
| White balance | Auto / Indoor / Outdoor / One-key / Manual | |||
| Shutter speed | 1/1 to 1/30,000 S | |||
| Exposure control | Auto / Manual / Priority mode ( Shutter priority / Aperture priority ) | |||
| Sync system | Internal | |||
| Back light compensation | Yes | |||
| Auto ICR | Yes | |||
| Progressive scan | Yes | |||
| Image stabilizer | Yes | |||
| Defog mode | Yes | |||
| IR Thermal Imager Parameters | ||||
| Focus Length | 19mm | |||
| Coating Film | DLC | |||
| Horizontal FOV | 22.9° | |||
| Vertical FOV | 18.4° | |||
| Diagonal FOV | 29.0° | |||

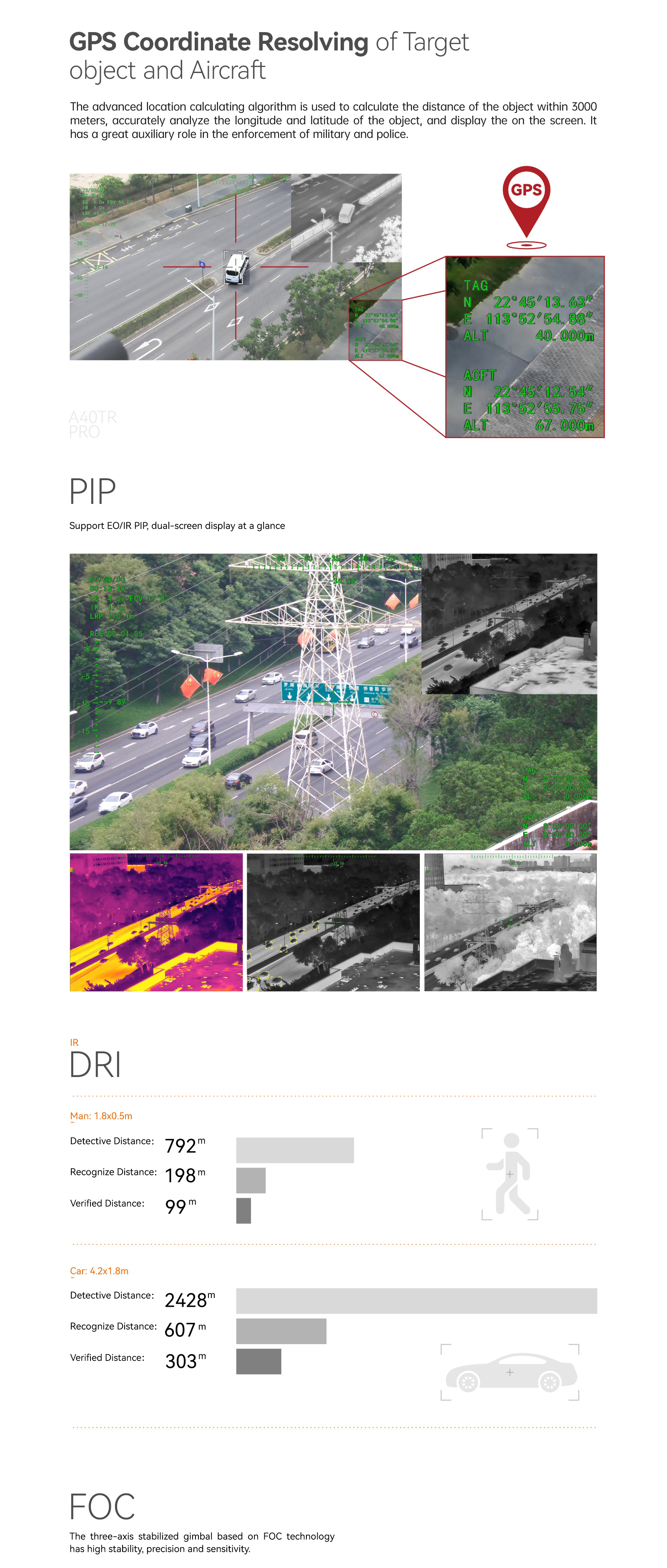

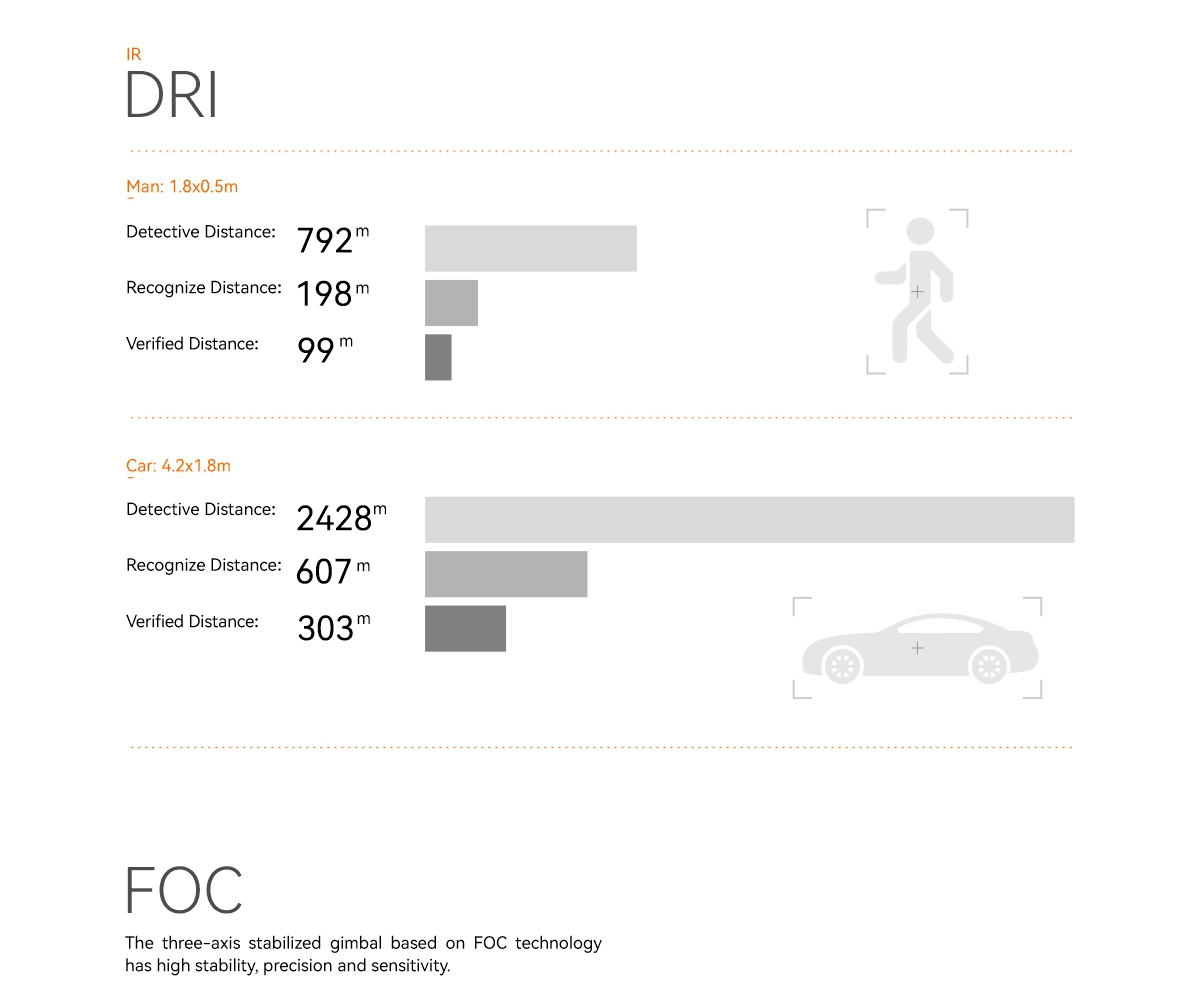

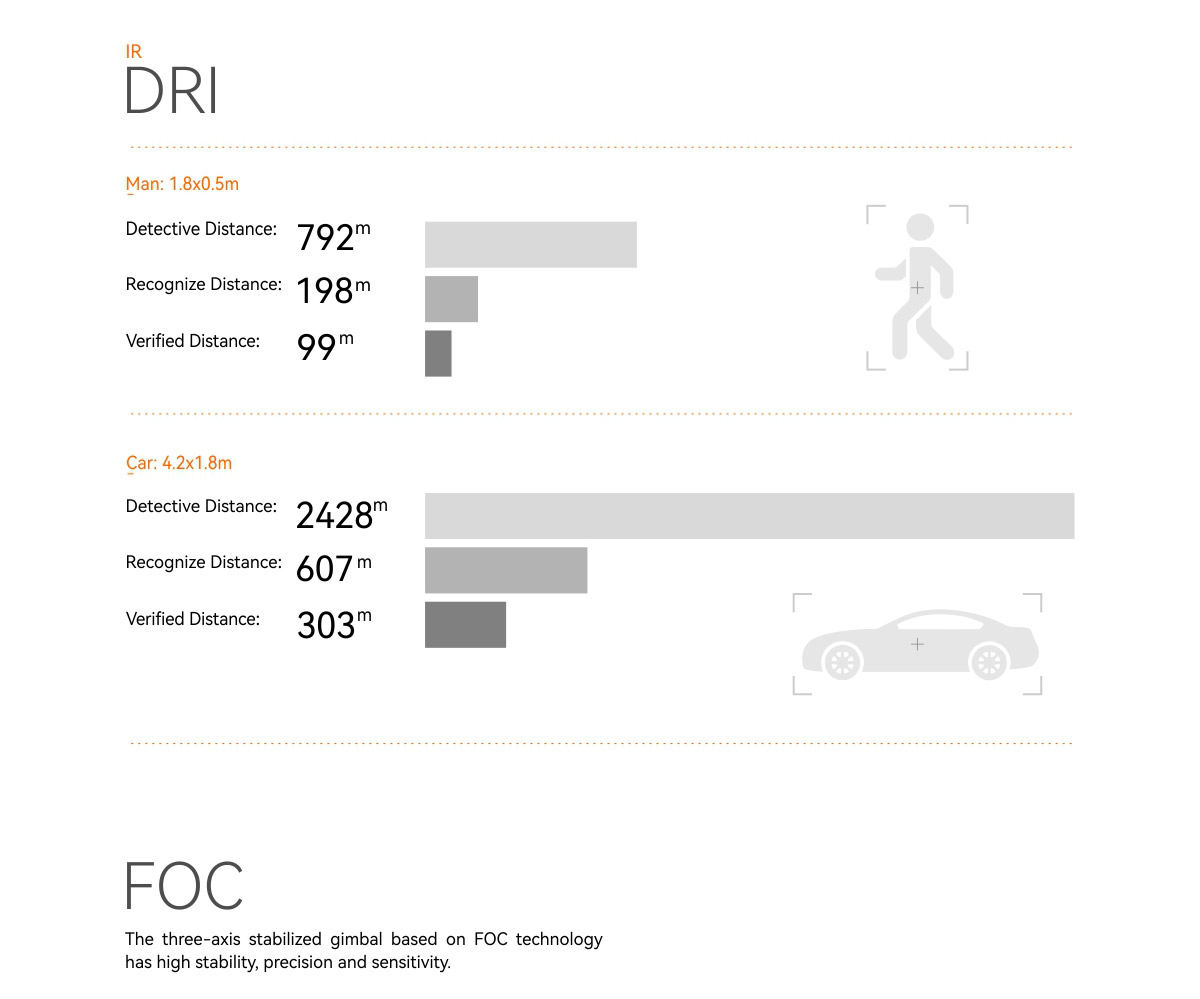

| Detective Distance (Man: 1.8x0.5m) | 792 meters | |||
| Recognize Distance (Man: 1.8x0.5m) | 198 meters | |||
| Verified Distance (Man: 1.8x0.5m) | 99 meters | |||
| Detective Distance (Car: 4.2x1.8m) | 2428 meters | |||
| Recognize Distance (Car: 4.2x1.8m) | 607 meters | |||
| Verified Distance (Car: 4.2x1.8m) | 303 meters | |||
| Working mode | Uncooled long wave (8μm~14μm) thermal imager | |||
| Detector pixel | 640*512 | |||
| Pixel size | 12μm | |||
| Focusing method | Athermal prime lens | |||
| NETD | ≤50mK @F.0 @25℃ | |||

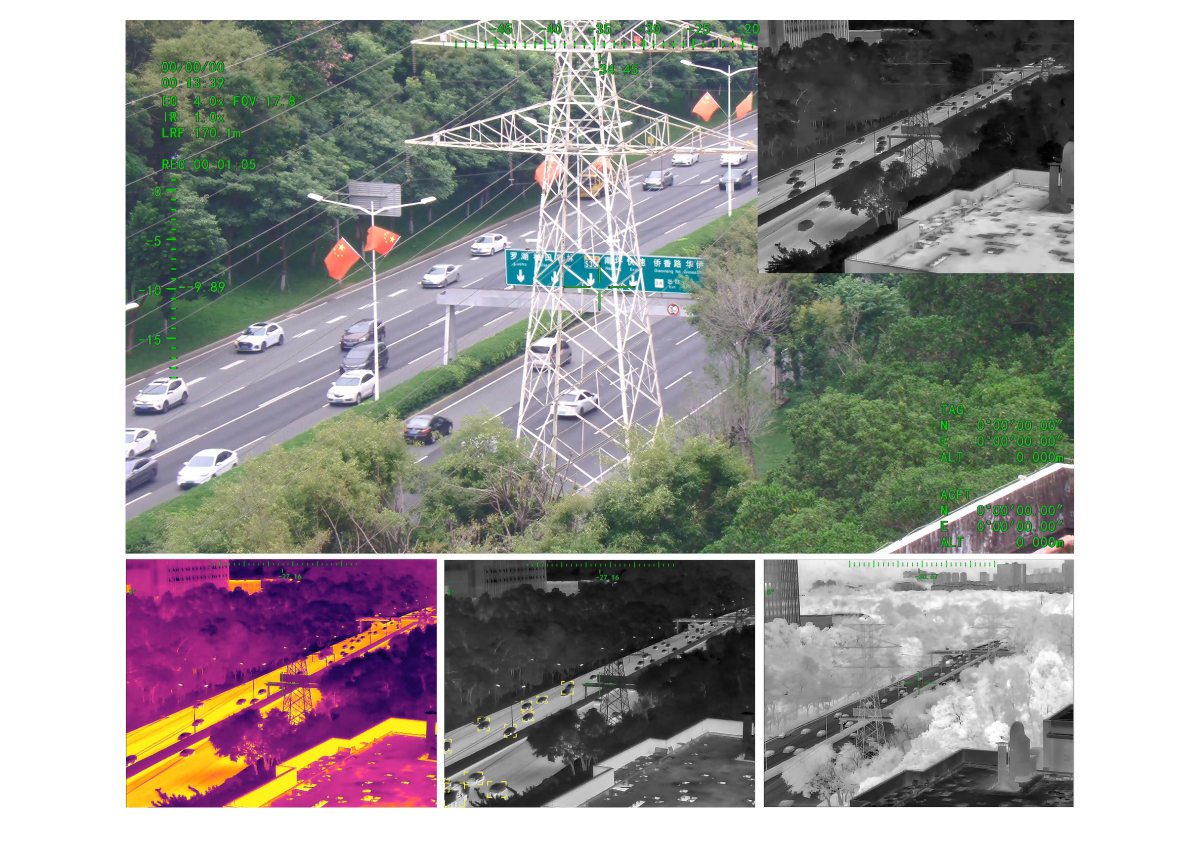

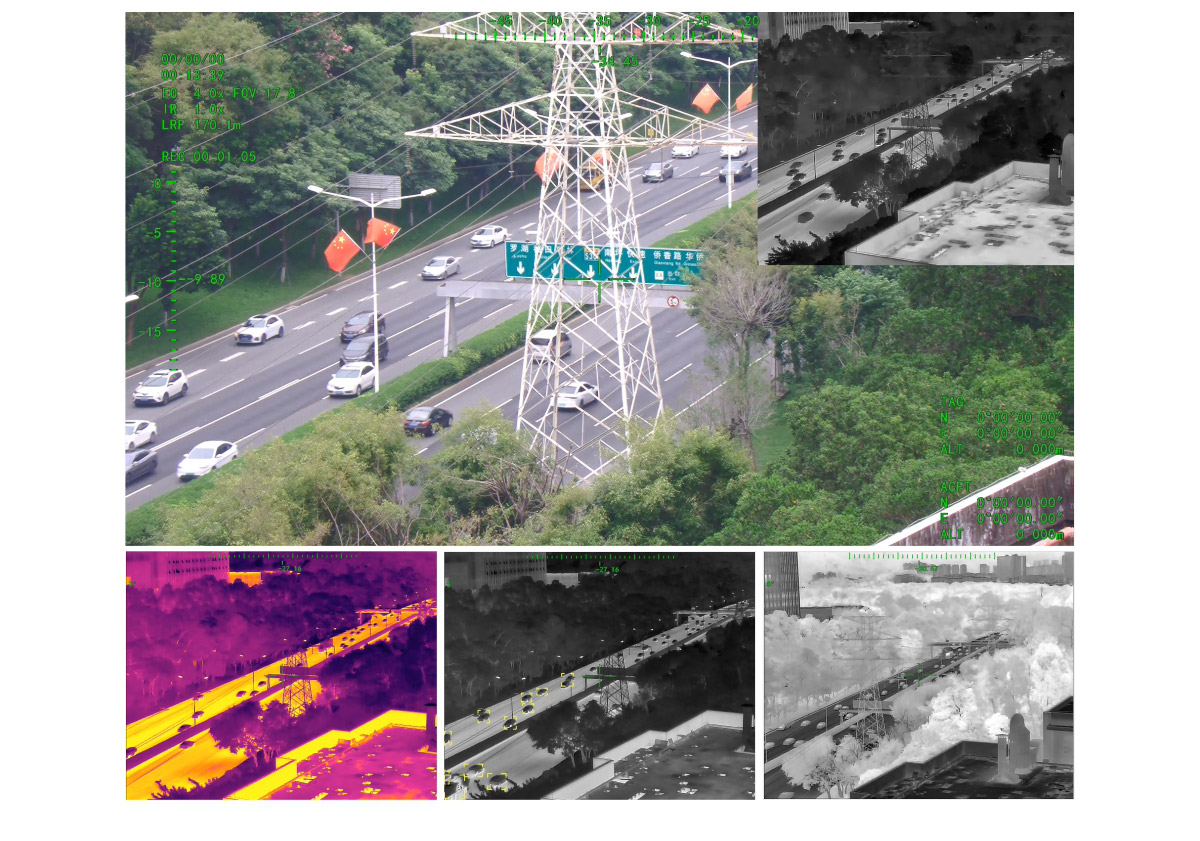

| Color palette | White hot, black hot, pseudo color | |||
| Digital zoom | 1x ~ 8x | |||
| Sync correct time | Yes | |||

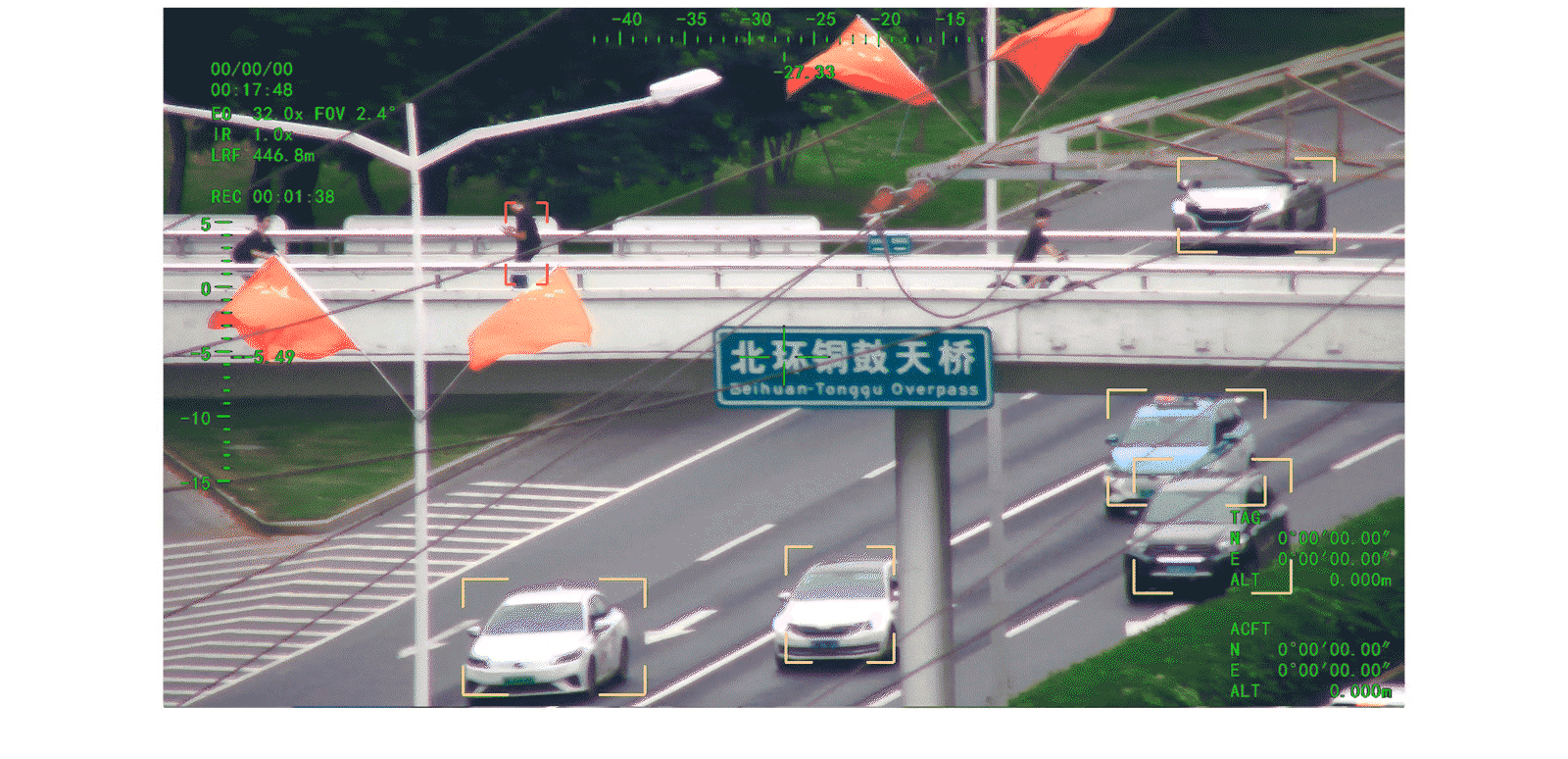

| EO / IR Camera Object Tracking Parameters | ||||
| Update rate of deviation pixel | 30Hz | |||
| Output delay of deviation pixel | <30ms | |||
| Minimum object contrast | 5% | |||
| SNR | 4 | |||
| Minimum object size | 16*16 pixel | |||
| Maximum object size | 256*256 pixel | |||
| Tracking speed | 48 pixel/frame | |||
| Object memory time | 100 frames | |||
| AI Tracking Linkage | Yes | |||

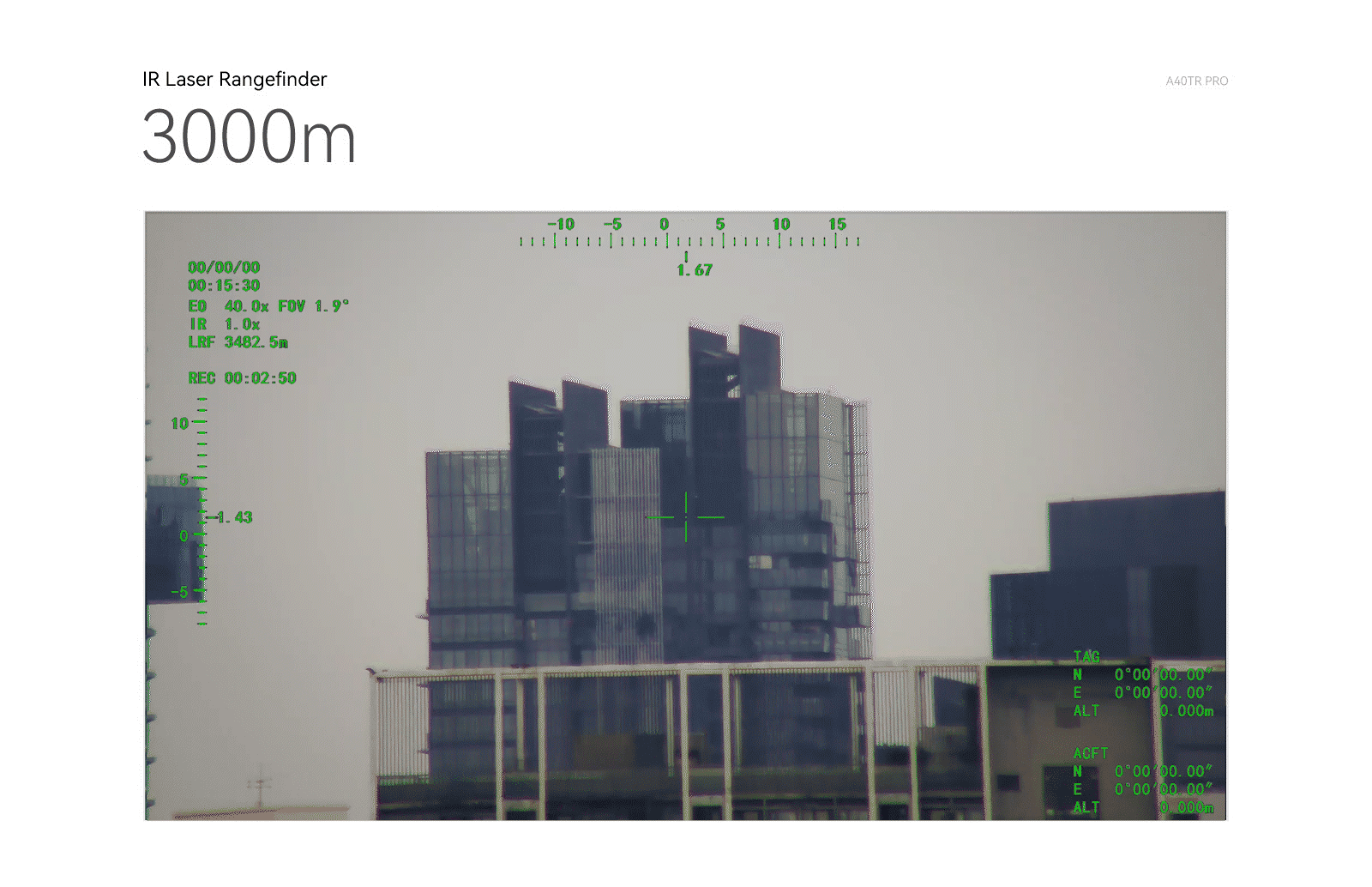

| Laser Rangefinder Parameters | ||||
| Effective range | For Vehicle≥3000m For human≥2000m | |||
| Minimum range of measurement | 15m | |||
| Range accuracy | ±1m | |||
| Range frequency | 1~10Hz | |||
| Wave length | 1535±5nm | |||
| Divergence angle | ~0.6mrad | |||

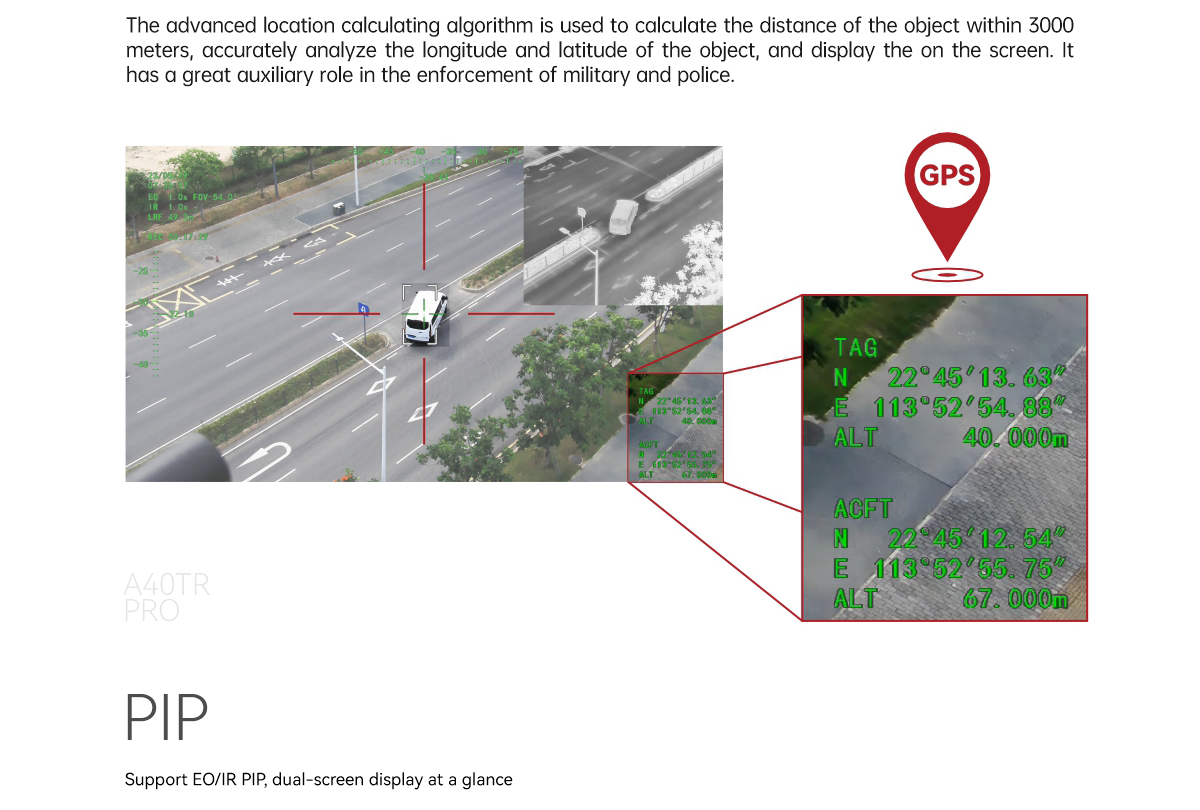

| Coordinate resolve | Logitude and latitude of target | |||
| Measurement | Measure distance from center of object to laser rangefinder sensor | |||
| Camera AI Recogn | ition Performance Parameters | |||
| Target type | Vehicle, Human | |||
| Simultaneous detection quantity | ≥10 targets | |||
| Contrast ratio | ≥5% | |||
| Minimum size of target | 5 X 5 pixel | |||
| Vehicle detection ratio | ≥85% | |||
| False alarm ratio | ≤10% | |||
| Packing Information | ||||
| N.W. | 1136g (Viewport Version) | |||

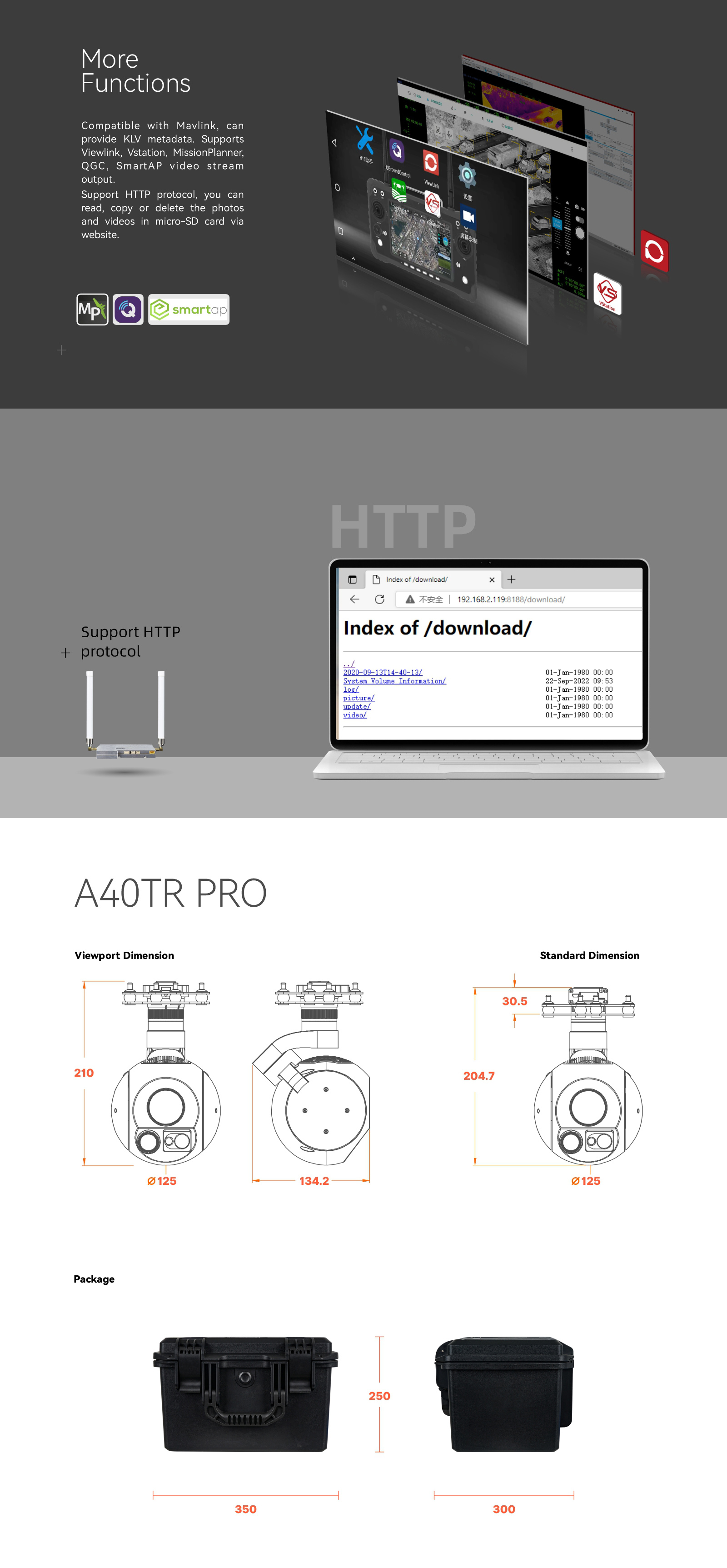

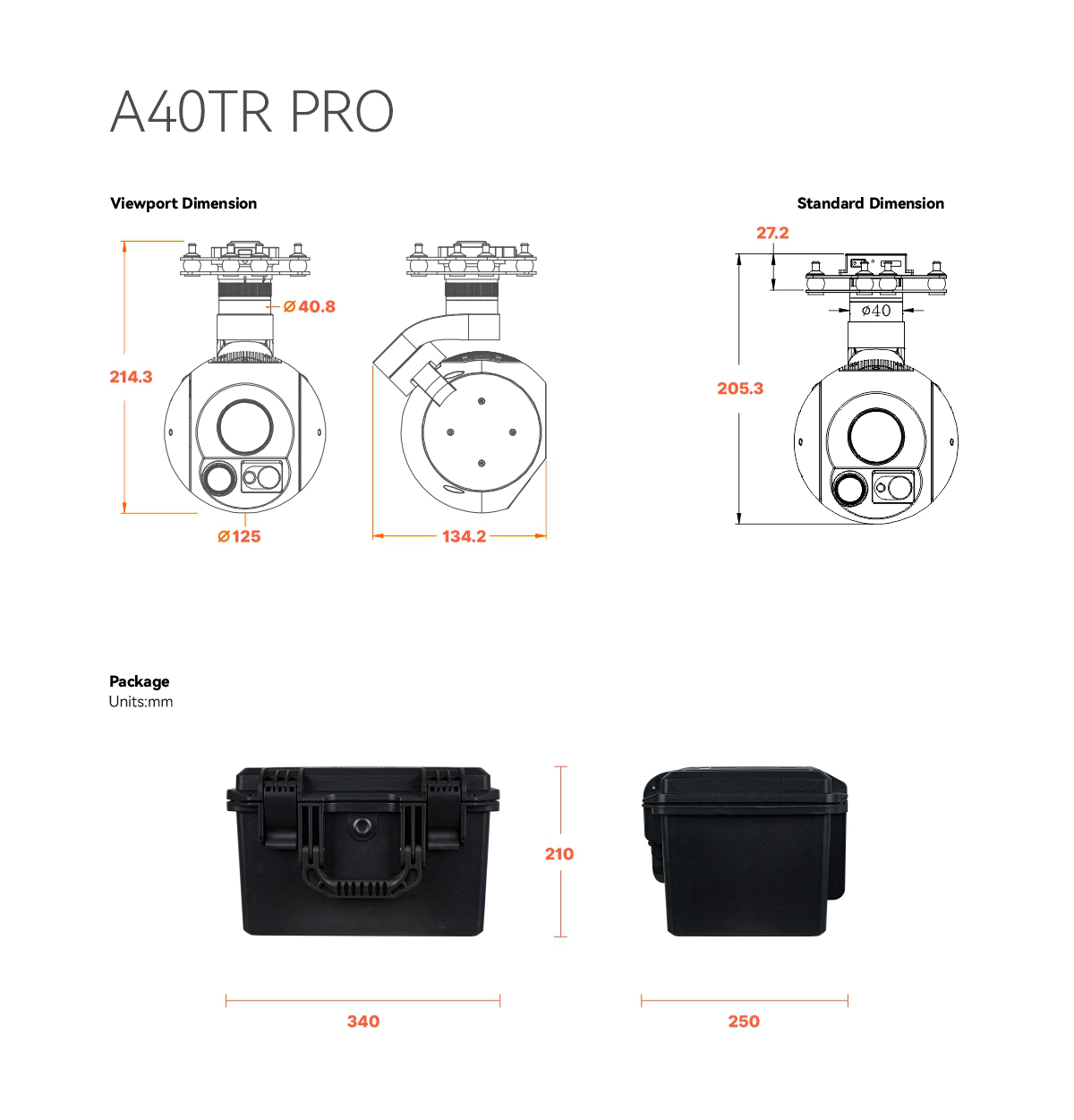

| Product meas. | 134.2*125*210.4mm（Viewport Version ） | |||
