| Hardware Parameter |
| Working voltage |
16V |
| Input voltage |
4S ~ 6S |
| Output voltage |
5V (connect with PWM) |
| Dynamic current |
450~1000mA @ 16V |
| Working environment temp. |
-20℃ ~ +60℃ |
| Output |
IP (RTSP/UDP 720p/1080p 30fps) |
| Local-storage |
SD card (Up to 128G,class 10, FAT32) |
| Photo storage format |
JPG(1920*1080) |
| Video storage format |
MP4 (1080P 30fps) |

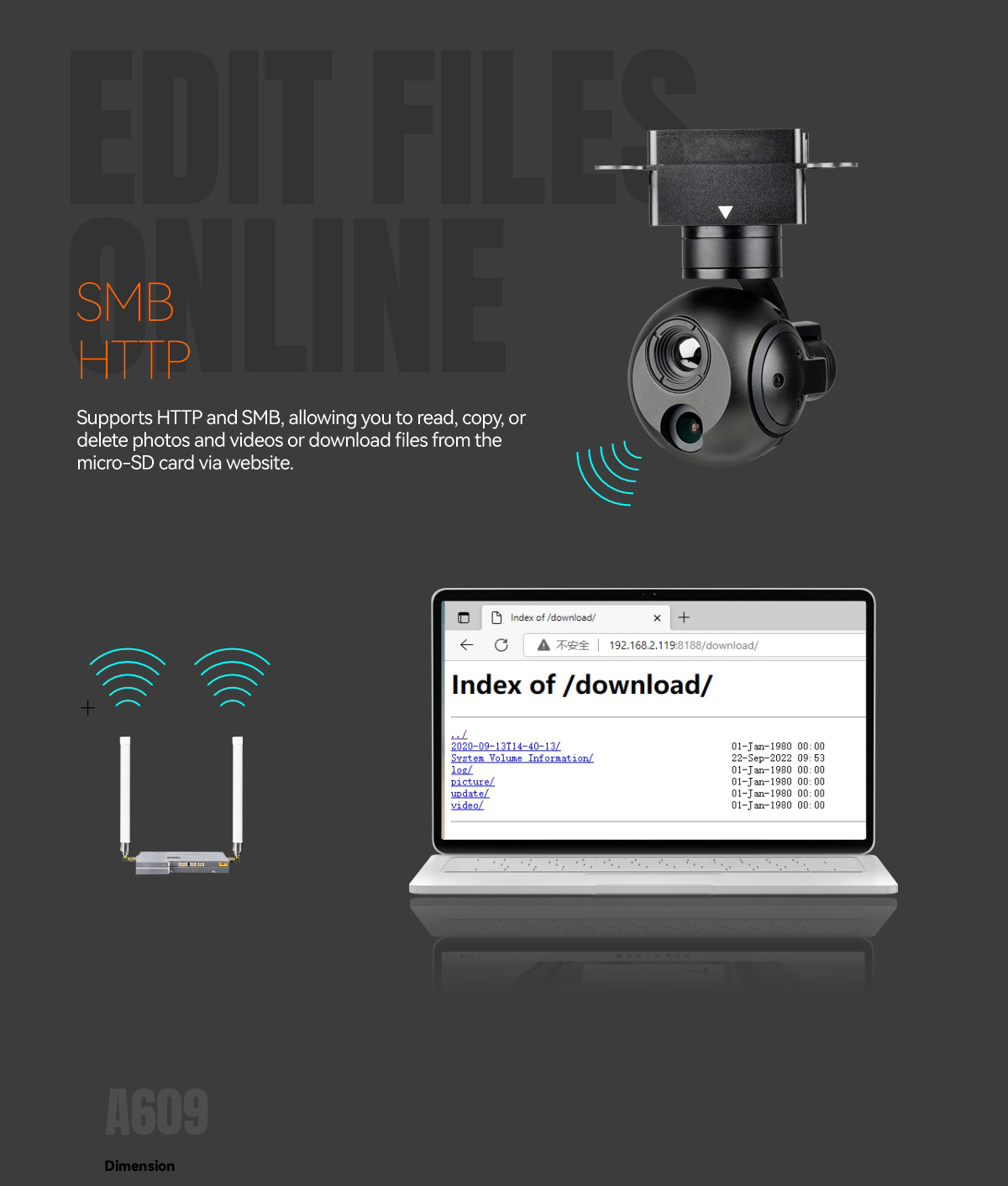

| Card reading online |
HTTP read pictures |

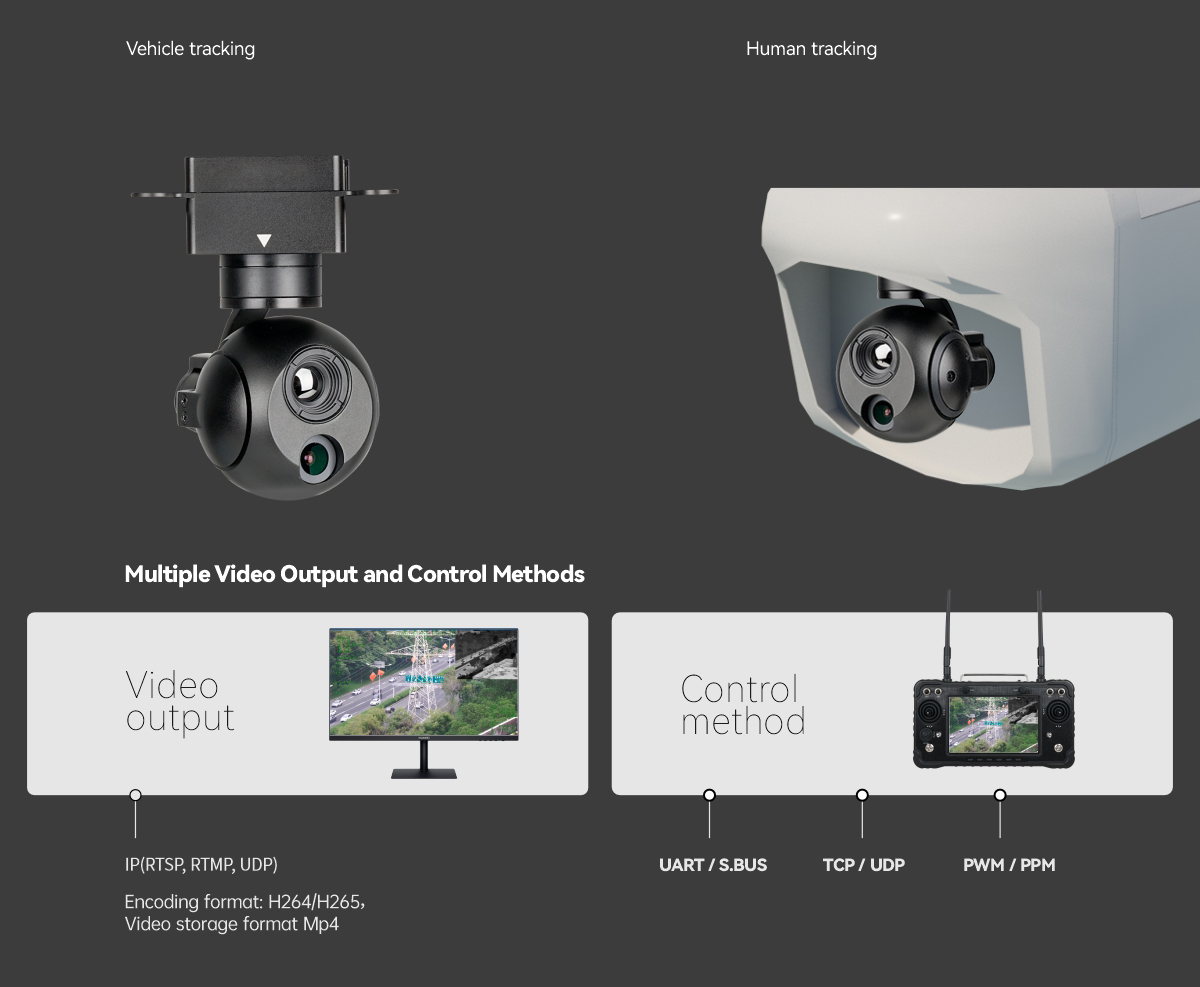

| Control method |

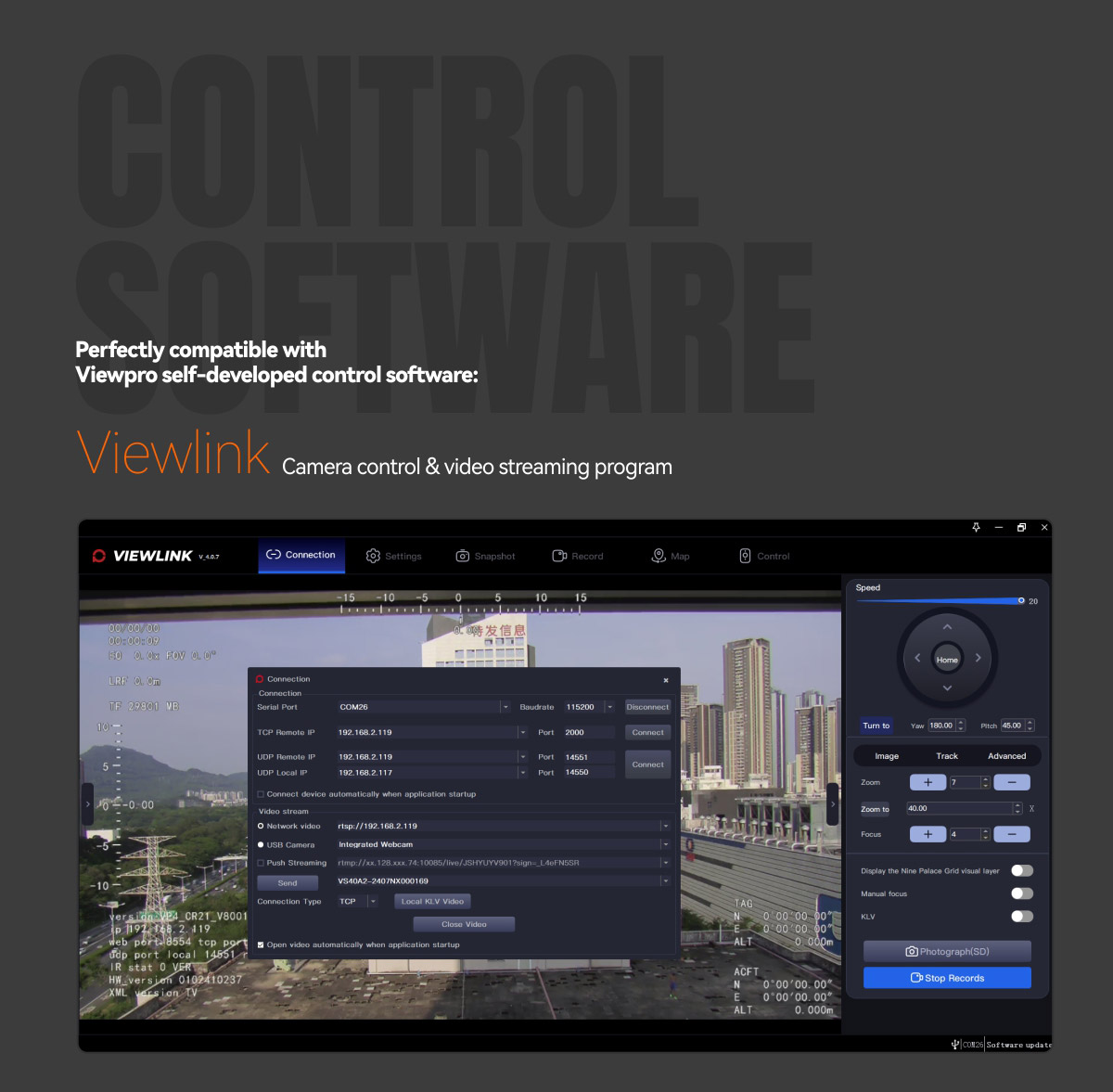

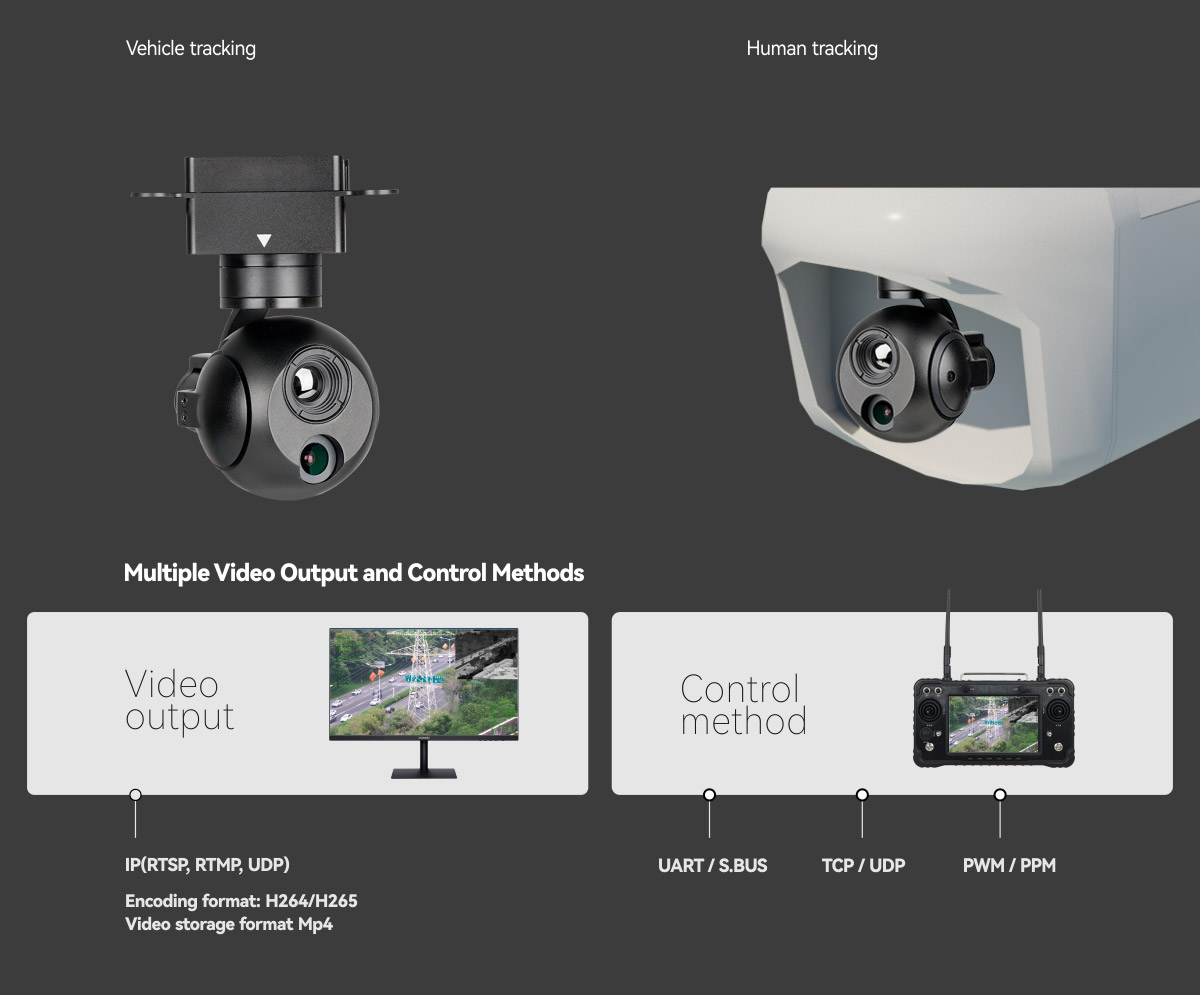

UART / S.BUS/ TCP(IP output version)/UDP(IP output version)/RTSP |
| Geotagging |
Support, display time and GPS coordinate in picture exif |

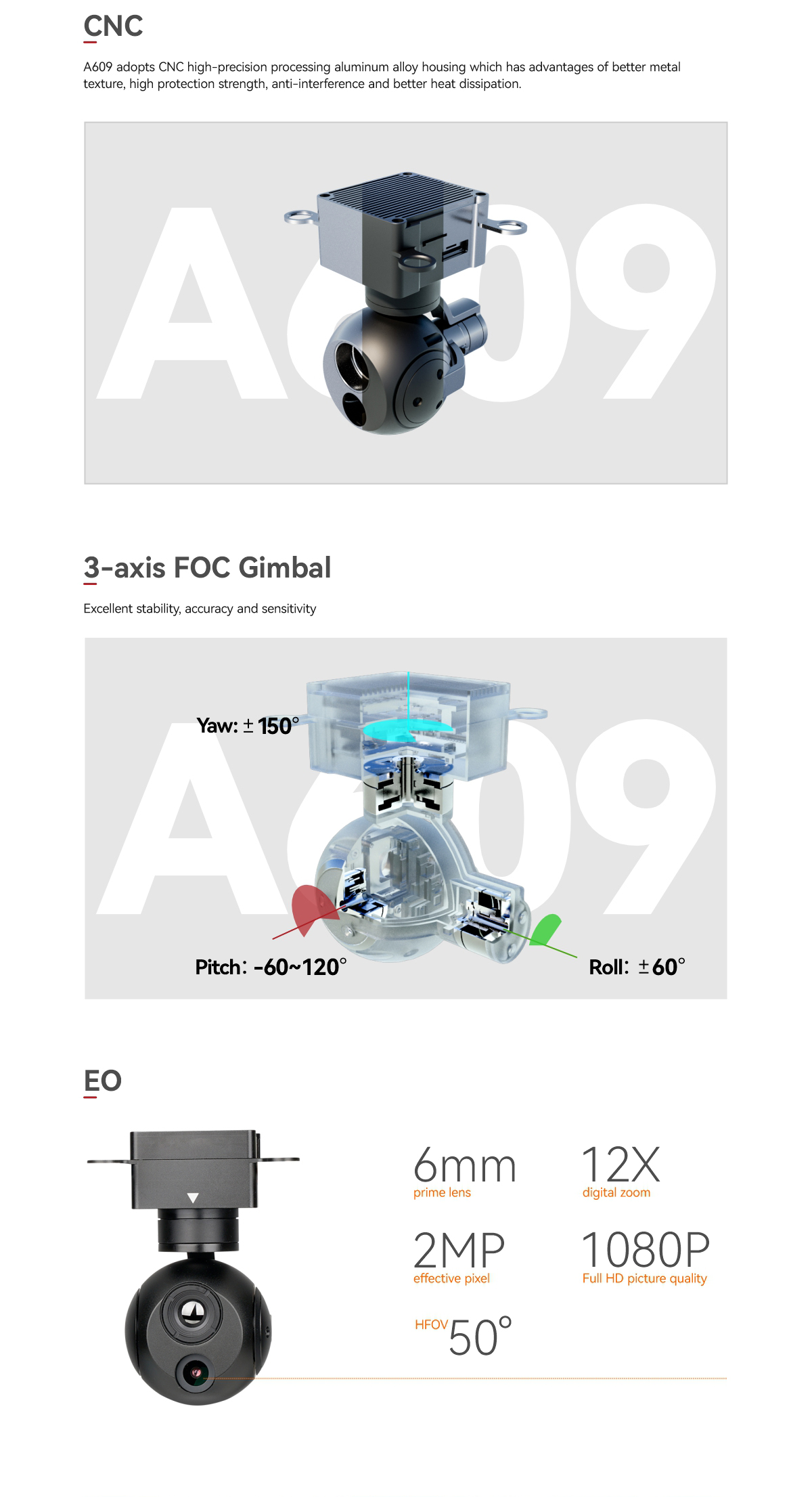

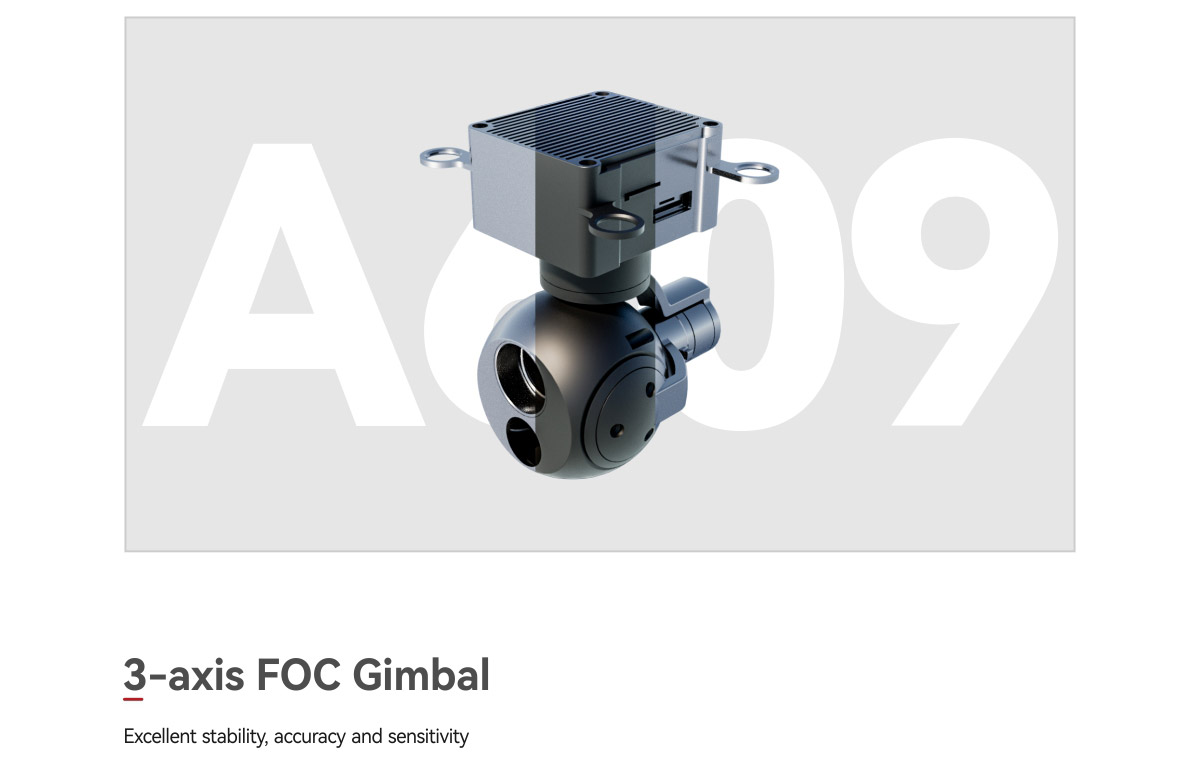

| Gimbal Spec |

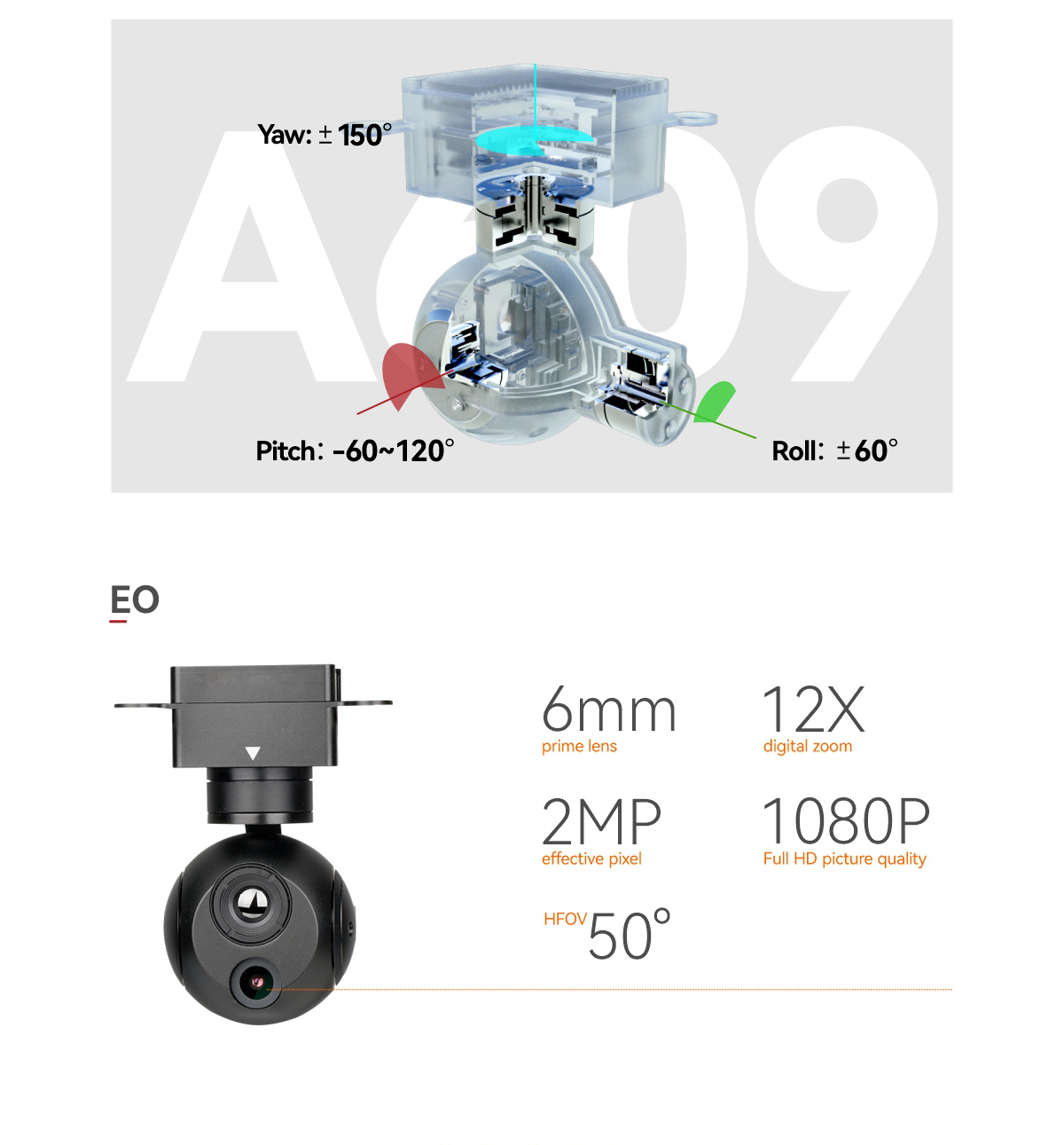

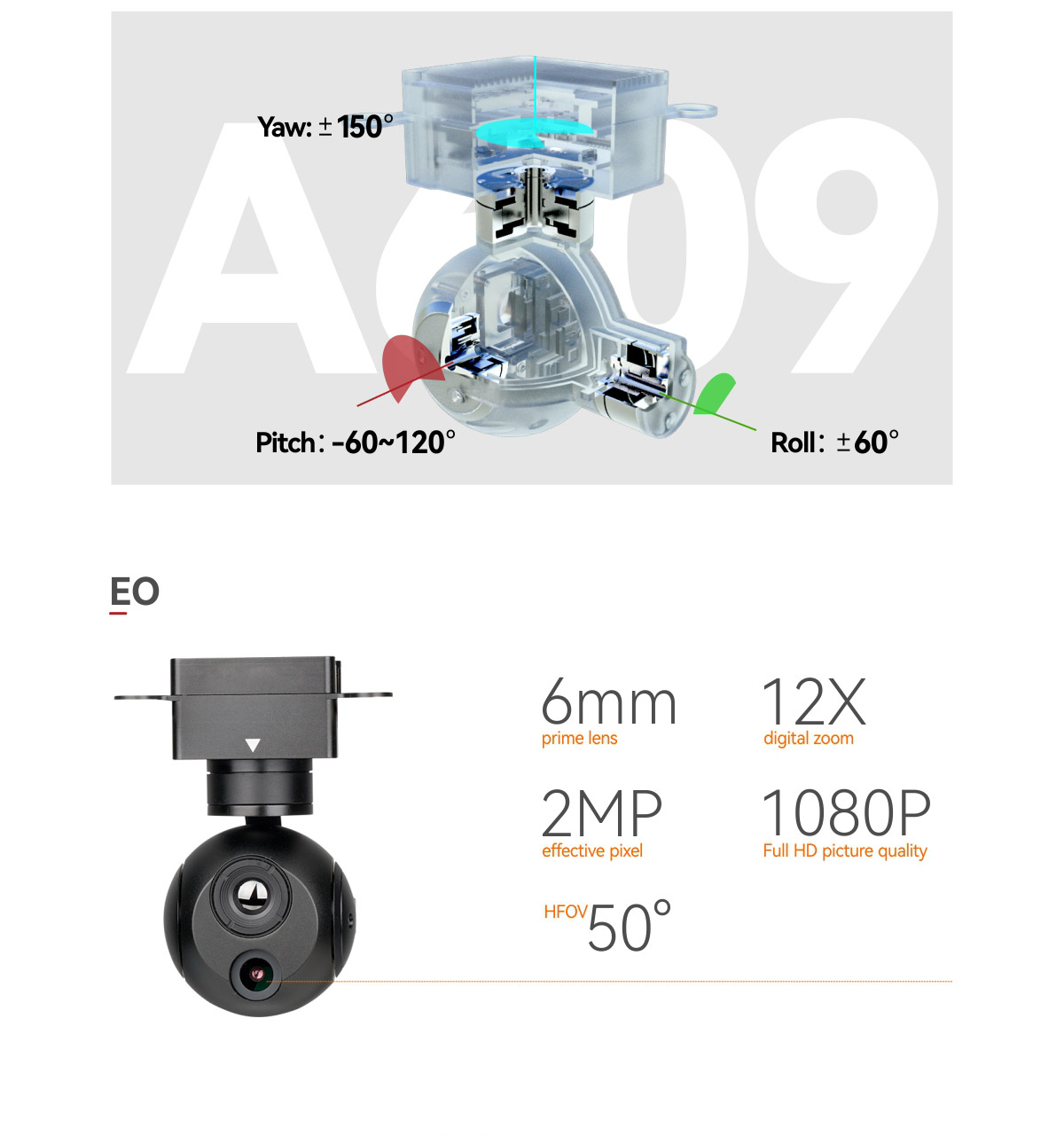

| Angle scope of structure design |
Pitch/Tilt: -60°～120°, Roll: ±60°, Yaw/Pan: ±150° |
| Angle scope of software design |
Pitch/Tilt: -45°～115°, Yaw/Pan: ±140° |
| Vibration angle |
Pitch/Roll/Yaw: ±0.02° |
| One-key to center |
√ |
| EO Camera Spec |
| Imager Sensor |
1/2.9" CMOS Sensor |
| Image pixel |
2MP |
| Picture quality |
Full HD 1080 (1920*1080) |
| Lens |
Focus Length 6mm |
| Angle of View (D,H,V) |
FOV：D 60° H 50° V 28° |

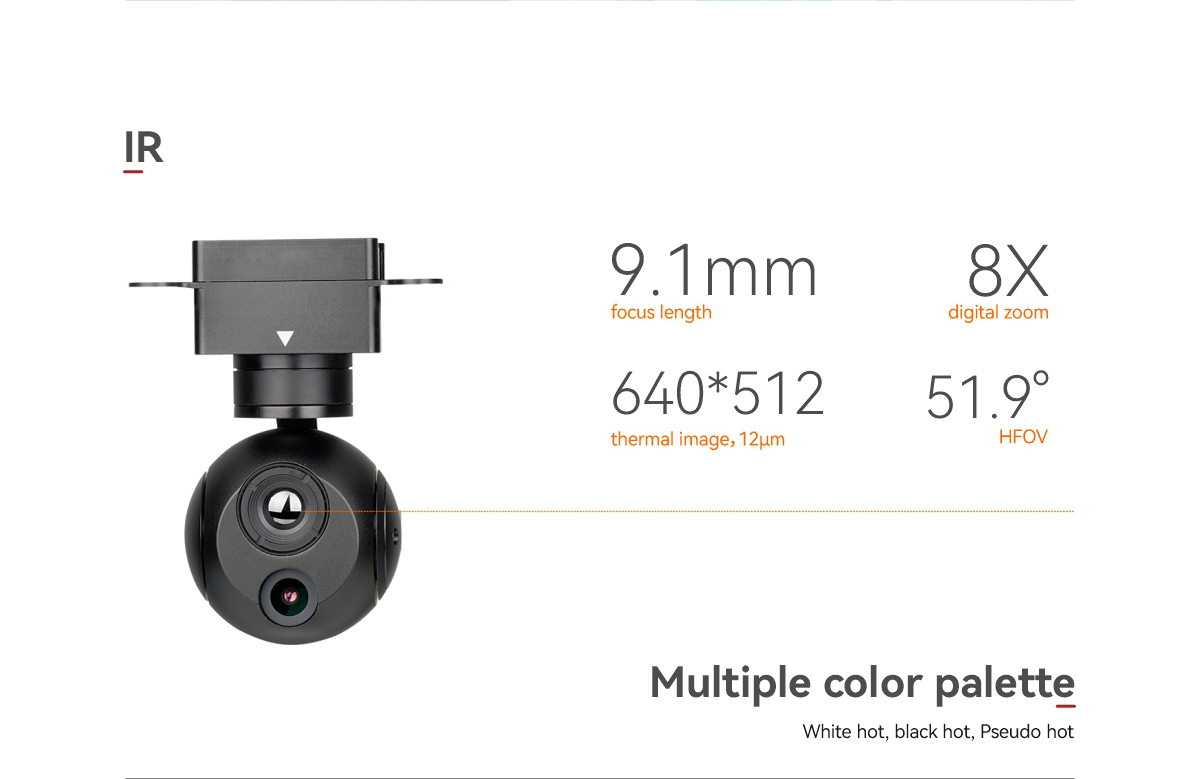

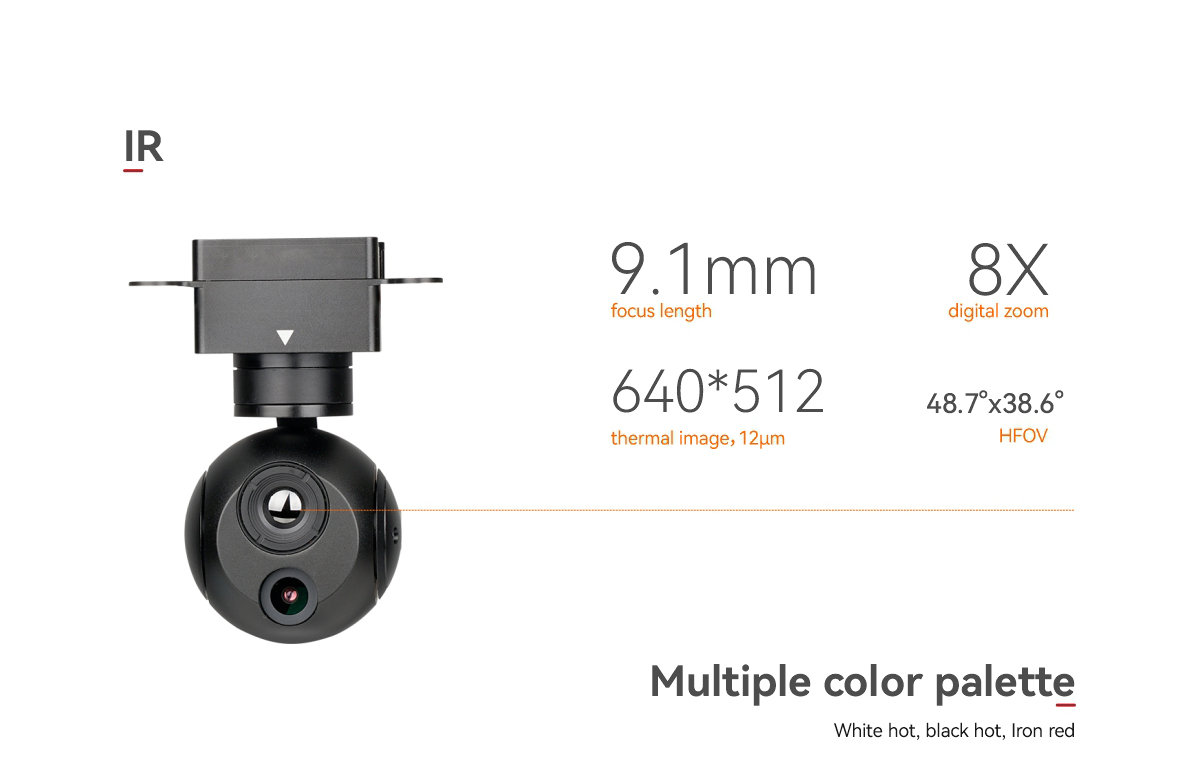

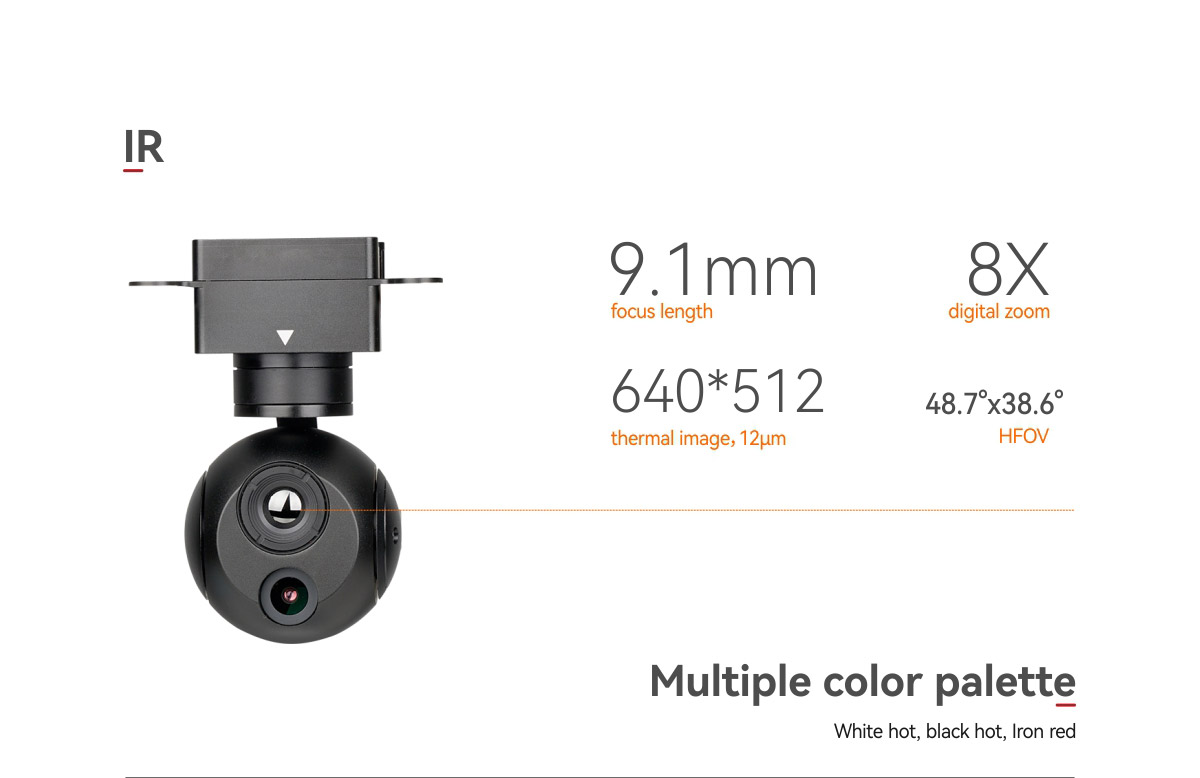

| IR Thermal Imager Spec |
| Focus Length |
9.1mm |
| Horizontal FOV |
51.9° |
| Vertical FOV |
30.5° |
| Detective Distance |
1100 meters |
| Recognize Distance |
250 meters |
| Verified Distance |
170 meters |
| Working mode |
Uncooled VOx long wave (8μm~14μm) thermal imager |
| Detector pixel |
640*512 |
| Pixel size |
12μm |
| Focusing method |
Athermal prime lens |
| NETD |
≤50mK@F1.0 @25℃ |
| Color palette |
White,black,pseudo color |
| Sync correct time |
Yes |
| Radiometric function |
Optional |
| EO / IR Camera Object Tracking |
| Update rate of deviation pixel |
30Hz |
| Output delay of deviation pixel |
<30ms |
| Minimum object contrast |
5% |
| SNR |
4 |
| Minimum object size |
16*16 pixel |
| Maximum object size |
256*256 pixel |
| Tracking speed |
±48 pixel/frame |
| Object memory time |
100 frames |
| EO/IR Camera AI Performance |
| Targets type |
Car and human |
| Simultaneous detection quantity |
≥ 10 targets |
| Min contrast ratio |
5% |
| Min target size |
5×5 pixel |
| Car detection rate |
≥85% |
| False alarm rate |
≤10% |
| Packing Information |

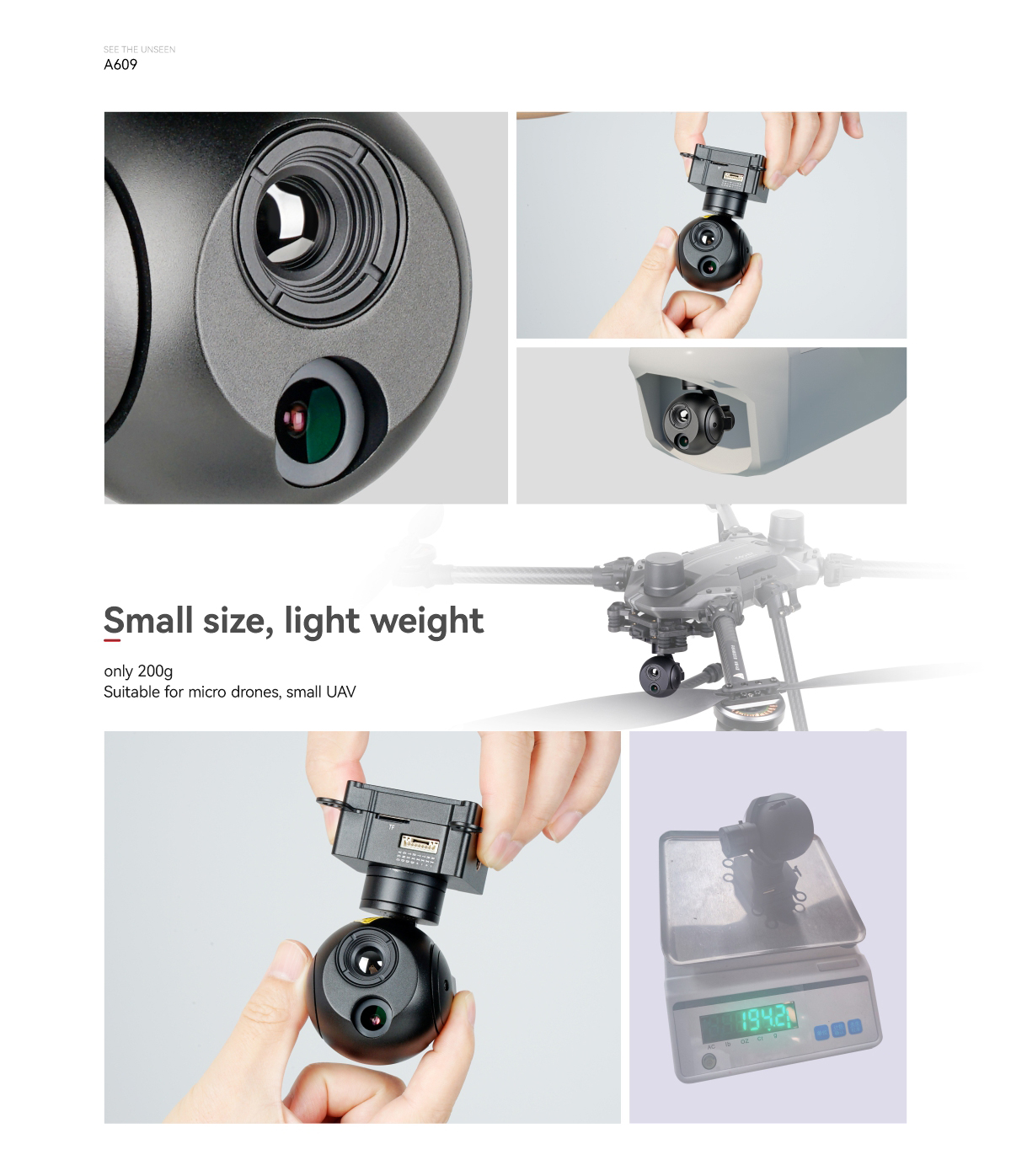

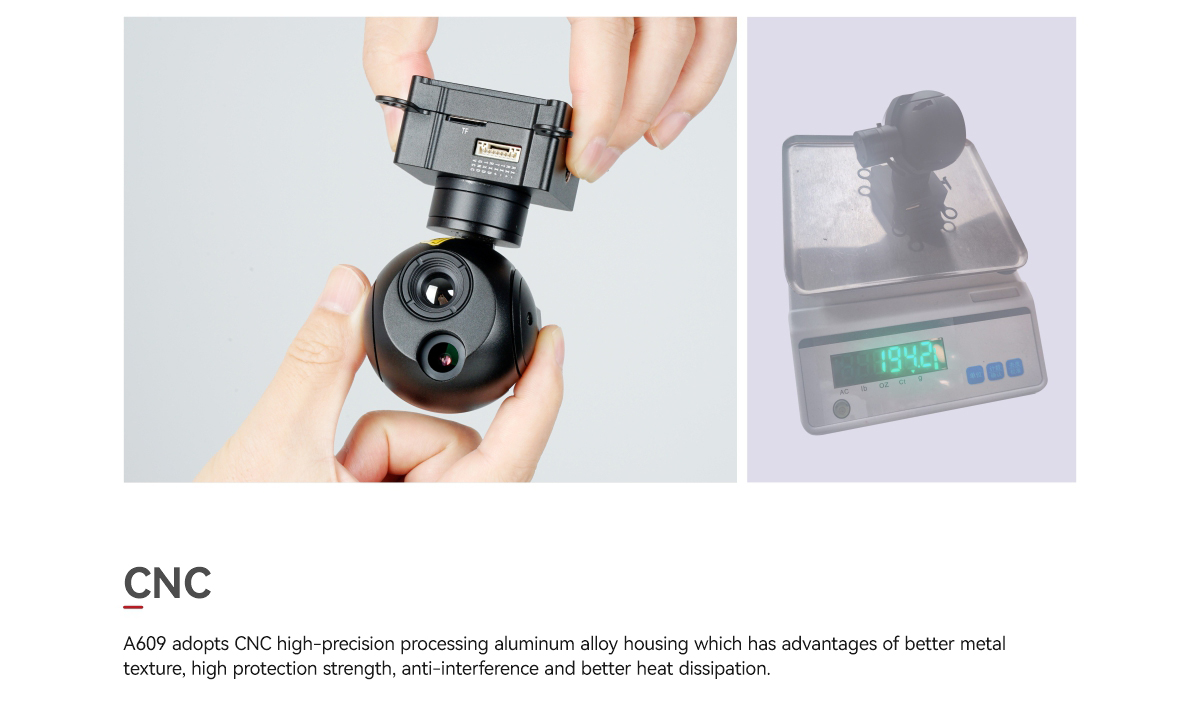

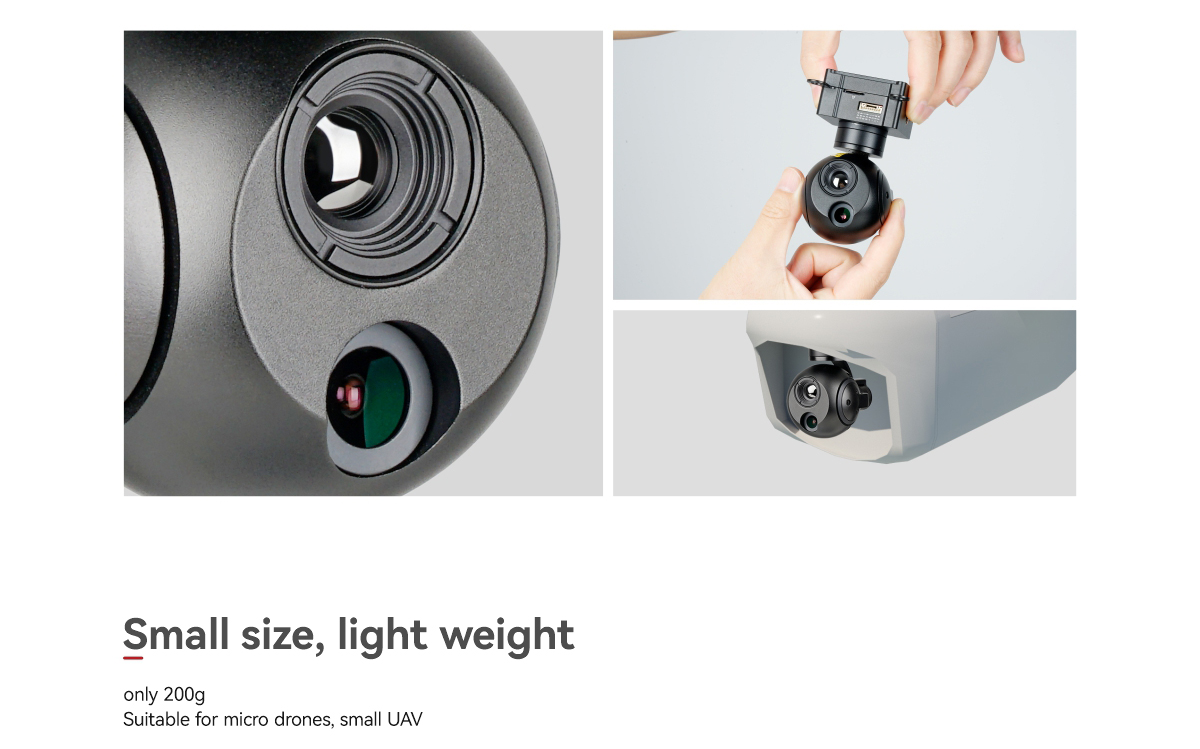

| N.W. |

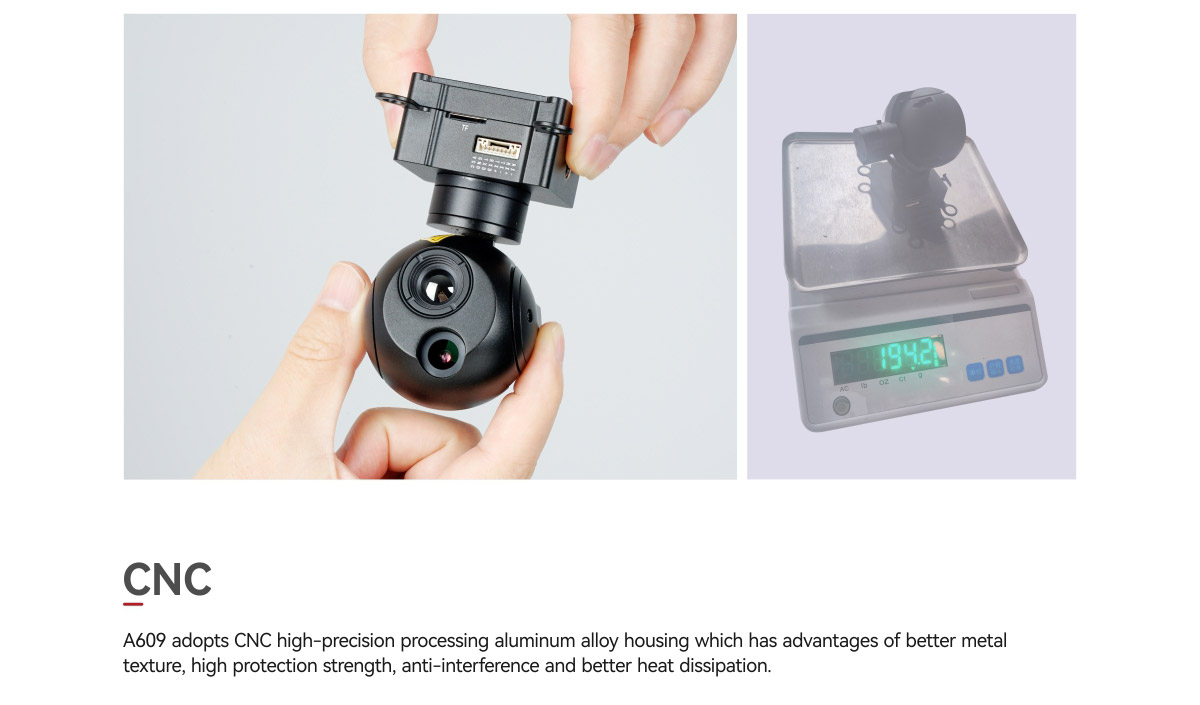

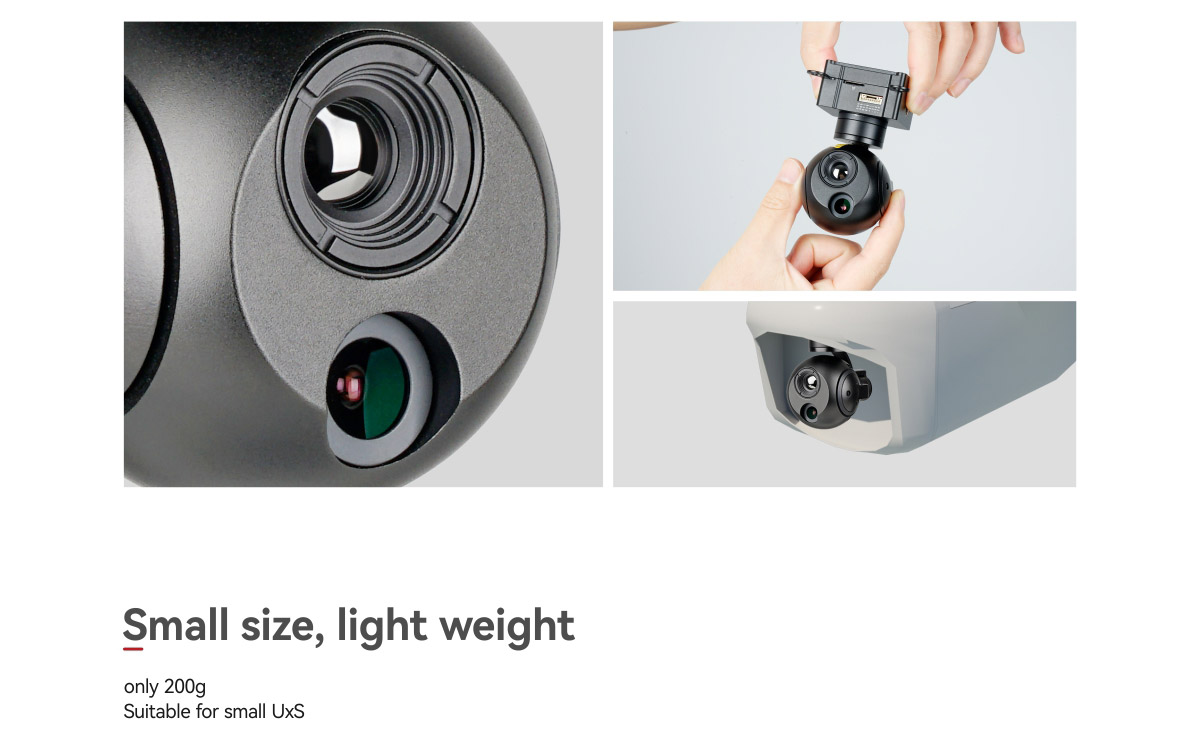

195±10g |

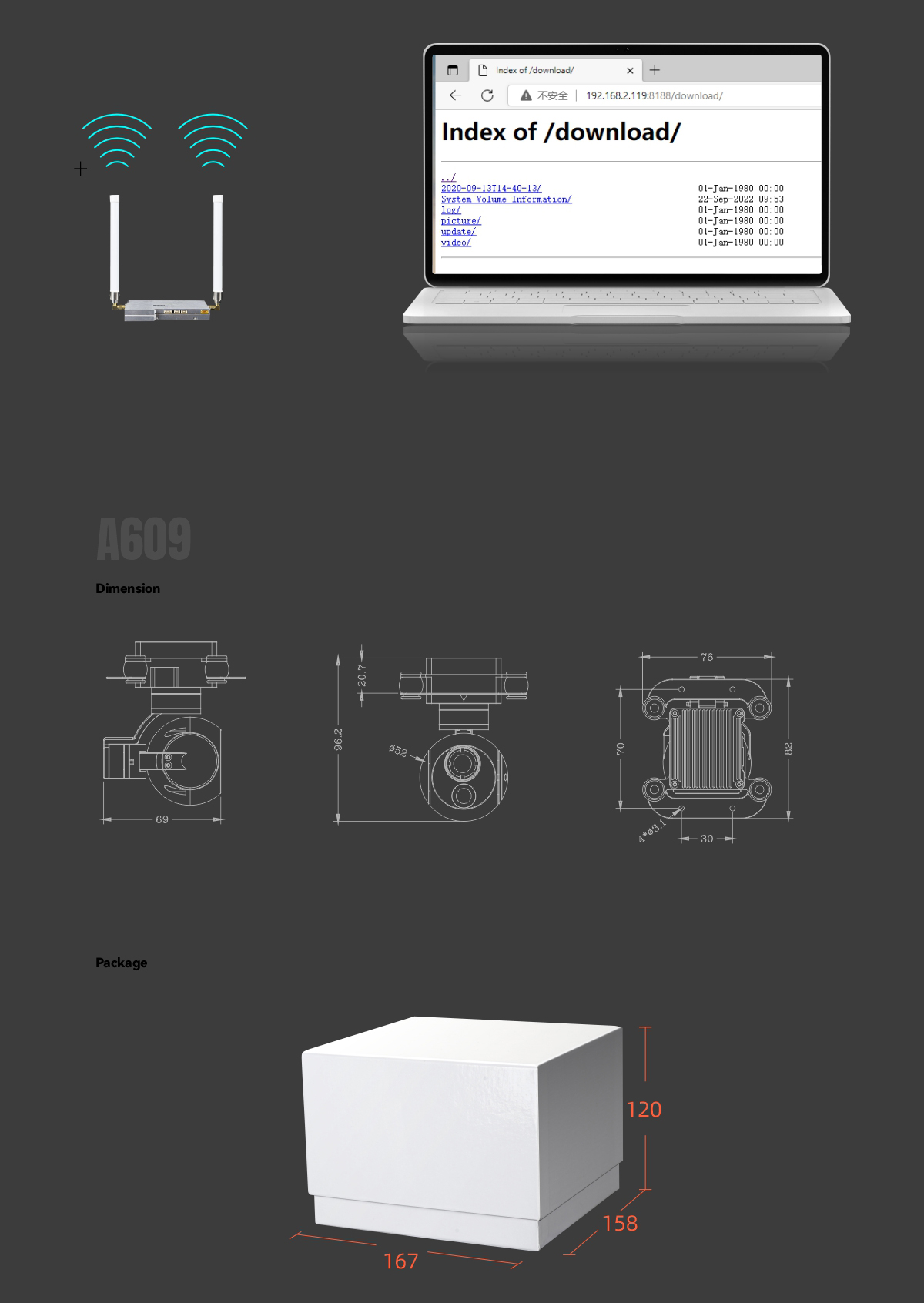

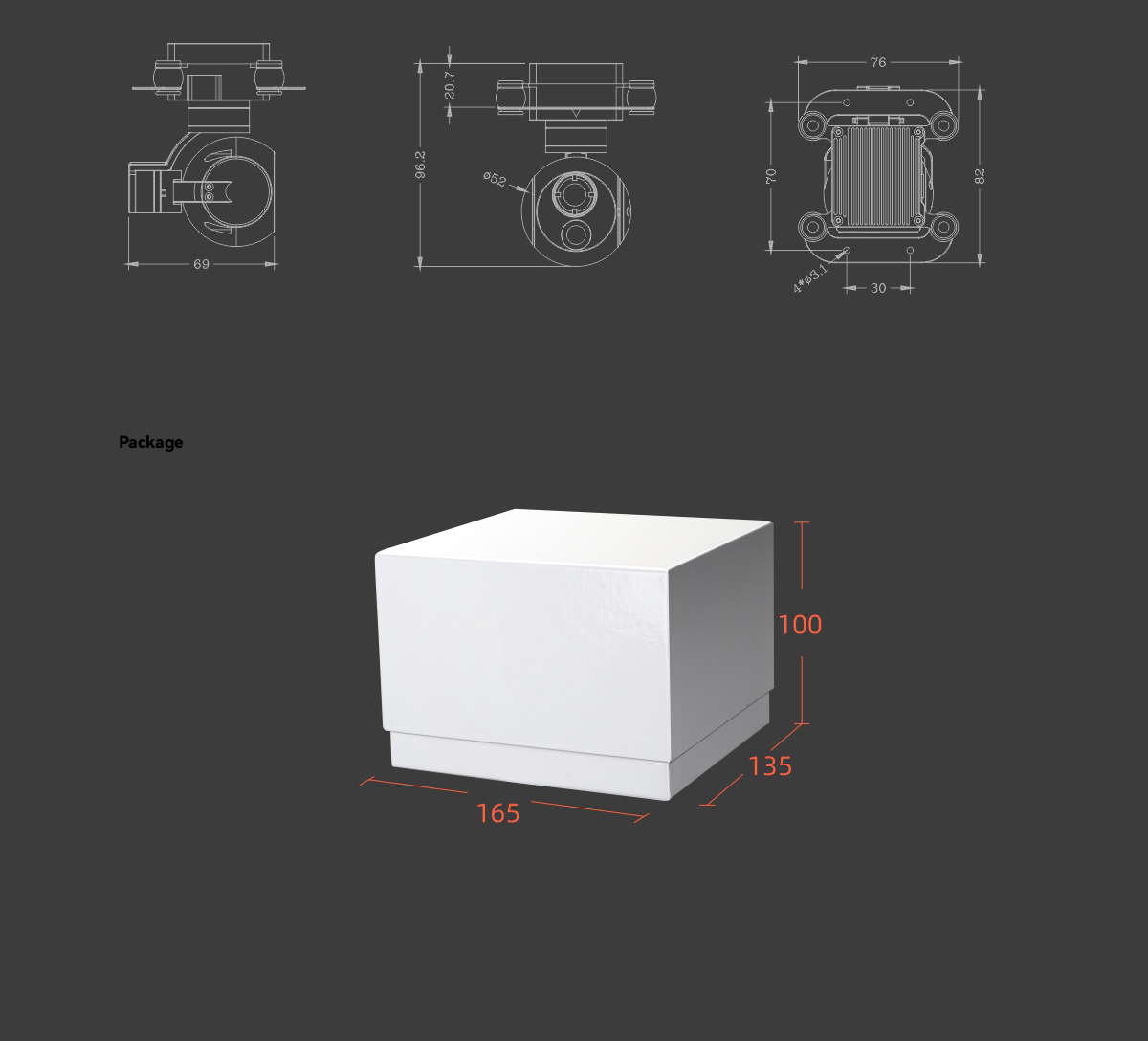

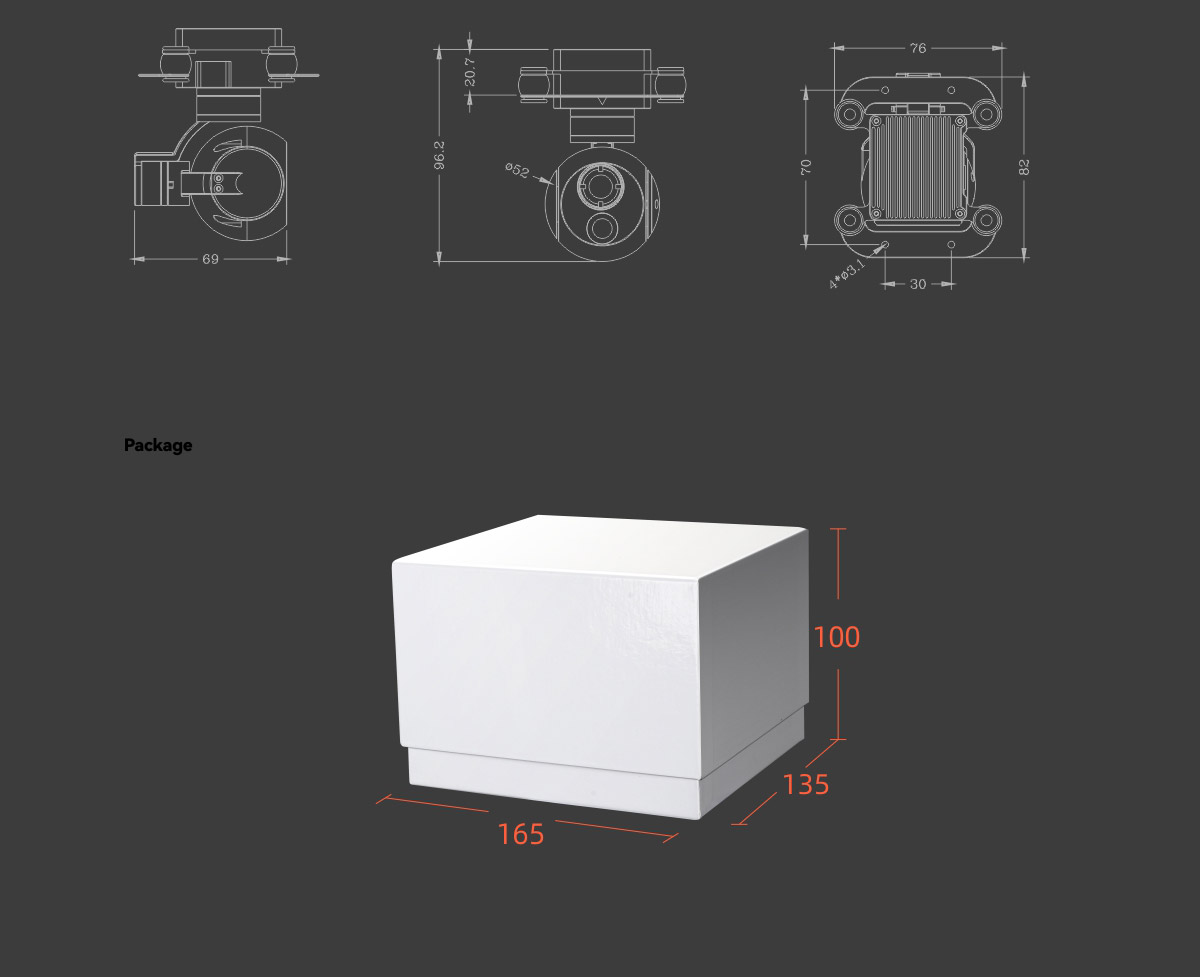

| Product meas. |
69*52*96.2mm |
| Accessories |
1pc gimbal camera device, screws, USB to TTL cable / Hight quality box with foam cushion |
